Edge protection and internal spacing roles
Capping vulnerable edges on large items
When folded inward into a U-channel, the sheet covers the long edges of furniture, wooden panels, or heavy appliances. The two upright walls absorb side bumps and prevent strapping bands from biting into the product during transit.
Creating rigid internal compartments
When folded in opposite directions into a Z-shape, the sheet bridges gaps between products inside a larger master carton. The upright legs transfer top loads and prevent heavy items from shifting.
Bracing cylindrical or fragile goods
For glass bottles or industrial jars packed in a master case, the Z-folded profile creates a physical barrier that keeps individual items from striking each other.
Reinforcing master carton perimeters
A U-channel placed along the inside bottom or top edge of a larger shipping box adds a double layer of corrugated board, improving overall stacking strength without upgrading the entire outer box.
Industrial and transit packing situations
Furniture and appliance transit
Heavy, bulky items often do not require a full corrugated box, but their corners and edges remain vulnerable. A U-channel provides targeted impact resistance exactly where handling damage occurs most often.
Master carton kitting and glass transport
Packing multiple fragile items into a single outer box requires internal separation. Z-folded sheets create effective physical barriers that keep components separated during rough transit.
Industrial extrusion and panel shipping
Long, flat, or extruded products often ship on custom pallets rather than inside standard boxes. U-channels wrap the exposed lengths, allowing tight strapping without crushing the product edges.
When to consider flat pads or single-crease boards
Protecting a single corner instead of a full edge
If the product only requires a buffer on a single 90-degree corner rather than wrapping three sides of an edge, a single-crease L-board (0111) uses less material and is easier to position.
Separating flat layers
If the packing job requires dividing layers of product on a pallet or inside a box without folded upright walls, a completely flat corrugated pad (0100) is the better choice.
Flute direction, board grade, and fold orientation
Aligning flute direction with the load
Flute orientation changes how the board behaves. For a U-channel, flutes should run perpendicular to the score lines so the board bends cleanly without cracking. For a Z-spacer supporting top loads, flutes should run parallel to the load to maximize column strength.
Matching board grade to the impact risk
A standard single-wall board handles basic void fill and light edge protection. Heavy appliances or tightly strapped industrial goods often require double-wall board to prevent the flutes from crushing under tension.
Determining the fold orientation

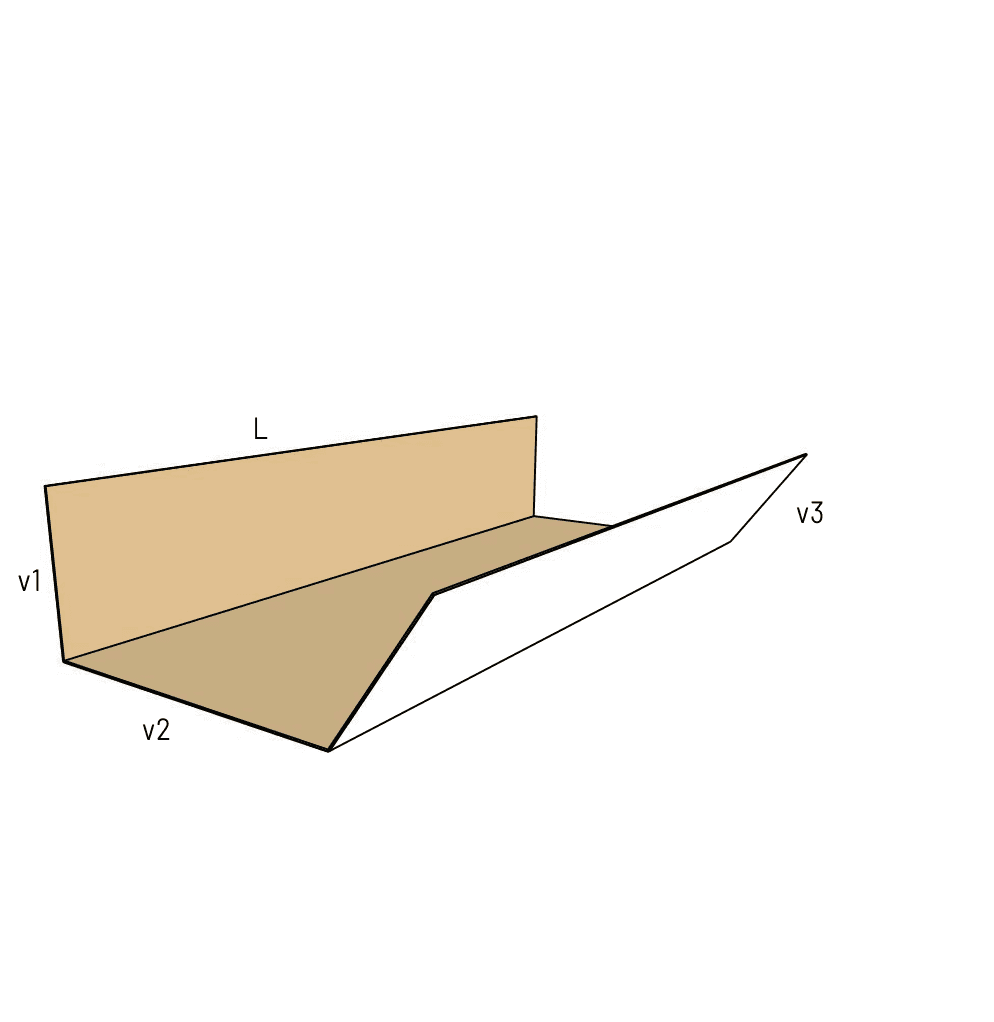

The exact same flat sheet forms both shapes. Folding both outer panels inward creates the U-channel. Folding them in opposite directions creates the Z-spacer. The packing line team controls the final shape.
Planning the external securing method
Because the sheet lacks interlocking tabs, the packing setup must include strapping, shrink wrap, or a tight master carton to hold the folded profile in place.
Adjusting panel widths and board thickness
Asymmetric panel widths
The central base and the two flanking walls do not have to be equal. The specification can include a wide base with short retaining walls for a shallow tray effect, or a narrow base with tall walls to reach deep between packed components.
Board thickness upgrades
Moving from a standard C-flute to a heavier double-wall profile increases the puncture resistance against tight strapping bands and heavy side impacts.
Surface printing and handling marks
Because the sheet ships flat, it easily accepts flexographic printing for part numbers, orientation arrows, or handling instructions before folding.
Board and packing details
Production routing and volume thresholds

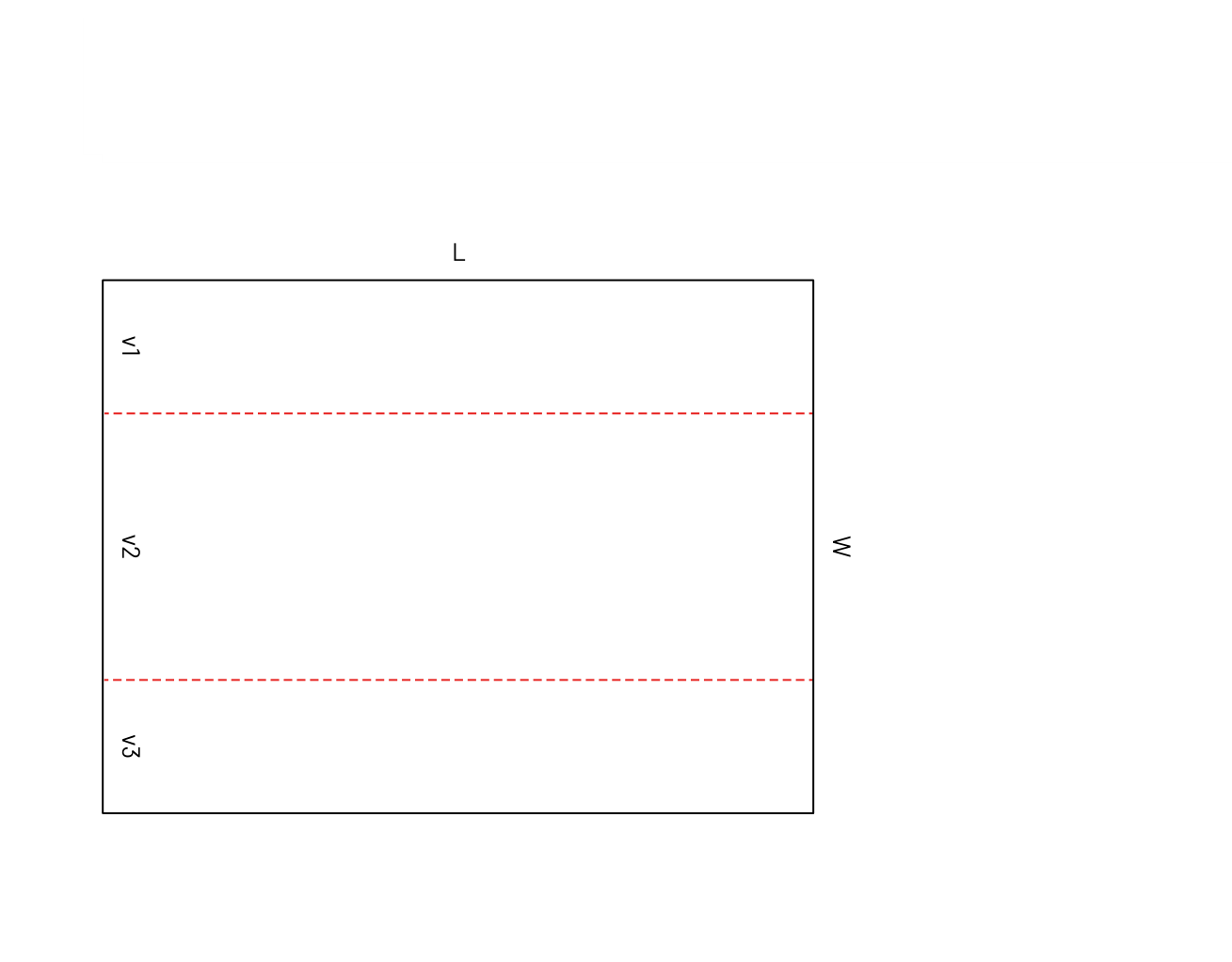

Because this shape is a simple rectangle with straight, continuous score lines, high-volume orders often run directly on the corrugator or a slitter-scorer. This avoids flatbed die-cutting entirely, changing the production path for repeat orders.
Pallet density and storage
The sheets ship completely flat. This maximizes warehouse storage density and reduces inbound freight space compared to pre-glued or pre-folded protective inserts.
Additional notes
U-fold versus Z-fold orientation
The exact same flat sheet can form both shapes. Folding both outer panels inward creates the U-channel. Folding them in opposite directions creates the Z-spacer. The choice happens entirely in the packer's hands.
Related protective components
FAQs
Application and fit
Does this sheet lock into its folded shape?
No. The folds rely entirely on friction and tension. The packing line must secure the U-channel with strapping or shrink wrap, or wedge the Z-spacer tightly inside a master carton.
Can I use this as a standalone shipping box?
No. This is an open-ended protective component. It leaves the ends and top exposed unless it goes inside a sealed outer shipper or gets fully wrapped on a pallet.
Print and finish
Can these edge protectors be printed?
Yes. Because they are manufactured and shipped completely flat, they easily accept flexographic or digital printing for branding, handling instructions, or part numbers.
Production and quantity
How are the score lines manufactured?
For standard straight-line scores, most converters run this on a slitter-scorer. Flatbed die-cutting is only necessary if the design includes custom notches, cutouts, or angled edges.
Material and board
What board thickness makes sense for edge protection?
Single-wall C-flute or B-flute handles most standard furniture and internal spacing jobs. Double-wall board is better for heavy industrial equipment where tight strapping might crush a thinner profile.
Packing labor
How is this assembled on the packing line?
Operators receive the sheets flat on a pallet and manually break the two score lines right before application. It is a fast, two-step manual fold.
Material and board
How does flute direction affect the fold?
Flutes running perpendicular to the score lines help the board bend cleanly into a U-channel. Flutes running parallel to the load path give a Z-spacer better resistance against top loads.
Application and fit
Can the side walls be different heights?
Yes. The central base and the two flanking walls can be sized independently to fit specific product contours or master carton depths.
