FEFCO 0129

5-Panel Widthwise Corrugated Wrap

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

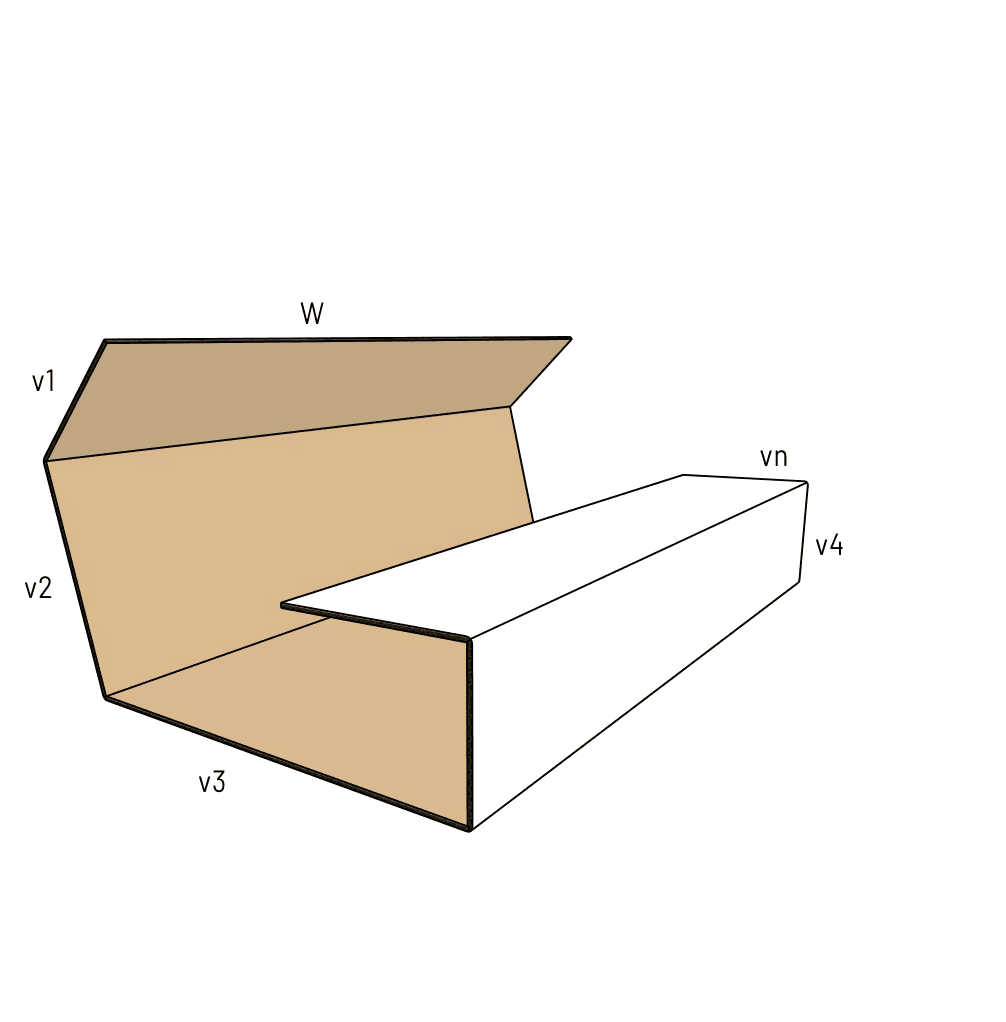

Folds into a four-sided rectangular sleeve or stepped edge guard
Outer panels meet flush without an overlap seam
Requires strapping, tape, or a master carton for closure

About this product

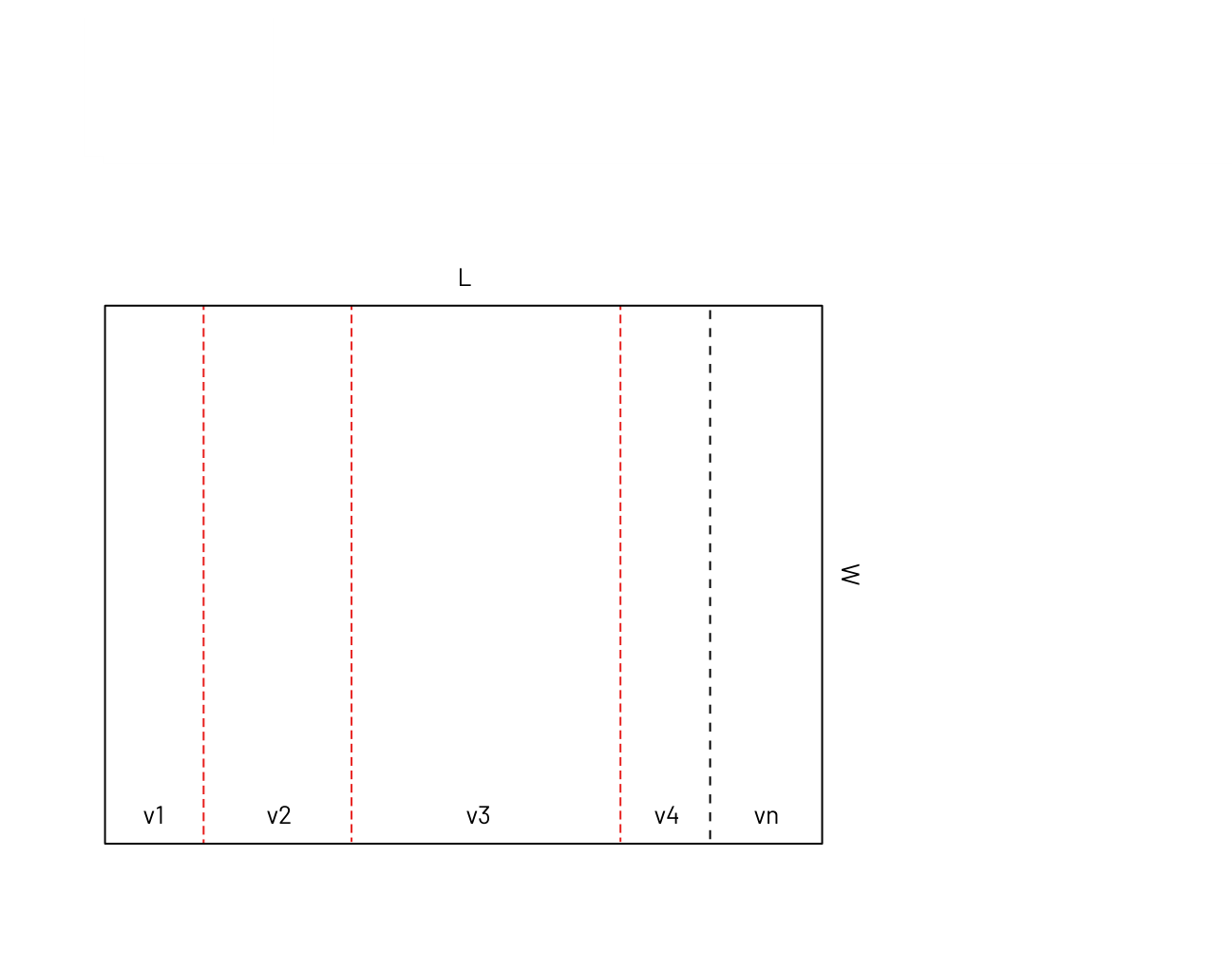

The 5-panel widthwise wrap is a flat corrugated sheet scored with four parallel creases. It folds manually into a continuous rectangular sleeve or a multi-stepped corner guard, making it a practical choice for protecting long industrial parts, bracing pallet edges, or creating a rigid internal buffer inside a master carton.

Because the two outer panels meet flush without overlapping, this wrap relies entirely on external strapping, shrink film, or the tight fit of an outer box to hold its shape. The widthwise crease orientation changes the flute direction compared to standard lengthwise wraps, which affects how the board bends and supports compressive forces.

Common uses

Pallet edge bracing
Bundling long extrusions
Internal void fill
Multi-stepped corner protection

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall sleeve length

Main product width

Product thickness

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this wrap be used?

How do you plan to secure the wrap?

What type of items are being protected?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Edge Protection and Internal Bracing Roles

Pallet edge and corner bracing

Conforms to the edges of large, heavy loads. The flush-meeting panels distribute strapping tension evenly, preventing plastic or metal bands from biting into the primary packaging.

Bundling long extrusions and profiles

Wraps completely around metal, plastic, or timber lengths. The five-panel design provides a continuous protective bumper along the entire shaft before the bundle is taped or strapped.

Internal void fill and column support

Folds into a tight rectangular tube to fill empty space inside a larger shipping box. When oriented correctly, the vertical panels help the outer carton resist crushing under stacked pallets.

Multi-stepped furniture protection

The four creases allow the sheet to fold into a stepped profile, covering the vulnerable corners and extended edges of tabletops, doors, or flat-pack furniture components.

Packing Environments Using Widthwise Wraps

Industrial manufacturing

Teams packing heavy, uniform parts benefit from the flat delivery and high pallet density of these sheets, folding them only when the product is ready for final strapping.

Bulk B2B transport

Operations shipping large quantities of raw materials or components use these wraps to stabilize pallet layers and prevent load shifting during transit.

Furniture and appliance distribution

Warehouses moving large, bulky items rely on these wraps to shield vulnerable corners and flat-pack edges from impact during loading and unloading.

When to Consider a Different Wrap or Channel

When the wrap needs to seal itself

If the packing line uses automated folder-gluers or requires a taped seam, the flush-meeting panels will not work. An overlap modification is required to create a glue flap.

When only three sides need protection

If the product only requires a simple U-channel bumper against a box wall, a three-panel sheet reduces material waste and folding time.

Close variants and lookalike dielines

The closest library neighbors include 0123, 0122, 0119. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, Flute, and Fit Decisions

Flute direction and bending resistance

Because the creases run widthwise, the flute direction naturally runs perpendicular to the folds. This makes the board easier to bend around corners but changes its column strength if used as an upright support.

Board grade and cracking risk

Single-wall C-flute or B-flute handles 90-degree folds well. Heavy double-wall board used for appliance protection may require double-creasing to prevent the inner liner from cracking during assembly.

Clearance for flush meeting

The outer panels are sized to meet exactly in the center. The internal depth and width must match the product closely, or the panels will either gap or overlap, changing how strapping tension applies.

Strapping and tension distribution

If the wrap will be secured with plastic or metal bands, the board grade must be strong enough to distribute that tension without buckling or biting into the product underneath.

Practical Template Adjustments

Panel proportion changes

The distance between creases can be modified to fit asymmetrical products, creating a custom rectangular profile rather than a perfect square.

Double-creasing for heavy board

For thick double-wall or triple-wall board, adding parallel double creases relieves tension on the liner, allowing the board to fold 90 degrees without splitting.

Anti-slip surface coatings

If the wrap acts as a layer pad or pallet stabilizer, applying a water-based anti-slip coating increases surface friction and prevents stacked goods from shifting.

Board and packing details

Flat delivery and storage

These wraps ship completely flat, maximizing warehouse space and pallet density before use on the packing line.

Production routing and simple geometry

Because this wrap uses straight parallel scores, it runs efficiently on standard corrugated board lines without requiring complex shaped cuts.

Overlap Modifications

Overlap Flap Modification

The standard 0129 meets flush in the center. Extending one of the outer panels creates an overlap, allowing the wrap to be glued or taped closed without relying on external strapping.

Additional notes

Straight-line production routing

The simple rectangular shape and parallel scores allow this wrap to be produced efficiently on standard corrugated lines without requiring shaped cutouts.

FAQs

Closure and Assembly

Can this wrap be sealed with tape?

Natively, the two outer panels meet flush in the center, making standard taping difficult without an overlap. If you plan to tape or glue the wrap closed, the template should be adjusted to extend one panel into an overlap flap.

Route and Shipping

Can I ship this wrap through a parcel courier?

Not on its own. Because it has open ends and relies on friction or strapping to hold its shape, it must be placed inside a sealed master carton or securely strapped to a pallet before entering a mixed-carrier network.

Board and Finish

Will heavy-duty board crack when folded into a tight rectangle?

It can. While single-wall board usually folds cleanly, heavy double-wall board used for industrial edge protection often requires double-creasing to relieve tension and prevent the liner from splitting at the 90-degree corners.

Product Fit

How do I ensure the outer panels meet exactly in the center?

The flat sheet is scored based on your exact product dimensions. Sharing the precise width and depth of the item being wrapped ensures the outer panels close flush without leaving a gap or overlapping awkwardly.

Related Packaging

Why choose a widthwise wrap over a lengthwise wrap?

The choice between widthwise and lengthwise creases changes the direction of the corrugated flutes. This affects how easily the board bends around your product and how much vertical weight it can support if used as an internal column.

Inserts and Void Fill

Can this be used as an internal support column?

Yes, it can be folded into a tight rectangular tube to fill empty space inside a larger box. However, because the creases run widthwise, you must verify that the resulting flute direction aligns properly to support the required compressive forces.

Packing Labor

Does this wrap hold its shape before strapping?

No. The folds are purely friction-based and have no locking tabs. The wrap relies entirely on the operator holding it in place until external strapping, shrink film, or an outer carton secures it.

Samples and Prototypes

Should I test the fold before ordering a large run?

Yes. Testing a physical sample helps verify that the outer panels meet flush around your specific product and confirms whether the chosen board grade requires double-creasing to prevent cracking.
