Reverse Tuck End Box

Standalone parcel shipping is risky. The friction tabs will likely open upon impact. For courier networks, apply strong security seals over the tucks or place the carton inside a corrugated master shipper.

On a straight tuck, both lids hinge from the rear panel, leaving the front face completely smooth. On a reverse tuck, the lids hinge from opposite panels. This means one side of the box will have a clean folded edge at the top and a visible cut edge at the bottom.

Heavy board is a poor match. The closure relies on sliding a cardboard tab between the product and the inner wall. Thick double-wall board will bind, crush the corners, and make manual assembly nearly impossible. Stick to fine flutes or cartonboard.

Slightly. The mechanical slits require a bit more deliberate force to seat correctly compared to a smooth friction tab. However, the tradeoff is a much more secure base that resists opening when the box is lifted.

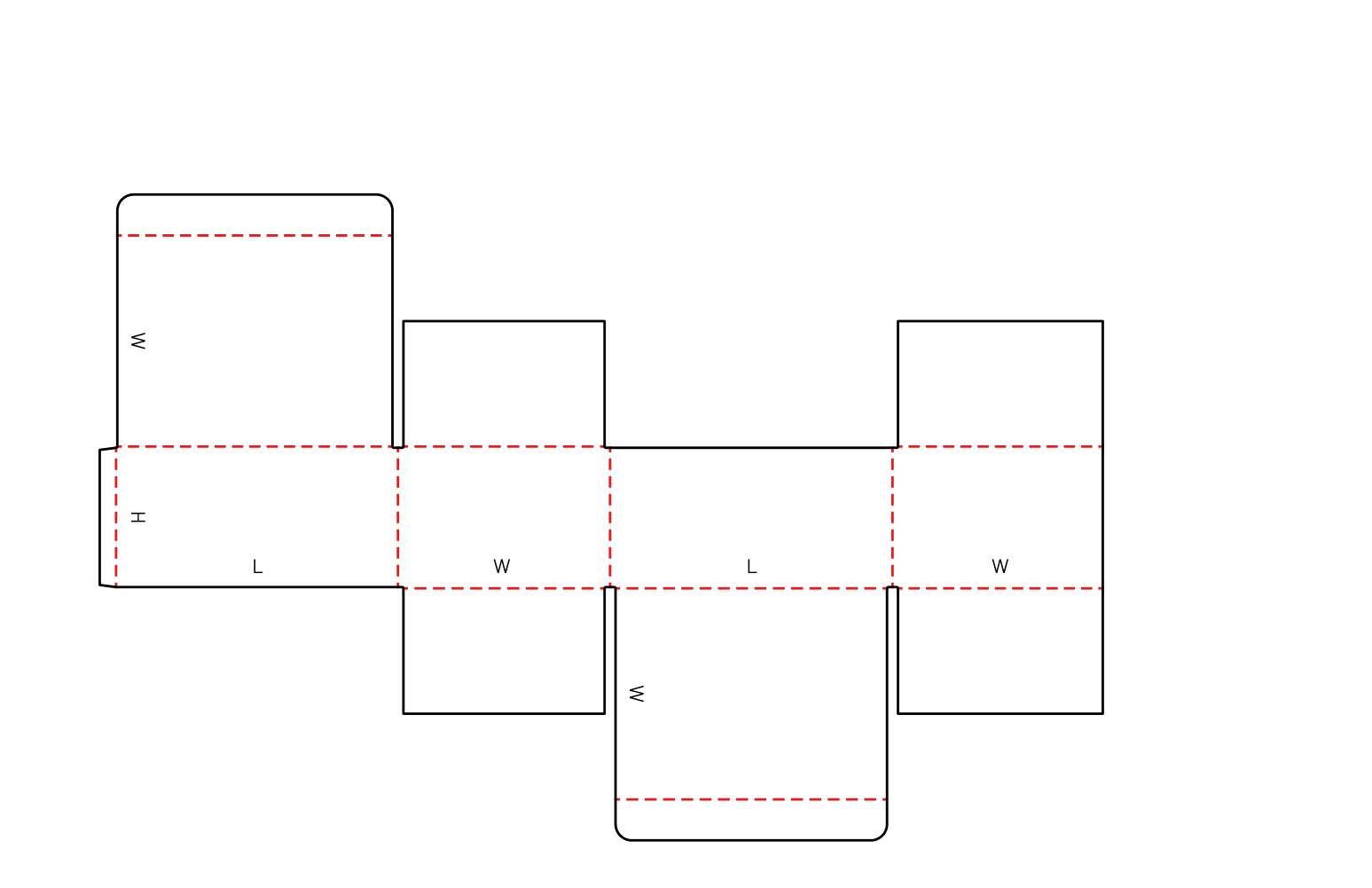

The alternating flap layout allows the flat, unfolded shapes to interlock tightly on the cutting die. This nesting reduces the amount of scrap cardboard between each box, improving the raw material yield for large orders.

Yes. Die-cut inserts or molded trays work well to hold small components in place. Just ensure the insert leaves enough clearance at the top and bottom for the tuck tabs to slide in without hitting the product.

If the board thickness changes without updating the cutting die, the friction clearances become too tight. The tuck tab depth and corner radius must be precisely matched to the specific board caliper to prevent binding.

The base is likely to give way. Because the bottom closure relies entirely on friction, dense or heavy items can push the bottom flap open when the box is lifted. Heavy goods require a crash lock base or a taped bottom.
