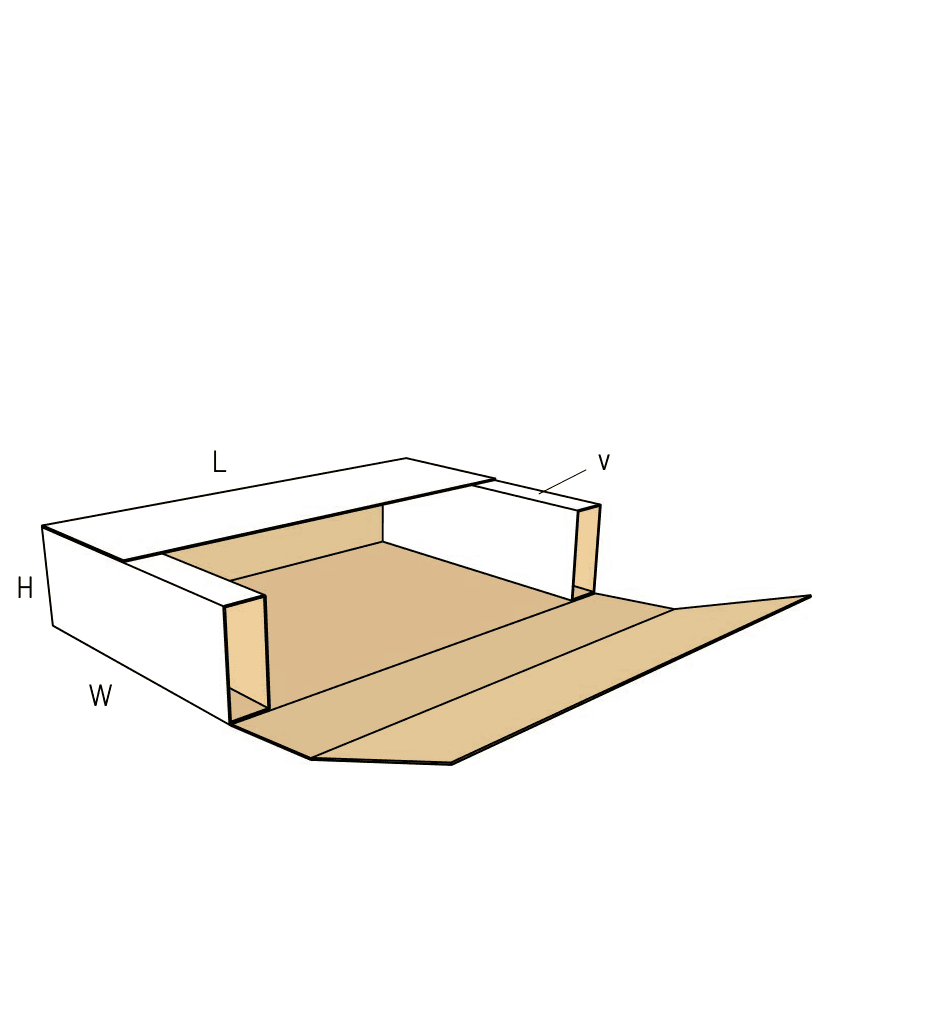

3D view
1 / 2

FEFCO 0403

Air Cell Wrap Folder

The air cell wrap is a one-piece corrugated folder engineered specifically for flat, fragile items. Instead of relying on loose foam blocks or bubble wrap, the short ends of the blank roll inward to form thick, hollow corrugated bumpers that cradle the product.

This integrated protection decelerates end impacts and creates a safe offset distance for vulnerable edges. Because the rolled buffers consume substantial board length, it trades higher material usage for a streamlined, single-piece packing operation.

Get a quote

At a glance

  • Integrated rolled end buffers replace loose foam inserts
  • External tape or strapping secures the final closure
  • Highly sensitive to board thickness; thick flutes bind during assembly

Common uses

  • Framed artwork and displays
  • Flat electronics and screens
  • Shallow industrial panels
  • Glass or acrylic shelving

Get a quote

Files (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Flat goods requiring edge protection

Framed artwork and displays

The hollow end bumpers absorb drop shocks, keeping delicate frames suspended away from the outer impact zone without requiring separate corner protectors.

Flat electronics and screens

Provides rigid edge protection and offset spacing without the static or mess of loose fill.

Shallow industrial panels

Consolidates the packaging bill of materials into a single die-cut sheet for manual pack stations handling sensitive components.

Glass or acrylic shelving

Creates a dedicated crush zone at the ends of the package, preventing direct edge impacts from shattering brittle materials.

Fulfillment and distribution contexts

E-commerce fulfillment

Reduces the number of SKUs at the pack station by combining the outer shipper and the internal protective blocking into one piece.

Art and gallery shipping

Delivers a clean, professional presentation that protects high-value flat pieces without excessive plastic wrapping.

Low-volume electronics manufacturing

Allows teams to pack sensitive flat components securely without investing in custom molded foam or complex multi-piece inserts.

When to consider a different folder

When the product is not highly fragile

If the item is flat but does not need offset air cells for impact protection, a standard cross-folder uses significantly less corrugated board and is faster to fold.

When top crush resistance is the main concern

If the primary risk is heavy pallets crushing the top of the package rather than end impacts, a Maltese cross box provides a tight wrap with a double-layered top closure.

Board, closure, and packing decisions

Board thickness limits

The end buffers fold the board over itself three to four times. Heavy double-wall board will crack or bind. Fine flutes or standard single-wall are required to form a clean rectangular cell.

Buffer width and offset

The width of the rolled air cell dictates how much crush distance exists between the outer wall and the product. This gap should match the fragility of the payload.

Closure method

The top flaps can be configured to meet exactly in the center for taping, or to overlap fully for strapping.

Packing line setup

The complex rolling sequence means this folder relies on manual assembly or specialized wrap-around casing equipment, rather than standard linear folder-gluers.

Template adjustments

Air cell sizing

The template allows adjustment of the inner cell width to match the exact offset protection required, though wider cells require an even larger flat blank.

Top flap overlap

The side top flaps can be extended to overlap entirely, creating a double-thick top layer that adds rigidity and provides a better surface for strapping.

Dimension type shifting

The CAD parameters can shift the fold allowances to ensure the inner cell width does not subtract from the usable payload volume.

Board and packing details

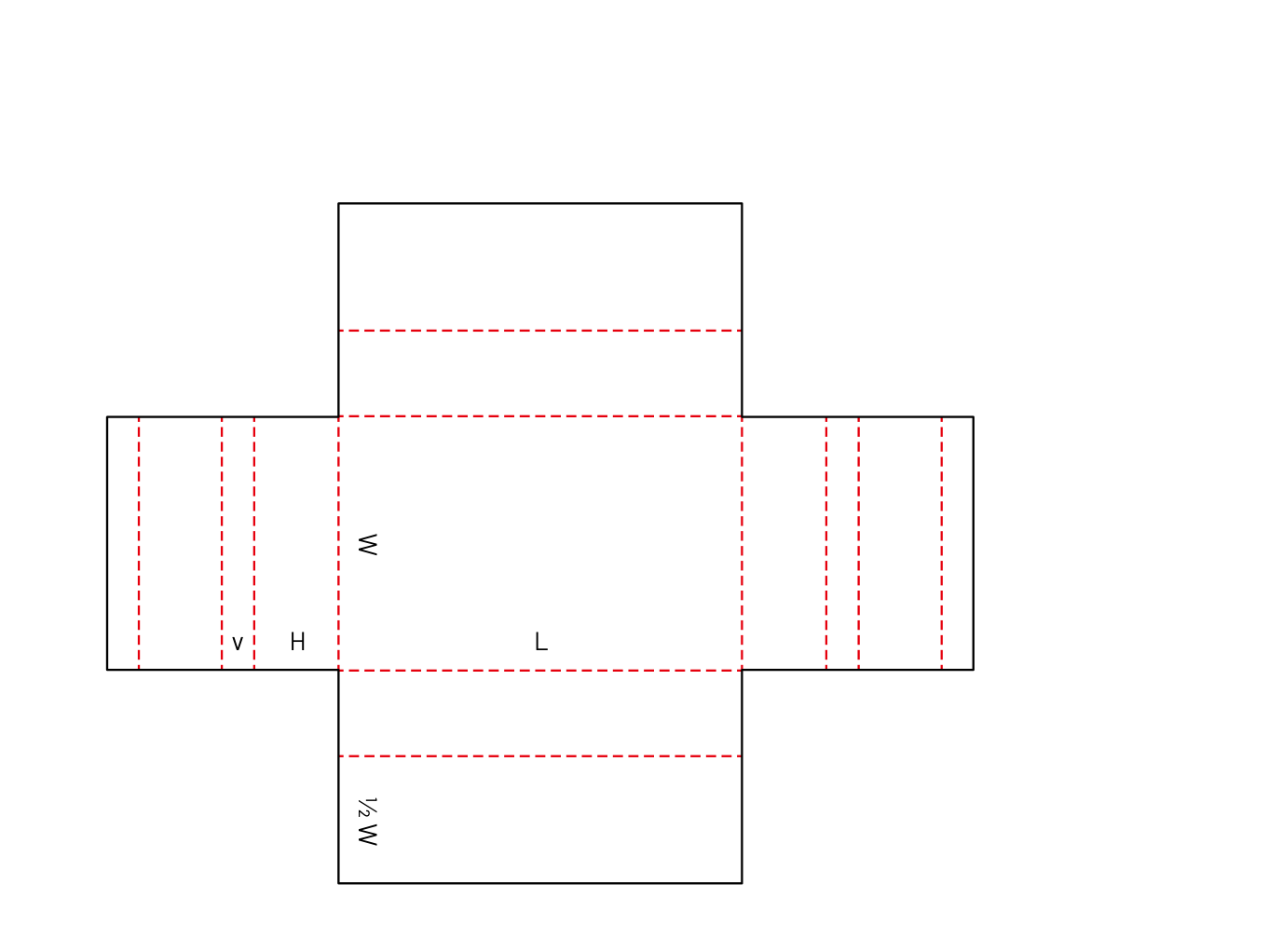

Blank sprawl and nesting

The cross shape and extended end flaps create a large flat footprint. This high offcut waste is the primary cost driver, offset by the labor and material savings of eliminating separate foam inserts.

Manual assembly rhythm

Operators must pre-break the parallel creases, roll the buffers inward, and hold them in place while loading the product and folding the side walls up.

Additional notes

Pre-breaking the buffer creases

Operators should pre-break the multiple parallel creases on the end flaps before rolling. This prevents the board from fighting the fold and ensures the air cell forms a clean, protective rectangle.

Related flat packaging

FAQs

Closure and handling

Does this folder lock closed on its own?

No. The side walls trap the rolled buffers laterally so they do not uncoil, but the final top flaps rely on external tape or strapping to stay closed during transit.

Board and material

Can we use heavy double-wall board for extra protection?

Double-wall board is a high risk for this specific package. The end buffers require rolling the board tightly over itself multiple times. Thick board will bind, crack the liner, and prevent the formation of a neat protective cell.

Assembly and packing

How does the packer assemble the end buffers?

The operator rolls the long end flaps inward along parallel creases to form a rectangular tube, then places the product in the center to stabilize the buffers before folding the side walls up.

Production and route

Does this package work on automated folder-gluer lines?

No. The complex rolling sequence and lack of native glue seams mean this folder requires manual assembly or highly specialized wrap-around casing equipment.

Cost and efficiency

Why is the flat blank so large?

The end flaps must be long enough to roll into a complete 3D rectangular tube. This creates a large cross-shaped blank with high offcut waste, which is the main tradeoff for getting built-in edge protection.

Modifications

Can the width of the protective air cell be changed?

Yes. The offset distance provided by the buffer can be adjusted during specification to match the fragility of the product, though wider cells require an even larger flat blank.

Inserts and product fit

Do I still need foam corner blocks with this folder?

Usually, no. The integrated corrugated air cells are designed specifically to replace loose foam inserts by creating a hollow crush zone at the ends of the package.

Shipping route

Is this folder suitable for single-item courier shipping?

Yes, provided the top flaps are securely taped or strapped. The rolled end buffers offer excellent impact deceleration for flat goods moving through parcel networks.

A single piece of corrugated board that does the work of an outer shipper and internal foam blocking, built specifically for flat, fragile goods.
