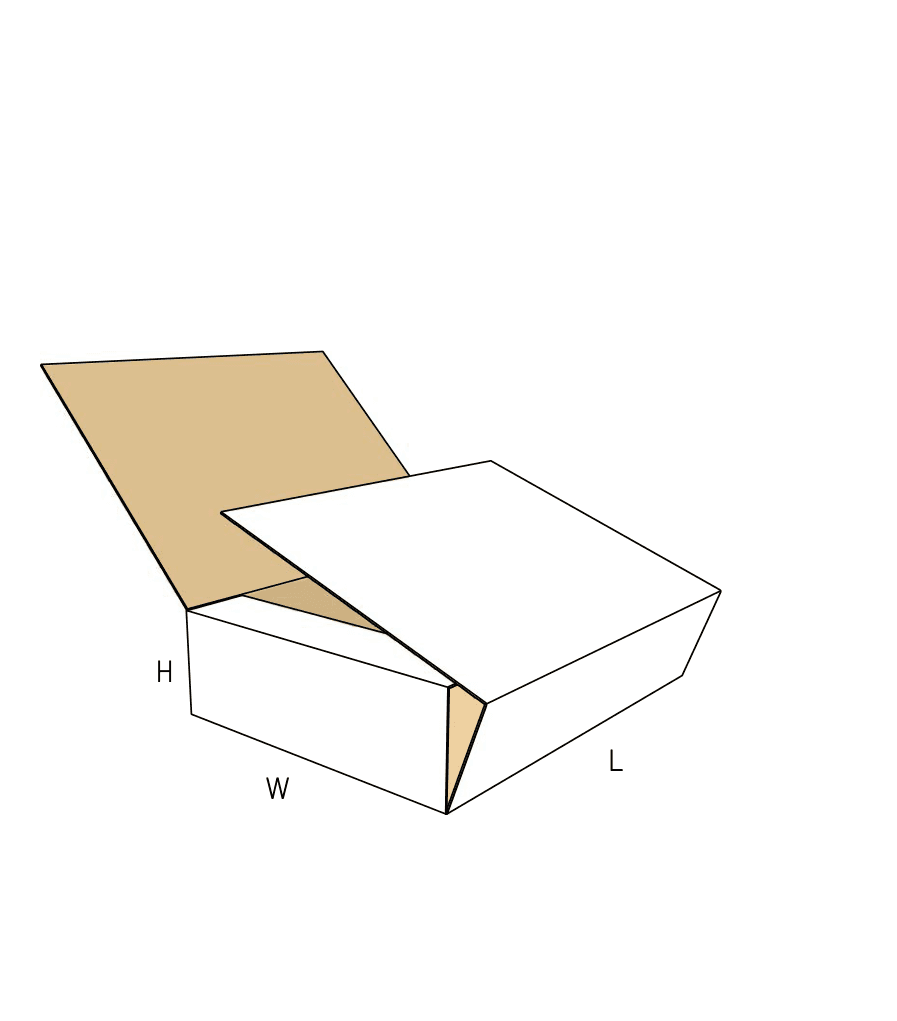

FEFCO 0407

Five-Panel Wrap

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Loads from the side, making it practical for long or flat rigid items
Requires manual taping or strapping against board spring-back
Straight-flap configurations offer a different production route than angled cuts

About this product

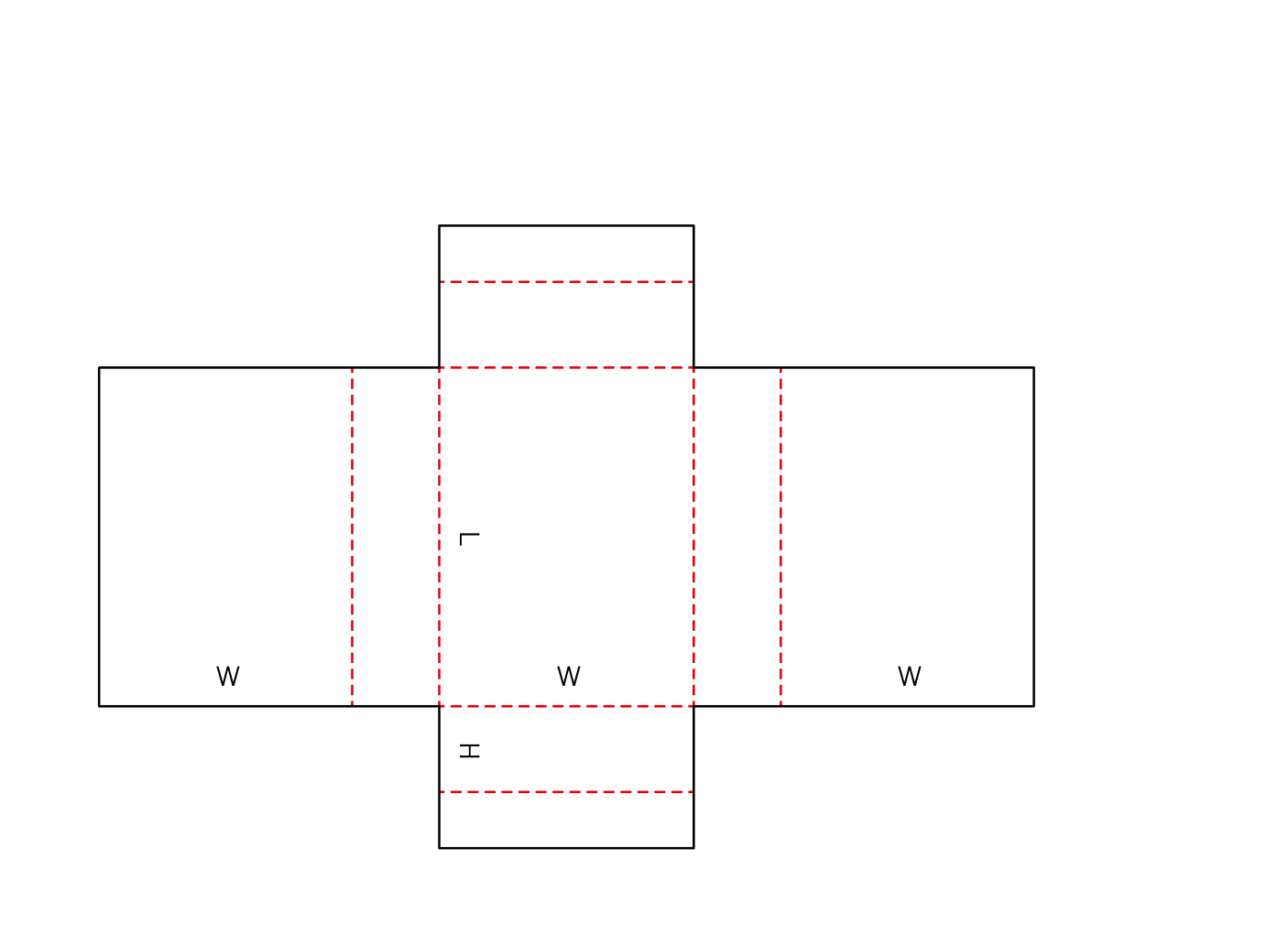

The five-panel wrap is a continuous corrugated folder that rolls entirely around a product to form a rectangular tube. Instead of sliding long or awkward items through the narrow end of a standard box, packers place the product directly onto the flat base and fold the walls around it.

Because it relies on a full overlapping fifth panel rather than integrated locks, this style requires external tape, strapping, or banding to hold the tension of the folded board.

Common uses

Long metal profiles and extrusions
Framed artwork and shallow panels
Rolled textiles or industrial mats
Flat-pack furniture components

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Which option describes the item you are packing?

Is the product rigid enough to support the cardboard as it folds around it?

How will the finished packages be shipped?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Flat Goods and Long Extrusions

Long metal profiles and extrusions

Sliding a heavy, two-meter aluminum extrusion into a standard box is ergonomically difficult and risks pushing out the far end. The five-panel wrap allows operators to lay the heavy part flat on the center panel, then fold the corrugated board around it.

Framed artwork and shallow panels

Wide, shallow items leave too much empty space in standard cartons. This folder wraps tightly against the edges of frames or acrylic panels, reducing internal movement and keeping the final shipping profile as thin as possible.

Rolled textiles or industrial mats

Heavy, flexible cylinders can be difficult to drop into a vertical tube. Rolling the corrugated board around the cylinder on a flat packing bench provides a tight fit without fighting gravity during the loading process.

Flat-pack furniture components

When shipping unassembled shelving or table parts, the flat-loading base allows packers to arrange the components and protective inserts carefully before enclosing the entire arrangement in the wrapper.

Industrial Parts and Framed Displays

Low-volume industrial kitting

Operations packing varied lengths of hardware or shelving components benefit from the flat-loading nature of the wrap. It accommodates heavy parts without requiring specialized automated erecting equipment, provided the pack station is set up for manual taping.

Architectural and building supplies

Suppliers shipping custom-cut trim, molding, or baseboards use this folder to match the exact length of the product, minimizing the need for excessive void fill at the ends of the package.

E-commerce art and decor fulfillment

Galleries and print shops shipping framed pieces rely on the tight wrap to keep the glass or acrylic surfaces secure against internal movement during transit.

Automated Lines and Deep Volumes

High-speed automated packing

If your facility uses automated wrap-around case packers, the manual overlap of this folder will slow you down. Compare it to a machine-erected wrap-around (FEFCO 0406), which uses a short terminal glue flap instead of a full fifth panel.

Deep or bulky free-flowing goods

This folder is designed for items that act as their own internal mandrel during the wrap. If you are packing loose components, apparel, or deep items that cannot support the side walls while folding, a standard slotted carton is a better starting point.

Close variants and lookalike dielines

The closest library neighbors include 0402, 0401, EVC30001. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Flap Profiles, and Closure

Board thickness and spring-back tension

The board must fold 90 degrees four times to enclose the product. Heavy double-wall corrugated creates severe spring-back tension at the final overlap, forcing operators to fight the board while applying tape. Match the flute profile to the product weight carefully.

Straight versus angled end flaps

The end flaps that close the tube can be cut straight or angled. Straight flaps can often be produced on standard rotary equipment, while angled flaps require a different cutting method. This choice affects the production path for short runs.

Tape width and adhesion strategy

Because the fifth panel overlaps the side wall without locking, the closure relies entirely on external tape or strapping. Wide, high-tack tape is generally necessary to counteract the outward pressure of the folded corrugated board.

Blank length and machine limits

Because the five panels are laid out sequentially, packaging for very long products results in an extremely long flat blank. This total length can sometimes exceed the feed limits of standard converting machinery, which may require shifting the job to specialized equipment.

Overlap Width and Crease Allowances

Fifth panel overlap width

The final panel must be wide enough to provide a secure surface for your packing tape. If the overlap is too narrow, the tape will struggle to hold the board flat against its natural tension.

Double creases for thick materials

When heavier board grades are necessary for protection, the template can be adjusted with double creases. This provides the extra physical clearance needed for the end flaps to fold inward without binding against the side walls.

End flap length for full closure

The end flaps can be extended to meet exactly in the center, providing a fully closed end, or kept shorter if the primary goal is simply to prevent the product from sliding out.

Board and packing details

Product as an internal mandrel

The five-panel wrap relies on the rigidity of the product being packed. The item itself acts as the internal form, keeping the side walls square as the corrugated board is folded around it.

Additional notes

Tape width and adhesion

The overlap panel relies entirely on your tape to stay closed. Wide, high-tack tape is recommended to counteract the outward pressure of the folded corrugated board.

FAQs

Closure and Sealing

Does this folder lock together without tape?

No. The fifth panel simply overlaps the side wall. You must secure the long edge and both ends with strong packing tape, strapping, or banding.

Packing Labor

Is this easy for one person to assemble?

It requires holding the board flat against its natural spring-back tension while simultaneously applying tape. For longer items or heavier board grades, this often becomes a two-handed job or requires a taping fixture.

Shipping Route

How does this perform in mixed courier networks?

Performance depends heavily on the tape seal. Because the long edge is exposed, weak tape can pop open under the stress of courier sorting belts. Strong, wide tape or strapping is recommended for individual parcel shipping.

Board and Material

Can we use heavy double-wall board for extra protection?

Heavy board makes the four parallel folds very stiff. The resulting spring-back makes manual taping difficult and increases the risk of the package opening in transit. If double-wall protection is necessary, the fold clearances must be precisely adjusted.

Production Path

Does the flap shape change how the box is manufactured?

Yes. If the end flaps are designed with straight cuts rather than angled profiles, the folder can often be produced on standard rotary equipment. Angled flaps require a flatbed cutting process.

Product Fit

Why is the exact product size so critical for this style?

Because the product acts as the internal form during wrapping, an accurate fit is necessary to keep the walls square. If the folder is too loose, the board will crush inward during transit.

Samples and Prototypes

Should we test a sample before ordering a full run?

Yes, especially to test the taping process. A physical sample allows your packing team to evaluate the board's spring-back tension and confirm that your current tape or strapping equipment can hold the overlap securely.

Related Box Choice

When should we switch to a standard slotted box?

Consider a standard box if your product is deep, bulky, or free-flowing. The wrap-around style is best reserved for long, flat, or shallow rigid items that are difficult to drop into a vertical opening.
