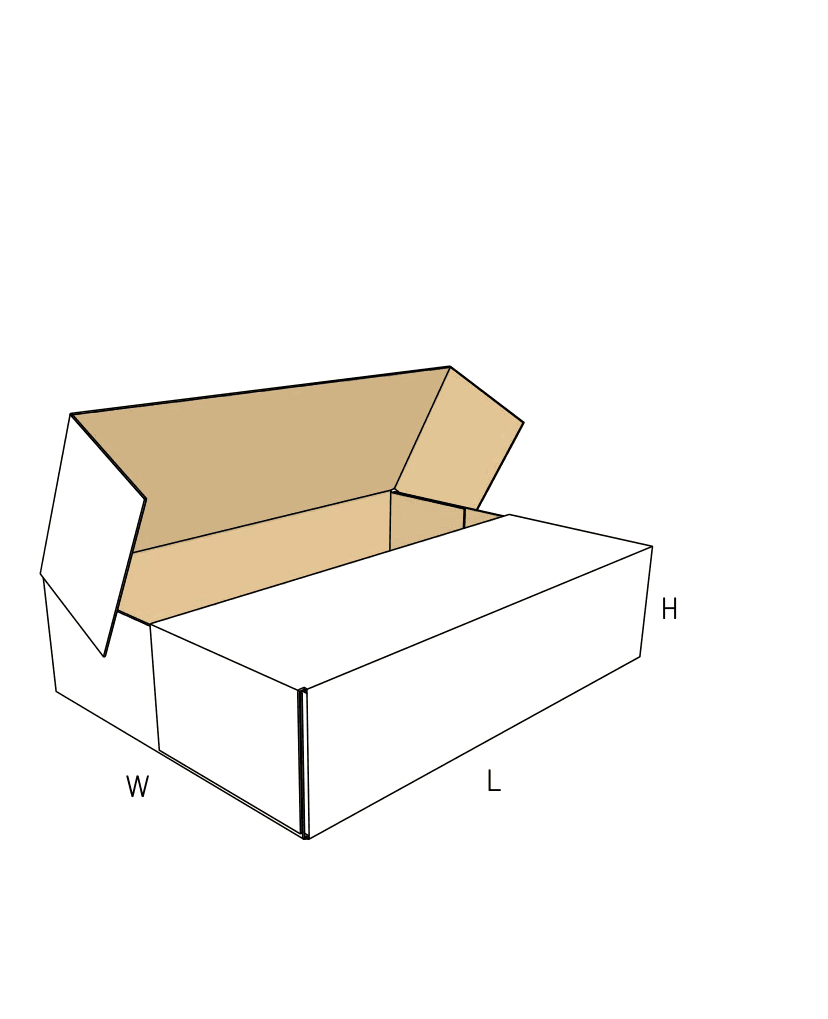

FEFCO 0411

Center Seam Wrap-Around Folder

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Loads directly onto the flat base, making it practical for long or heavy rigid items
Top panels meet flush in the center, relying on a full-length tape seal
Double-overlapping end flaps provide exceptional corner and edge protection

About this product

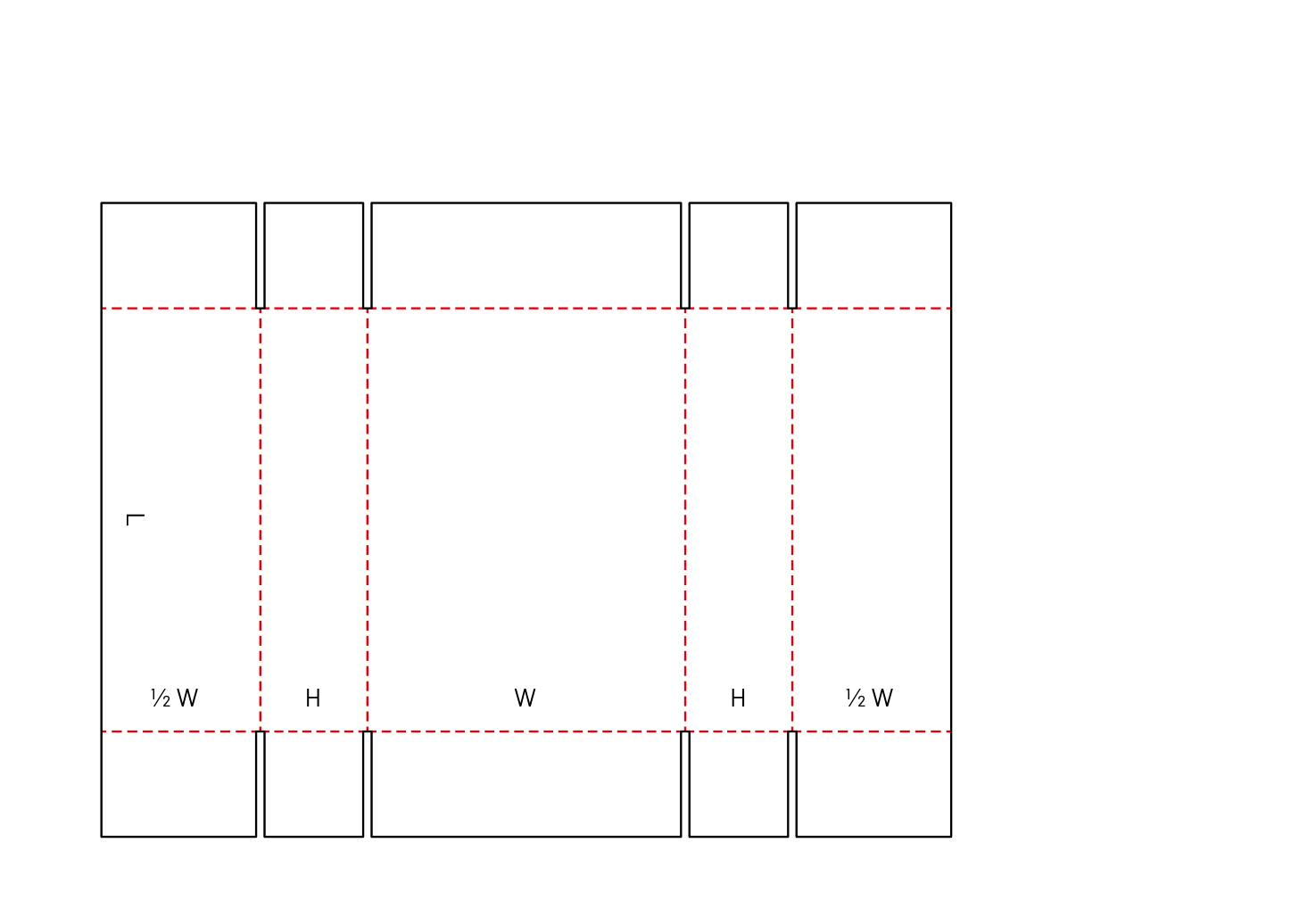

The center seam wrap-around folder is a continuous corrugated blank that rolls tightly around a product to form a rectangular tube. Instead of forcing long, heavy, or awkward items through the narrow end of a standard box, packers place the product directly onto the flat base and fold the walls around it.

Unlike folders with a full overlapping top, this style uses two top panels that meet flush in the middle. This creates a single longitudinal seam that relies on a continuous strip of tape, while the ends fold over each other to build a double-wall barrier for corner protection.

Common uses

Flat-pack furniture
Long metal extrusions
Doors and shelving
Large framed artwork

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these folders be packed and sealed?

Does the top tape seam need to be shifted off-center?

Is the product rigid enough to help shape the box during packing?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Flat Goods, Furniture, and Long Extrusions

Flat-pack furniture and shelving kits

Sliding heavy wooden panels into a tubular carton is ergonomically difficult. This folder allows operators to lay heavy components flat on the center panel, arrange protective inserts, and fold the corrugated board tightly around the kit.

Long metal profiles and extrusions

Long, rigid industrial parts need tight containment to prevent shifting. The wrap-around sequence uses the product itself as a forming block, creating a tight fit that reduces internal void space.

Doors, countertops, and large panels

Wide, shallow items leave too much empty space in standard cartons. This folder wraps tightly against the edges, while the double-layered end flaps provide impact protection for vulnerable corners during transit.

Framed artwork and mirrors

Flat, fragile items benefit from the dense, multi-layered barrier at the ends of the package, absorbing impact well when handled in transit.

Fulfillment and Automated Casing

Automated wrap-around casing lines

While it can be folded by hand, this style fits well with specialized wrap-around case packers. These machines fold the blank around the product and apply the long center tape and end seals in one continuous motion.

Manual pack benches for long goods

For lower volumes, operators fold the board by hand. Because the board naturally wants to spring back flat, packers must hold the long center seam tightly compressed while applying the tape. For very long items, this often requires two people or a holding fixture.

Palletized LTL freight for flat goods

The flat, rectangular profile stacks densely on pallets. The double-wall ends provide excellent corner protection when pallets are loaded, unloaded, and shifted in transit.

When to Consider a Different Wrap

When edge taping is preferred over a center seam

The center seam on this folder can be vulnerable if the tape splits or if the board is very thick and springs open. If you prefer to tape along the edge of the box, or need a solid unbroken top panel for heavy stacking, compare this to a full-overlap folder.

When packing narrow, deep items

This folder is built for flat, shallow, or long items. If the product is very deep, the side panels become very tall, which increases the overall footprint of the flat blank and makes the wrapping process awkward. Compare to a standard slotted carton or a five-panel folder.

Close variants and lookalike dielines

The closest library neighbors include 0409, 0409a, 0410a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Production and Packing Decisions

Board thickness and fold tension

Thick double-wall board provides heavy protection but creates severe tension across the multiple folds. If the board is too thick, the top panels will fight the tape and try to spring open. Fold allowances must be carefully calibrated so the end flaps fold cleanly.

Blank length limits for large goods

Because this is a one-piece folder, the flat corrugated blank must be wide enough to wrap entirely around the product. For very large furniture or doors, the unfolded blank can easily exceed the feed limits of standard factory equipment, which changes how the box is produced.

Seam placement and taping setup

The standard design places the taping seam exactly in the middle of the top face. If your product has a delicate feature in the center, or if your automated taping head is offset, the panel heights can be adjusted to shift the seam to one side.

End flap slot style

If the slots separating the end flaps are straight, the package can often be produced on highly efficient rotary equipment. If the board is thick and needs angled slots to fold properly without binding, a different production route is necessary.

Adjusting the Seam and Fit

Shifting the center seam

Uses diverse top panel widths to shift the longitudinal taping seam off-center. Useful for avoiding tape over delicate product areas or accommodating asymmetric goods.

Adjusting layer step creases

For thick boards, the fold clearances can be widened to ensure the overlapping outer end flaps do not bind against the inner dust flaps during assembly.

Modifying end flap overlap

While the standard design features fully overlapping outer end flaps for maximum corner protection, the flap length can be reduced if material efficiency is a higher priority than double-wall end strength.

Board and packing details

End flap overlap and corner protection

The ends of this package are formed by short inner dust flaps trapped beneath two large outer flaps that overlap completely. This creates a dense, multi-layered barrier that absorbs impact well, making it an excellent choice for items with fragile corners.

Variants

0411a (Offset Seam)

Uses diverse top panel widths to shift the longitudinal taping seam off-center. Useful for avoiding tape over delicate product areas or accommodating asymmetric goods.

Additional notes

Using the product as a forming block

This style is most effective when the product is rigid enough to act as a forming block. The corrugated board is pulled tightly against the product's edges, which squares the box and reduces the need for internal void fill.

FAQs

Closure and Sealing

Does this box close without tape or glue?

No. It has no native locks or tabs. The top center seam and overlapping end flaps rely on tape or hot-melt glue to stay closed.

Packing Labor

Is this easy to pack by hand?

It is easy to load because the product sits flat on the base. However, sealing it by hand can be challenging for very long items, as the operator must hold the long center seam closed against the board's natural spring-back tension while applying the tape.

Product Fit

Can this be used for tall or deep products?

It is generally built for flat, shallow, or long items. If the product is very deep, the side panels become very tall, which increases the overall footprint of the flat blank and makes the wrapping process awkward.

Shipping Route

Is this safe for parcel or courier shipping?

It can be, but only if heavily taped. The long center seam can catch on sorting belts if the tape splits. For rough courier networks, the tape must be strong enough to resist the outward pressure of the product and the board's fold memory.

Board Choice

Can we use heavy double-wall board for extra protection?

Yes, but with caution. Double-wall board increases the tension on the center seam and needs precise fold clearances so the overlapping end flaps do not bind. It also greatly increases the size of the flat blank, which may limit production options.

Production Path

Does this require custom cutting dies?

If the slots separating the end flaps are straight, it can often be produced on rotary equipment without custom dies. If the board is thick and needs angled slots to fold properly, a cutting die is usually needed.

Inserts and Fit

How do we secure multiple parts inside?

Operators can lay the main heavy components flat on the center panel, arrange corrugated or foam protective inserts around them, and then fold the board tightly around the entire kit.

Samples and Prototyping

Should we test the fold tension before ordering a full run?

Yes. Because the board's natural spring-back tension fights the center tape seam, testing a physical sample helps verify that your chosen tape or glue can hold the package closed securely.
