FEFCO 0421

Side-Locking Presentation Mailer

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Assembles entirely by hand using friction locks and a front tuck lid
Double-thick side walls provide excellent lateral crush resistance
Requires fine flutes to fold cleanly without cracking the hinges

About this product

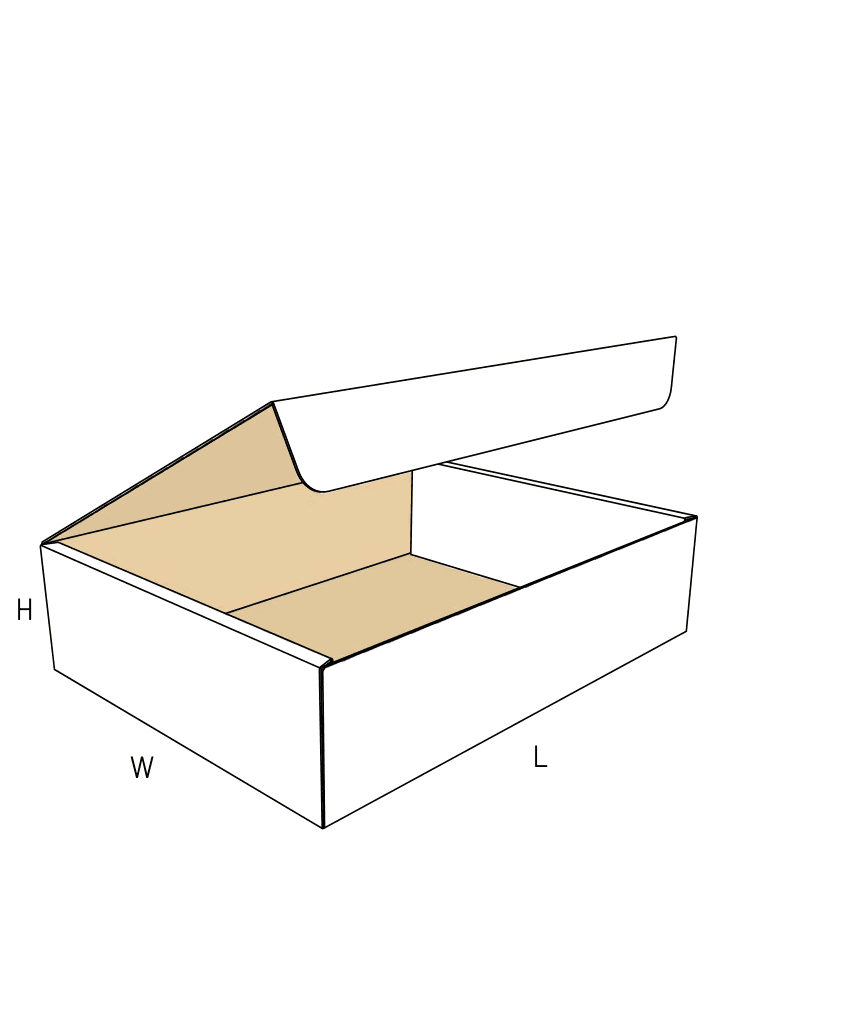

A side-locking presentation mailer is a one-piece box that folds into a rigid tray with a hinged lid. By rolling its left and right walls inward, the FEFCO 0421 creates double-thick side protection and a clean interior free of raw corrugated edges.

Because the structural reinforcement is focused on the sides rather than the front, buyers often evaluate it alongside the common 0427 mailer. It makes a strong choice for retail kitting, flat electronics, and premium unboxing where side-impact protection and a pristine presentation matter most.

Common uses

Retail kitting and gift sets
Flat electronics and keyboards
Apparel and footwear presentation
Long rolled goods and telescopic shipping

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be distributed?

What is going inside the box?

Do customers need to easily reclose the box for returns or storage?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Kitting, Flat Goods, and Presentation

Retail kitting and gift sets

The clean, unglued interior and double-thick side walls create a rigid frame that holds internal inserts securely. This keeps multiple components organized without the walls bowing outward.

Flat electronics and keyboards

The reinforced side walls absorb lateral impact during handling, protecting wide, shallow items that might otherwise punch through standard single-layer carton ends.

Apparel and footwear presentation

The proportions and structural rigidity fit classic shoe models and folded apparel. The unglued interior ensures no adhesive residue touches the product.

Long rolled goods and telescopic shipping

When engineered with a narrow width and extended length, two of these boxes can slide into each other. This creates a telescopic postal tube for shipping long items like posters, umbrellas, or metal rods.

Premium Unboxing and Hand-Packed Workflows

Premium unboxing programs

Brands that want a pristine interior without visible glue trails often choose this style. The tuck flap allows customers to easily reclose the box for returns or storage, keeping the presentation intact.

Manual pack-bench operations

The glueless setup allows operators to build boxes on demand without maintaining hot-melt equipment, though the 180-degree folds take slightly longer to assemble than a standard glued tray.

E-commerce returns and resealing

The friction tuck flap allows customers to open the box without destroying the package. If the original shipping seal is cut cleanly, the customer can reclose the lid securely for a return shipment.

When to Compare Front-Locking or Courier Mailers

Heavy top-loading or pallet stacking

Because the front and back walls remain single-layer, the center of the front wall can buckle under heavy vertical weight. If the box will be stacked high on a pallet without a master shipper, a different style may be necessary.

Rough courier transit

The friction tuck flap can pop open if the box is dropped. If the package will travel through mixed-carrier networks without an outer shipping carton, it usually needs an external tape seal or a switch to a mailer with lid dust flaps.

Close variants and lookalike dielines

The closest library neighbors include EVC41101, EVC41102, EVC41102_1. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Closure, and Assembly Choices

Board and flute selection

The 180-degree roll-over walls are highly sensitive to board thickness. Fine flutes fold crisply and lock securely. Thick double-wall boards will often bind, crack at the hinges, or cause the locking tabs to pop out.

Print and finish planning

The single-piece flat blank is highly compatible with high-quality printing. The inside of the roll-over walls will show the inside liner, which is often printed to create a striking reveal when the box is opened.

Nesting and material footprint

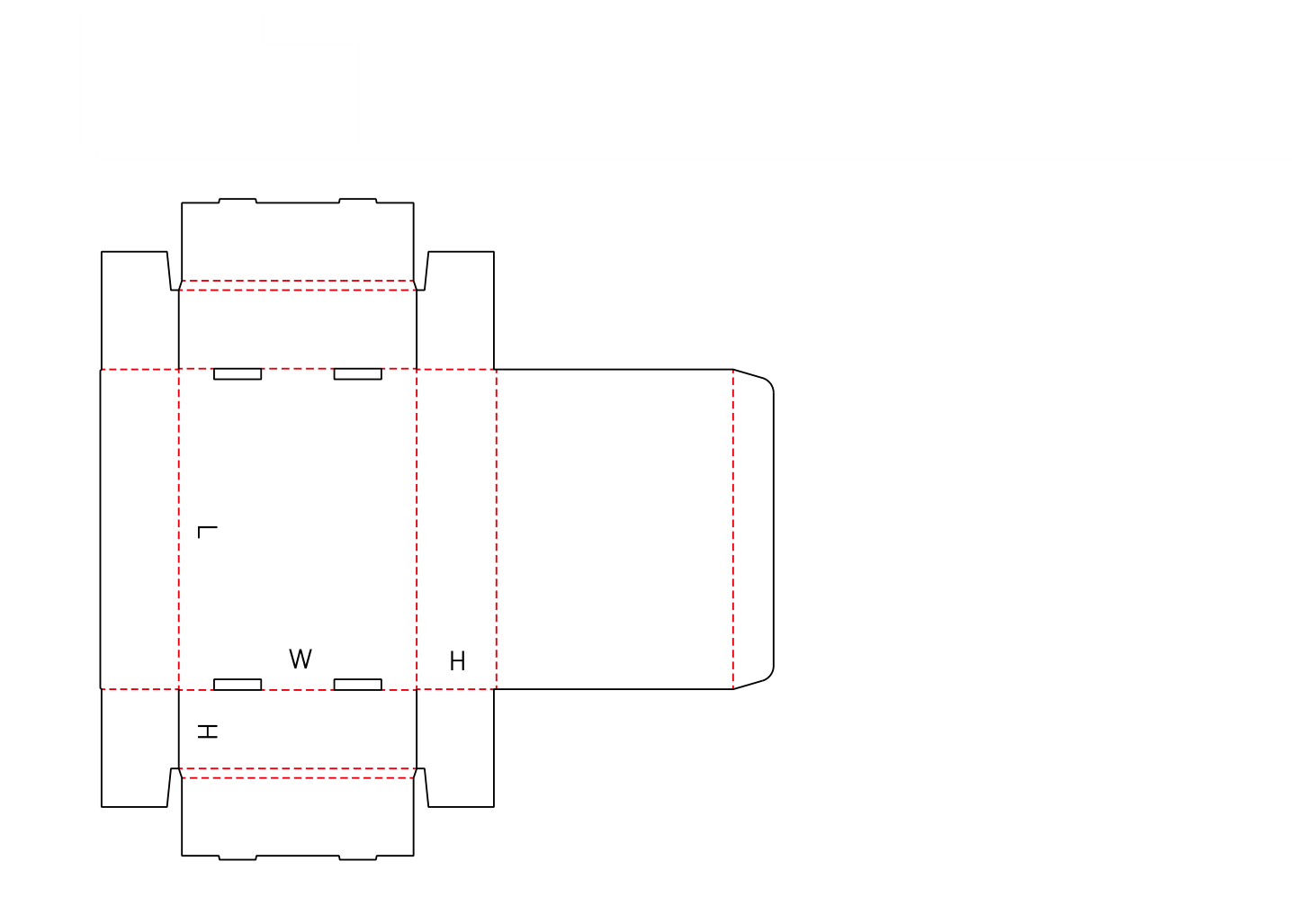

The extended side flaps create a cross-shaped blank that limits how tightly the boxes can nest on a manufacturing sheet. This higher offcut waste is usually absorbed by the premium nature of the product being packed.

Closure security for transit

Buyers must decide whether the friction tuck flap provides enough security for hand delivery or retail shelves, or if an external tape seal is needed to keep the lid closed during courier shipping.

Tuck Flap Depth and Lid Adjustments

Tuck flap depth

The front tuck flap can be extended to reach the floor of the box. A full-depth tuck stiffens the single-layer front wall and increases the friction holding the lid closed.

Lid corner rounding

Rounding the corners of the tuck flap makes it easier for packers to insert the lid past the locked side walls, speeding up the final closure step.

Base slot clearance tuning

The locking tabs rely entirely on friction against the base slots. Modifying the die-profile clearances accommodates specific board tolerances, preventing the roll-overs from binding when folded.

Board and packing details

Base slot clearance

If the board grade changes between prototype and production, the fold allowances must be recalculated so the tabs seat correctly.

Package Modifications

Full-depth tuck flap

Extends the front tuck flap to the floor of the tray and rounds the lid corners, maximizing front-wall rigidity and smoothing the closure action.

Clearance-adjusted locks

Modifies the die-profile clearances to accommodate specific board tolerances, preventing the roll-overs from binding when folded.

Additional notes

Print panel and interior reveal

Because the side walls roll inward, the interior sides of the assembled box display the inside liner of the corrugated board. This area is frequently printed to create a continuous branded experience when the customer opens the lid.

FAQs

Shipping and Route

Can this box be shipped through the mail without tape?

The friction tuck flap is designed for easy opening and presentation. If the box travels through a rough courier network, it usually needs an external tape seal or a tamper-evident label to prevent the lid from popping open during a drop.

Board and Fit

Can I use heavy double-wall corrugated for extra protection?

It is a poor match for thick boards. The side walls must fold 180 degrees to lock into the base. Heavy double-wall corrugated will bind, crack at the hinges, and cause the locking tabs to fail unless the template is heavily modified. Fine flutes fold cleanly and lock securely.

Assembly and Packing

Does this box require gluing equipment?

The box is delivered flat and assembles entirely by hand using friction locks. Operators fold the side walls over the corner dust flaps and snap the tabs into the base.

Comparison

What is the difference between the 0421 and the 0427 mailer?

They are architectural opposites. The 0421 rolls over its side walls, providing double-thick side protection. The 0427 rolls over its front wall, providing double-thick front protection. The 0421 lid also lacks the side dust flaps found on the 0427.

Customization

How can I make the front wall stronger?

The standard front wall is a single layer of corrugated. Specifying a full-depth tuck flap extends the lid's flap all the way to the floor, effectively doubling the thickness of the front wall when closed.

Production

Why might this box cost more per unit than a standard shipping carton?

The extended side flaps create a wide, cross-shaped blank. This shape prevents the flat boxes from nesting tightly together on the corrugated sheet during die-cutting, resulting in higher material offcut waste.

Presentation

Does the interior show raw corrugated edges?

No. Because the side walls roll over completely and lock into the base, the interior sides display the smooth inside liner of the corrugated board, hiding the raw flutes.

Alternative Uses

Can this box be used as a telescopic tube?

Yes. When engineered with a narrow width and extended length, two of these boxes can slide into each other to form a telescopic postal tube for shipping long items like posters or umbrellas.
