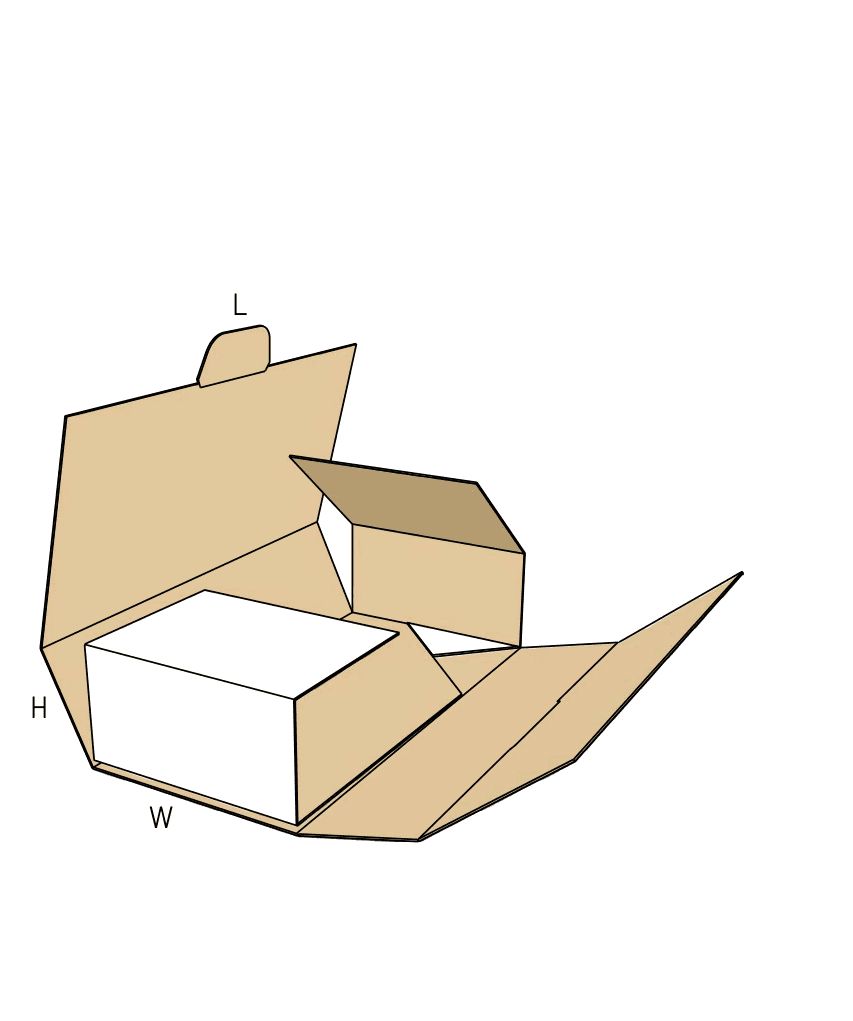

FEFCO 0473

Cross-Wrap Book Mailer with Bumper Ends

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Built-in hollow bumpers absorb corner impacts
Mechanical tongue lock allows glueless, tape-free assembly
Requires manual wrapping around the product

About this product

The cross-wrap book mailer is a premium one-piece folder engineered to protect the vulnerable corners of flat, rigid goods. Instead of simply wrapping around the product, the inner panels feature double creases that fold into hollow bumpers, creating a dedicated crush zone at both ends of the package.

Because it secures with a mechanical tongue-and-slot lock, it offers a clean, tape-free unboxing experience. However, the extended bumper flaps and cross-shaped footprint require a larger amount of corrugated board than a standard mailer, making it a deliberate choice for high-value books, framed media, and electronics where presentation and edge protection outweigh raw material efficiency.

Common uses

Hardcover books
Framed artwork
Flat electronics
Premium media kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Product length

Product width

Product depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of item are you packing?

How will this package be shipped?

Are you interested in adding a tear strip for easier opening?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Packing Flat, Rigid, and High-Value Goods

Hardcover books and premium publications

The recessed ends act as shock absorbers, preventing dog-eared corners and crushed spines during transit. The tight cross-wrap keeps the book from shifting.

Framed artwork and flat electronics

Rigid, flat items serve as the perfect forming mandrel for this mailer. The operator places the item in the center and wraps the corrugated board around it, locking the perimeter securely.

Media kits and presentation boxes

The tongue-and-slot closure provides a clean, tape-free unboxing experience. The recipient simply pulls the tab to open the package, making it a strong choice for high-end promotional mailings.

Flat architectural samples or tiles

Heavy, flat samples require dedicated edge protection. The double-creased bumpers create a hollow crush zone that absorbs impacts before they reach the fragile corners of the sample.

Retail, E-commerce, and Media Distribution

Direct-to-consumer media and publishing

Publishers shipping high-value editions often prioritize the unboxing reveal. This mailer avoids the frustration of cutting through heavy packing tape while keeping the contents pristine.

Low-volume, high-value fulfillment

Because this mailer requires two-handed manual assembly and careful insertion of the locking tab, it fits best in operations where presentation and damage reduction matter more than rapid packing speed.

E-commerce electronics and accessories

Shipping flat items like tablets or screens carries a high risk of corner drops. The built-in bumpers provide dedicated impact zones without requiring separate foam or plastic inserts.

When to Consider a Simpler Cross Folder

When packing speed is the primary goal

If your fulfillment line relies on rapid pack-bench throughput, the manual folding and locking required here will cause bottlenecks. A crash-lock tray or auto-bottom mailer is much faster to erect.

When shipping durable goods that do not need corner bumpers

The cross-shaped blank and extended bumper flaps require a larger amount of corrugated board than a standard mailer. If your product is not fragile at the corners, a standard taped cross folder uses far less material.

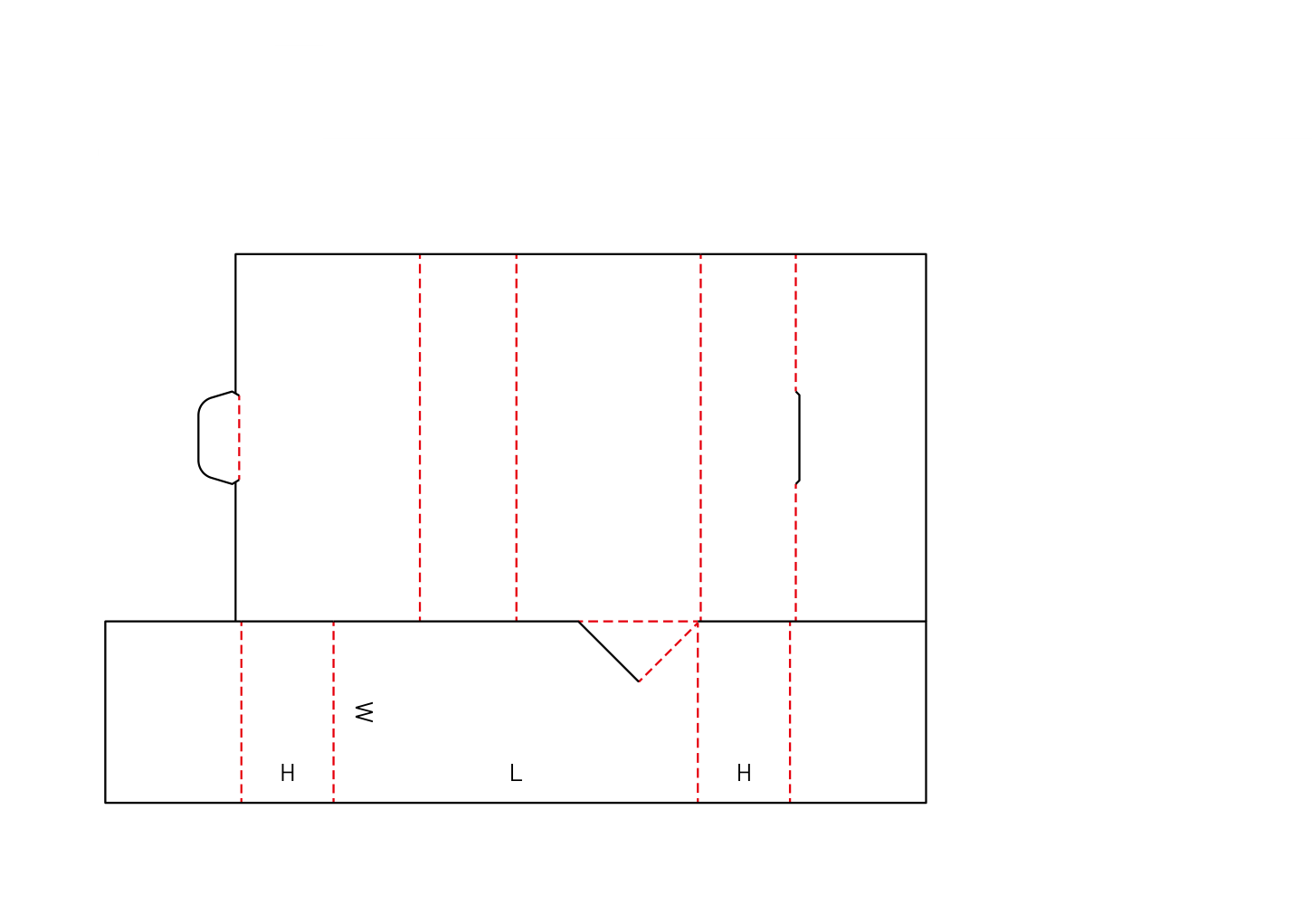

Close variants and lookalike dielines

The closest library neighbors include 0474, EVF21025, A56.01.01.00. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Thickness, Closure, and Packing Labor

Board caliper and flute selection

This design is extremely sensitive to board thickness. The overlapping panels and double-creased bumpers accumulate thickness rapidly. Fine flutes yield crisp folds and a secure lock, while heavy double-wall board will cause the hinges to crack and the tongue lock to bind.

Courier transit and security seals

While the mechanical tongue lock holds the package closed under its own tension, rough parcel networks can cause friction locks to pop open upon impact. For single-item courier shipping, adding a clear wafer seal or security label over the lock is often a smart precaution.

Print and finish implications

The flat, cross-shaped blank is excellent for two-sided printing, allowing for a branded interior reveal. However, high-gloss varnishes can reduce the friction needed to keep the tongue lock seated, which may require adjusting the lock dimensions.

Product depth and internal clearance

Because the mailer wraps tightly around the item, the depth dimension must closely match your product. If the product is too thin, the wrap will be loose and the lock may fail; if it is too thick, the tongue will not reach the receiving slot.

Adjusting the Lock and Bumper Clearance

Tuning the tongue lock

The width, height, and offset of the locking tab can be adjusted. A wider tab increases security but requires more thumb pressure from the packer, while a narrower tab is easier to insert but risks tearing under tension.

Bumper depth and clearance

The double creases that form the recessed ends can be widened or narrowed depending on the exact thickness of the product being packed, ensuring the bumpers stand off correctly without binding against the outer walls.

Adding a tear strip

For an even smoother unboxing experience, a tear strip can be integrated into the outer wrap panel. This allows the recipient to open the package instantly without pulling at the friction lock.

Board and packing details

Flatbed die-cutting and blank sprawl

The extended corner flaps and precise locking slots mean this mailer must be produced on a flatbed or rotary die-cutter. The large footprint limits how many blanks can be nested on a single sheet of corrugated board, which increases the overall material footprint.

Additional notes

Operator thumb fatigue

Inserting the tongue lock requires dexterity and thumb pressure. In high-volume manual packing environments, this repetitive motion can cause operator fatigue faster than taping a standard box.

FAQs

Shipping and Route

Can this mailer ship through parcel networks without tape?

While the tongue lock secures the package for handling and palletized loads, rough courier transit can cause friction locks to pop open if dropped. We often recommend adding a simple security label or clear wafer seal over the lock for single-item parcel shipping.

Product Fit

Does the product need to be a specific shape?

Yes. This mailer relies on the product itself to act as the forming block. It works best for flat, rigid, rectangular items like books, frames, or boxed electronics. Soft or free-flowing goods will not provide the internal structure needed to fold the bumpers tightly.

Board and Finish

Can we use heavy double-wall board for extra protection?

Usually no. The overlapping panels and complex double creases require thin, precise board. Thick board will cause the corner bumpers to bind and make the tongue lock nearly impossible for a packer to insert without tearing the corrugated material.

Packing Labor

How fast is this mailer to assemble?

It is strictly a manual, two-handed packing process. The operator must center the product, fold the inner bumpers over, wrap the outer panels, and insert the locking tab. It provides a beautiful presentation but is slower than erecting a standard taped box.

Quantity and Production

Why does this style require more board than a standard mailer?

The cross-shaped layout and extended bumper flaps create a large flat footprint with a large amount of empty space in the corners. This limits how efficiently the shapes can be nested on a sheet of corrugated board, leading to higher material usage.

Inserts and Fit

Can I use void fill inside this mailer?

No. The cross-wrap design requires the product to act as a solid mandrel for the folds. If you add loose void fill, the inner panels will crush it rather than forming the rigid corner bumpers.

Samples and Prototypes

Should I test a prototype before ordering a full run?

Yes. Because the tongue lock relies entirely on friction and board thickness, testing a physical sample ensures the lock seats securely and the corner bumpers fold cleanly around your specific product.

Print Surface

Can the inside be printed for an unboxing reveal?

Yes. The flat, cross-shaped blank is excellent for two-sided printing. When the recipient pulls the tongue lock, the entire package opens flat, making it a great canvas for interior branding.
