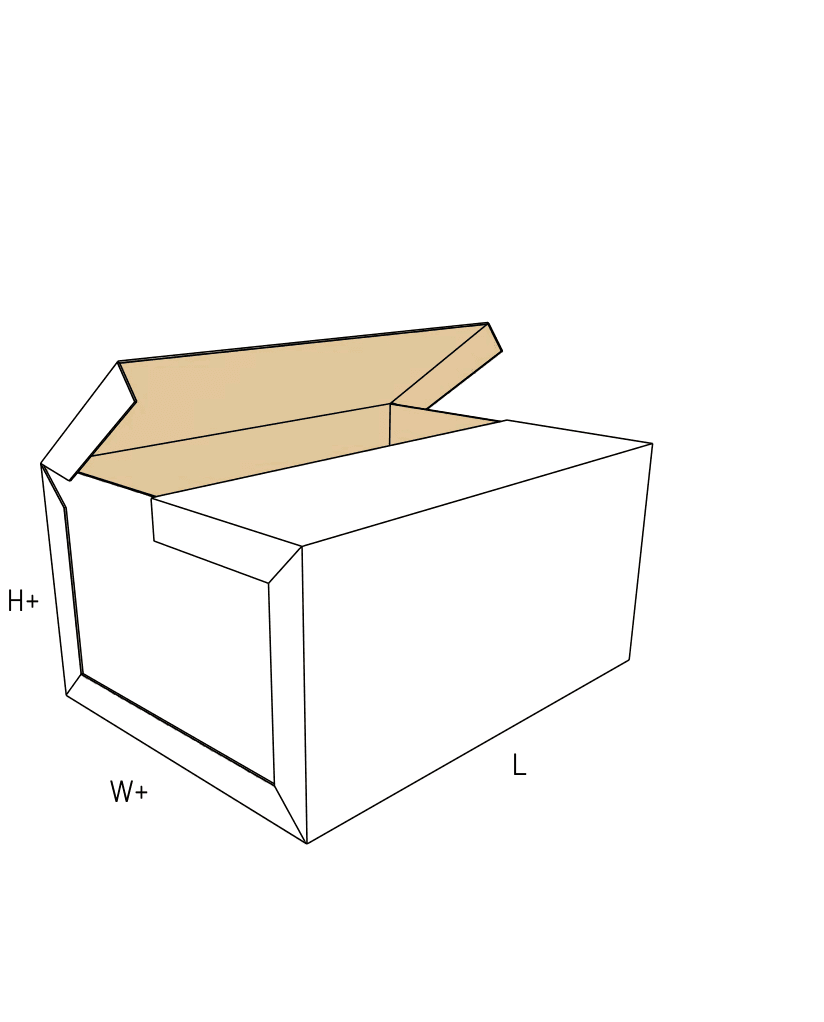

FEFCO 0606

Heavy-Duty 3-Piece Bliss Box with Meeting Flaps

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

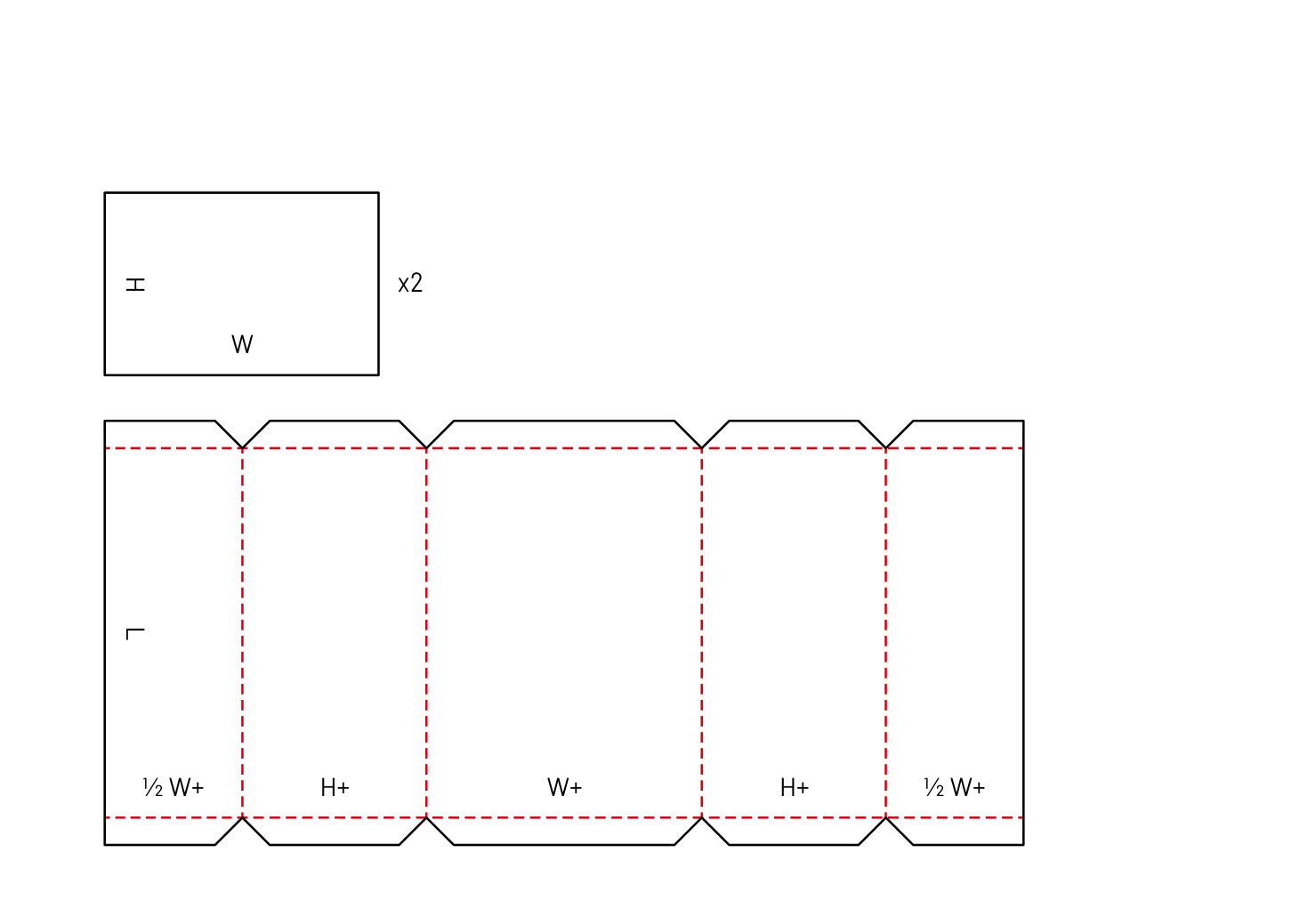

Built from three separate pieces that rely on permanent stitching or gluing before use
Rigid end panels act as vertical columns to support extreme stacking weights
Top closes with two flaps extending from the side walls

About this product

When shipping extremely heavy, dense, or oversized industrial goods, a standard folded box can bulge or crush under the weight. The 3-piece Bliss box solves this by using a main wrap-around shell and two separate end panels that are permanently stitched or glued together before loading.

This multi-piece construction allows the corrugated flutes on the end panels to run vertically, creating rigid columns that support massive stacking loads. The defining feature of this specific style (FEFCO 0606) is its top closure: two flaps extend from the side walls to close flush across the top opening, relying on external tape or strapping to secure the payload for transit.

Common uses

Heavy industrial parts consolidation
Bulk agricultural produce packing
Beverage crates with internal dividers
Oversized flat-packed goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length (inside)

Width (inside)

Depth (inside)

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What is the estimated weight of the packed box?

How do you plan to seal the top flaps for shipping?

Will the packed boxes be lifted by hand?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Heavy-duty and bulk packing jobs

High-weight vertical stacking

The separate end panels act as rigid vertical columns. When permanently joined to the main shell, they transfer heavy top loads directly to the base, protecting the package from crushing under heavy pallets.

Beverage and bulk agricultural crates

The rigid walls resist bulging when packed with dense, shifting goods or heavy glass. The straight interior planes make it a strong outer shell for heavy grid partitions and dividers.

Oversized industrial parts

The wrap-around design scales efficiently for long or bulky items. Because it uses three separate pieces, it can accommodate massive dimensions without requiring a single, oversized cutting die.

Heavy grid partition packing

The straight interior planes make it a highly effective outer shell for heavy grid partitions and dividers, keeping individual components isolated during transit without the walls bowing outward.

Operations relying on rigid 3-piece containers

High-volume fulfillment with Bliss formers

Operations equipped with automated 3-piece forming machinery benefit from the high material yield and rapid erection this style provides at scale.

Industrial parts distribution

Teams shipping dense metal components, hardware, or fixtures that would blow out the bottom of a standard folded box rely on the permanent glued or stitched joints of a 3-piece container.

Agricultural bulk transport

Packers moving heavy produce need containers that will not collapse under high humidity and heavy pallet loads, making the reinforced corners of a Bliss box highly valuable.

When to consider a different box style

Manual packing without fixture stations

If your team folds boxes by hand at a standard packing bench, the 3-piece assembly of a Bliss box is highly inefficient. Look at a standard RSC (FEFCO 0201) for faster manual setup.

Need for a clean hinged lid

If the box will be opened and closed repeatedly, or used as a picking bin, the meeting flaps of the 0606 can get in the way. Look at the 0601, which features the same 3-piece strength but uses a single hinged tuck lid.

Close variants and lookalike dielines

The closest library neighbors include 0605, 0608, 0610. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Assembly and production choices

Stitching versus gluing

The end panels must be permanently attached to the main wrap. Wire stitching provides mechanical tear resistance for heavy loads, while industrial hot-melt glue offers a continuous seal. The choice depends on your payload weight and available assembly equipment.

Board grade and joint thickness

Heavy single-wall board is standard. If specifying double-wall board for extra protection, the overlap at the glued or stitched corners becomes thick and must be accounted for in the internal clearance.

External sealing method

Because the top flaps close flush across the top opening, you must decide whether to seal the box with heavy-duty packing tape or industrial strapping to secure the payload.

Assembly routing

Decide whether your facility will receive these as flat blanks to assemble on your own Bliss formers, or if you need the supplier to deliver them pre-assembled, which drastically increases inbound shipping volume.

Flange and corner adjustments

Flange corner profiles

The corners of the attachment flanges can be butted, mitered, or offset. This prevents corrugated material from bunching up inside the box where the planes intersect, ensuring a clean 90-degree interior corner.

Grip holes

Die-cut hand holes are frequently added to the rigid end panels to make lifting heavy bulk loads safer and easier for operators.

Top flap width adjustments

The meeting flaps can be shortened to leave a ventilation gap, or extended slightly to overlap, depending on the sealing method and payload requirements.

Board and packing details

Flat delivery and storage efficiency

Because it ships as three separate flat pieces, this package is extremely space-efficient on inbound pallets. However, this shifts the entire volume-creation and assembly burden to the packing facility.

Design variants

Internal versus external flanges

End panel flanges typically fold inward to sit flush against the inside of the main wrap, presenting a clean outer surface. They can be reversed to sit on the outside if internal clearance is strictly prioritized.

Additional notes

Tooling requirements for 3-piece designs

Because this package consists of a main wrap and two separate end panels, it requires distinct cutting dies. This makes it highly efficient for material yield but requires a commitment to the specific size.

FAQs

Assembly and packing

Can this box be folded and assembled by hand?

Technically yes, but it is highly inefficient without specialized equipment. Holding three separate pieces square while applying glue or staples is difficult. It is highly suited for operations with automated Bliss formers or dedicated manual fixture stations.

Closure and sealing

How do the top flaps stay closed?

While the main body is permanently stitched or glued together, the top lid consists of two flaps that close flush across the top opening. You must secure these with packing tape or strapping for transit.

Product fit and strength

Why use a 3-piece box instead of a standard 1-piece box?

A 3-piece design allows the corrugated flutes on the end panels to run vertically, creating rigid columns that support massive stacking weight. It also uses less total corrugated board for large sizes compared to a single-piece die cut.

Shipping route

Is this suitable for standard parcel shipping?

It can be, provided the top meeting flaps are heavily taped or strapped. However, its primary advantage is palletized stacking strength for heavy freight and industrial transit.

Inserts and interior

Can internal dividers be used with this style?

Yes. The rigid, straight walls make it a strong outer shell for heavy grid partitions, which is why this style is historically common for beverage crates and heavy parts sorting.

Board and material

Can this be made in double-wall corrugated?

Yes, but the thickness of the board must be carefully managed at the corners where the flanges overlap the main wrap. Heavy single-wall is often preferred to balance column strength with clean corner joints.

Comparison

How does the top closure differ from other 3-piece boxes?

Unlike the 0601 which uses a hinged tuck lid, or the 0605 which uses four overlapping flaps, the 0606 uses exactly two flaps extending from the side walls that close flush across the top opening.

Logistics

Can this box be shipped flat to our facility?

Yes, the three pieces are delivered completely flat, which is very efficient for inbound freight. Your team or machinery will handle the final 3D assembly.
