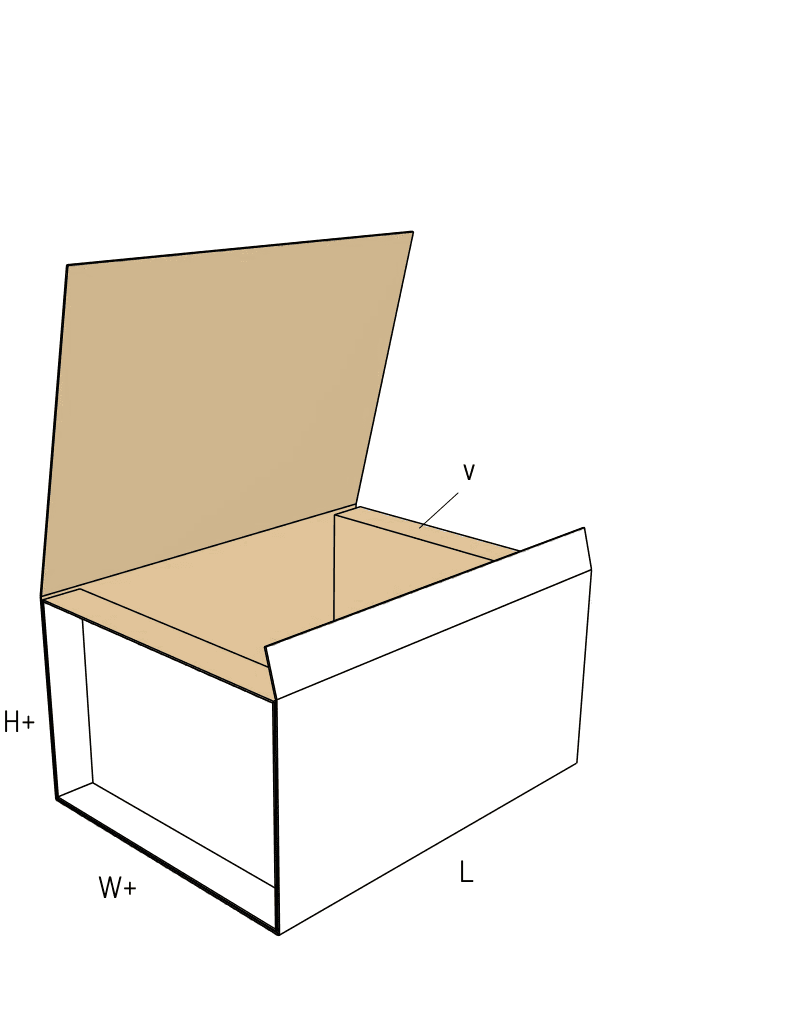

FEFCO 0610

Heavy-Duty 3-Piece Bliss Box with Flanged Ends

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

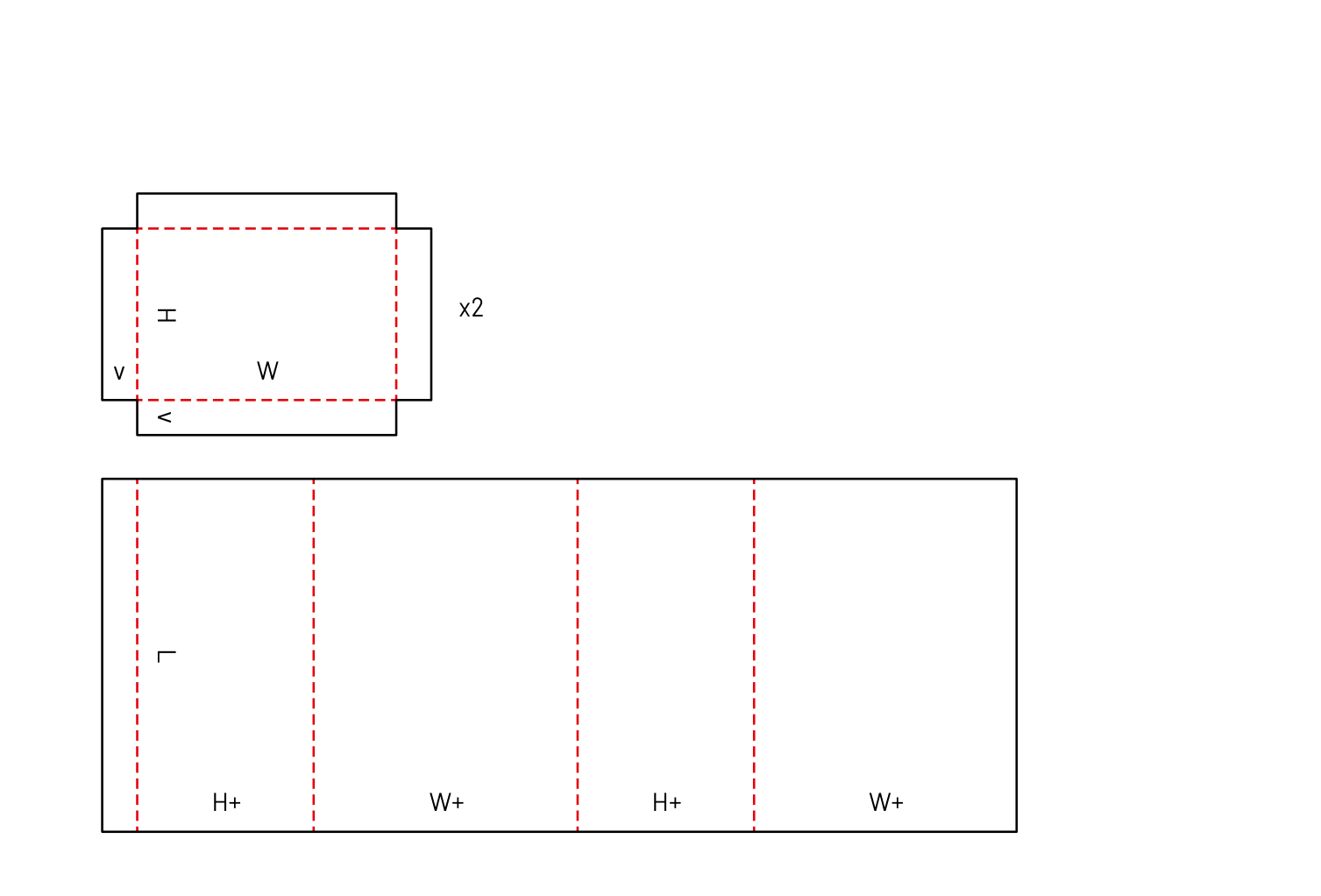

Built from three separate pieces that require permanent stitching or gluing before use
Rigid end panels act as vertical columns to support extreme pallet weights
Main wrapper is a single smooth sheet, offering an unbroken outer print surface

About this product

When shipping exceptionally heavy, dense, or oversized goods, standard folded cartons can bulge or crush under the weight. The 3-piece Bliss box solves this by using a main wrap-around shell and two separate end panels that are permanently stitched or glued together before loading.

This multi-piece construction creates rigid vertical columns that support massive stacking loads. The defining feature of this specific design is its flange placement: all attachment flanges are located on the end panels, leaving the main wrapper completely smooth for clean handling and uninterrupted printing.

Common uses

Bulk agriculture
Dense industrial parts
Heavy hardware
Oversized manufacturing components

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy is the typical packed box?

How will these boxes be stacked during shipping or storage?

How should these arrive at your facility?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Heavy-duty transit and bulk packing jobs

High-weight vertical stacking

The separate end panels act as rigid vertical columns. When permanently joined to the main shell, they transfer heavy top loads directly to the base, keeping the package from crushing under heavy pallets.

Dense bulk hardware

Packing heavy metal fasteners or dense plastic components requires a bottom that will not give way. The stitched or glued flanges keep the base secure during rough transit.

Oversized industrial parts

Because the main shell wraps around separate end pieces, this container scales efficiently for long or bulky items without requiring a single oversized cutting die.

Agricultural field packing

The rigid walls resist bulging when packed with dense produce. The smooth outer wrapper prevents snagging during rapid field loading and transit.

Industries relying on rigid Bliss containers

Heavy manufacturing

Facilities shipping dense metal parts or machinery components rely on the stitched or glued base to prevent bottom failure under concentrated weight.

Bulk agriculture

Growers moving heavy produce benefit from the rigid vertical columns that protect the lower layers of a stacked pallet from crushing.

Enterprise fulfillment

Operations equipped with automated Bliss forming machinery benefit from the excellent material yield and rapid, high-volume erection of these three-piece shippers.

When to consider a different box style

Manual packing without fixtures

If you do not have specialized Bliss forming equipment or dedicated stitching fixtures, assembling three separate pieces by hand is highly inefficient. Look at a standard RSC (FEFCO 0201) for straightforward manual taping.

Need for a hinged lid

If the packing workflow or end-user requires a hinged lid for easy access, evaluate FEFCO 0601, which places the flanges on the wrapper and features a tuck-in top.

Close variants and lookalike dielines

The closest library neighbors include 0607, 0620, 0608. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Assembly and production choices

Stitching versus gluing

The three pieces must be permanently joined. Wire stitching provides extreme mechanical shear strength for heavy loads, while industrial hot-melt glue offers a continuous seal. Your choice depends on your assembly equipment and payload weight.

Delivery format

Bliss boxes are incredibly efficient to ship flat, but this shifts the entire assembly burden to your facility. Decide whether you will form the boxes in-house or require the converter to deliver them pre-assembled.

Board grade and corner clearance

This style is often cut from heavy single-wall or double-wall board. Thicker boards require careful planning at the corners to ensure the four folding flanges do not bunch or bind when assembled.

Print and branding surface

Because the attachment flanges are located entirely on the end panels, the main body wrapper provides a smooth, uninterrupted surface across the front, bottom, back, and top. Decide if you want to use this continuous area for large flexographic prints or labeling.

Practical template adjustments

Flange tapers

The flanges on the end panels can be tapered. This is a critical adjustment for thicker corrugated boards, preventing the material from clashing in the corners when all four sides are folded inward.

Joint overlap width

The width of the attachment flanges on the end panels can be adjusted. Wider flanges provide more surface area for glue or staples, increasing shear strength for heavier payloads.

Top closure flap width

The final glue flap on the main wrapper can be extended to ensure a more secure seal across the top panel, which is especially useful for boxes entering rough freight networks.

Board and packing details

Top closure sealing

While the base and sides are permanently formed during assembly, the top panel closes with a final glue flap. This must be securely sealed with adhesive or heavy-duty tape before entering a parcel or freight network.

Additional notes

Flat delivery versus pre-assembled

Shipping these boxes flat minimizes inbound freight costs, but requires you to own the forming equipment. If you lack the machinery, discuss pre-assembled delivery with your supplier, keeping in mind that shipping empty formed boxes significantly increases freight volume.

FAQs

Assembly & Production

Can we assemble this box by hand?

Assembling a three-piece Bliss box by hand is highly inefficient and prone to misalignment unless you use dedicated holding fixtures. For efficient production, this style requires an automated Bliss forming machine to fold and permanently join the pieces.

Should we use wire stitching or hot-melt glue?

Wire stitching provides excellent mechanical resistance against tearing under heavy loads, making it a strong choice for dense industrial parts. Hot-melt glue creates a continuous seal and is often faster in automated formers. The best choice depends on your specific payload and available machinery.

Route & Shipping

Does this box require tape to ship?

Yes. While the bottom and sides are permanently stitched or glued during the initial forming process, the top closure panel relies on a final flap that must be secured with adhesive or heavy-duty tape before transit.

Board & Material

Can this be made from double-wall corrugated board?

Yes, it is frequently made from heavy single-wall or double-wall board for maximum strength. However, thicker boards require the factory to add specific tapers to the end-panel flanges so the material does not bunch up in the corners during assembly.

Cost & Logistics

Why choose a three-piece box over a standard single-piece box?

For very large or extremely heavy items, a single-piece box requires a massive cutting die and generates significant corrugated waste. A three-piece design optimizes material yield and creates rigid vertical columns that a standard folded box cannot match.

Product Fit

Is this suitable for retail display?

Generally, no. This is a heavy-duty industrial transit format. The visible stitched or glued joints on the end panels prioritize raw strength over retail aesthetics.

Print & Branding

How does the smooth outer wrapper help with printing?

Because all the attachment flanges are folded inward from the end panels, the main wrap-around shell has no external seams or overlapping flaps on its primary faces. This creates a continuous, flat surface that is excellent for large flexographic printing or applying oversized labels.

Comparison

How does the flange placement differ from other Bliss boxes?

In this specific design, the folding attachment flanges are located on all four edges of the two end panels. In other Bliss styles, like the 0601, the flanges are attached to the main wrapper instead. This changes the assembly sequence and the final exterior appearance of the joints.
