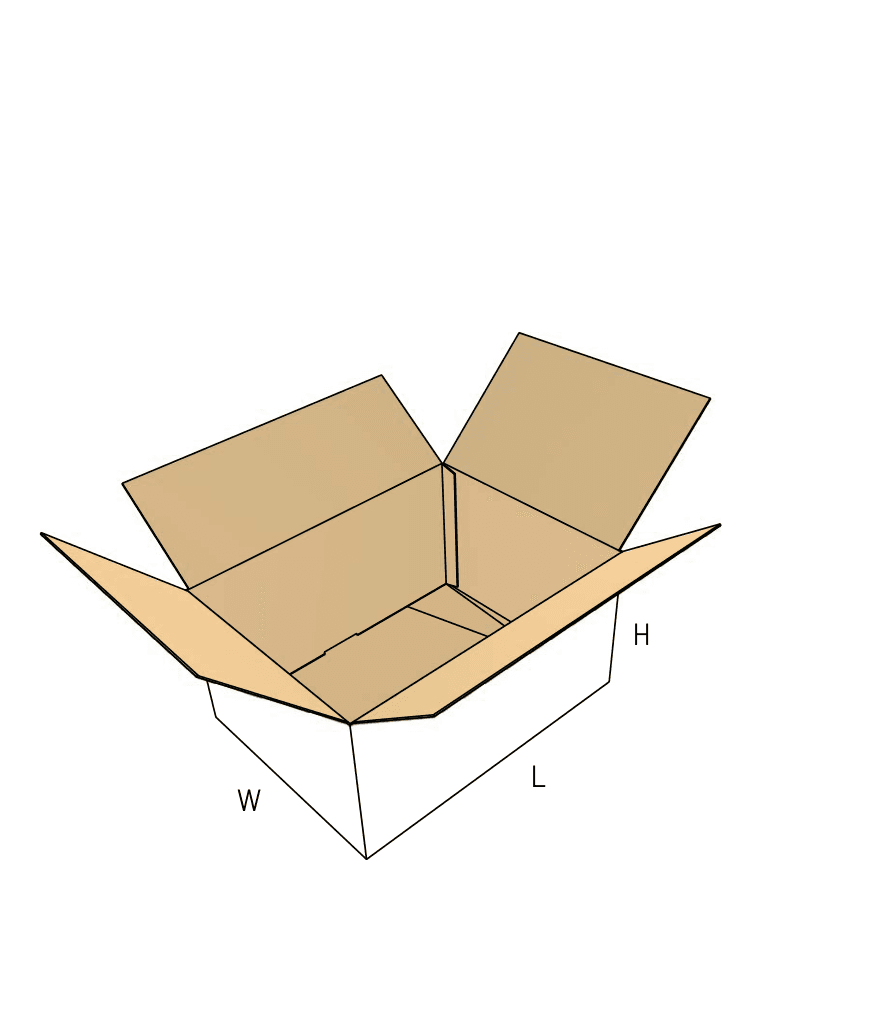

3D view
1 / 2

FEFCO 0704

Auto-Bottom Box with Slotted Top

This hybrid shipping box combines a pre-glued, instant-setup base with a standard slotted top. Pushing the opposite corners together forces the floor to lock into place, allowing your packing team to skip bottom taping entirely.

The tradeoff is manufacturing complexity. The pre-gluing process requires specific folder-gluer routing, making this design a practical choice for high-volume fulfillment where pack-bench labor savings outweigh the initial production steps.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Base locks automatically when squared, requiring no bottom tape
  • Top flaps meet in the center and require tape or glue to seal
  • Best for repeat fulfillment programs where packing speed is the primary bottleneck

Common uses

  • High-volume e-commerce fulfillment
  • Subscription box packing lines
  • Kitting and assembly operations
  • High-volume retail distribution

Get a quote

Or email us at info@herculeindustrial.com

Files (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-throughput packing and fulfillment

High-volume e-commerce

The instant base setup cuts seconds off every order. Multiplied across thousands of shipments, the labor savings justify the more complex manufacturing route.

Fast-paced kitting lines

Operators can pop the box open with one motion and immediately begin loading components, keeping the assembly line moving without pausing for a tape dispenser.

Automated top-sealing workflows

Because the top uses standard slotted flaps, this box pairs well with automated case tapers. The base is handled instantly by hand, and the top is sealed by the machine.

Subscription box programs

For predictable, repeat monthly runs, the auto-bottom base keeps the packing line moving quickly while the slotted top provides a familiar, secure transit seal.

Operations relying on speed and security

Third-party logistics (3PL)

When throughput dictates profitability, removing the bottom-taping step across thousands of daily orders yields measurable labor savings.

High-volume retail distribution

Moving goods from master cartons into individual shipping units requires fast handling. The instant base keeps fulfillment moving.

Assembly and component packing

Workers need their hands free to manage multiple parts. A box that squares and locks in one motion reduces handling friction.

When to consider a different box style

Short runs or prototypes

If you are ordering a few hundred boxes for a trial, the complex folder-gluer routing makes this impractical. Consider a standard Regular Slotted Container (FEFCO 0201) instead.

Heavy industrial payloads

While the interlocking base is secure, extremely heavy or dense point-loads can force the bottom tabs to slip. For heavy industrial parts, a fully taped bottom (FEFCO 0201) or a stitched heavy-duty tray may be safer.

Retail display needs

The slotted top flaps must be cut or folded away to display products on a shelf. If the box goes straight to retail, look at an open-top crash-lock tray (FEFCO 0700).

Board, volume, and sealing choices

Board thickness and base binding

The interlocking base relies on precise clearances. Fine to medium flutes fold crisply. Heavy double-wall board increases the manual force needed to open the box and risks binding the lock.

Top sealing method

Decide how your team will close the top. The standard flaps require manual taping, a water-activated tape dispenser, or an automated top-taper on your line.

Production route and order maturity

Because this box requires a multi-point folder-gluer at the factory, it makes the most sense for larger, repeat orders rather than early-stage trials.

Payload weight and base security

Evaluate how your product sits on the floor. Broad, flat items distribute weight evenly, while dense, heavy items concentrated in the center stress the interlocking tabs.

Adjusting the fit and closure

Height creases for variable fill

If your product volumes vary, the walls can be scored with horizontal height creases. Packers can slice the corners down to the appropriate crease and fold the top flaps lower, reducing the need for void fill.

Base tab geometry

Converters may adjust the exact shape of the crash-lock tabs to match their specific flatbed stripping equipment. This changes the internal look slightly but does not affect pack-bench assembly.

Top flap overlap

If you need extra puncture resistance on top, the flaps can be extended to fully overlap, though this increases board usage and blank size.

Board and packing details

Flat delivery and storage

Despite the complex pre-glued base, these boxes ship to your facility completely flat. The glued overlap adds a slight thickness to the bundle compared to unglued sheets, but they still stack efficiently on pallets.

Alternative base and top profiles

Alternative catalog standards (FEFCO 0701)

You may see FEFCO 0701 offered for the exact same job. For a packing team, 0701 and 0704 function identically. The difference lies in specific factory tab geometries.

Additional notes

Short digital trial versus repeat run

You can order a small batch of digital prototypes to test the pop-up force and product fit, but manual prototype gluing will not perfectly simulate the crush and fold behavior of a factory folder-gluer. Plan for a proper machine trial before a massive rollout.

Related packaging choices

FAQs

Route and shipping

Does this box require tape for shipping?

Yes. While the bottom locks automatically without tape, the top features standard slotted flaps that must be sealed with packing tape or glue before transit.

Product fit

Can the auto-bottom support heavy items?

The dual-layer interlocking floor is secure for most consumer goods and e-commerce payloads. However, extremely dense, heavy point-loads can cause the center interlock to slip. Heavy industrial parts usually require physical drop testing or a switch to a fully taped bottom.

Board and finish

Can we use double-wall corrugated for extra protection?

It requires careful validation. Heavy double-wall board makes the diagonal creases stiff, which drastically increases the physical force your packers need to open the box. It also increases the risk of the base tabs binding.

Quantity and production

Why is this harder to prototype than a standard box?

The crash-lock base requires a flatbed die-cutter and a multi-point folder-gluer. Manual prototype gluing will not perfectly simulate the crush and fold behavior of a factory folder-gluer.

Packing labor

How much time does the auto-bottom actually save?

It eliminates the steps of squaring the box, folding four bottom flaps, and applying bottom tape. For high-volume lines, saving those seconds on every single unit significantly increases daily throughput.

Can this box be erected by automated machinery?

While it is designed for rapid hand-assembly, running it through an automated carton erector requires specific machinery capable of popping crash-locks. It cannot be run on a standard RSC erector.

Storage and handling

Does the glued base affect flat storage?

The boxes ship completely flat. The glued side seam and folded base add a slight thickness to one side of the knocked-down bundle, but they still stack efficiently on pallets.

Product fit

What happens if the product load is concentrated in the center?

Dense point-loads stress the interlocking tabs. If you are shipping heavy, concentrated items, you may need a bottom pad to distribute the weight or a switch to a fully taped bottom box.

The right choice depends on whether your packing line values the speed of an instant base more than the simplicity of a standard box.
