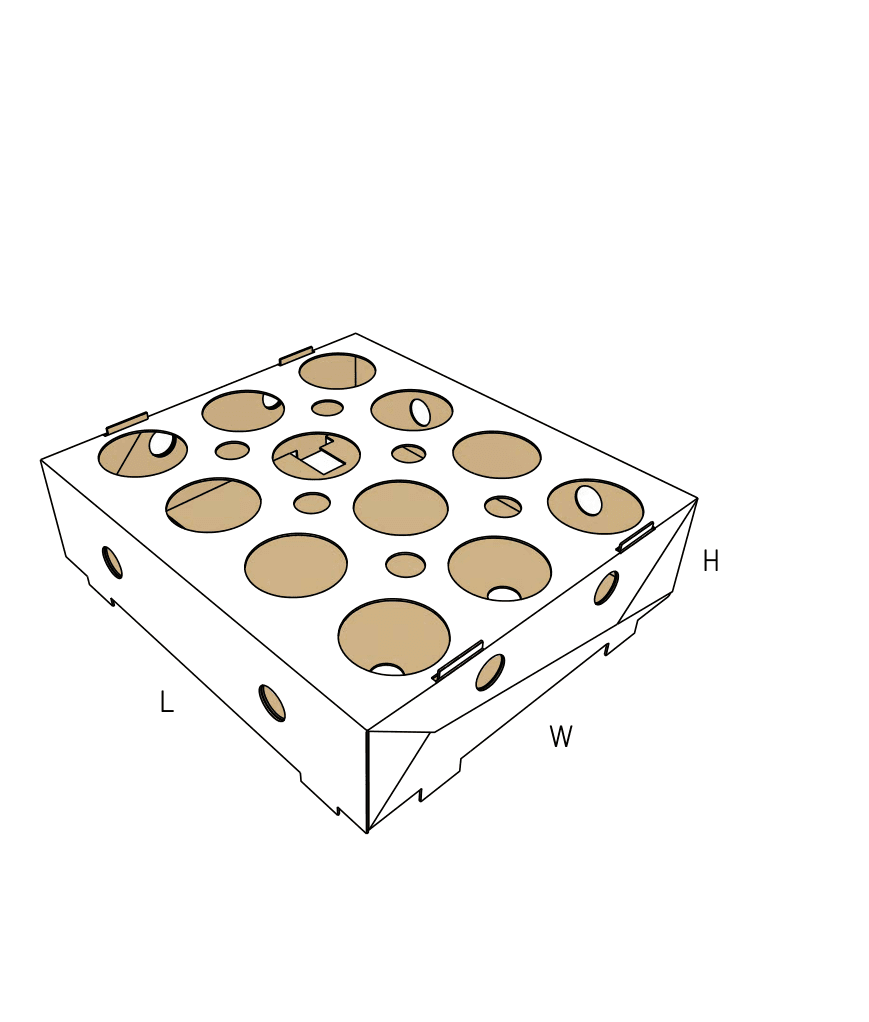

FEFCO 0751

Auto-Bottom Tray with Integrated Cup Holder

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Single-piece blank eliminates separate insert assembly
  • Crash-lock base deploys instantly when the tray is squared
  • Hole grid is custom-sized to fit specific conical products

About this product

This single-piece tray combines a fast-erecting crash-lock base with a built-in false floor. When you square the main walls, the bottom interlocks automatically. You then fold the extended top panel down into the cavity, where its edge tabs lock into the side walls to create a rigid grid for cups or pots.

It trades a more complex single-piece manufacturing route and higher board usage for extreme speed at the pack bench, eliminating the need to inventory, fold, and insert separate dividers.

Common uses

  • Dairy and yogurt distribution
  • Potted plant nursery transport
  • Cosmetic or beverage sampling kits
  • Fragile jar and candle packing

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Products packed in integrated hole trays

Dairy and chilled food distribution

Holds yogurt cups, dessert pots, and conical dairy containers upright during transit, keeping them separated to prevent rim damage.

Horticulture and nursery transport

Secures small potted plants. The open top allows foliage to breathe while the locked false floor prevents the pots from tipping during pallet movement.

Beverage and cosmetic sampling

Acts as a presentation tray for conical bottles or tubes, keeping the labels facing forward for retail or kit display.

Fragile jar and candle packing

Suspends heavy glass containers so they do not collide during transit, relying on the false floor to absorb lateral movement.

Packing environments and logistics loops

High-volume manual pack benches

When packing speed is the primary bottleneck, removing the step of folding a separate internal divider saves significant labor across thousands of units.

Chilled logistics loops

Often specified with wet-strength liners to survive condensation in refrigerated dairy supply chains without the locking tabs softening and failing.

Co-packing and fulfillment centers

Simplifies inventory management by reducing a two-piece tray-and-insert combination into a single SKU that arrives flat and pops open in one motion.

When to compare two-piece or partitioned alternatives

Short runs and prototype testing

Compare a standard auto-bottom base paired with a separate die-cut insert. Two simpler pieces require less complex flatbed cutting and generate less stripping waste, though they require more time to assemble on the floor.

Fully enclosed shipping

Compare a standard slotted box with a corrugated partition if the package must ship as a standalone parcel through courier networks, as the 0751 has an open top.

Close variants and lookalike dielines

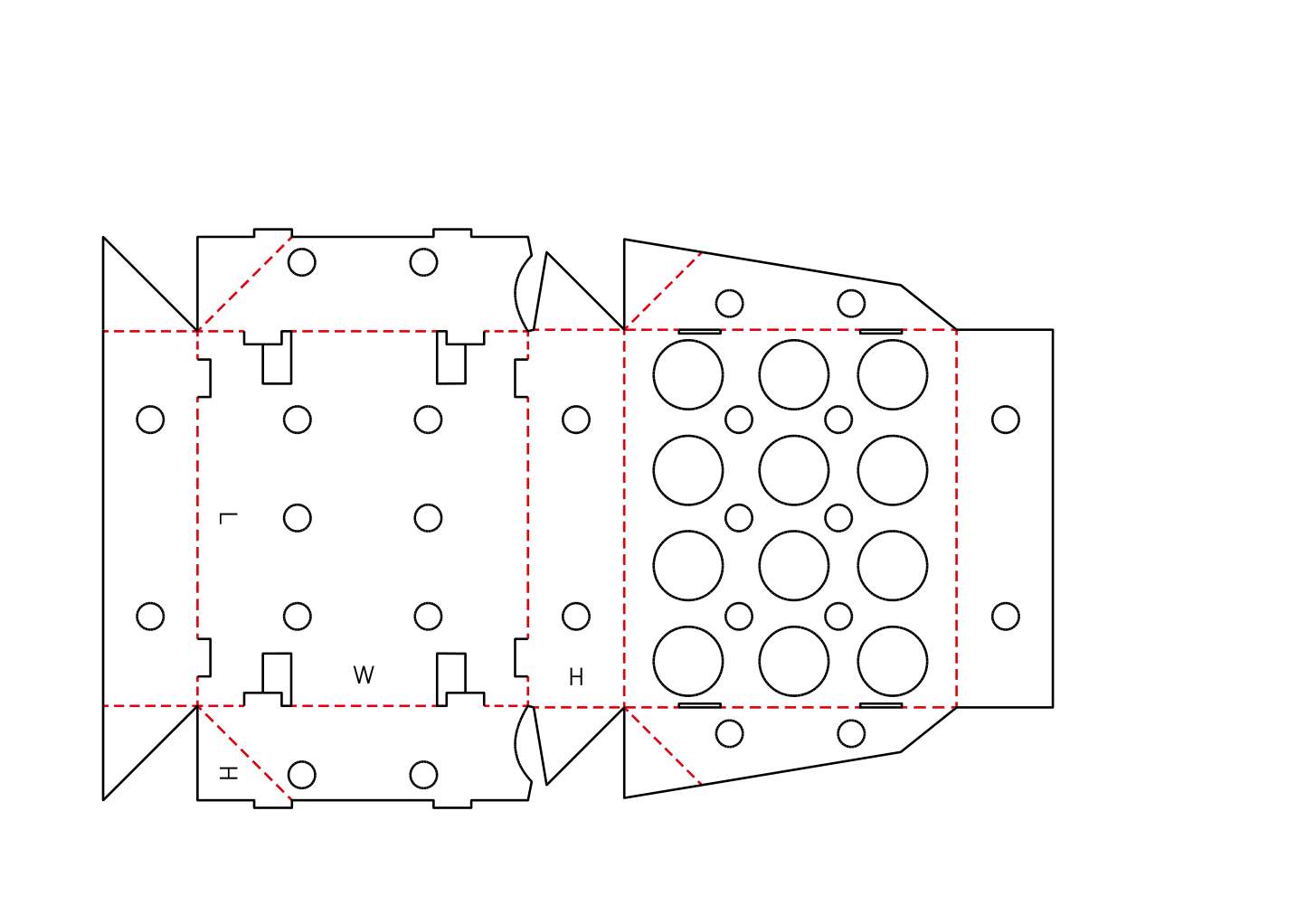

The closest library neighbors include 0774, 0772, 0427_1. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, fit, and route decisions

Cup fit and hole sizing

The die-cut holes must match the exact taper of your product. If the holes are too wide, the cups slip through to the base. Physical product samples are necessary to set the correct radius.

Board thickness and locking tabs

The false floor relies on friction-fit tabs inserting into side-wall slots. Heavy double-wall board can make these tabs too stiff, causing them to crush rather than seat properly during manual assembly.

Wet-strength liner requirements

If the tray will move through refrigerated supply chains, standard kraft board can absorb moisture and soften. Wet-strength liners ensure the false floor remains rigid under condensation.

Hole spacing and grid density

Placing the cutouts too close together weakens the corrugated board between the cups, increasing the risk of tearing if the payload shifts during transit.

Grid and layout adjustments

Grid layout and hole count

The template adjusts to different configurations, such as a 2x3 or 4x3 grid, depending on the product diameter and the maximum flat blank size the folder-gluer can handle.

Mixed hole diameters

While a uniform grid is standard, the cutouts can be sized differently to hold a mixed assortment of products, such as a large jar and two small bottles in a single kit.

Ventilation and hand-hole cutouts

The side walls can be modified with circular or pill-shaped cutouts to improve airflow for agricultural products or to provide grip points for manual lifting.

Board and packing details

Flatbed die-cutting and stripping waste

The circular cutouts generate substantial scrap board. This design makes the most sense when the labor savings at the pack bench outweigh the higher material usage.

Vertical stacking limits

Because the top is open and the internal panel sits below the rim, vertical pallet weight transfers either through the cups themselves or requires a separate master shipper.

Base and lock variations

Alternate tab profiles

The locking tabs on the false floor can be cut with different hook or notch profiles to match specific factory stripping capabilities or to increase the friction fit against the side walls.

Additional notes

Chilled environments and condensation

If the tray will move through refrigerated supply chains, standard kraft board can absorb moisture and soften. Discuss wet-strength liners early to ensure the false floor remains rigid.

Physical cup samples for tolerance testing

Do not rely on digital measurements alone. Send physical samples of the cups or pots to the manufacturer to verify the exact drop depth and rim catch.

Related trays and inserts

0774: Ear Hook Lock Tray with Holder

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0772: Tapered Tray

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Shipping and route

Can this tray ship as a standalone parcel?

No. The open top provides no primary lid containment. It acts as a transport crate for palletized loops or requires an outer master carton for courier delivery.

Assembly and closure

Do I need to tape the bottom?

No. The crash-lock base is pre-glued at the factory and interlocks mechanically when the tray is opened.

Comparison

Why choose this over a separate insert?

It comes down to labor versus production complexity. A single-piece design requires more complex flatbed cutting but allows a packer to erect the tray and the cup holder in one continuous motion.

Materials

What board flute works best?

Fine to medium flutes like E or B are usually preferred. They provide crisp folds for the locking tabs and clean edges for the circular cutouts without causing the base to bind.

Product fit

Can the hole sizes vary in the same tray?

Yes. While a uniform grid is standard, the cutouts can be sized differently to hold a mixed assortment of products in a single kit.

Assembly and closure

Does this work on automated case erectors?

It depends entirely on the specific machinery. The complex fold-down and lock motion of the top panel is primarily designed as a highly efficient manual pack-bench solution.

Print surface

Can the false floor be printed?

Yes. Because the false floor is an extension of the main blank, it can be printed in the same pass as the exterior walls, making it useful for branded retail displays.

Product fit

Is it difficult to remove the cups once packed?

The cups are held by gravity and friction against the tapered holes. As long as the hole radius is sized correctly, the cups lift out easily without binding against the board.
