FEFCO 0761

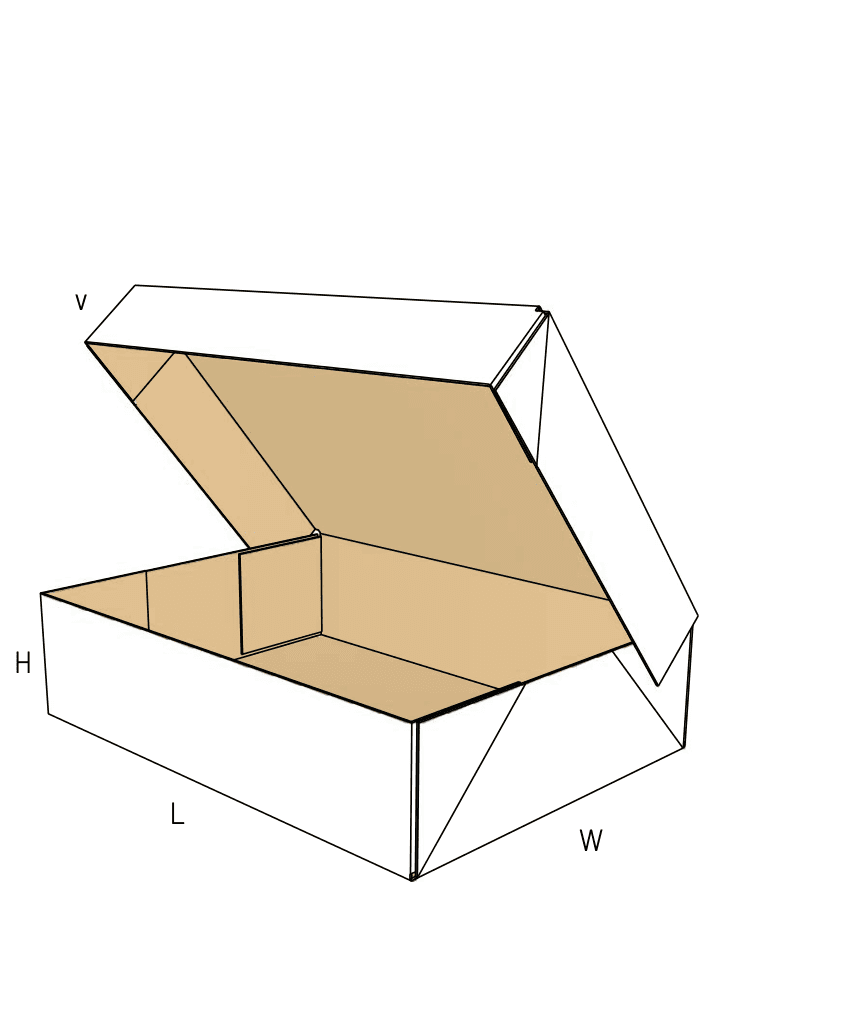

Auto-Bottom Presentation Box with Hinged Lid

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Base deploys instantly to speed up manual pack benches
Hinged lid with side dust flaps provides a clean unboxing reveal
Requires an outer seal or tape for secure parcel shipping

About this product

This single-piece presentation box combines a fast-erecting crash-lock base with a hinged tuck-in lid. Because the lower tray is factory-glued, it ships flat but pops open into a rigid box the moment a packer squares the corners.

It delivers the clean unboxing experience of a standard mailer, but eliminates the slow manual folding of the floor and side walls. This shifts the effort from the pack bench to the production line, making it an excellent fit for high-volume fulfillment.

Common uses

Subscription boxes
E-commerce apparel
Promotional kits
Retail counter packs

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this box be shipped?

What is the approximate weight of the items going inside?

Are you planning full-color graphics or heavy ink coverage?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

High-volume fulfillment and premium presentation

Subscription box rollouts

When packing thousands of identical kits, the seconds saved on every box compound quickly. The instant base keeps the line moving, while the friction-tuck lid delivers the exact unboxing experience expected from premium subscriptions.

High-volume e-commerce apparel

For clothing and soft goods, this box removes the bottleneck of manual tray folding. Packers simply square the base, drop the items inside, and fold the lid over. The side dust flaps keep garments protected from warehouse debris.

Promotional influencer kits

When launching a new product, brands need a high-end presentation that can be assembled rapidly by fulfillment teams. The auto-erecting base handles the speed, while the hinged lid provides a wide, continuous surface for internal graphics.

High-speed kitting for cosmetics

When packing multiple small items, the instant base keeps the line moving, while the friction-tuck lid delivers the exact unboxing experience expected from premium health and beauty brands.

E-commerce, apparel, and promotional kitting

High-volume manual pack benches

This box is built specifically for manual fulfillment lines where labor time is the primary bottleneck. By removing the need to fold and lock unglued side walls, it allows a single operator to pack more units per hour.

Retail shelf and counter presentation

The clean exterior and easy-to-open hinged lid make it an excellent choice for retail environments. Store staff or customers can open and reclose the box easily without tearing the panels.

Third-party fulfillment operations

For 3PLs managing complex kitting projects, the pre-glued base eliminates the learning curve of folding complex mailers, ensuring consistent packing speeds across different shifts.

When to consider a different mailer or tray

When packing speed is not the primary bottleneck

If your packing volume is low or labor time is not your main bottleneck, a standard unglued roll-end mailer avoids the multi-point gluing step.

When you need maximum side-wall strength

Because this box relies on single-wall sides to allow the base to fold flat, it lacks the double-wall rolled sides of a traditional mailer. If you are shipping heavy, fragile items that need lateral crush protection, consider an unglued mailer.

When the presentation lid is unnecessary

If you just need a fast-erecting box for internal kitting or master packing, a standard open-top crash-lock tray provides the same base speed without the extra board used by the hinged lid.

Close variants and lookalike dielines

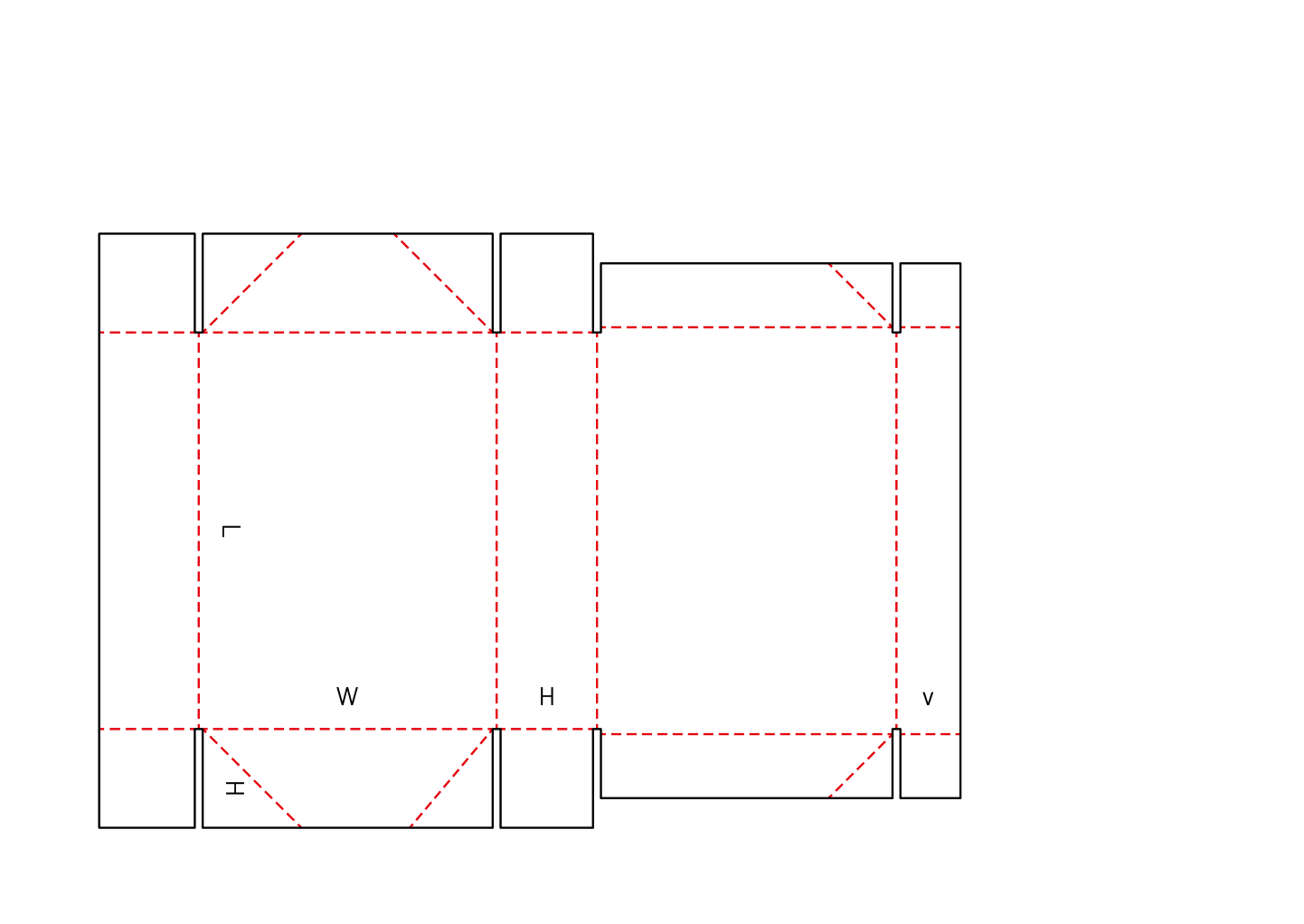

The closest library neighbors include 0759, 0748, 0748a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, closure, and production choices

Board thickness and flute choice

This box relies on precise clearances for the base to lock and the lid to tuck. Fine flutes are a strong fit. Heavy or double-wall boards will cause the crash-lock base to bind and make the lid flaps clumsy to insert.

Securing the lid for parcel transit

While the lid tucks in cleanly for presentation, friction alone will not hold during transit shocks. If this box ships directly in the mail, plan to add a clear wafer seal, a strip of packing tape, or a peel-and-seal strip.

Print placement across the hinge

The hinged lid offers an excellent continuous billboard for graphics. However, heavy ink coverage directly over the rear hinge crease can crack during folding, especially on thicker boards. Plan your artwork to accommodate the fold.

Base lock testing for heavy payloads

The crash-lock base features overlapping glued panels, but extremely dense point loads should be physically drop-tested to ensure the center interlock holds.

Adjusting the friction fit and lid profile

Lid tuck flap friction

The tightness of the closure depends on the exact angle and depth of the front and side tuck flaps. These can be adjusted during the template design to provide a looser fit for easy retail access or a tighter friction lock for kitting.

Base locking tab contours

Adjusting the hook and notch geometry helps the blank run smoothly through specific flatbed stripping equipment without changing the final unboxing experience.

Tear-strip and peel-and-seal additions

Adding adhesive strips during manufacturing secures the friction lid for direct parcel shipping without requiring manual taping at the pack bench.

Board and packing details

Production routing and order maturity

Because this box requires a flatbed die-cutter and a specialized multi-point folder-gluer, the initial production steps involve more preparation than a standard shipping box. It makes the most sense for mature, high-volume programs where pack-bench labor savings outweigh the multi-point gluing preparation.

Variant profiles and options

Alternate tuck flap profiles (0761_1)

Some production routes use a variant with modified angles on the lid's tuck flaps or different contours on the base locking tabs. These adjustments help the blank run smoothly through specific factory stripping equipment without changing the final unboxing experience.

Additional notes

Parcel sealing and outer carton choice

If you are using this as an inner presentation box for a master shipper, the friction lid is perfect as-is. If it travels alone, discuss adding a peel-and-seal tear-strip combination during manufacturing to keep the unboxing clean.

Print panel and scuff risk

Because the box ships flat as a pre-glued tube, the outer panels rub against each other in the bundle. If you are using high-end graphics, discuss anti-scuff coatings to protect the print during transit to your facility.

FAQs

Shipping and route

Can I ship this box without packing tape?

For direct parcel shipping, no. The friction-fit lid provides a great unboxing experience, but it can pop open under transit shocks. You will need a clear seal, packing tape, or a factory-applied peel-and-seal strip for courier networks.

Comparison

Why choose this over a standard roll-end mailer?

Speed. A standard unglued mailer takes time to fold the floor and roll the side walls into place. This auto-bottom version pops open instantly, which saves labor on high-volume fulfillment lines.

Board and material

Can this be made in heavy double-wall corrugated?

It is highly discouraged. The complex interlocking base and the friction tuck flaps require precise folding clearances. Heavy boards cause the base to bind during setup and make the lid hinge stiff and prone to cracking. Fine to medium flutes are a better fit.

Production path

What production steps are involved?

The diagonal creases in the base and the complex tuck flaps require a flatbed die-cutter. It also requires a multi-point folder-gluer at the factory to create the collapsed, pre-glued tube.

Product fit

Is the base strong enough for heavy items?

The crash-lock base features overlapping glued panels that provide a secure floor for most consumer goods, apparel, and kits. However, for extremely dense or heavy point loads, the center interlock should be physically drop-tested to ensure it won't blow out.

Packing labor

Does it require a machine to assemble?

No, it is optimized for manual pack benches. An operator simply pushes the opposing corners inward with two hands, and the box squares and locks its base automatically.

Closure and access

How does the lid stay closed?

The lid features front and side dust flaps that tuck inside the main tray walls, creating a friction fit. This provides a clean presentation closure, though it requires an outer seal for parcel shipping.

Retail use

Can I use this for retail display?

Yes, the clean exterior and easy-to-open hinged lid make it an excellent choice for retail shelves. Store staff or customers can open and reclose the box easily without tearing the panels.
