Retail presentation and vertical display jobs
Countertop media and book displays

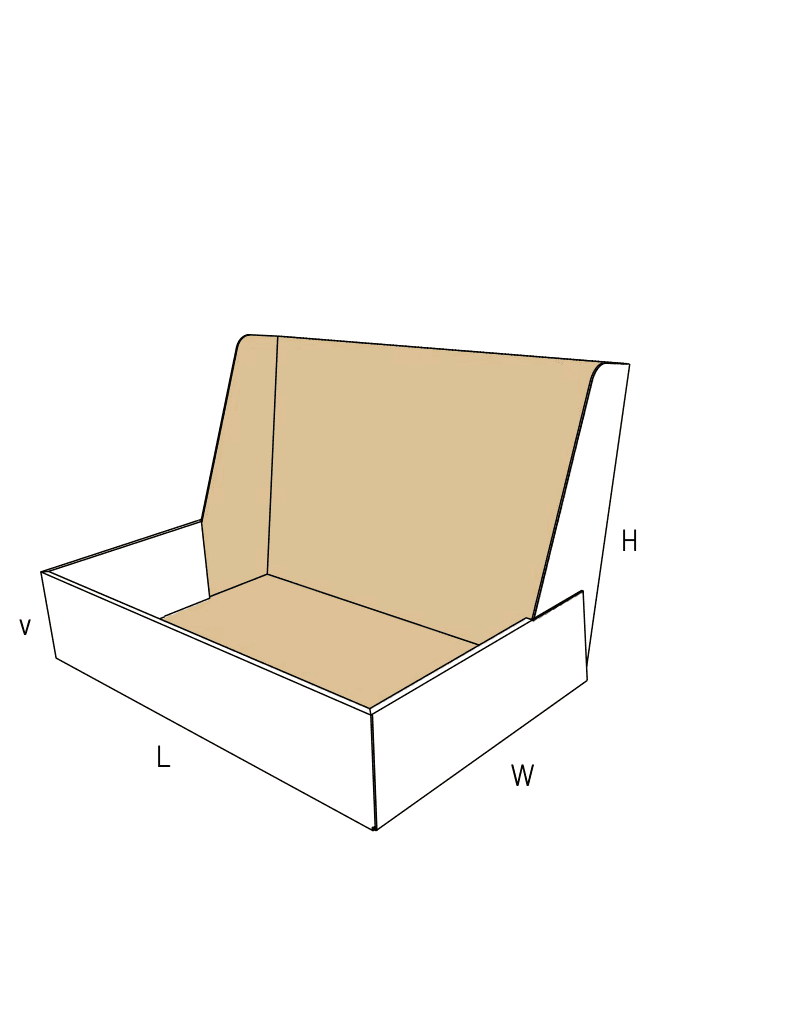

The tall back wall provides rigid vertical support for flat, heavy items like books, journals, or boxed media. The thick rolled front lip keeps the assortment contained while offering a clean printed edge facing the customer.
Shelf-ready blister packs
For retail environments where pegboard space is limited, this tray allows blister-packed goods to stand upright on standard flat shelving. The hollow side walls keep the products aligned and prevent them from tipping sideways.
Point-of-sale cosmetics
Small, flat cosmetic palettes or skincare boxes benefit from the vertical framing. The rolled edges hide the corrugated flutes, matching the premium presentation expected in beauty retail.
Packaged stationery and greeting cards
The rigid backboard keeps thin, flexible items upright without sagging. The friction-locked base ensures the tray holds its shape even as customers remove individual cards.
Retail channels and packing situations
Premium retail rollouts
Brands that want to avoid the look of raw, exposed corrugated fluting on the shelf edge use this style. The 180-degree rolled panels create a smooth frame around the product.
Manual kitting operations
Because this tray requires multi-step manual folding and locking, it fits best in fulfillment centers or co-packing facilities equipped for hands-on assembly rather than automated lines.
Temporary promotional displays
For seasonal campaigns, this unglued tray ships completely flat and can be assembled at the retail location without specialized tools or adhesives.
When to consider a different display tray
High-volume packing lines
If your fulfillment team needs to pack thousands of units quickly, the manual folding required for these rolled edges will add labor time. Compare it to a factory-glued crash-lock display, which pops open in one motion.
Products that do not need back support
If your products are self-standing or do not need a tall backdrop for branding, a standard rolled-edge tray with diagonal sides will use less material and reduce the overall flat blank size.
Board, assembly, and transit choices
Board thickness and fold clearance
This design is highly sensitive to board choice. The side and front panels must roll a full 180 degrees to lock into the floor. Fine flutes fold cleanly, while heavier boards will bind, crush, or cause the locking tabs to pop out.
Outer transit packaging
With its open front and tall back, this display leaves products exposed during transit. You will need to specify a fitted outer master carton to protect the loaded display during distribution.
Print surface mapping
Because the front and side walls roll inward, the exterior printed side of the board wraps over the top edge and down into the tray. This requires mapping artwork so the brand colors continue smoothly into the interior rim.
Pack-station labor allocation
The friction locks and double creases require two-handed assembly. Planners should account for this extra setup time when comparing this unglued tray to pre-glued alternatives.
Practical template adjustments
Front lip height
The height of the front rolled edge can be raised or lowered to balance product visibility with retention, depending on how easily your items might tip forward.
Rim thickness
The width of the hollow side and front walls can be adjusted to create a thicker frame around your products, though this will increase the overall footprint of the flat blank.
Back wall profile
The top edge of the back wall does not have to remain a straight line. It can be contour-cut to match brand logos, character outlines, or specific product shapes.
Board and packing details
Back wall anchoring
The tall back wall stays rigid because its side flaps are physically trapped inside the hollow side walls during assembly. If the side walls are not folded tightly, the back wall may lean.
Additional notes
Flatbed die-cutting requirements
The complex slotted lock holes, double creases, and layer step creases required for the 180-degree folds mean this tray must be produced on a flatbed die-cutter rather than a standard rotary slotter.
Related display packaging
FAQs
Assembly and Packing
Does this display require glue or tape to stay together?
No. The tray holds its shape using mechanical friction locks. The extended front and side panels roll inward and insert locking tabs directly into slots in the base.
Can this be set up on an automated packing line?
No. The 180-degree folds and interlocking tabs require two-handed manual assembly. It relies on human operators at a pack station.
Materials
Can we use a heavy double-wall board for extra strength?
Heavy boards are generally a poor fit for this style. The thick material will bind when forced into a 180-degree roll-over, and the locking tabs are likely to crush or pop out of their slots. Fine flutes fold much cleaner.
Shipping
Can I ship this directly to a retail store?
Not on its own. The open front leaves your products exposed, and the asymmetrical shape cannot bear heavy top loads. It must be packed inside a master transit carton.
Design
How does the tall back wall stay upright?
The back wall has side flaps that fold forward. When you roll the side walls inward during assembly, they completely encapsulate those flaps, anchoring the back wall firmly in place.
Cost
Why does this use more material than a standard tray?

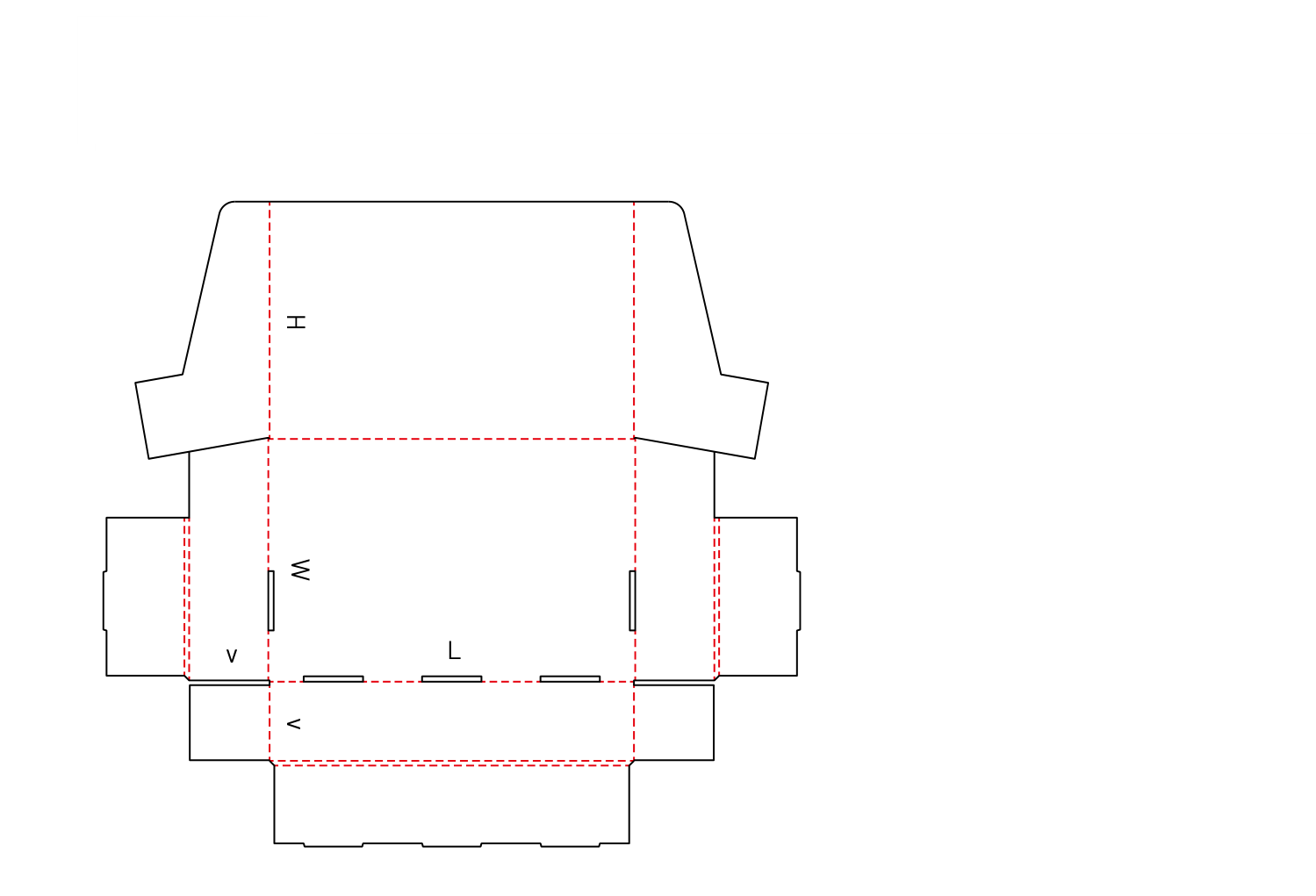

To create the thick rims, the front and side panels must be more than twice as long as a standard wall so they can fold over and reach the floor. The tall back wall also adds area to the flat blank.
Design
How does the rolled edge affect artwork placement?
The exterior printed side of the board wraps over the top edge and down into the tray. This hides the raw corrugated fluting from the shopper and creates a continuous brand surface on the inside rim.
Assembly and Packing
What keeps the locking tabs from popping out?
Proper board choice and pre-breaking the double creases ensure the friction locks hold tension. If the board is too thick or the creases are not folded properly before assembly, the tabs may resist staying in the base slots.
