FEFCO 0832

Multi-Tier Retail Display Rack with Sloped Sides

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Multi-piece construction requiring manual, point-of-use assembly
Sloped side walls and borderless shelves maximize product visibility
Ships flat to distribution centers or individual retail stores

About this product

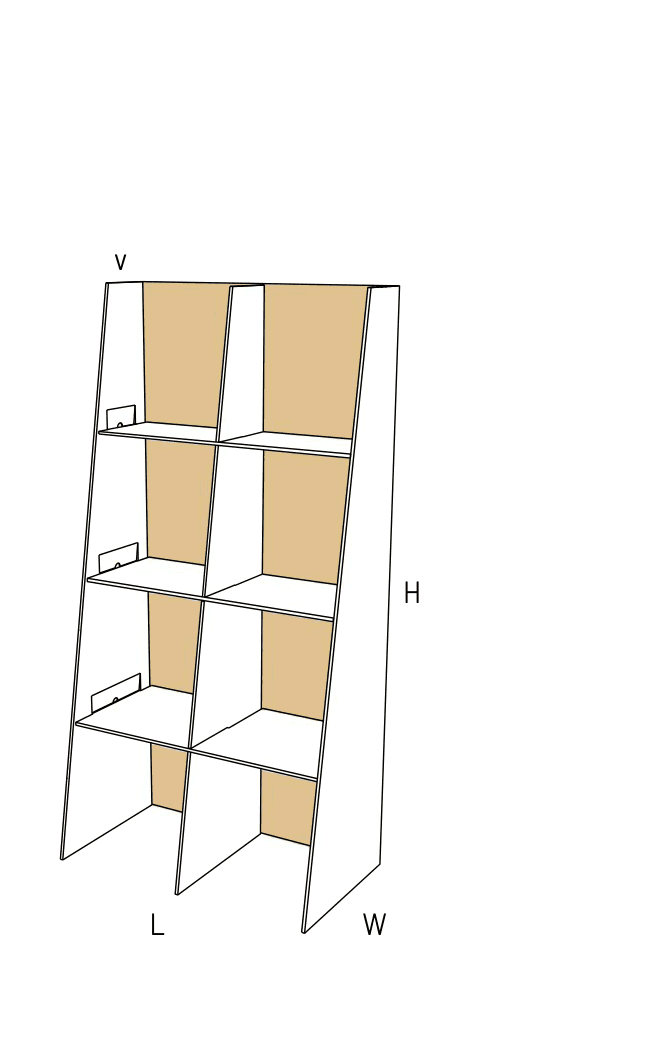

This freestanding floor display organizes products across multiple cascading shelves. Built with a tall backboard and sloped side walls, it opens up the presentation angle to give retail shoppers unobstructed access to the merchandise.

Because the shelves drop in without front borders, the design prioritizes visibility and impulse grabs. The entire unit ships flat and relies on interlocking tabs rather than glue, meaning retail staff will assemble the multiple pieces at the point of use.

Common uses

Retail end-caps
Promotional floor campaigns
Lightweight packaged goods
Cosmetics or boxed snacks

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Overall display width

Target shelf depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will this display hold?

Where will this display be assembled?

What are your printing expectations for the display?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail floor merchandising and promotional end-caps

High-visibility promotional campaigns

The sloped sides pull the visual focus toward the products rather than the fixture itself. This makes it a strong choice for short-term retail promotions where catching a shopper's eye from a distance matters more than long-term fixture durability.

End-of-aisle merchandising

The tall vertical backboard acts as a primary billboard, drawing attention in busy retail aisles. The cascading shelves allow different product sizes or variants to be displayed together in a single footprint.

Promotional floor display for mixed products

Use this style when several products need to be presented in one vertical footprint, especially when the buyer wants the display to carry merchandising work rather than only hold stock.

Retail trial before a larger rollout

A short display trial can check shelf angle, product loading, refill behavior, and store handling before the same family of products moves into a wider promotion.

Product types suited for open-shelf presentation

Boxed goods and stable items

Because the shelves lack front borders, this display works best for products that sit flat and will not roll or tip forward. Boxed cosmetics, packaged snacks, and flat-bottomed retail cartons are natural fits.

Seasonal retail programs

Seasonal or launch programs can use the sloped shelf layout to separate product groups while still keeping the display readable from the aisle.

Consumer goods and sample assortments

Small boxed goods, sachets, accessories, and sample packs can use tiered shelves when the buyer needs several facings without a permanent fixture.

When to consider straight columns or tray shelves

Heavy payloads requiring straight vertical support

If you are displaying heavy items like beverages or large hardware, the sloped sides may not offer enough lateral rigidity. A straight-column display provides stronger vertical load transfer for dense products.

Products that roll or slide

If your merchandise is cylindrical or prone to tipping, the borderless shelves will not hold it securely. Consider a display with folded tray shelves that include front and side lips to retain the items.

Close variants and lookalike dielines

The closest library neighbors include 0831, 0830, 0853. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Balancing shelf strength with assembly effort

Board grade versus assembly friction

Thicker corrugated board increases the weight each shelf can hold, but it also makes the locking tabs much harder to push into their slots. If the board is too thick, retail staff may crush the tabs while trying to force the display together.

Print coverage and branding

The large backboard and sloped side walls offer significant room for graphics. Decide whether the artwork requires high-resolution litho-lamination for premium cosmetics or direct digital printing for a fast-turnaround seasonal promotion.

Shelf loading and product depth

The useful shelf depth depends on product weight, front-facing area, and how much product the store team should load at one time.

Backboard height and print area

A taller backboard gives more graphic space, while a shorter backboard can be easier to pack into a master shipper.

Modifying shelf depth and backboard height

Shelf depth and tipping risks

Extending the depth of the lower shelves can increase product capacity, but it shifts the center of gravity forward. Any significant change to shelf depth requires physical testing to ensure the loaded stand will not tip over on the retail floor.

Shelf lip height

A raised front lip can help keep small products from sliding forward, but it should not hide the lower part of the pack face.

Side-panel stiffness

Side-panel depth and board grade affect how steady the rack feels when the shelves are loaded unevenly.

Board and packing details

Prototype testing for shelf sag

Before committing to a full production run, test a physical, unprinted sample with your actual products. This confirms whether the center of the shelves will sag under the weight and verifies that the interlocking tabs seat correctly.

Additional notes

Retail floor labor expectations

Multi-piece friction-locked stands require spatial reasoning and physical effort to assemble. Clear printed instructions should be included in the flat pack to help store staff sequence the frame, dividers, and shelves correctly.

FAQs

Assembly

Does this display ship fully assembled?

No. The main frame, internal dividers, and individual shelves ship flat. Retail store staff or fulfillment centers must assemble the pieces at the point of use by locking the tabs into the corresponding slots.

Product Fit

Can I use this for heavy bottled beverages?

Sloped-side displays are generally better suited for light to medium retail goods. Heavy payloads often require straight-column architectures or reinforced double-wall board, which must be physically tested for shelf sag and tab shear.

Design

Can we add a front lip to the shelves?

The native design features open, borderless shelves for maximum visibility. Adding a front lip requires a custom structural redesign, which changes the blank layout and assembly sequence.

Stability

What keeps the display from tipping forward?

The depth of the base and the angle of the sloped sides balance the structure. However, placing heavy items on the top shelf or extending the shelf depth too far forward can create a tipping hazard.

Production

Why does this display require large-format tooling?

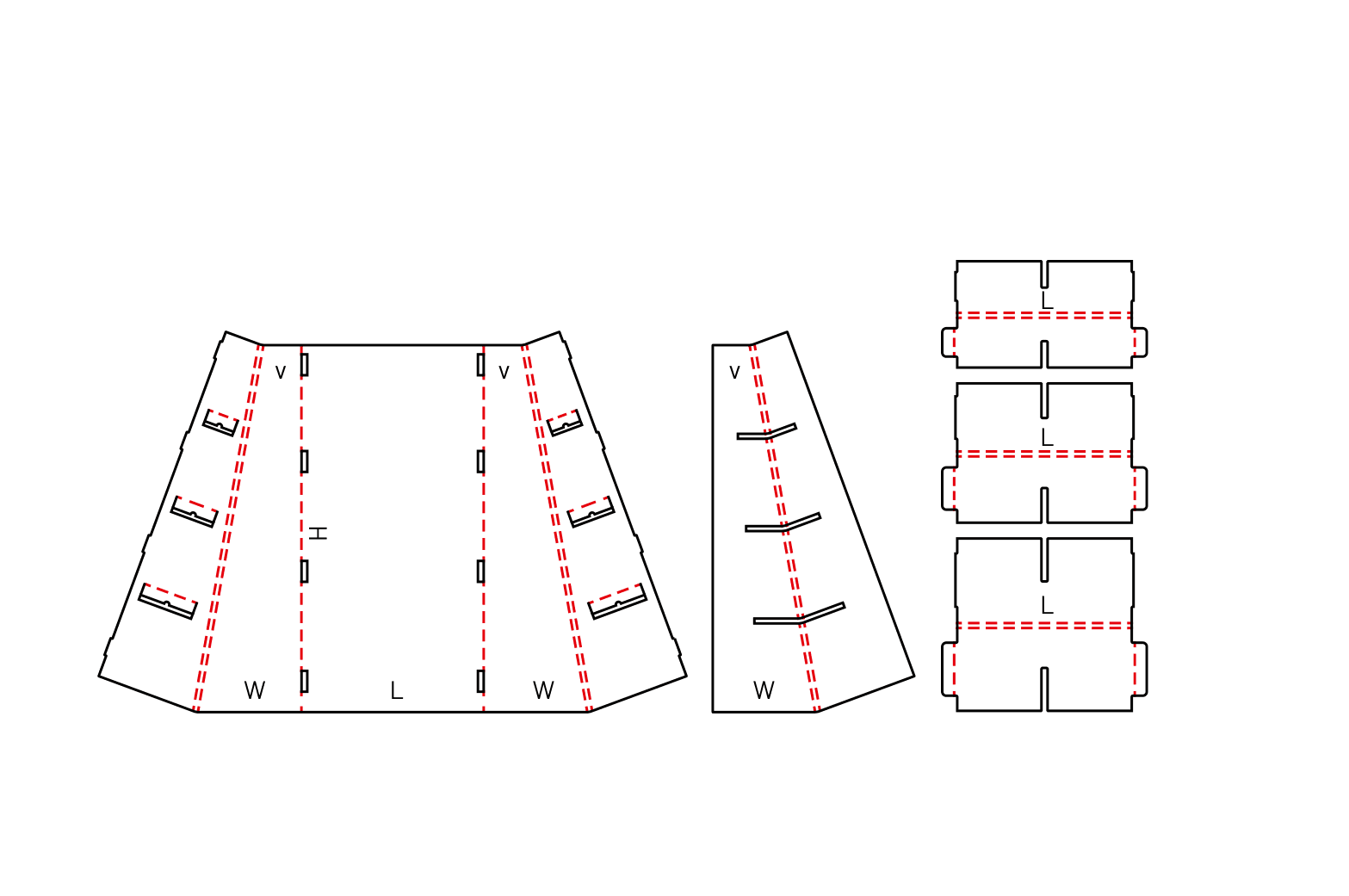

The main body, combining the tall backboard and both sloped side walls, is cut from a single massive sheet of corrugated board. This often exceeds the size limits of standard flatbed presses.

Testing

How do we know if the tabs will lock correctly?

The slot clearances must be precisely matched to the chosen board thickness. A physical prototype is necessary to ensure the tabs slide in securely without crushing or fitting too loosely.

Retail display loading

How much product can each shelf carry?

That depends on board grade, shelf depth, product weight, and whether the display is supported by a tray, base, or shipper. A loaded sample is the right way to check sag and shelf angle before rollout.

Can the display ship pre-loaded?

Sometimes, but only if the master shipper, product retention, and store handling route are designed around that plan. Many buyers pack the display flat or partly assembled to reduce transit risk.
