Retail tiering and presentation jobs
Vertical retail tiering

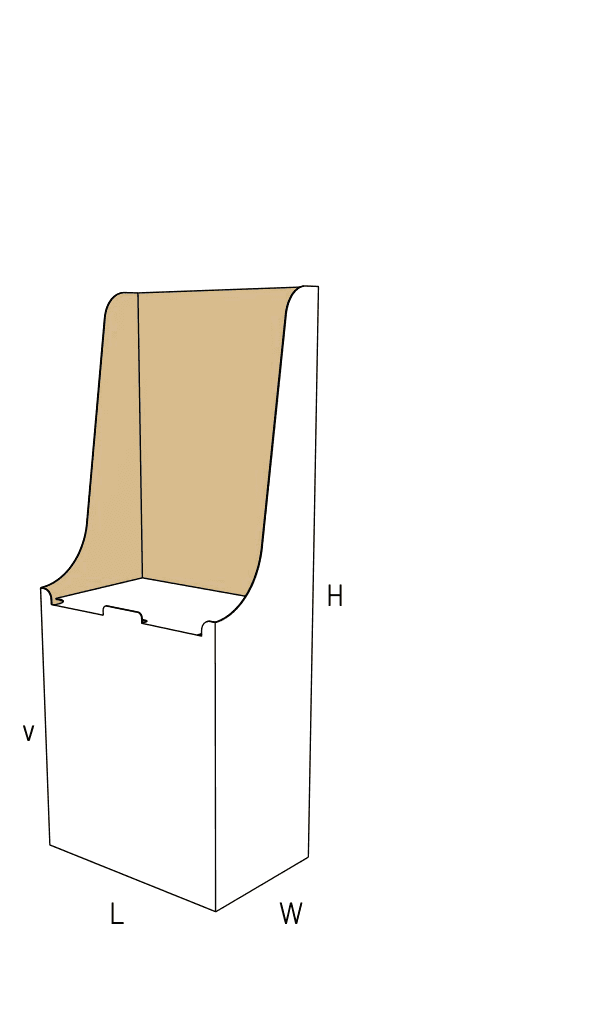

Stacking identical display modules to build a floor tower without needing a separate master frame. The continuous side and back walls bear the vertical load.
Piled or nested goods
Holding magazines, flat-packed items, or nested products that do not require a front retention lip to stay on the shelf.
Lineside kitting presentation
Presenting parts or components at an assembly station where vertical space is tight and open-face access speeds up the workflow.
Countertop impulse displays
Scaling the template down for checkout areas, leveraging the single-piece glued tube for fast store-level setup.
Retail and distribution contexts
Retail merchandising
Brands needing modular, space-efficient point-of-sale displays that store staff can set up quickly without sorting through multiple loose parts.
Print and publishing
Distributors moving magazines or catalogs that stack flat and need immediate open-face access for consumers.
Trade show and event marketing
Exhibitors who need lightweight, stackable presentation towers that ship flat and assemble without separate hardware.
Board, fit, and packing decisions
Board grade versus fold resistance
Heavy flutes improve vertical stacking strength but make the internal shelf much harder to fold down by hand. Thick board can also cause the rear locking tabs to crush during assembly.
Shelf height placement
Moving the shelf higher reduces the front display opening and shifts the center of gravity, which changes how the unit balances when stacked.
Payload weight and center sag
The shelf relies on a rear friction tongue and the front hinge crease. Heavy point loads concentrated in the center may cause the shelf to sag because it lacks a front support rim.
Outer shipper sizing
The open front exposes the product entirely. The final packed display requires a properly sized master carton for transit to the retail location.
Adjustments for fit and access
Tongue and slot clearances
The rear locking mechanism must be adjusted for the exact board thickness to prevent the tabs from binding or tearing during pack-station assembly.
Front aperture profile
The shape of the side walls can be cut to reveal more of the product or left deeper to provide better lateral stability for the tower.

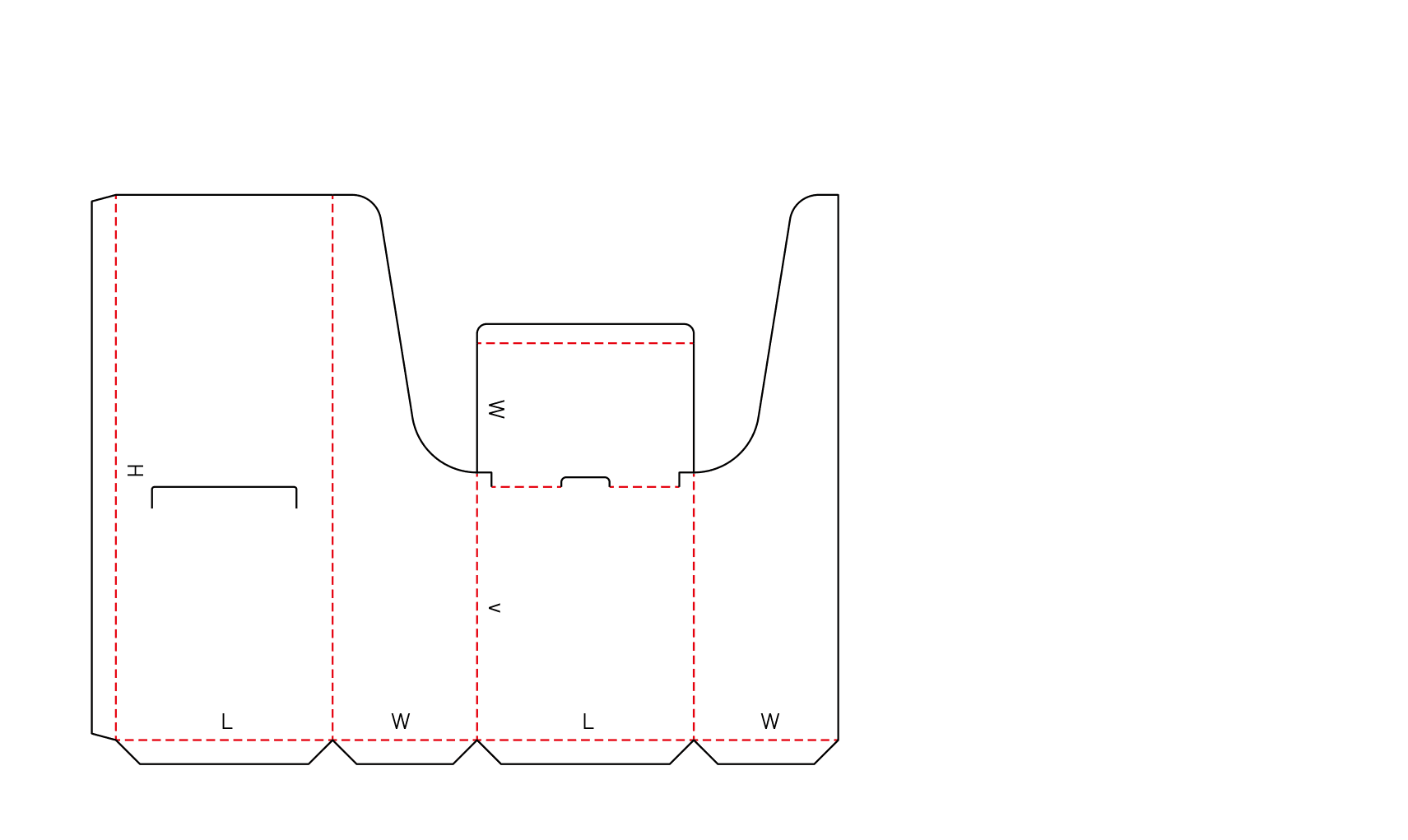

Shelf locking mechanism
The rear friction tongue can be widened or narrowed depending on the board grade to balance retention strength with manual insertion force.
Board and packing details
Shelf hinge pre-breaking
The internal shelf hinge requires pre-breaking during factory processing or assembly. Heavy board grades will otherwise fight the operator and risk tearing the fold.
Pack-station workflow
While the main tube squares up easily, the operator must manually break the shelf hinge and push the locking tongue into place. This requires two hands and moderate force.
Modifications for product visibility
Extended side cuts
Adjusting the side-wall profile to increase product visibility while maintaining the rear structural column for stacking.
