Retail Merchandising and Product Presentation
Cosmetics and personal care
Tubes, pump bottles, and tall cartons stay organized. The die-cut holes prevent lightweight items from domino-falling when a shopper removes one.
Beverage and specialty liquids
The suspended shelf grips the midsection of bottles, keeping labels facing forward and preventing glass clinking on the retail floor.
Countertop impulse displays
Scaled down, the three-piece structure fits near registers to hold lip balms, vape pens, or travel-sized liquids securely.
Pharmacy and health products
Vitamin bottles and supplement jars sit flush in their designated slots, maintaining a neat presentation even as inventory depletes.
Fulfillment and Retail Operations
Co-packing facilities
The multi-piece design means the display ships flat to the co-packer. Teams must build the base, insert the frame, drop in the shelf, load the product, and place the entire built unit into a master shipper.
Store-level assembly
If shipped knocked-down directly to retail, staff must follow a specific sequence to build the display. The friction-fit shelf tabs require careful alignment to avoid crushing the corrugated board.
Event and trade show merchandising
Brands setting up temporary booths use this style to present individual product samples securely, ensuring items stay upright despite heavy foot traffic and table bumps.
When to Consider a Different Display Style
Flat boxed goods
If you are displaying standard rectangular cartons that stack easily, a flat-shelf display avoids the complex cutting requirements of dozens of individual peg holes.
Loose, mixed assortments
If you are dumping loose items or mixed SKUs into a bin, a compartmentalized tray display or a simple dump bin provides better containment without requiring precise product placement.
Board, Fit, and Production Choices
Board thickness and tab friction
The shelf relies on tabs sliding into slots on the side walls. Heavy flutes make the display rigid but drastically increase the force needed to insert the shelf, risking crushed tabs during assembly.
Hole sizing and product clearance
The die-cut holes must be slightly larger than the product diameter to allow easy removal, but tight enough to keep the item standing straight.
Base tray height
The glued base tray acts as a stabilizing collar. A taller tray increases resistance against the display tipping forward, but covers more of the lower product area.
Header shape and branding space
The U-shaped backboard extends upward to form a billboard. You must decide how tall this header needs to be to catch shopper attention without making the empty display top-heavy.
Adjusting the Display Footprint and Shelf
Hole array layout
The number, size, and spacing of the shelf cutouts dictate the product payload. Dense arrays require careful flatbed preparation and precise internal waste removal.
Header profile
The top of the U-shaped backboard can be cut into custom shapes to match brand logos or campaign graphics.
Shelf depth and tiering
The U-frame depth can be extended to accommodate multiple rows of product, though deeper shelves may require thicker board to prevent the center from sagging under weight.
Board and packing details
Flatbed cutting and internal waste

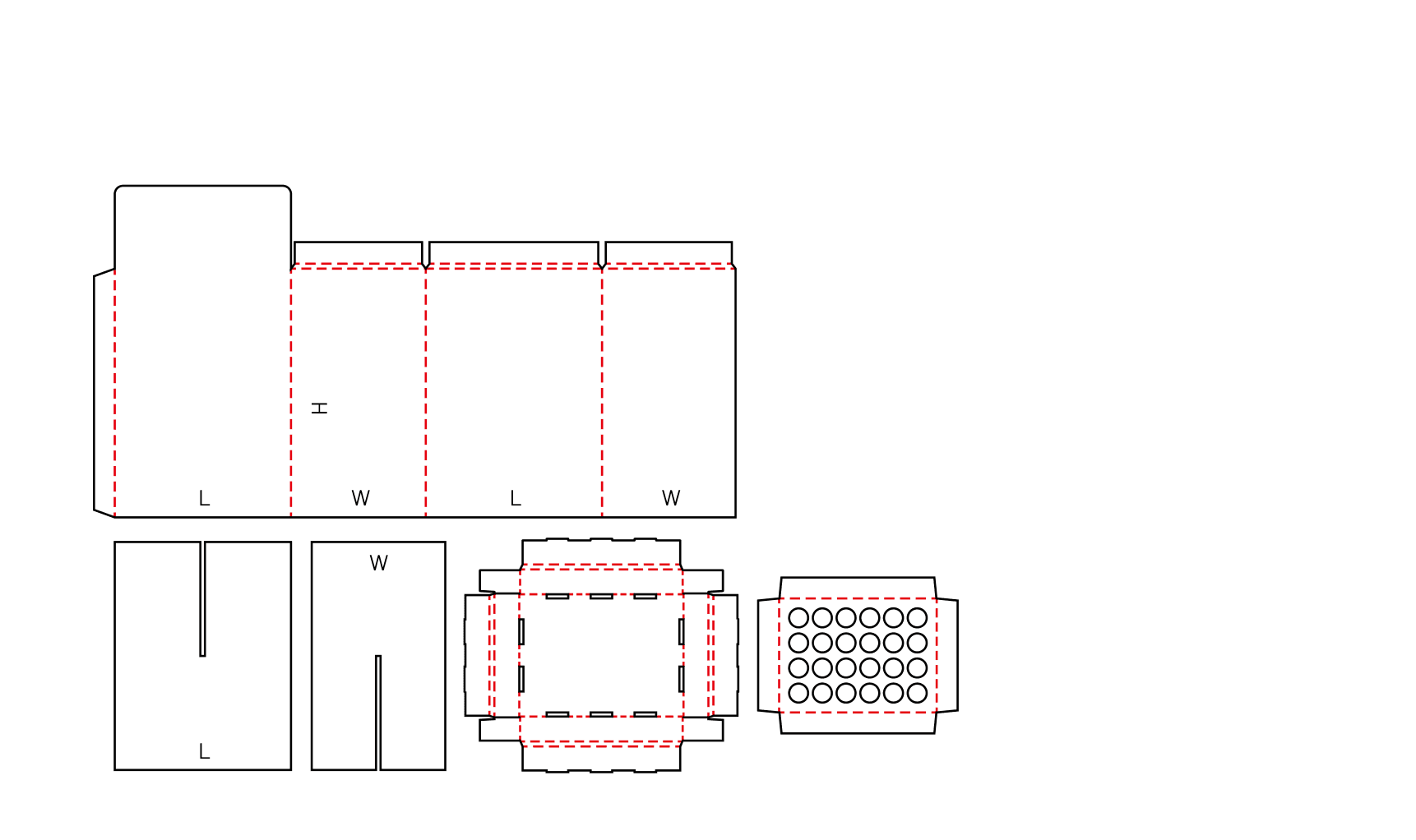

Because this display requires three distinct pieces and a dense grid of holes for the shelf, it relies entirely on flatbed die-cutting. The internal cardboard circles from the peg holes must be removed during production, which changes the manufacturing route compared to simple open shelves.
Additional notes
Testing the shelf friction
Always request a physical prototype in the exact board grade you plan to order. A digital 3D model cannot prove whether the shelf tabs will slide smoothly into the side walls or crush under the assembler's hands.
FAQs
Shipping and Assembly
Does this display ship flat?

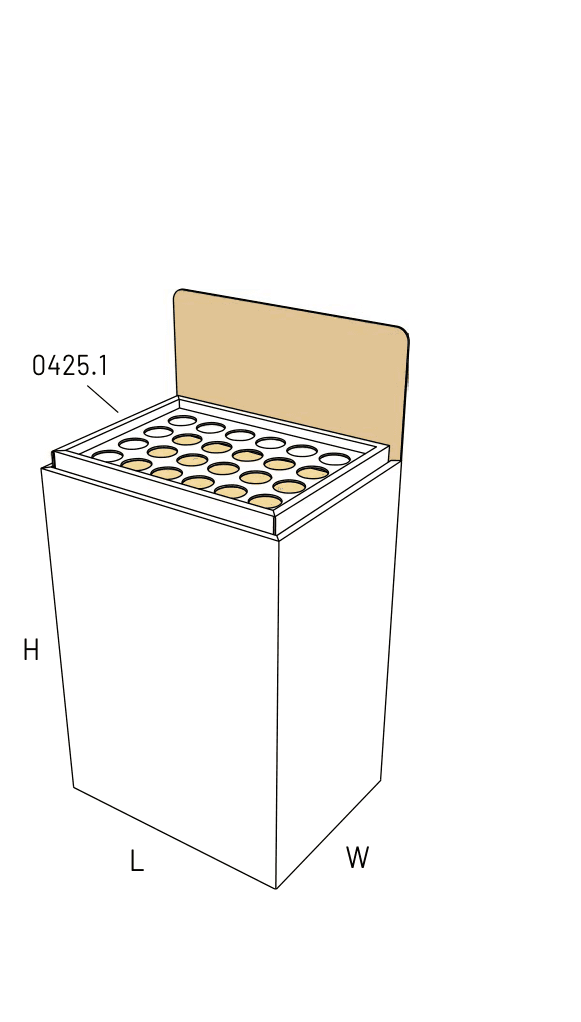

Yes. The three components, which include the glued base tray, the backboard, and the shelf, ship knocked-down. They must be assembled manually before loading the product.
Product Fit
Can it hold heavy glass bottles?
It depends on the board grade and the shelf span. Heavy payloads require thicker flutes to prevent the center of the shelf from sagging, but thicker board makes the locking tabs harder to insert.
Shipping and Assembly
Do I need tape or glue to build it?
The base tray arrives with a factory-glued side seam. The rest of the assembly relies entirely on mechanical friction locks and slots to hold the backboard and shelf together.
Structure
Why use a separate base tray instead of just folding the walls?
The glued base tray acts as a rigid collar. When the U-shaped backboard slides into it, the tray prevents the side walls from splaying outward under weight.
Product Fit
How do we determine the right hole size?
You should test a physical sample with your actual product. The hole needs enough clearance so shoppers can lift the item out easily, but not so much that the product leans or rattles.
Structure
Can this be used as a countertop display?
Yes. While often scaled for floor use, the exact same three-piece structure can be sized down for register counters, typically using a thinner E-flute board for cleaner folds.
Production
What happens to the cardboard cutouts from the shelf holes?
The factory removes the internal waste circles during production. The shelf arrives flat with the holes already cleared, so your packing team does not have to punch them out manually.
Shipping and Assembly
How long does it take to assemble one unit?
Because it involves three separate pieces and friction-fit tabs, it takes longer to build than a simple pop-up display. Your team must square the base, insert the backboard, and carefully lock the shelf tabs into the side walls.
