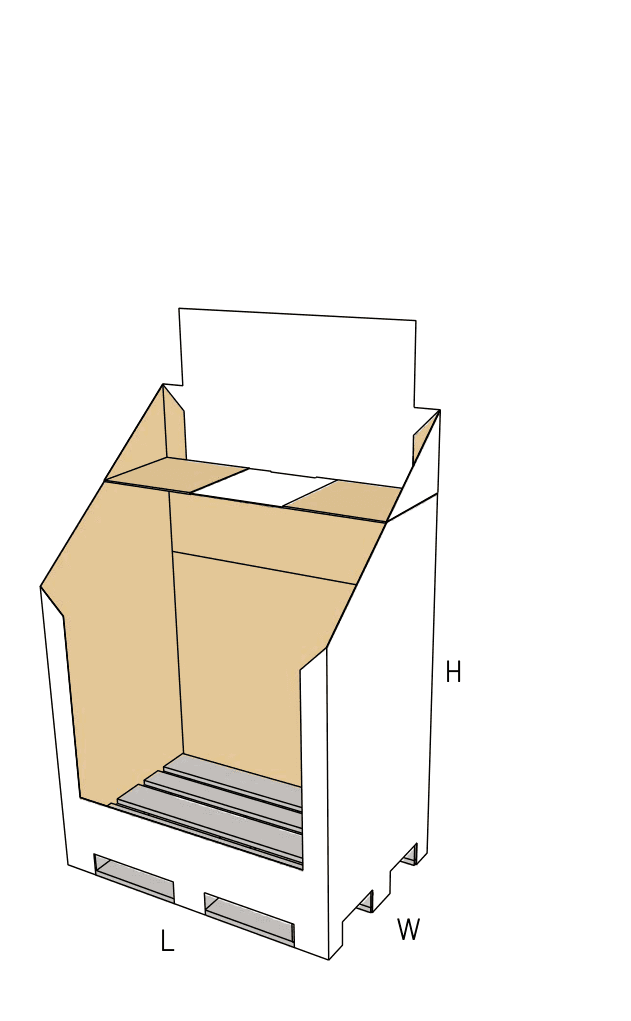

FEFCO 0866

Pallet Display Wrap with Integrated Shelf and Header

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Consolidates a pallet skirt, product shelf, and advertising header into one SKU
  • Ships flat as a factory-glued tube for quick, tape-free store assembly
  • Best for lightweight to medium bulk goods unless paired with an internal support cross

About this product

A massive, one-piece corrugated sleeve designed to drop over a standard shipping pallet, concealing the wood base while providing an elevated staging area for merchandise. The top panels split their function: the rear panel stands upright as a tall promotional billboard, while the front panels fold down into the cavity to create a recessed, horizontal product shelf.

Because the skirt, shelf, and header are cut from a single sheet of heavy-duty board, it eliminates the need to ship and collate separate display components. Store staff simply square the factory-glued tube, fold the shelf inward, and lock the tabs into the side walls.

Common uses

  • Seasonal confectionery and snack rollouts
  • Soft home goods and apparel staging
  • Freestanding center-aisle promotions
  • Endcap and aisle-boundary directional signage

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Floor Merchandising and Pallet Staging

Freestanding center-aisle promotions

The continuous base wraps around a standard wooden pallet, turning raw floor inventory into a branded destination. The integrated shelf keeps products at a comfortable reaching height so shoppers do not have to bend down into a deep bin.

Endcap and aisle-boundary staging

The tall rear header acts as a directional billboard, drawing attention from across the store. Because the shelf is recessed into the sleeve, the display maintains a clean, architectural profile even as inventory depletes.

Seasonal bulk merchandise rollouts

Fast deployment for holiday or seasonal goods where store staff need to dress pallets quickly without building multi-piece kits. The single-piece design reduces the chance of missing parts arriving at the retail floor.

Temporary retail island displays

Grouping multiple wrapped pallets together creates a large, branded footprint in open store areas. The uniform headers provide a continuous visual wall that anchors the promotion.

Product Categories and Warehouse Retail Environments

Seasonal confectionery and snack brands

Lightweight, high-volume items like bagged snacks or seasonal candy fit perfectly on the suspended shelf. The single-piece design means distribution centers only have to manage one SKU per store.

Soft home goods and apparel

Pillows, blankets, or rolled textiles fill the large internal volume effectively without threatening the weight limits of the folded corrugated shelf tabs.

Club store and warehouse retail

Environments where products are merchandised directly on shipping pallets but require a cleaner presentation and eye-level branding to stand out in wide aisles.

Toy and plush merchandise

Bulky, lightweight items benefit from a deep recessed shelf and tall promotional backing, keeping loose items contained while maximizing visual impact.

When Multi-Piece or Open-Top Displays Make More Sense

Heavy beverages or hardware

If you are merchandising dense, heavy goods, the suspended shelf of this one-piece design will sag or tear. Review multi-piece display bins that use floor-length internal legs to transfer weight directly to the ground.

Stacked pallet transit

Because the top panels fold inward to create the shelf, this display has an open top. It cannot support the weight of another loaded pallet stacked on top of it during transit without a separate, heavy-duty shipping cap.

Close variants and lookalike dielines

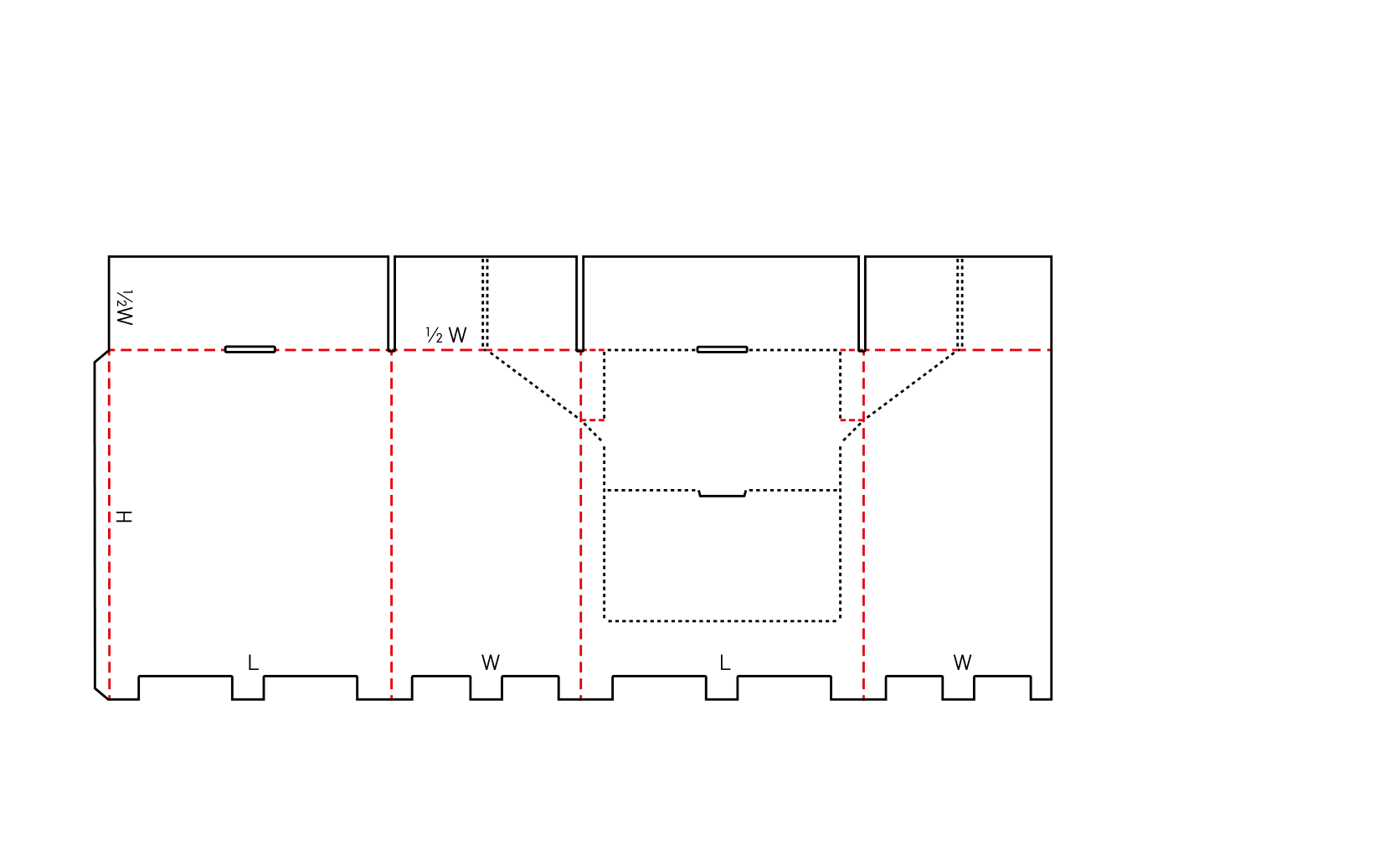

The closest library neighbors include 0219, 0207_1, 0227_1a. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Payload Limits, Board Grade, and Base Access

Adding an internal support cross

For anything heavier than snacks or soft goods, the wide span of the fold-down shelf requires an internal corrugated cross. This separate piece sits under the shelf, transferring the product payload to the floor and preventing the center from sagging.

Board thickness and manual folding effort

Pallet-scale displays require heavy double-wall board to keep the outer walls rigid. However, thicker board makes the 180-degree shelf folds physically demanding for retail staff to execute. A physical mockup helps balance wall strength with assembly friction.

Base cutouts for pallet jack access

Decide whether the bottom edge needs specific cutouts to allow store staff to move the dressed pallet. Without cutouts, pallet jack forks can tear the corrugated skirt when lifting the display.

Header reinforcement

Determine if the tall rear billboard needs a fold-over double thickness. A single-wall header can flop backward in high-traffic aisles, especially if the board grade is too light for the height.

Adjusting Shelf Depth, Header Proportions, and Front Access

Shelf recess depth

The vertical position of the shelf can be raised or lowered by adjusting where the lock holes are cut into the side walls. A shallower recess works well for small items, while a deeper drop contains taller merchandise.

Header height and contour shape

The rear promotional billboard can be extended or contour-cut to match campaign graphics, provided it stays within the maximum sheet size of the flatbed die-cutter.

Front lip drop-down

Adding a lower cut or dip to the front panel improves product visibility and access as the shelf inventory depletes, making it easier for shoppers to reach the bottom layer.

Board and packing details

Jumbo-scale manufacturing limits

Combining a pallet skirt, a shelf, and a tall header into a single unfolded sheet creates a massive footprint. This often pushes the limits of standard converting equipment, meaning the display may need to be split into a two-piece design for production feasibility.

Production Routing and Multi-Piece Splits

Multi-piece production split

If the combined blank exceeds the maximum width of the factory's folder-gluer, the design is often split into a separate sleeve and a drop-in shelf, changing the store-level assembly from a fold-down motion to a drop-in insertion.

Additional notes

Internal stripping waste

The cutouts required to form the fold-down shelf generate large sections of unrecoverable corrugated scrap. This is a normal part of the manufacturing footprint for integrated shelf designs.

Double creases for heavy board

Because the shelf must fold 180 degrees into the cavity, the hinge lines require specialized double creases to prevent the thick board from binding or tearing during setup.

Related Pallet Wraps and Floor Bins

0865: Open Pallet Sleeve

Review this option if you only need to wrap the perimeter of a loaded pallet and do not need an elevated shelf or a promotional header.

FAQs

Product fit and payload

How much weight can the fold-down shelf hold?

Because the shelf is suspended by corrugated tabs locked into the side walls, its capacity is limited. Lightweight snacks and soft goods work well natively. Dense items require adding a separate internal support cross beneath the shelf to prevent sagging.

Retail setup and assembly

Does this display require tape or glue at the store?

The main sleeve is glued at the factory. Store staff pull the tube open, fold the shelf panels inward, and push the friction-fit tabs into the pre-cut wall slots without needing extra adhesive.

Can one person assemble this display?

Due to the jumbo scale of a pallet wrap and the stiffness of heavy-duty corrugated board, squaring the sleeve and engaging the shelf tabs is typically a two-person job on the retail floor.

Shipping and route

Can this display be used as a standalone shipping box?

This is an open-top retail fixture designed to drop over a wooden pallet. It does not enclose the product for parcel networks and cannot bear top-load stacking weight without an external transit cap.

Production and tooling

Why might this design be split into multiple pieces?

Integrating a pallet-sized skirt, a shelf, and a tall header creates a massive flat sheet. If this footprint exceeds the physical limits of the die-cutting or gluing equipment, it is split into a separate sleeve and drop-in shelf.

Samples and prototypes

What should a physical sample test prove?

A full-scale mockup should verify that the shelf does not sag under your specific product weight, and that the heavy board allows the lock tabs to engage without crushing during store assembly.

Retail setup and assembly

How does store staff move the display once it is loaded?

The corrugated sleeve sits over a wooden pallet. Staff must use a pallet jack, ensuring the forks pass through the designated base cutouts without catching the cardboard skirt.

Print and finish

What happens to the unprinted inside of the header?

Because the header is a single-thickness extension of the rear wall, the back side will show the raw corrugated kraft or white liner unless a two-sided print process is specified.
