Common packing jobs for 5-panel liners
Heavy component isolation
Dense metal parts or motors can easily pierce a standard outer box during transit. The liner acts as an internal bumper. It absorbs lateral shocks before they reach the outer walls.
Surface friction defense
When packing painted or polished items, the continuous corrugated surface prevents the product from rubbing directly against the outer carton seams.
Internal void fill
The liner can center a primary component within a larger box, leaving the open ends available for cables, manuals, or lighter accessories.
Master carton lining
For shipments containing multiple smaller boxes, the liner creates a continuous inner perimeter that reinforces the side walls against outward bulging.
Fulfillment and distribution contexts
Industrial kitting
Assembly lines packing heavy hardware kits use the liner to keep dense parts contained and separated from the outer shipping shell.
Appliance and electronics distribution
Distributors use the five-panel wrap to add a secondary layer of shock absorption around sensitive chassis without upgrading the entire master carton to double-wall board.
Automotive parts shipping
Heavy, irregularly shaped components require thick lateral bumpers to prevent them from shifting and punching through the primary shipper during transit.
When to consider a different liner style
When you need vertical stacking strength
The 0910 liner wraps horizontally. This means its flutes run sideways along the vertical walls. It will buckle under heavy top loads. If you need to reinforce a box for heavy pallet stacking, evaluate the 0905 wrap-around pad instead.
When packing speed is the priority
Because operators must hold the unglued liner closed against its own spring-back while inserting it, high-volume lines may prefer a pre-glued tubular sleeve. A glued sleeve simply drops over the product.
Close variants and lookalike dielines
The closest library neighbors include 0906, 0908, 0909. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.
Clearance, board, and packing decisions
Board thickness and internal clearance
Upgrading to heavy double-wall board increases puncture resistance, but the thicker folds will eat into the available internal volume. The master carton size must be adjusted to accommodate the thicker liner.
Gap width tolerance

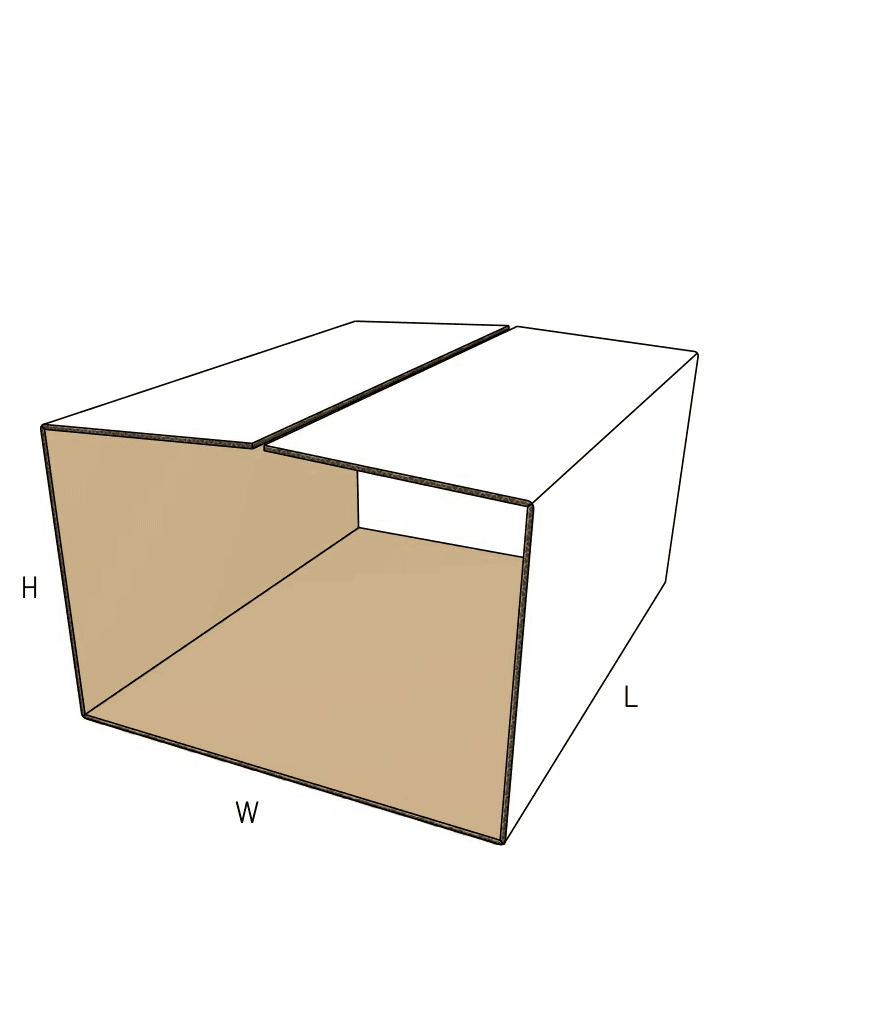

The two ends of the liner meet on one of the wide faces, leaving a deliberate gap. You can specify how wide this gap should be to allow for product size variations.
Flute direction and crush resistance
Because the liner wraps around the product, the flutes run horizontally across the side panels. This orientation maximizes lateral shock absorption but provides almost zero vertical column strength.
Packing line handling
Corrugated board has natural memory. Operators will need both hands to hold the folded liner closed while plunging it into the master carton, which slows down the packing rhythm compared to pre-glued inserts.
Practical template adjustments
Gap placement
While the standard template leaves the gap on a wide face, the fold sequence can be adjusted to place the gap on a narrow face if the product's vulnerable areas dictate a different coverage pattern.

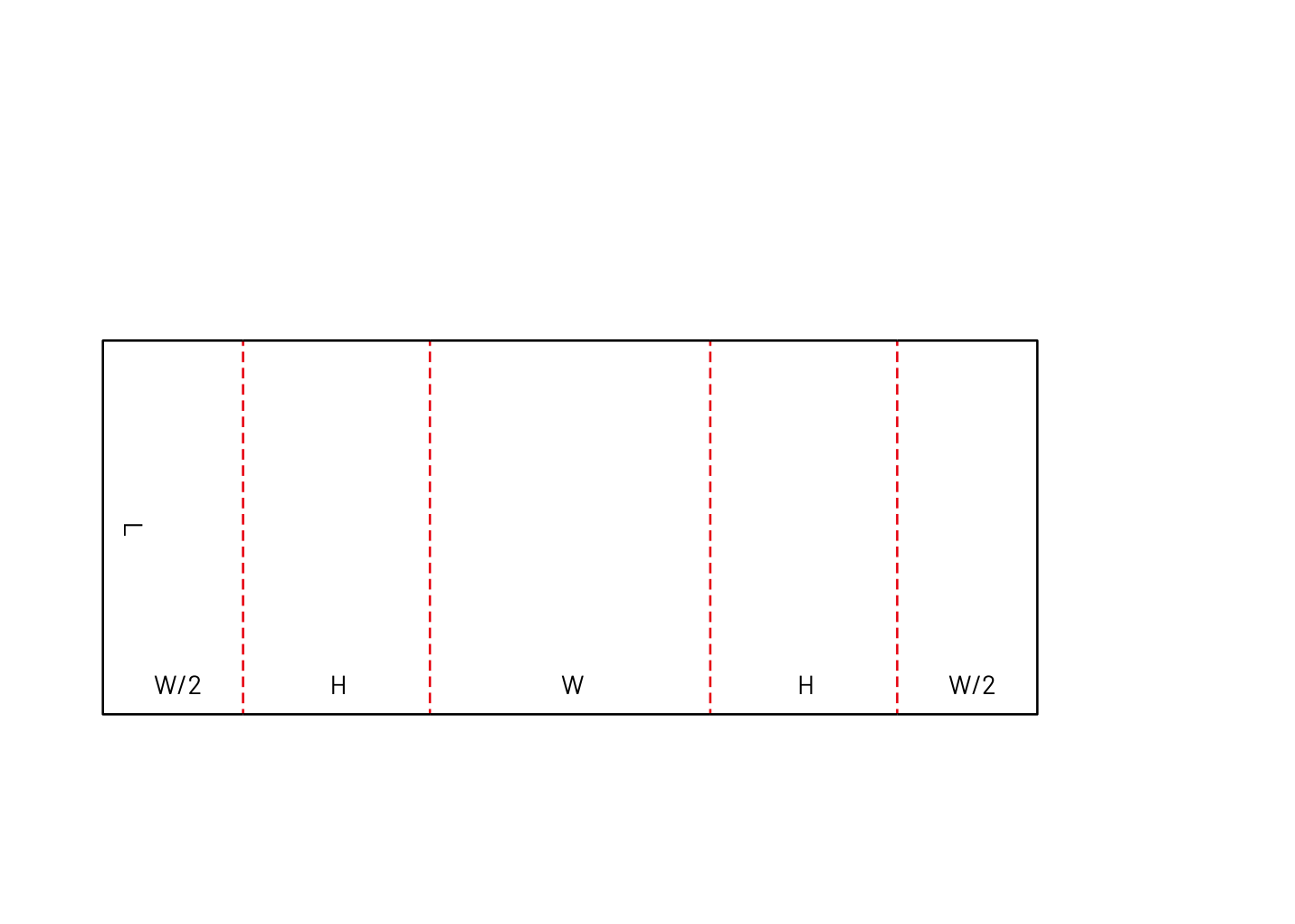

Terminal flap width
The width of the final two folding panels directly controls the size of the open gap. Shorter flaps create a wider gap for easier tolerance, while longer flaps provide near-complete coverage.
Ventilation and access cutouts
Adding holes or shaped cutouts changes the production path from simple straight scoring to shaped cutting, but allows access to handles or airflow for electronics.
Board and packing details
Production route
As long as the liner remains a simple rectangle with straight parallel creases, it can be produced rapidly on standard scoring equipment. Adding locking tabs or shaped cutouts will require a different manufacturing path.
