Targeted Protection and Load-Bearing Jobs
Vertical stacking reinforcement
When shipping heavy industrial goods or stacking pallets high, the outer carton walls often need help. Oriented with the flutes running vertically, this insert forms an internal pillar, transferring top-load weight away from the primary box walls.
Lateral shock absorption
For fragile items that require a dedicated crush zone, the folded flaps create a thick, multi-wall standoff. Placed along the width or length of the master carton, it absorbs side impacts before the energy reaches the product.
Internal product separation
When packing two heavy components in the same master carton, this folded buffer separates dense items. It prevents heavy parts from colliding and damaging each other during transit.
Offset void fill
If a product does not perfectly fill the master carton, the folded flaps can be sized to bridge the exact gap. This locks the item in place and prevents shifting without relying on loose void fill.
Industrial and Heavy-Transit Packing Contexts
Heavy parts and industrial kitting
Manufacturers shipping dense metal components or motors use this insert to stop the product from shifting and punching through the outer corrugated wall.
Fragile electronics and glassware
When a standard single-wall box is not enough to prevent impact damage, adding this folded buffer provides a localized crumple zone without upgrading the entire master carton.
Palletized bulk shipping
Operations stacking identical boxes on pallets use these inserts to reinforce the bottom layers, ensuring the base cartons do not buckle under the accumulated weight.
Evaluating Grids and Perimeter Wraps
Multi-item separation
If you need to isolate several items from each other in a single box, evaluate a slotted interlocking grid. The 0936 provides a single-axis buffer, not a multi-cell matrix.
Full perimeter protection
When a product needs a standoff buffer on all four sides, look at a full-perimeter wrap or a multi-panel liner. This insert is designed for targeted, single-axis reinforcement.
Thin standoff needs
If the product only requires a minimal air gap rather than a deep, double-folded buffer, a simple C-channel pad may be easier for packers to fold and insert.
Close variants and lookalike dielines
The closest library neighbors include 0938, 0937, 0955. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.
Flute, Fit, and Packing Choices
Flute orientation and load path
The direction of the corrugated flutes dictates the insert's strength. If you need stacking support, the flutes must run vertically. For lateral shock absorption, vertical flutes still help prevent the board from snapping during insertion.
Board thickness vs. packing fatigue
Heavy double-wall board provides excellent shock absorption, but it requires more physical effort to fold by hand. The choice must balance protection needs with packing line ergonomics.
Friction fit tolerance
This insert relies on the outer box walls to keep it folded. A loose fit allows the insert to drift, while a fit that is too tight will crush the edges during manual insertion.
Production route and cutouts
As long as the design relies only on straight, parallel creases, it runs efficiently on standard equipment. Adding relief cuts, chamfers, or custom holes changes the production method and requires shaped cutting.
Adjusting the Buffer Depth and Fold Allowances
Tuning the offset void-fill depth
The width of the folded flaps determines how much empty space the insert fills. This depth can be adjusted to match the exact gap between the product and the outer box wall.
Fold allowance compensation

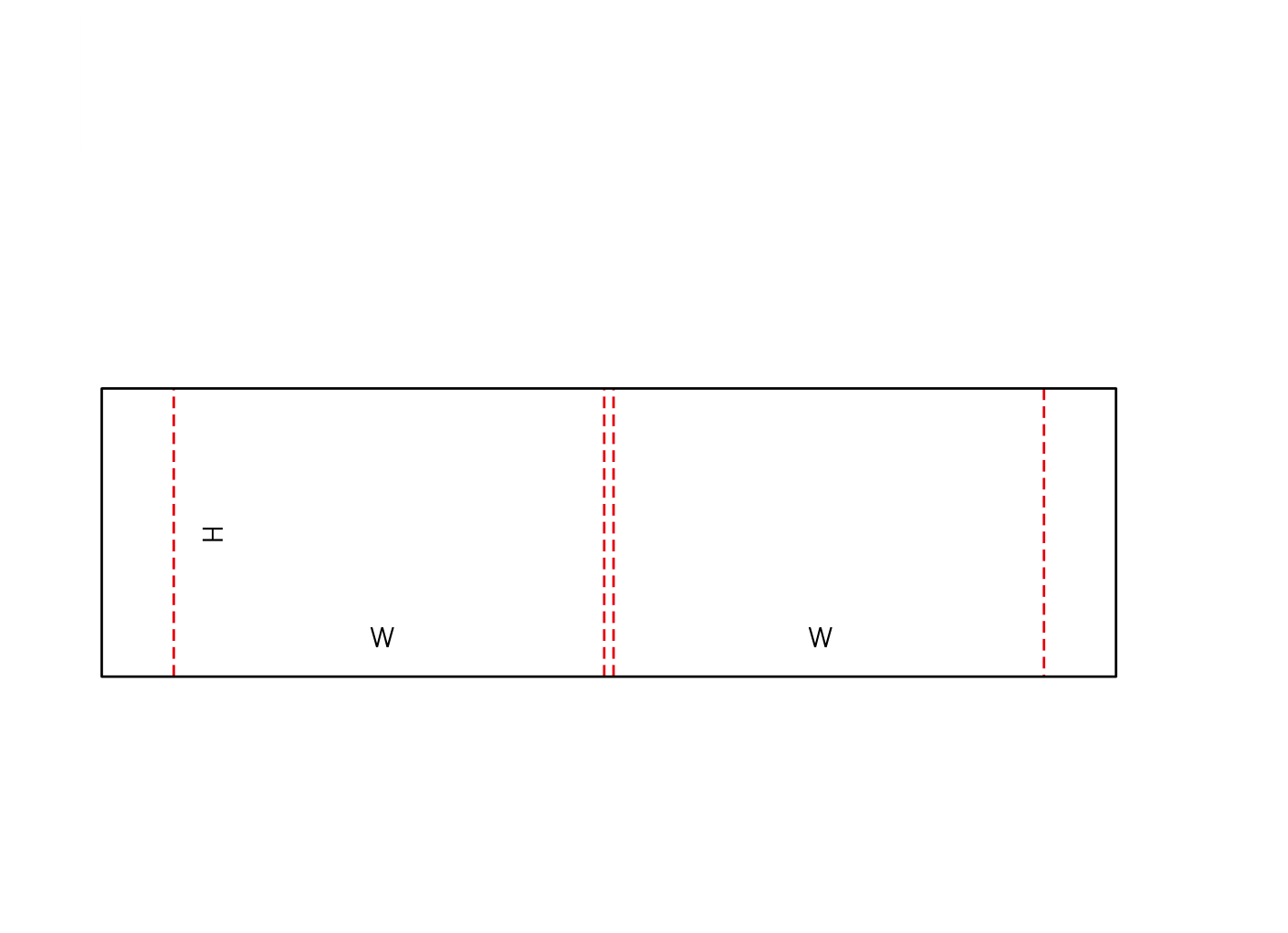

Thicker board grades require wider spacing between the parallel creases. Proper fold allowances prevent the board from binding or fracturing when the packer bends the flaps.
U-channel vs. inverted T-stand

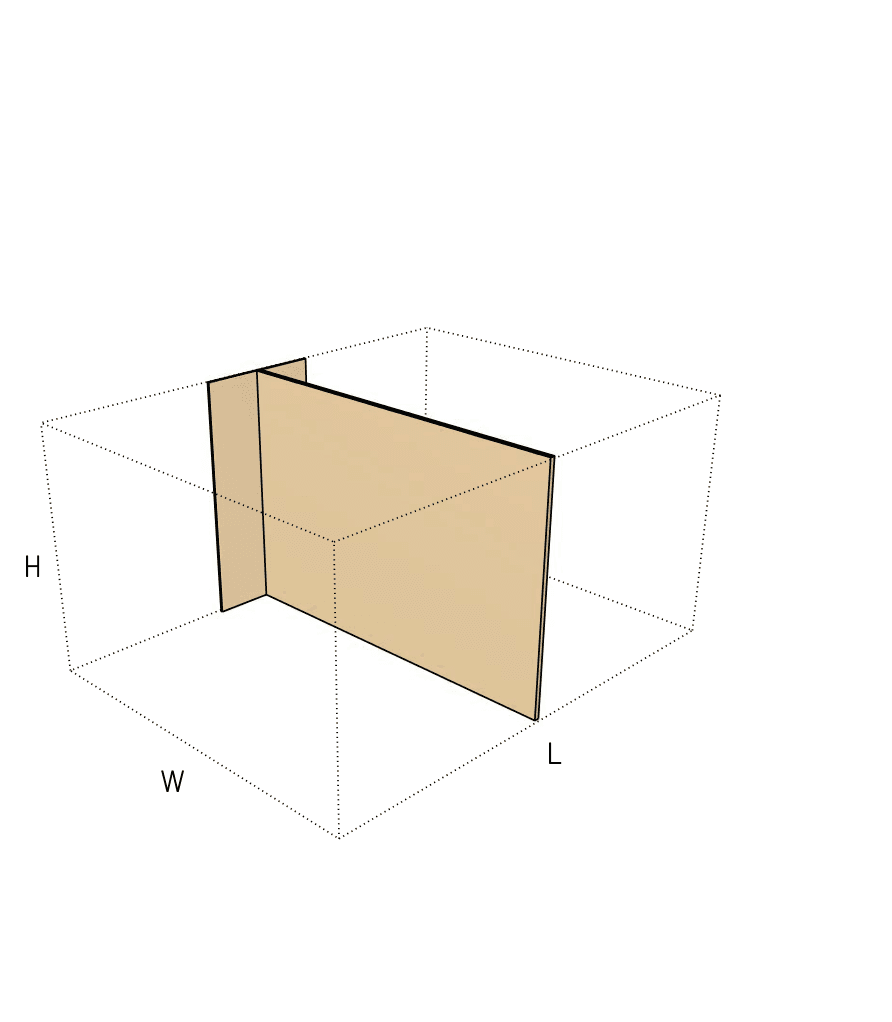

Depending on how the parallel creases are spaced and folded, the blank can form a U-shaped channel that wraps around a product edge, or an inverted T-shape that stands freely as a central divider.
Board and packing details
Master carton dependency
Because this insert has no glued joints or locking tabs, its structural value depends entirely on the integrity of the outer box holding it closed.
