Where Accordion Cushions Replace Foam
Heavy-duty void fill for fragile electronics

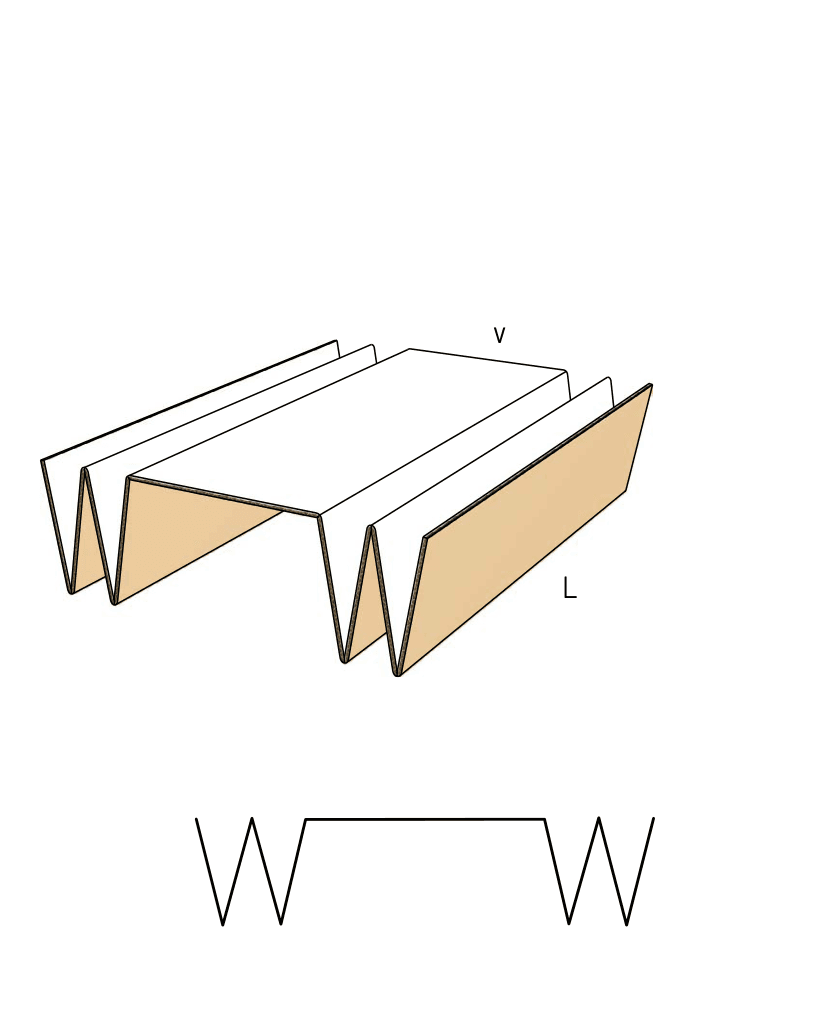

The zig-zag folds act as a leaf spring, decelerating heavy components like PC towers and medical devices during transit impacts. It keeps the product suspended away from the outer carton walls.
Clearance spacing for glass and ceramics
When packing breakable items, the accordion structure prevents individual pieces from migrating or striking each other. The deep air gaps provide a reliable crush zone that flat pads cannot match.
Transverse shock isolation for heavy appliances
Large items that cannot tolerate side impacts benefit from the deep compression travel of the accordion folds. The pad absorbs kinetic energy before the appliance takes the hit.
Retrofitting existing master cartons
Companies switching away from plastic foam can often drop this corrugated cushion into their existing outer boxes, provided the void space matches the compressed depth of the zig-zag.
Fulfillment Contexts and Industries
Brands eliminating mixed-material packaging
Companies moving away from Styrofoam and plastic bubble wrap use this cushion to maintain high protection standards while keeping the entire package curbside recyclable.
Low-volume, high-value fulfillment
Because the pad requires manual folding, it fits operations where packing speed is less critical than ensuring a high-value item handles the courier network intact.
Electronics refurbishers and reverse logistics
Refurbishers handling multiple device sizes need adaptable, heavy-duty protection that does not require custom molded foam for every specific SKU.
When to Consider a Different Buffer
High-speed automated packing lines
Because the accordion folds spring back and require manual tension to hold their shape, this cushion is difficult to automate. If your line relies on robotic insertion, a pre-glued partition or a rigid rolled column may be a safer choice.
Vertical load-bearing support
The open zig-zag profile absorbs side impacts beautifully, but it offers very little vertical column strength. If the insert needs to support the weight of stacked pallets, a closed tubular support is much stronger.
Board Thickness, Fit, and Packing Labor
Balancing board grade with folding fatigue
To match the shock absorption of EPS foam, these cushions often require heavy single-wall or double-wall corrugated board. However, thicker board drastically increases the physical effort required to fold the zig-zag shape on the packing bench. the package may call for to test the board physically to find the right balance between protection and operator fatigue.

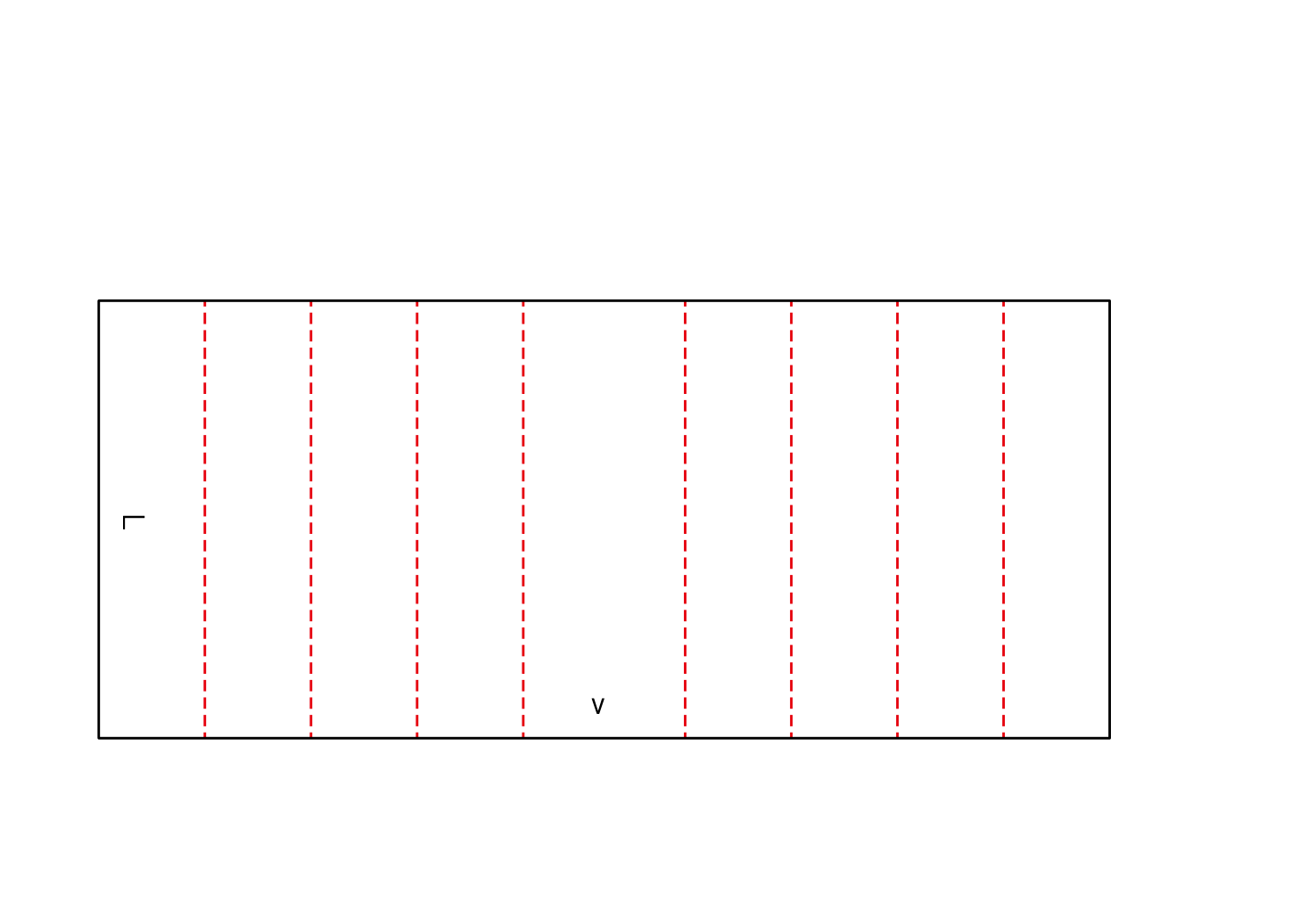

Accounting for flat blank size
Creating a deep accordion cushion requires a massive amount of flat board. A relatively short finished pad might require a flat blank three or four times its length. This affects how the flat supply is shipped and stored before use.
Outer box constraints and friction fit
This cushion has no locking tabs or glued joints. It relies entirely on the boundaries of the master shipping box and the weight of the product to hold its compressed shape. If the outer box is too loose, the cushion will expand and lose its protective tension.
Flute direction and spring resistance
The direction of the corrugated flutes relative to the transverse creases changes how stiff the accordion acts. Aligning the flutes parallel to the folds makes bending easier but reduces the crush resistance of the panels.
Adjusting the Cushion Profile
Fold angle and panel depth
The resting angle of the folds and the depth of the panels dictate the spring rate of the cushion. A wider angle requires longer panels to achieve the same clearance, which changes how the cushion behaves under load.
Number of accordion pleats
You can extend the total length of the buffer zone by adding more transverse creases, though this increases the manual folding time per unit.
Corner chamfers or relief cuts
Adding angled cuts to the edges prevents the pad from binding in the corners of the master carton, though this shifts production from a simple straight-cut route to a shaped-cut route.
Board and packing details
Packing trial with the real product
A sample or short packing trial helps check product fit, board behavior, closure feel, insert clearance, and how the package sits at the packing station before repeat ordering.
