Heavy-Duty Bracing and Foam Replacement
EPS foam replacement for dense components

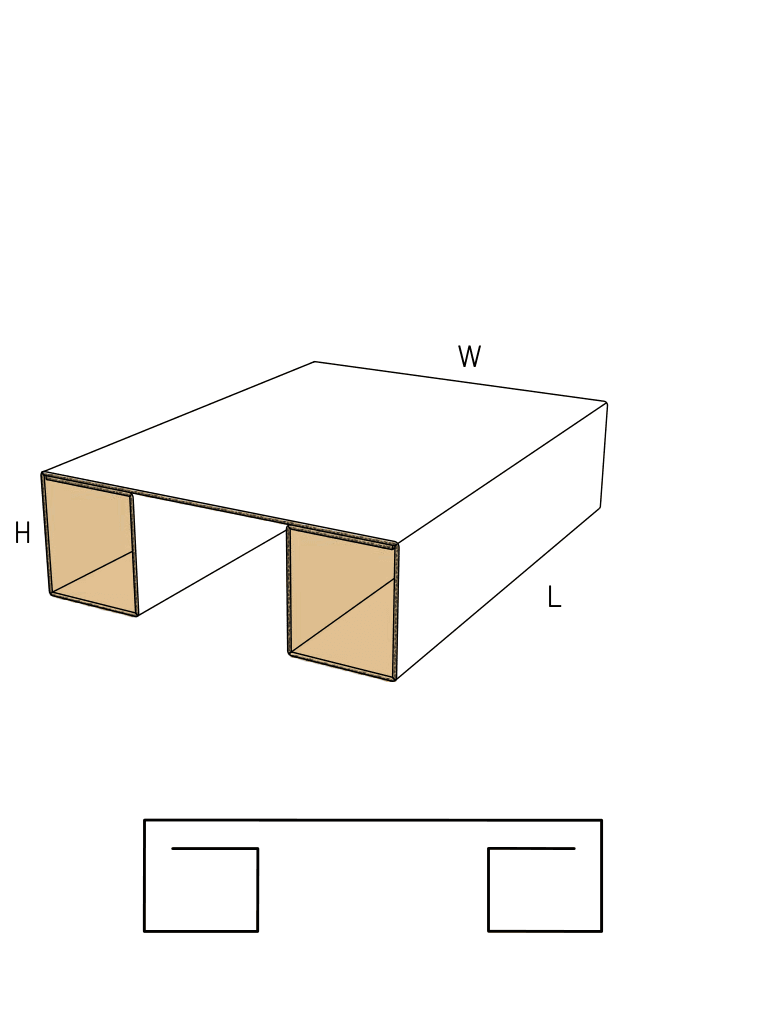

For heavy items like motors, pumps, or automotive parts, the dual rolled tubes provide massive vertical and lateral crush resistance. The central channel suspends the product away from the outer box walls, offering foam-like shock absorption using fully recyclable corrugated board.
Group packaging for fragile items
When shipping multiple glass, porcelain, or electronic items in one master carton, the pad acts as a firm staging base. The tubular columns prevent individual items from shifting or striking the outer walls during transit.
Hazardous goods bracing
This pad is frequently specified for transporting regulated items, such as UN 3268 seatbelt pretensioners. The dense rolled columns keep dangerous goods strictly separated and immobilized within the outer shipper.
Lateral crush zones for heavy electronics
When delicate but heavy servers or power supplies need standoff distance from the box edge, the side tubes create a deep, multi-layered air gap that absorbs side impacts before they reach the central payload.
Industrial, Automotive, and Fragile Goods
Industrial and automotive parts
This pad secures dense, hazardous, or high-value industrial components. The four vertical walls created by the rolled tubes can support heavy top weight when stacked inside a master shipper.
Manual fulfillment operations
Because the unglued tubes spring back naturally, this insert requires manual assembly. It fits best in fulfillment centers where packers have the time and bench space to roll the columns and seat the pad into the outer box by hand.
Dangerous goods transport
Shippers moving regulated materials rely on the predictable crush resistance of the rolled tubes to meet strict separation and immobilization requirements during transit.
Lighter Payloads and Single-Wall Buffers
High-speed automated packing lines
The unfastened tubes will immediately spring open if not held closed. If your line relies on automated robotic insertion, a pre-glued partition or a self-locking tray is a safer choice.
Lightweight void fill
Rolling a 9-panel corrugated sheet consumes a massive amount of board. If you are simply taking up empty space around a light product, standard air pillows, crumpled paper, or a simple open C-channel will be far more economical.
Board Thickness, Blank Sprawl, and Packing Labor
Balancing board thickness with folding fatigue
Heavy double-wall board maximizes shock absorption but drastically increases the physical effort required to roll the tubes. If packers struggle against the board's spring-back tension, assembly slows down. Standard C-flute often provides the best balance of column strength and manageable folding.
Blank sprawl versus production simplicity
This pad can be produced on a standard slitter-scorer using only straight parallel creases. However, the flat blank is more than twice as wide as the finished pad. You trade complex cutting processes for higher per-unit material usage.
Master carton friction fit
This pad has no locking tabs or glue joints. It relies entirely on the side walls of the master carton to hold the rolled tubes closed. The pad must be dimensioned precisely to the internal width of the outer box to prevent the tubes from bowing or binding.
Packing line speed and manual handling
Because both side columns must be rolled and held against the board's spring-back tension simultaneously, packers generally need both hands free to seat the pad into the box before loading the product. This limits the speed of the packing line.
Channel Width, Tube Height, and Board Grade
Central channel width
The staging area between the two tubes can be widened or narrowed to match your exact product footprint. The side tubes will scale accordingly to fill the remaining space inside the master carton.
Tube height and clearance
The height of the side buffers dictates how much lateral crush zone you have. Taller tubes provide more standoff distance from the outer box walls but consume exponentially more corrugated board.
Board grade selection
While C-flute is common, the board grade can be adjusted based on the payload weight. Thicker boards require careful recalculation of the fold allowances so the inner panels do not bind when rolled.
Board and packing details
Subtractive fold allowances
To ensure the tubes close flat, the innermost panels must be slightly shorter than the top panels. This parametric nesting logic must be updated if the board thickness changes, otherwise the tubes will bow outward.
Additional notes
Two-handed packing requirement
Because both side columns must be rolled and held against the board's spring-back tension simultaneously, packers generally need both hands free to seat the pad into the box before loading the product.
Related Corrugated Inserts
FAQs
Assembly and Packing
Does this pad stay folded on its own?
No. The corrugated board has natural memory and will spring open. A packer must hold both tubes closed while inserting the pad into the master carton, which then keeps the structure confined.
Production and Cost
Why does this pad use so much material?

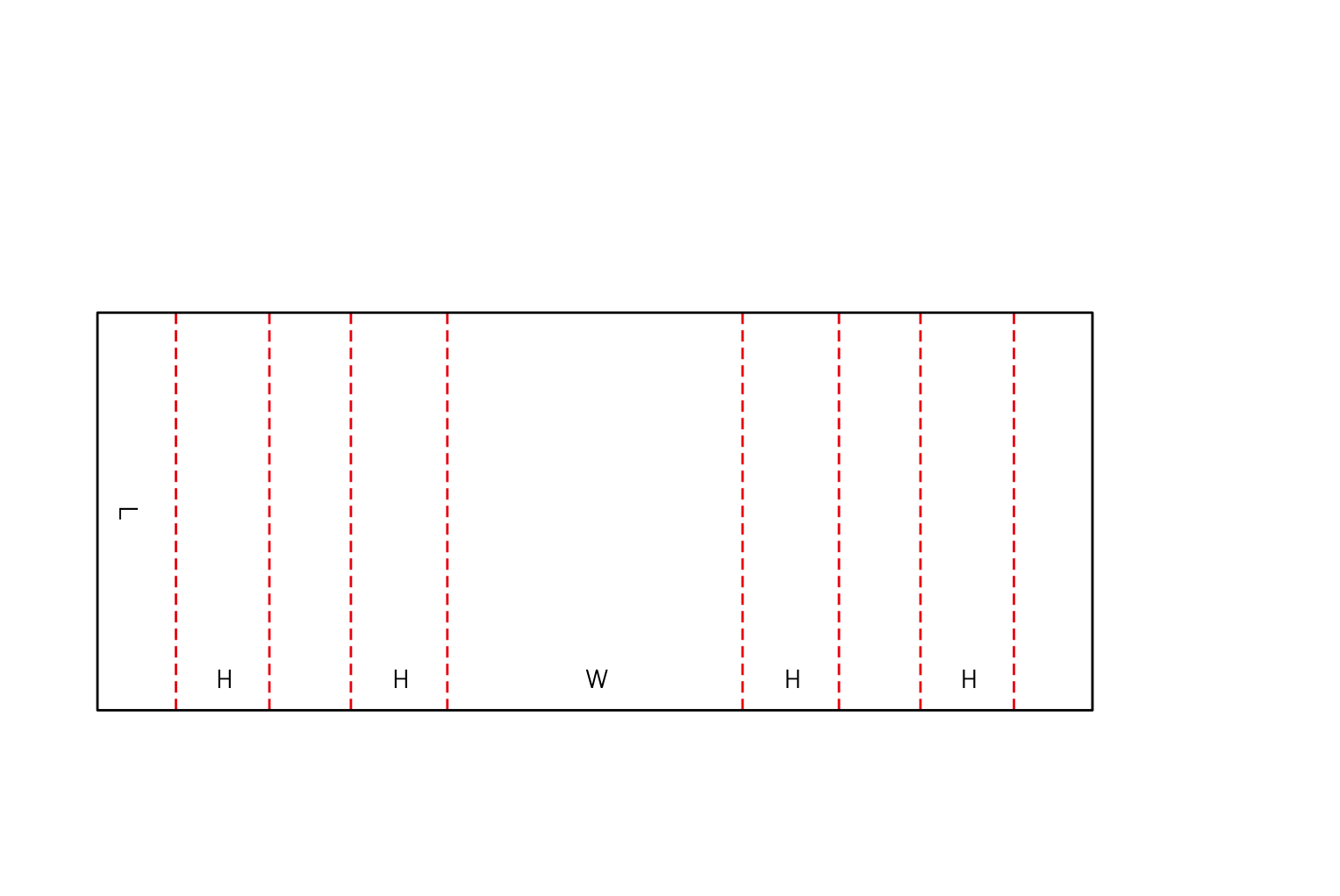

To create the two closed tubes, the board must roll inward 360 degrees on both sides. This 9-panel sequence means the flat sheet is massive compared to the final folded footprint, driving up material usage.
Can this be manufactured with straight creases?
Yes. Because all the creases are straight and parallel, it can typically be produced on a standard slitter-scorer, avoiding complex cutting processes.
Product Fit
Is this a direct replacement for molded EPS foam?
It is a highly effective, fully recyclable alternative for blocking and bracing heavy parts. However, because it relies on folded corrugated columns rather than molded contours, the exact shock absorption should be tested with your specific product and drop requirements.
Materials
Should we use double-wall board for maximum protection?
Double-wall board offers exceptional crush resistance, but it makes the pad very stiff and difficult to roll by hand. Standard C-flute is usually recommended to balance protection with reasonable packing labor.
Master Carton Fit
How tight should the pad fit inside the outer box?
It requires a precise slip-fit. If it is too loose, the tubes may unroll slightly and lose their structural strength. If it is too tight, the inner walls will bow outward and pinch the product in the central channel.
Assembly and Packing
How many hands are required to pack this?
Packers generally need both hands to roll the side columns and hold them against the board's spring-back tension while seating the pad into the box.
Does this work for automated insertion lines?
Generally no. The unfastened tubes will spring open immediately without specialized robotic end-effectors holding them closed until they are fully seated in the master carton.
