Edge protection and tray lidding jobs
Interior edge and corner buffering

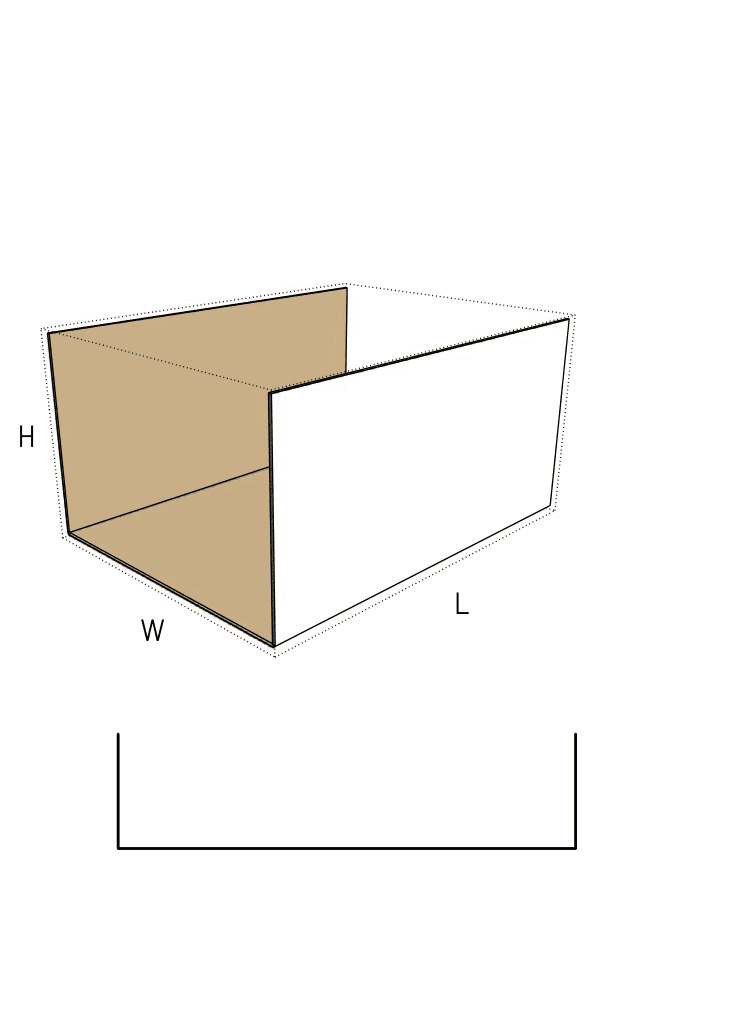

Placed inside a larger shipping box, the U-shape straddles long, heavy, or fragile items. It absorbs lateral impacts and keeps the product from shifting against the outer walls.
Overlapping lids for shallow trays
Dropped over a base tray, the folded legs act as side flanges. This creates a clean, removable cover often used for baked goods, produce, or retail assortments.
Pallet edge protection
When strapped to the outside of a loaded pallet, heavy-board U-channels distribute the tension of the strapping and protect the corners of the stacked cartons from crushing.
Lateral shock absorption
Used as a side bumper inside a master carton, the folded channel creates a hollow air gap that protects sensitive equipment from side impacts during transit.
Industrial, bakery, and furniture contexts
Industrial parts and electronics
Manufacturers use heavy-wall U-channels to suspend metal extrusions, appliances, or delicate instruments away from the crush zones of a master carton.
Bakery and food distribution
Food distributors use thin-flute versions as quick-placement lids for open trays, allowing easy access while protecting the contents from dust and stacking pressure.
Furniture and cabinetry
Woodworkers and furniture brands use long U-shaped channels to wrap the vulnerable edges of tabletops and cabinet panels before sliding them into outer shippers.
When to compare self-locking lids or heavy buffers
the package needs a self-locking cover
If the lid must stay attached to the tray without tape or strapping, compare a hinged mailer or a self-locking tray cover. The U-shape will lift off if not secured.
the package needs extreme shock absorption
For very heavy items that require high levels of protection, a rolled tubular buffer or a multi-layered folded block may absorb more impact than a single-wall U-channel.
Fit, board grade, and flute direction choices
Inside versus outside dimensions
The most critical choice is whether the U-shape needs to fit over a specific tray (inside dimensions) or fit inside a specific master box (outside dimensions). Board thickness changes the fold allowances, so the exact fit target must be clear.
Board grade and flute profile
Heavy double-wall board provides excellent industrial crush resistance but increases the tension when folding. Fine E-flute or F-flute creates sharp, neat corners suitable for printed retail lids.
Flute direction
The direction of the corrugation determines how the pad behaves. Vertical flutes add stacking strength if the legs bear weight, while horizontal flutes make the long span more resistant to bending.
Delivery format and storage

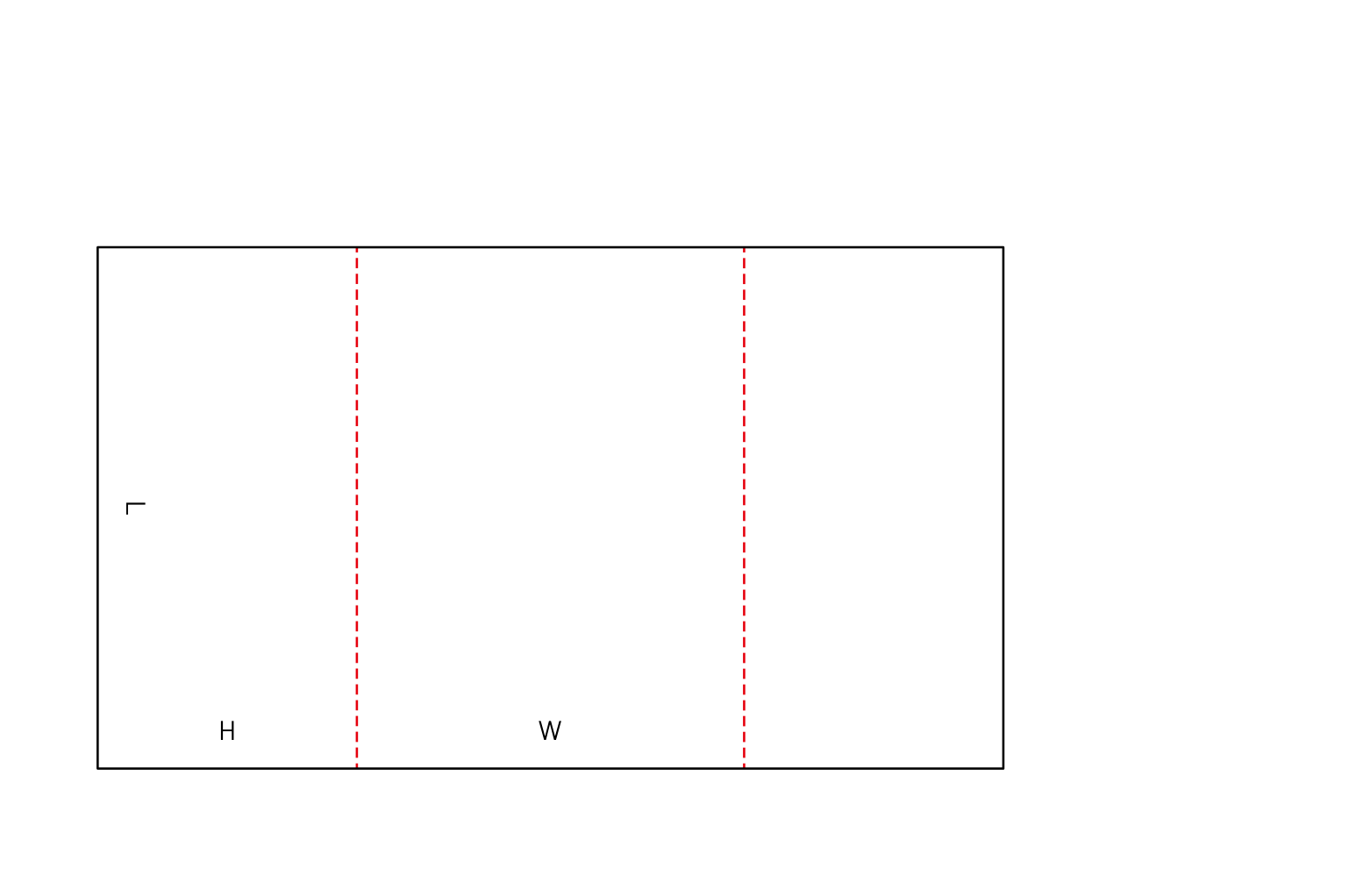

These are simple scored sheets that ship and store completely flat. They achieve maximum pallet density with zero wasted air space, making them highly efficient to warehouse before use.
Adjusting leg depth, slots, and corners
Leg depth and overhang
The depth of the two side flaps can be extended to cover the full height of a tray or shortened to act as a minimal edge guard.
Adding lifting slots or ventilation
For retail or bakery lids, custom cutouts can be added to the top panel or side legs to allow airflow or create finger holds for easy removal.
Corner chamfers
If the U-shape is being inserted into a tight master carton, the corners of the flaps can be angled or chamfered to prevent them from binding against the outer box walls.
Board and packing details
Manual folding tension
Heavy double-wall board provides excellent shock absorption but creates noticeable spring-back tension. Packers may need to hold the flaps in place while inserting the pad into a master carton.
