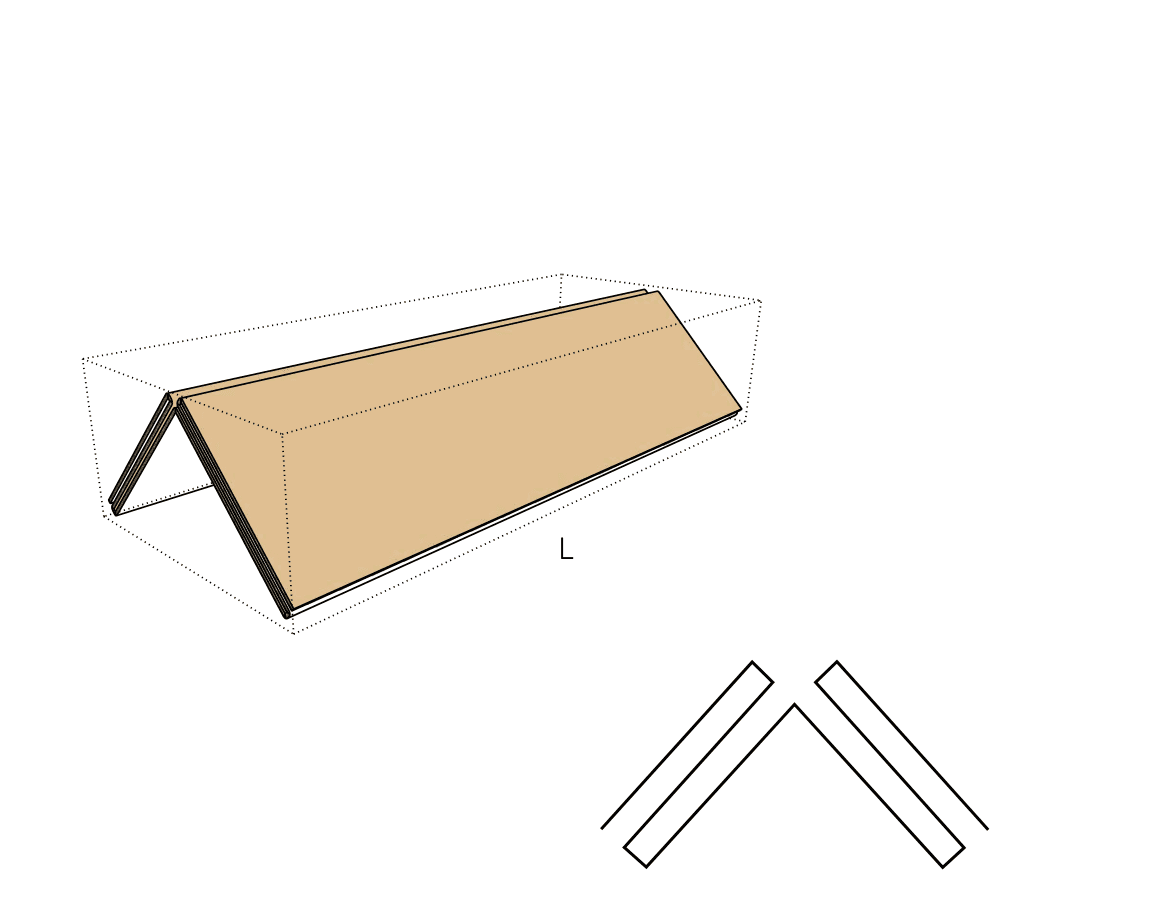

Heavy-duty corner protection and foam replacement
EPS foam replacement for heavy goods
When shipping electric motors, heavy appliances, or dense industrial components, standard single-wall inserts often crush under the weight. This cradle rolls multiple layers of corrugated board into a solid block, providing the deep, resilient standoff previously only possible with polystyrene foam.
Furniture and multi-axis corner cupping
Unlike flat pads that only buffer one side, this pad bends 90 degrees at its center to cup a 3D corner. It braces the product against lateral shifts and vertical drops simultaneously, keeping vulnerable edges away from the master carton walls.
Industrial machinery and electric motors
Heavy, concentrated loads require dense shock absorption to prevent the product from punching through the outer box. The multi-wall rolled core of this pad absorbs high-impact energy during transit drops.
Fragile edge protection for large electronics
For large screens or delicate chassis corners, the pad provides a deep standoff distance. It suspends the fragile corners away from the impact zones of the master carton.
Industries transitioning from plastic foam
Sustainable D2C and retail transitions
Brands moving away from plastic packaging use these cradles to maintain high drop-test performance while offering a fully curbside-recyclable unboxing experience. The unprinted kraft board clearly signals an industrial, eco-friendly approach to protection.
Low-volume, high-value industrial kitting
Because assembly is entirely manual and requires significant hand strength, this pad fits best in operations where the product value justifies the pack-bench time. It is not suited for high-speed, automated fulfillment lines.
Appliance manufacturing and distribution
Manufacturers replacing molded EPS end-caps use these corrugated blocks to achieve similar corner protection while reducing the warehouse space required for empty packaging materials.
When to consider a different corner pad
Protecting a vertical edge instead of a corner
If you need to brace the entire vertical height of a box rather than cupping a specific corner, a vertical L-profile post (FEFCO 0971) is a better choice. It folds along the length of the edge rather than bending around a point.
Reducing pack-bench labor
If the manual effort of rolling and bending a dense block is too high for your packing line, consider a diagonal corner truss (FEFCO 0975). It creates a hollow air-gap brace that uses less board and is generally easier to fold, though it sacrifices the solid-block crush resistance.
Board thickness, folding fatigue, and relief cuts
Balancing protection with operator fatigue
Board thickness directly controls the depth of the crush zone. Heavy double-wall board provides exceptional shock absorption, but it sharply increases the physical force required to roll the pad and execute the final 90-degree lock-bend. Prototypes should always be tested by the actual packing team.
Master carton fit and friction locking
This pad relies on the master outer carton to keep it tightly wedged in place during transit. The internal dimensions of the outer box must account for the exact thickness of the assembled corner blocks to prevent the product from shifting.
Flute profile and crush zone depth
Selecting a thicker flute profile increases the standoff distance from the box wall. However, thicker flutes also require wider relief cuts at the center bend to fold cleanly without cracking the outer liner.
Flat delivery space versus pack-bench footprint

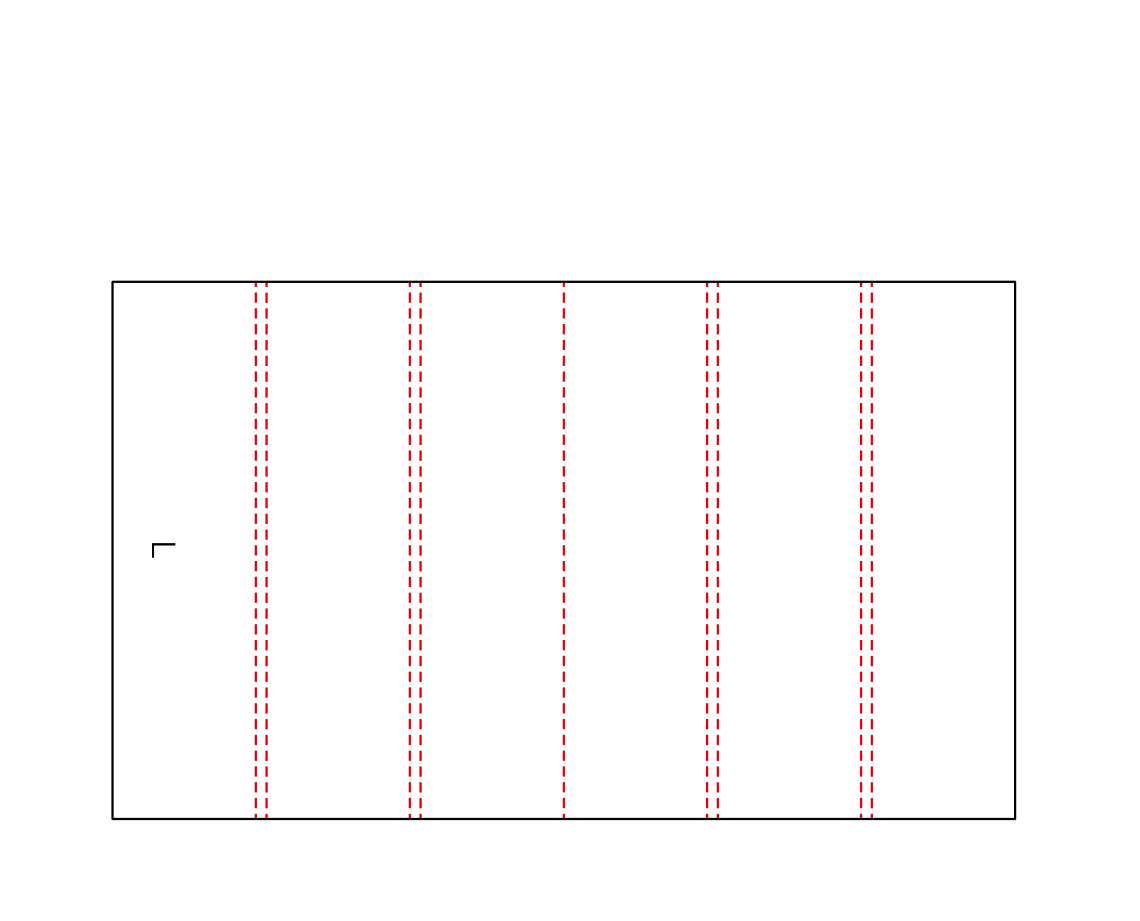

To create a thick multi-wall block, the flat corrugated blank must be very wide to accommodate every rolled layer. This blank sprawl requires significant staging space at the pack bench before assembly begins.
Adjusting the crush zone and coverage
Adding or removing labyrinth layers
The total thickness of the corner block can be adjusted by changing the number of rolled layers. Adding layers increases the standoff distance and shock absorption, but it also drastically increases the flat blank size and the manual force required to fold it.
Adjusting the leg length along the edge
The length of the L-shaped legs can be extended to provide more coverage along the product's edges. Longer legs distribute the impact force over a wider area but require a larger flat blank.
Central bend relief width
Because the central 90-degree bend must cross multiple rolled layers, specific relief notches are cut into the center. The width of these cuts can be adjusted based on the board thickness to prevent the outer liner from tearing during assembly.
Board and packing details
Friction locking and spring-back
This pad uses no tape or glue. The tension created by the 90-degree center bend pinches the inner corrugated layers, creating a friction lock. However, it relies on the master outer carton to keep it tightly wedged in place during transit.
Layer count and nesting adjustments
Inner layer nesting logic
If the board thickness or layer count changes, the internal fold allowances must be recalculated. Each successive inner wrap is cut slightly shorter than the last so the layers nest perfectly without binding or bowing.
Additional notes
Blank sprawl and handling space
To create a thick multi-wall block, the flat corrugated blank must be very wide to accommodate every rolled layer. This means the unfolded pads take up significant pallet and floor space before they are assembled at the pack bench.
Related internal protection
FAQs
Product fit and protection
Can this corrugated cradle completely replace EPS foam?
In many heavy-duty applications, yes. By rolling multiple layers of corrugated board into a dense block, it provides substantial lateral and vertical shock absorption. However, exact drop-test parity depends on the board grade and the weight of the product, so physical testing inside the master carton is required.
Packing labor
How long does it take to assemble?
Assembly is labor-intensive. An operator must use both hands to roll the parallel panels tightly against the board's natural spring-back, then forcefully bend the entire thick stick 90 degrees to lock it. It is strictly a manual pack-bench operation.
Production path
Why does the center bend need specific relief cuts?
Unlike simple scored pads, this cradle requires a perpendicular bend that crosses multiple rolled layers. To prevent the outer liner from tearing when the thick stick is bent, specific relief notches are cut into the center hinge.
Samples and prototypes
Why is prototyping so important for this specific pad?
A prototype proves two critical things: whether the central relief cuts are wide enough to prevent the outer liner from bursting during the bend, and whether your packing team can comfortably manage the physical force required to assemble the chosen board grade.
Route and shipping
Does the pad stay locked on its own?
The 90-degree bend creates a strong friction lock, but corrugated board naturally wants to spring back over time. The pad is designed to be wedged between the product and the walls of a master outer carton, which keeps the tension locked during transit.
Material choices
Should I use double-wall board for maximum protection?
Double-wall board maximizes the crush zone, making it an excellent foam replacement. However, it also makes the pad much harder to fold and increases the overall size of the flat blank. The decision should balance the required drop protection with the realities of manual assembly.
Packing labor
Can we use this on an automated packing line?
No. Erecting the pad requires complex, high-tension, two-handed manual rolling followed by a forceful central bend. It is not compatible with standard automated folder-gluers or case erectors.
Closure and assembly
Does this pad need tape or glue to hold its shape?
No. The pad relies entirely on the mechanical tension created by the 90-degree center bend, which pinches the inner rolled layers together. Once inserted into the master carton, the outer walls keep the pad compressed.
