FEFCO 0726

Auto-Bottom Display Box with Separate Lid

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Crash-lock base deploys instantly to speed up the packing line
Separate lid locks mechanically into the front wall and removes cleanly for retail display
Two-piece format separates the transit cover from the display tray

About this product

This two-piece corrugated container combines an instant-setup crash-lock base with a completely separate locking lid. Designed specifically for retail environments, it protects products during transit and converts into a clean, open-top display tray the moment store staff remove the cover.

Because the lid and base are separate pieces, buyers typically choose this style when a pristine shelf presentation, free from jagged tear-away perforations, justifies managing two components at the pack bench.

Common uses

FMCG retail-ready packaging
Premium promotional kits
Cosmetics and pharmacy shelf displays
Specialty food and beverage takeaway

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How far down should the removable lid cover the base?

How will these boxes be shipped?

Are you comfortable managing a separate lid and base at the packing station?

Where do you plan to print your artwork?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Display and Shelf-Ready Packaging

Shelf-ready retail displays

The separate lid protects the goods from the warehouse to the store aisle. Store staff simply pull the front tuck tongue and lift the lid away, leaving a clean tray facing the customer without any torn cardboard edges.

Premium promotional kits

When presentation matters, the mechanical lock provides a satisfying unboxing experience. The recipient can remove the lid entirely to view the contents, avoiding the clutter of attached flaps.

High-turnover pharmacy goods

For small, high-margin items, the clean edges of the two-piece design maintain a premium brand feel on the shelf. The rigid crash-lock base keeps heavy glass or liquid containers stable.

Specialty food and beverage takeaway

Brands selling jars or bagged snacks use this structure to ship master units that go straight onto supermarket shelves. The removable lid speeds up store restocking while keeping the base intact.

FMCG, Cosmetics, and Promotional Kitting

FMCG and grocery channels

Supermarket buyers appreciate packaging that reduces restocking time. The separate lid lifts off in one motion, eliminating the need for box cutters or tearing perforated panels on the store floor.

Cosmetics and personal care

Premium retail environments demand flawless presentation. The two-piece format avoids the rough, unfinished look of standard tear-away display boxes.

Subscription and influencer unboxing

The mechanical front lock creates a deliberate opening sequence. Because the lid removes completely, the internal arrangement is presented without overhanging flaps getting in the way.

Single-Piece Alternatives for Retail Display

When the packing line prefers a single unit

If managing two separate flat bundles slows down your fulfillment team, review the Tuck-In Top Crash-Lock (FEFCO 0713). It provides similar access but keeps the lid permanently attached to the base.

When the product is already protected

If your products are shrink-wrapped or packed in a master shipper and do not need individual lids, a simple Crash-Lock Tray (FEFCO 0700) eliminates the lid entirely and simplifies the pack bench.

Close variants and lookalike dielines

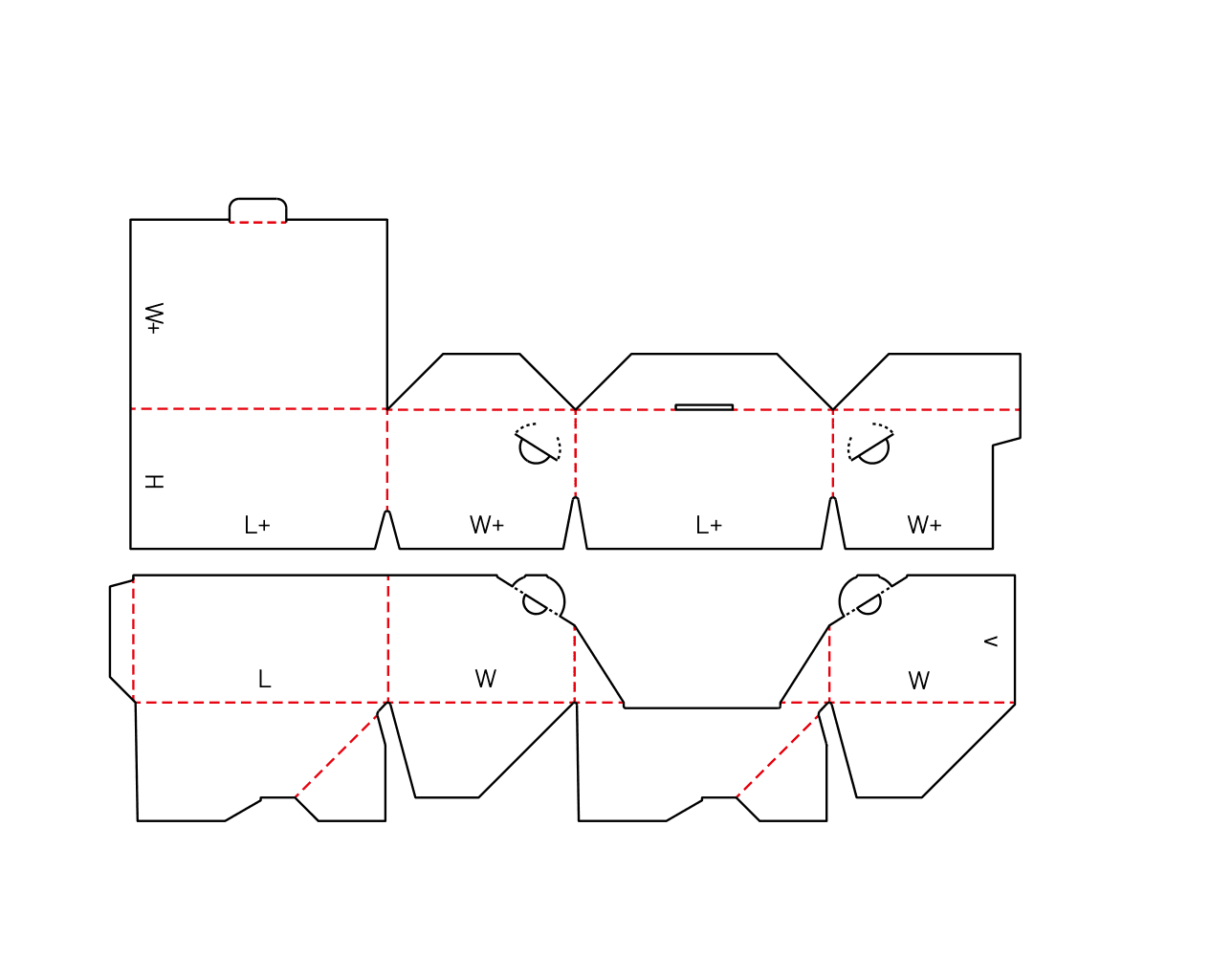

The closest library neighbors include 0725, 0727, 0714. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Selection and Pack-Bench Setup

Board thickness and lock stiffness

This box relies on a mechanical tuck tongue inserting into a front hole. Heavy double-wall boards make this tongue too stiff to bend cleanly and increase the risk of the crash-lock base binding. Fine to medium flutes are highly recommended.

Managing two-piece inventory

Because the base and lid are delivered as separate flat bundles, your packing facility must manage two SKUs for every finished box. The packer must grab a base, pop it open, load the product, and then align the separate lid.

Print surface allocation

The separate lid is delivered completely flat, offering an uncrushed surface for high-quality retail graphics. You can choose to print heavily on the lid while keeping the base simple, or vice versa.

Transit route and secondary sealing

The mechanical front lock is designed for easy retail access, not rough courier handling. If this box is shipping individually via parcel networks, it will likely need an outer shipping carton or a strong secondary seal.

Lid Depth and Lock Clearances

Partial-depth lids

The separate lid does not have to cover the entire height of the base. It can be adjusted to act as a shallow hood or a full-depth cover depending on your transit protection needs.

Lock hole width

The width of the front tuck tongue and its receiving hole can be adjusted to balance retention strength against how easily retail staff can open it.

Front tuck tongue profile

The shape of the locking tab can be modified with rounded edges or deeper notches to change how securely it anchors into the front wall.

Board and packing details

Outer shipper requirements for parcel transit

The mechanical front lock is designed for retail access. If this box is shipping individually via parcel networks, it will need an outer shipping carton or a strong secondary seal to prevent the lid from popping open.

Structural Variations

Lid depth variations

Because the lid is a separate blank, its side panels can be shortened to create a shallow cap or extended to cover the full depth of the base.

Additional notes

Print surface for the separate lid

Because the lid is manufactured separately and delivered flat without passing through a folder-gluer, it offers an excellent, uncrushed surface for high-quality retail graphics.

FAQs

Packing and Assembly

Does this box require glue or tape to assemble?

The base is pre-glued at the factory and pops open instantly. The separate lid locks into the front of the base mechanically. You do not need tape to assemble it, though you may want a clear wafer seal if you are concerned about tampering before it reaches the retail shelf.

Shipping and Route

Can I ship this box directly through the mail?

It is not recommended for standalone parcel shipping. The mechanical front lock is designed to be easily opened by retail staff, meaning it can pop open if dropped or tumbled in a courier network. It should be shipped on a pallet or inside a master carton.

Board and Material

Can I use heavy double-wall board for extra protection?

Heavy boards are risky for this design. Thick material makes the crash-lock base prone to binding when it pops open, and it makes the front locking tongue too stiff to insert easily into the lock hole. Fine or medium flutes are generally a better choice.

Retail Presentation

How does the lid stay attached at the back?

The lid hinges over the back wall and relies on the secure tension of the front tuck tongue to stay in place. Once the front is unlocked, the entire lid lifts away cleanly.

Packing Labor

Is this faster to pack than a standard slotted box?

The crash-lock base is much faster to square up than taping bottom flaps. However, because the packer has to grab a separate lid and align the front lock, it is slightly slower than a single-piece box with an attached lid.

Closure Mechanics

How does the front mechanical lock work?

The separate lid features a tuck tongue that swings down and inserts into a corresponding hole on the front wall of the base. This creates a friction lock that holds the lid closed during pallet transit.

Print and Finish

Can the separate lid be printed differently than the base?

Yes. Because the lid and base are manufactured as separate pieces, they can feature entirely different graphics, finishes, or even board grades, allowing for high-contrast retail presentations.

Production and Fit

What happens if the front locking tongue is too wide?

If the tongue is too wide for the lock hole, the packer will struggle to close the box, slowing down fulfillment. The dimensions of the tongue and hole must be precisely matched to the chosen board thickness.
