Retail presentation and shelf-ready packing
Checkout zone impulse displays

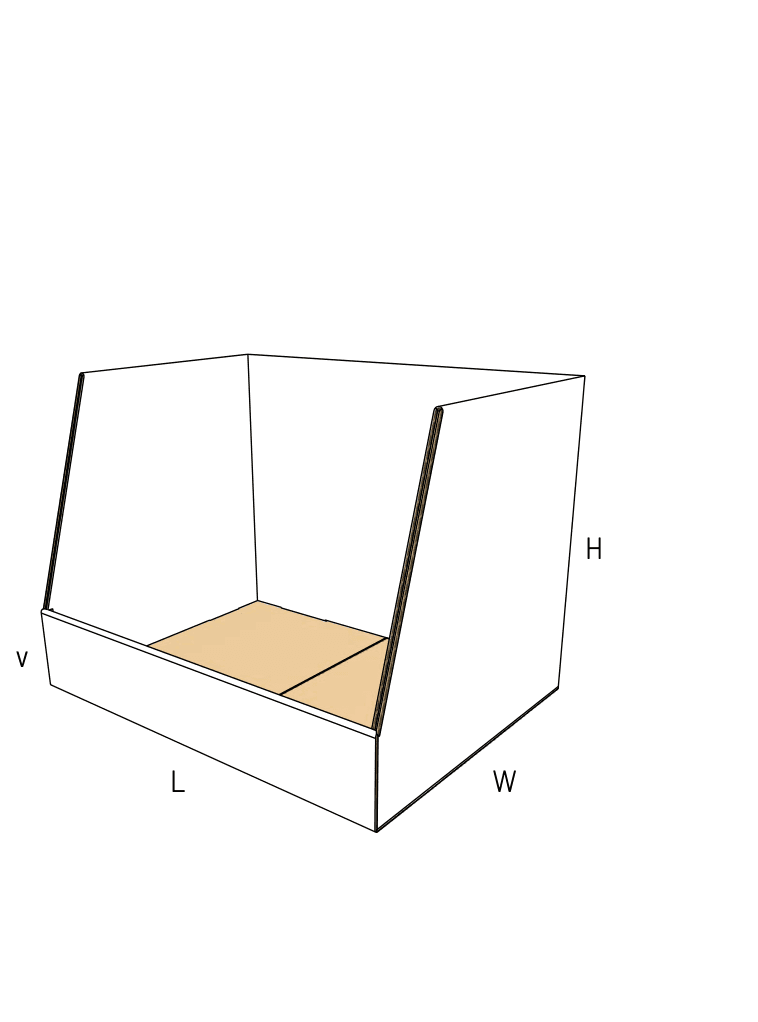

The high back draws attention, while the lowered front allows easy grabbing of small items like cosmetics or snacks. The double-thick sides keep the tray rigid even as customers pull products from it.
Shelf-ready blister packs
This tray keeps hanging-style products upright on standard flat shelving without needing pegboards. The side walls prevent the assortment from tipping sideways.
Packaged stationery and media
The rigid backboard supports flat, flexible items like journals or greeting cards. The friction-locked base ensures the tray holds its shape as the inventory depletes.
Inner presentation trays for master shippers
Direct-to-consumer brands use this as an unglued insert inside a larger shipping box. It provides a clean unboxing presentation without requiring a custom thermoformed plastic tray.
Retail channels and fulfillment situations
Premium retail rollouts
Brands that want a clean look without the cost of rigid setup boxes use the rolled edges to hide the corrugated flutes. This matches the presentation expected in beauty or specialty retail.
Manual kitting and fulfillment
Operations that pack displays before shipping to stores can assemble these trays by hand, load the product, and slide them directly into master shippers for distribution.
Point-of-sale merchandising
Marketing teams use the extended back panel as a built-in billboard. It eliminates the need to print and attach a separate header card for counter displays.
When to look at other display styles
Heavy vertical stacking
If the display itself needs to bear heavy top loads during transit, a standard RSC or a tray with corner posts is safer. This tray relies entirely on the master shipper for vertical strength.
High-speed automated packing
If your facility uses linear folder-gluers to erect trays automatically, this manual-lock design will bottleneck the line. Look at a factory-glued crash-lock base for faster setup.
Board, fit, and assembly choices
Board thickness and foldability
The 180-degree side rolls require thinner materials like E or F flute. Heavy C-flute or double-wall board will bind during folding and crush the locking tabs.
Front lip height
The front wall must be high enough to retain the product but low enough to keep the primary packaging visible. This balance dictates the final template dimensions.
Back wall branding area
The back panel can extend high enough to act as a billboard, but very tall backs increase the total flat sheet size and may require larger press equipment.
Locking slot clearance
The base slots must match the exact caliper of the chosen board. If the slots are too tight, the tabs will crush during assembly; if too loose, the tray will lose tension.

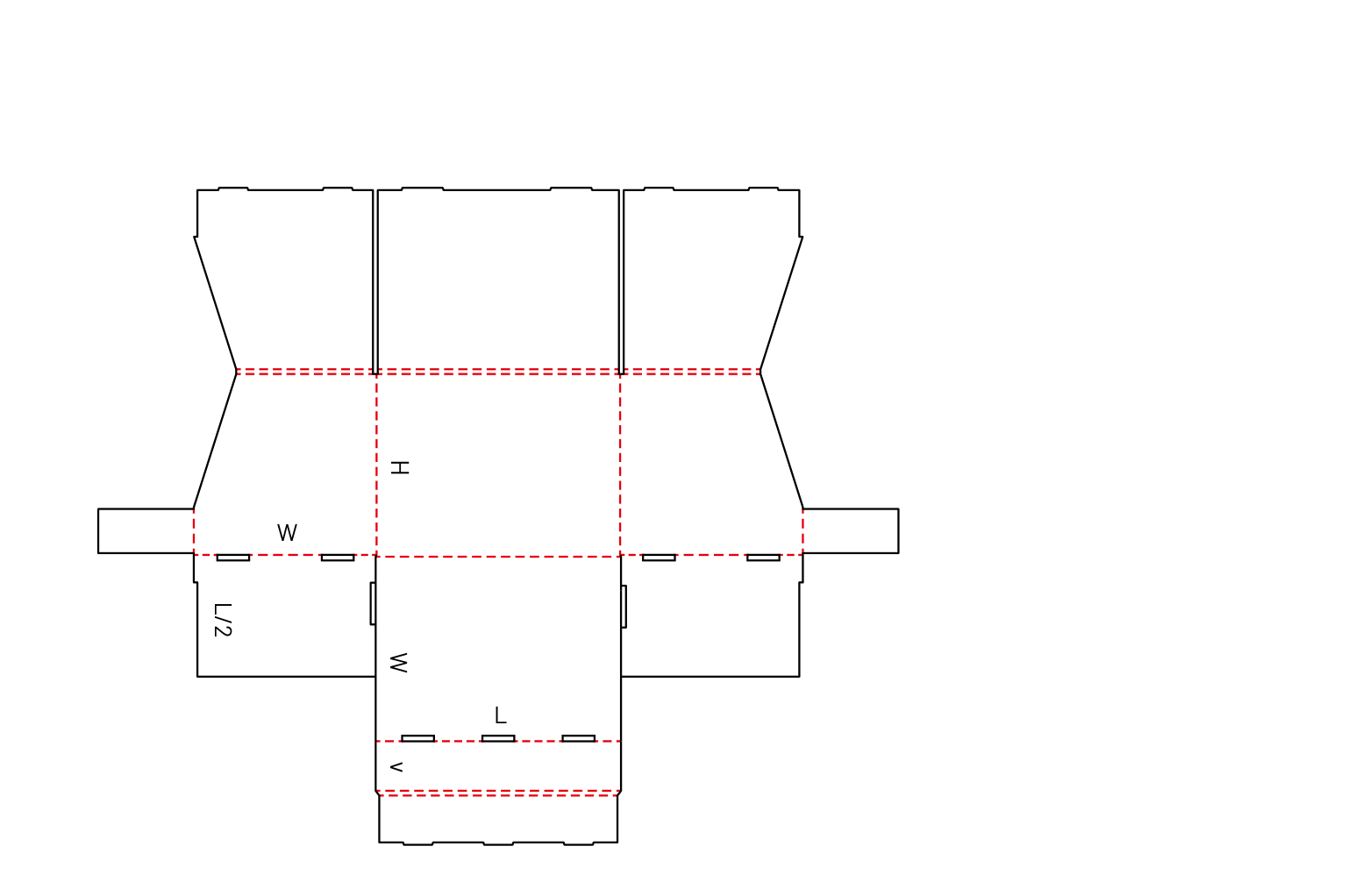

Practical template adjustments
Locking slot style
The base slots that receive the side tabs can be cut with square corners or rounded radii. This changes the friction and seating feel during manual assembly.
Front panel drop
The angle and depth of the side-wall slope can be adjusted to expose more of the product or provide higher lateral support.
Double crease allowance
The spacing between the parallel creases on the side walls must be tuned to the exact board thickness so the 180-degree fold sits flat without tearing the liner.
Board and packing details
Master shipper coordination
Because the top is open and the front is lowered, this tray cannot ship via parcel networks on its own. It must be dimensioned alongside a matching outer shipping box.
Additional notes
Pre-breaking the side creases
For faster assembly, pack-station operators should pre-bend the double creases on the side walls before attempting the final lock. This softens the board's memory and makes the tabs seat more easily.
Related display trays to review
FAQs
Assembly and packing
Does this tray require glue or tape?
No. The tray is formed entirely through mechanical folding. The side walls roll over and lock into slots in the base panel, holding the structure under tension.
Can we run this on automated tray-erecting equipment?
This is a manual-assembly design. The multi-axis folding sequence requires hand assembly at the pack station.
Board and material
Can we use heavy double-wall board for extra strength?
Heavy board is a poor fit for this structure. The side walls must fold completely in half to lock. Thick board will bind, crack, or crush the locking tabs. Fine flutes like E or F work best.
Shipping and route
Can this tray be shipped directly to a customer?
Not on its own. The open top and lowered front provide no protection against parcel networks. It must be packed inside a master shipping carton for transit.
Design and fit
How tall can the back wall be?
The back wall can be extended to serve as a large branding billboard, but it is limited by the total size of the flat corrugated sheet. Very tall backs may require larger press sizes.
Will the raw corrugated edges be visible to the customer?
The top edges of the side walls will be clean and smooth because the board rolls over itself. The top edge of the back wall and the front lip will show the standard cut edge.
Production and tooling
Why does this tray require flatbed die-cutting?
The base locking slots and the double creases needed for the 180-degree side rolls require precise flatbed tooling. It cannot be produced on a standard rotary slotter.
Design and fit
Can this display support heavy items?
The double-thick side walls provide good lateral rigidity, but the base lock slots can tear under extreme point loads. Heavy payloads require physical testing to ensure the tabs do not shear.
