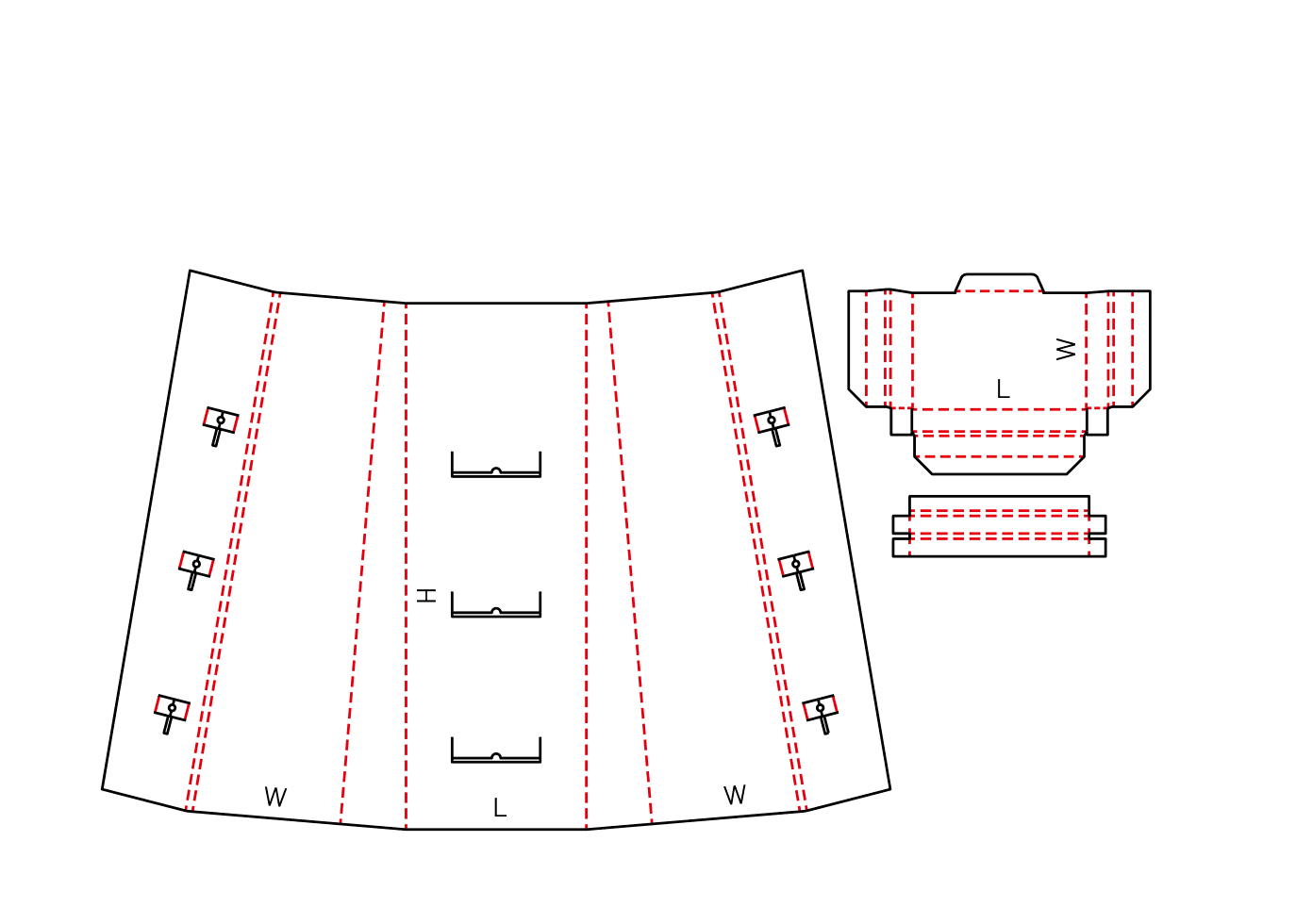

FEFCO 0834

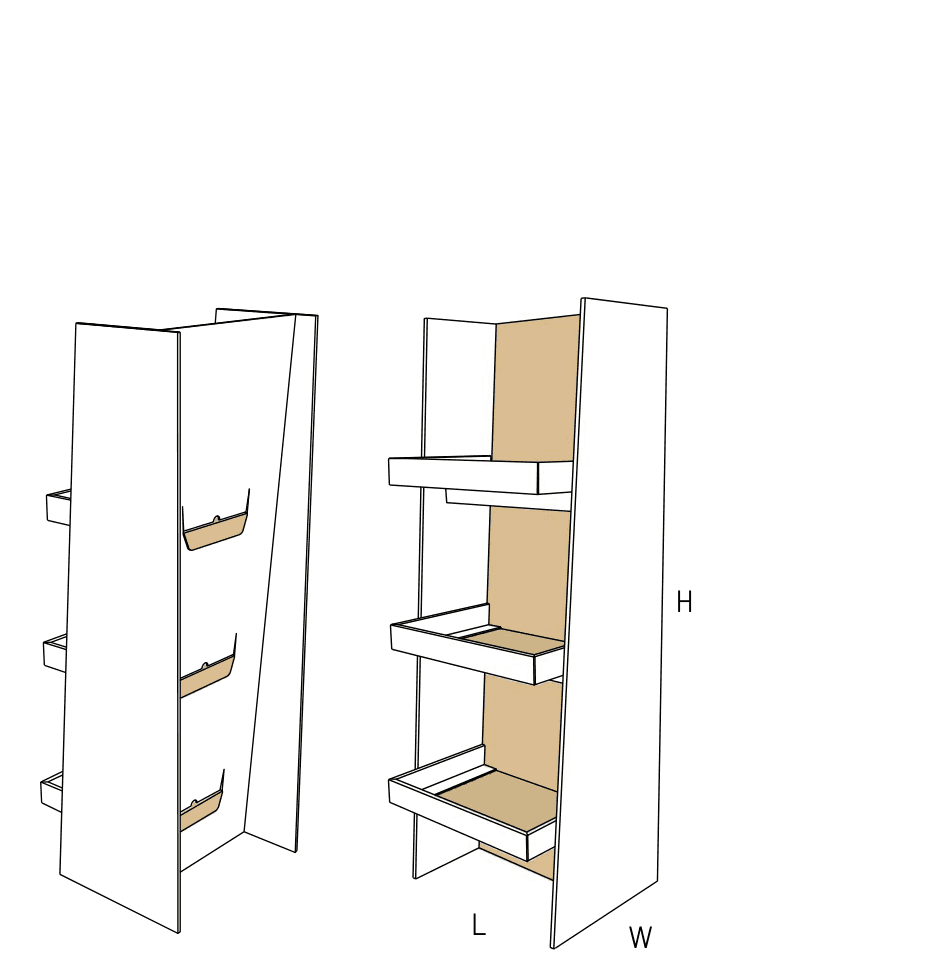

Inclined Retail Floor Display Stand with Reinforced Shelves

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Inclined backboard improves shopper visibility and backward stability
  • Double-folded shelf lips retain heavy or smooth-bottomed products
  • Ships flat as a multi-piece kit for manual point-of-use assembly

About this product

This multi-piece corrugated floor display is engineered for heavy retail merchandising. It features an inclined backboard that shifts the center of gravity backward for stability, while the side walls fold into thick, beveled support columns.

Unlike standard flat shelving, each drop-in shelf includes a double-folded front lip to prevent products from sliding forward. Because the entire unit locks together through mechanical friction without tape or glue, the primary tradeoff is the manual assembly time required at the retail store or co-packing facility.

Common uses

  • Heavy beverage and liquid promotions
  • Hardware and boxed tool end-caps
  • High-traffic grocery aisle displays
  • Bulk cosmetic and personal care merchandising

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Product types and retail floor placements

Heavy beverage and liquid promotions

The inclined back and reinforced front lips keep heavy bottles or cans from tipping forward, while the central support spine prevents the shelves from sagging under concentrated weight.

Hardware and boxed tool end-caps

Dense, heavy items benefit from the double-beveled side columns, which transfer the vertical load directly to the floor rather than relying on the back panel alone.

High-traffic grocery aisle displays

The backward lean of the display naturally angles products toward the shopper's eye line, making it easier to browse lower shelves without crouching.

Bulk cosmetic and personal care merchandising

Dense assortments of small, heavy bottles remain secure behind the double-folded shelf borders, preventing them from sliding off the angled presentation surface.

Retail channels and fulfillment routes

FMCG and consumer brands

Brands use the tall, angled backboard as a primary billboard for litho-laminated graphics, securing dedicated off-shelf real estate in crowded retail environments.

Co-packing and fulfillment centers

Because the display ships completely flat as a multi-piece kit, co-packers can receive dense pallets of blanks, assemble the frames, load the shelves, and wrap the final unit for direct-to-store delivery.

Big-box retail and club stores

Environments requiring freestanding, high-capacity floor fixtures that do not rely on permanent store shelving benefit from the self-supporting beveled columns and reinforced base.

When to compare straight-column or open-shelf displays

Unobstructed product access

If shoppers need to pull folded apparel or wide boxes directly outward without lifting them over a front barrier, a straight-column display with flat shelves removes the retaining lip.

Cascading visual presentation

If the goal is to show a tiered assortment of small items where each shelf steps further back, a sloped-wall display with open shelves provides better side visibility.

Close variants and lookalike dielines

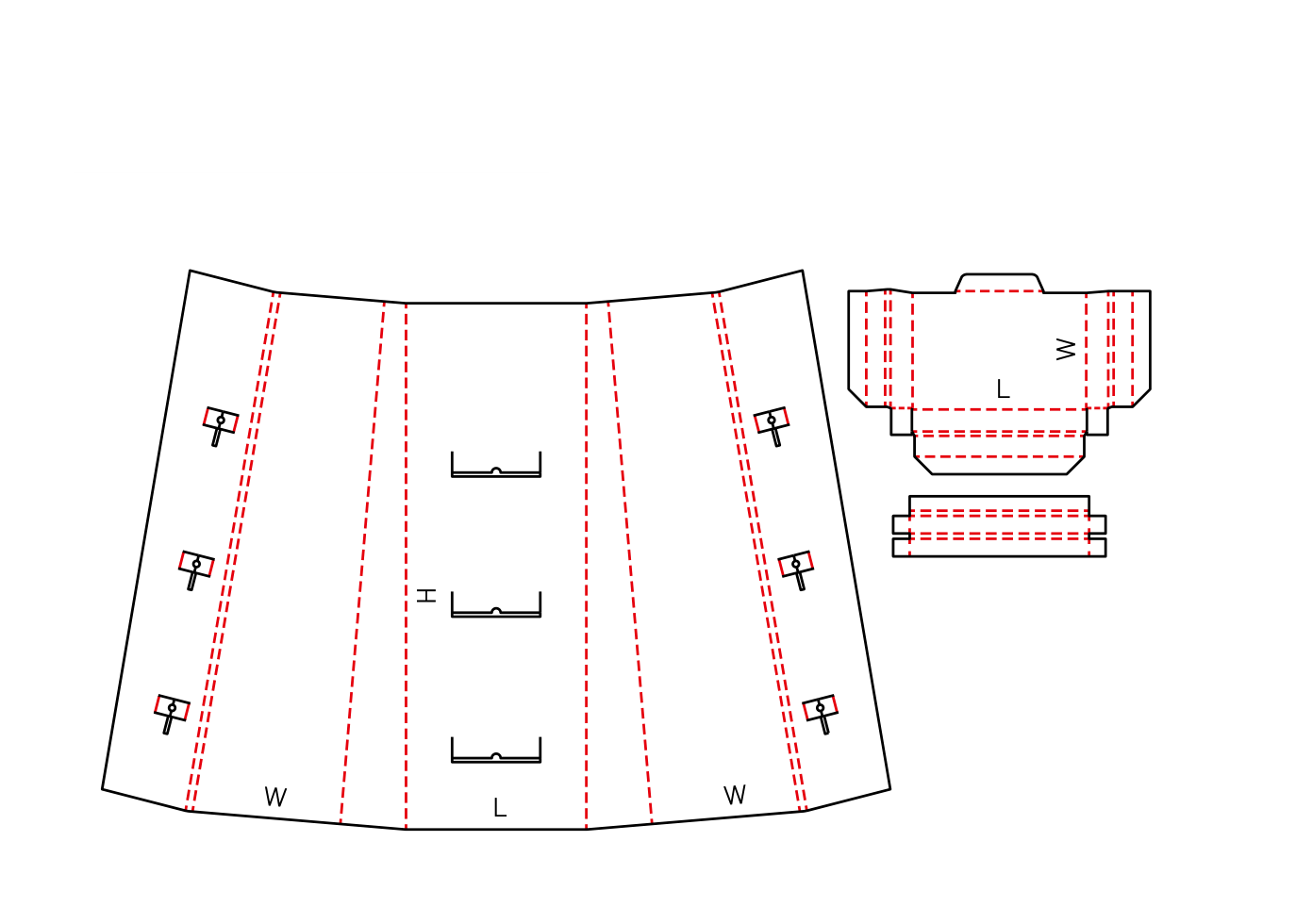

The closest library neighbors include 0831, 0830, 0833. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board thickness, payload limits, and assembly effort

Board thickness versus manual folding effort

Specifying a heavy double-wall board increases the payload capacity but makes the 180-degree column folds physically exhausting for retail staff to assemble. The board choice must be tested for manual foldability.

Print coverage and side-wall branding

The beveled side columns face slightly outward, offering a secondary branding surface. Deciding between direct print and high-end litho-lamination depends on the campaign's visual requirements and budget.

Shelf count and vertical clearance

Adding more shelves increases the total product facings but reduces the vertical clearance for taller items. The exact product dimensions dictate the required spacing between tiers.

Central support spine inclusion

For particularly heavy goods, a separate vertical support piece runs down the center of the back wall. Deciding to include this spine prevents center shelf sag but adds another step to the manual assembly process.

Incline, shelf lip, and bevel adjustments

Adjusting the backboard incline

The default backward lean can be modified, but changing this angle requires recalculating the side-wall bevels and shelf slots to ensure the shelves remain perfectly horizontal.

Modifying the shelf front lip height

The double-folded front border can be extended upward to create a deeper retaining wall for taller or less stable products.

Altering the side-wall bevel angle

The angle at which the side columns face outward can be adjusted to increase or decrease the secondary branding surface visible to approaching shoppers.

Board and packing details

Large-format die-cutting requirements

The main body blank for this display is massive, often requiring specialized large-format flatbed die-cutting equipment. This makes it less suited for quick, low-volume rotary runs.

Multi-piece nesting and offcut waste

The irregular shapes of the shelves and support spine generate offcut scrap during manufacturing, which factors into the overall material footprint.

loading and display options for floor displays

Variable shelf configurations

The template can be cut to support anywhere from two to five shelves, depending on the product height and total display footprint.

Additional notes

Physical testing for tab insertion and payload

Because the 180-degree folds and locking tabs rely on exact board thickness, a physical prototype is highly recommended to verify that the display can be assembled without crushing the tabs and can hold the intended product weight without sagging.

Related retail display stands

0833: Flat-Wall Display Stand

Relies on flat, double-thick side walls rather than hollow architectural pillars, offering a different aesthetic and assembly motion.

0830: Related template 0830

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Assembly and Labor

Does this display require glue or tape to assemble?

No. The entire unit locks together using mechanical friction. The side walls roll over to form columns, and the shelves drop into pre-cut slots with locking tabs.

Product Fit and Loading

How much weight can the shelves hold?

Payload capacity depends entirely on the chosen board grade and the inclusion of the central support spine. Heavy items like beverages require physical load testing to ensure the shelves do not sag and the locking tabs do not shear.

Assembly and Labor

Can retail staff easily assemble this on the store floor?

It requires a multi-step, two-hand assembly process. While no tools are needed, the large panels and 180-degree folds take time and physical effort, especially if a thick board grade is used.

Shipping and Route

Can this display be shipped directly to consumers or stores as-is?

No. It is an open architectural fixture. It must be shipped knocked-down flat in a master shipper, or fully assembled and shrouded on a pallet by a co-packer.

Customization and Fit

Can we change the angle of the backward lean?

Yes, the incline can be adjusted for different visual effects. However, changing the backboard angle requires precise adjustments to the side columns and shelf slots so the products still sit flat.

Product Fit and Loading

Why do the shelves have a thick front border?

The front edge folds over twice to create a rigid beam. This prevents the shelf from bowing under weight and creates a physical lip that stops products from sliding off the inclined display.

Assembly and Labor

What happens if we use a heavier double-wall board for more strength?

While double-wall board increases payload capacity, it makes the 180-degree column folds physically exhausting to assemble. The locking tabs also risk crushing during insertion if the slot clearances are not recalculated for the thicker board.

Product Fit and Loading

How does the central support spine work?

It is a separate vertical corrugated piece that runs down the center of the back wall. It intersects with the back of each shelf to prevent them from sagging under heavy center loads.
