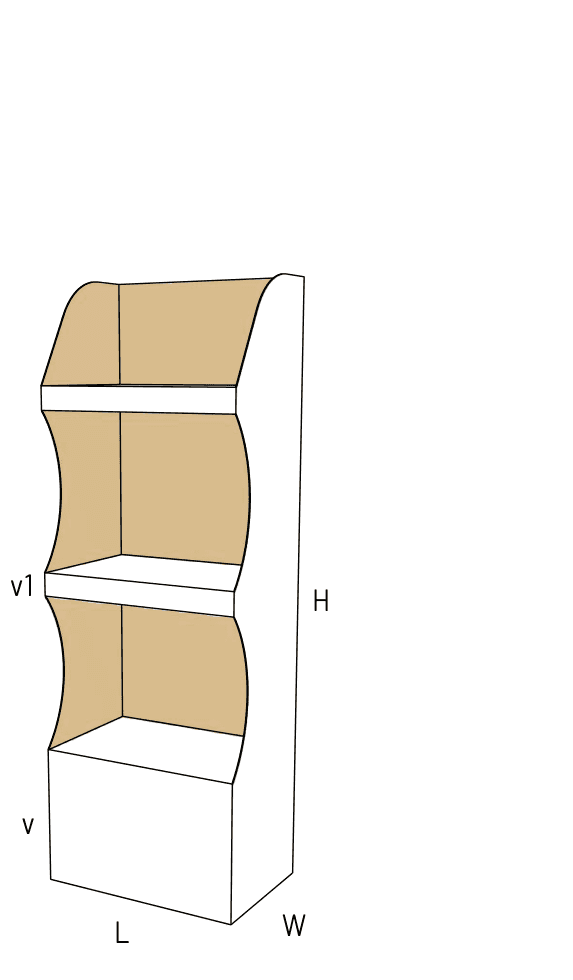

FEFCO 0842

Single-Piece Retail Display Stand with Fold-Down Shelves

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Single-piece construction with integrated fold-down shelves
Factory-glued side seam allows the main frame to pop open instantly
Requires a master shipper for transit to retail stores

About this product

A freestanding corrugated display designed to present products directly to retail customers. Cut from a single piece of board, the main frame is factory-glued to ship flat and pop open quickly at the pack station.

Instead of managing separate drop-in shelves, the internal shelves hinge directly from the back wall and lock into the sides. This reduces the number of parts to track, though it requires careful board selection to ensure the shelves fold down smoothly without binding.

Common uses

Countertop impulse displays for cosmetics or small packaged goods.
Freestanding floor displays for boxed snacks or lightweight retail items.
Trade show literature racks that pack flat and set up quickly.
End-cap promotional kits for seasonal product rollouts.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy are the items going on each shelf?

How many shelves do you need?

Where will this display be placed?

How will these be shipped to stores?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Merchandising and Point-of-Sale Setups

Countertop impulse displays

Scaled down and cut from thinner board, this design organizes small items like lip balm, travel toiletries, or packaged snacks right at the register.

Freestanding floor displays

When scaled up, the tall rear panel provides a large billboard space for branding, while the open shelves keep lightweight boxed goods accessible in busy aisles.

Trade show literature racks

The flat shelves easily hold brochures or sample kits. Because the entire unit packs flat and requires no tools, event staff can assemble it on-site in minutes.

End-cap promotional kits

For seasonal product rollouts, the single-piece design allows retail staff to set up the display quickly without tracking down separate shelf inserts.

Campaign Rollouts and Co-Packing Operations

Co-packing and fulfillment operations

Teams building retail kits benefit from the single-piece design. There are no separate shelf pieces to lose or miscount during high-volume assembly runs.

Short-term brand activations

For temporary pop-up shops or promotional events, field teams can transport the knocked-down displays easily and erect them without specialized hardware or adhesives.

Direct-to-retail distribution

Brands shipping pre-kitted displays to individual stores rely on the fast pop-open frame to minimize the labor burden on store employees.

When to Consider Multi-Piece or Heavy-Duty Displays

Heavy bulk goods

If you are displaying heavy items like beverage bottles or canned goods, the fold-down shelves may sag in the center. A heavy-duty floor display with rolled load-bearing columns handles vertical weight better.

Extreme material efficiency needs

Because the shelves are cut from the backboard, this single-piece design generates unavoidable scrap. If material yield is a strict priority, a multi-piece display with separate drop-in shelves nests much better on the press.

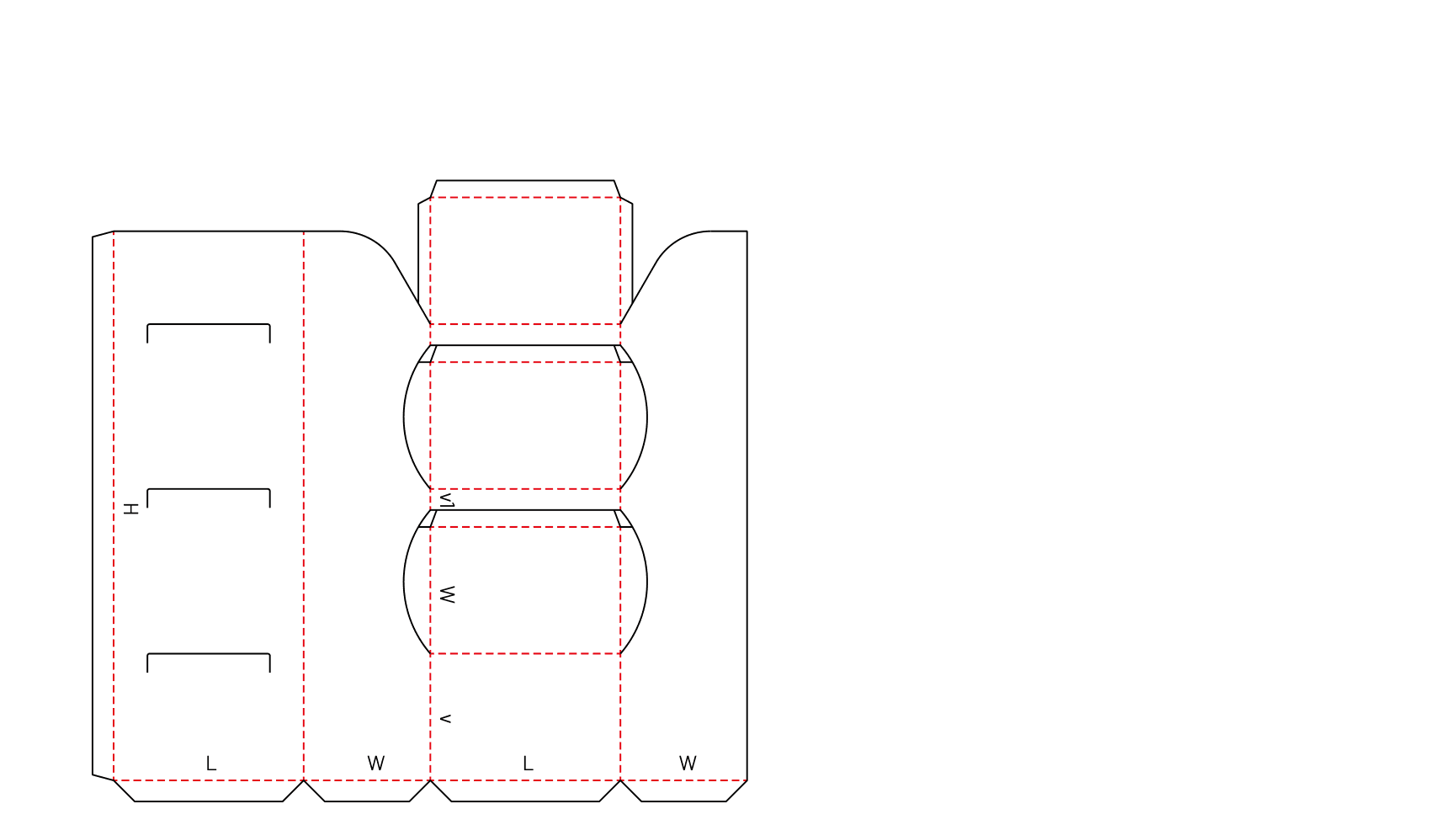

Close variants and lookalike dielines

The closest library neighbors include 0871, 0841, 0843. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Grade, Shelf Count, and Payload Limits

Board thickness and fold resistance

Thicker board improves shelf rigidity but makes the 90-degree shelf fold physically exhausting to assemble. Heavy flutes also increase the risk that the locking tabs will crush or bind when pushed into the side walls.

Product weight and shelf sag

The shelves rely entirely on the back hinge and side tabs for support. Testing a physical sample with your actual product weight is necessary to find the point where the center begins to sag.

Shelf count and spacing

The number of shelves dictates the overall height and the available clearance for your products. Adding more shelves increases the complexity of the die-cut and the manual labor required to lock each one in place.

Print surface and graphic layout

The tall backboard and side walls offer large, continuous panels for branding, but the open front profile means the interior back wall will also be visible and may require two-sided printing.

Shelf Spacing, Profiles, and Clearances

Side wall profile

The front edges of the side walls can be cut with curves, angles, or deep swoops to increase product visibility from the side aisles.

Shelf depth and bevel

The front edge of the shelves can be adjusted to sit flush with the side walls or recessed slightly, depending on how the product needs to be presented or retained.

Locking tab clearance

The receiving slots on the side walls can be widened or reshaped to accommodate different board calipers, ensuring the shelves lock securely without tearing the corrugated material.

Board and packing details

Master shipper requirement

This display features an open front and exposes products during transit. It must be shipped flat to the store, or packed inside a rigid master carton if shipped pre-loaded.

Large-format tooling

The single-piece design encompassing the backboard, side walls, and shelves creates a very large flat blank. Floor-standing versions often require large-format flatbed die-cutting equipment.

Additional notes

Internal material offcuts

Because the shelves are cut directly from the main backboard, the negative space between them becomes unavoidable scrap during manufacturing. This is the practical tradeoff for the convenience of a single-piece kit.

FAQs

Shipping and Route

Can this display ship directly through the mail?

No. The open front leaves products exposed, and the frame is not designed for transit impacts. It must be shipped flat to the retail location, or placed inside a protective master carton if shipped fully loaded.

Assembly and Packing

Does this require tape or glue to assemble at the store?

No. The main frame is glued at the factory. At the store, the operator simply pushes the frame open, folds the shelves down, and pushes the side tabs into their slots to lock the display together.

Product Fit and Weight

How much weight can the shelves hold?

Capacity depends entirely on the board grade, shelf width, and shelf depth. Because the shelves are supported only by the back hinge and side tabs, heavy items will cause the center to sag. A physical load test is always recommended.

Comparison

Why choose a single-piece display over separate shelves?

A single-piece kit reduces the number of parts a co-packer or retail worker has to manage. There are no separate shelves to lose, and the factory-glued frame squares up faster than an unglued multi-piece frame.

Board and Finish

Can we use heavy double-wall board for more strength?

Using double-wall board is risky for this specific design. The thick material makes the 90-degree shelf folds very stiff, and the locking tabs often crush or bind when forced into the side wall slots.

Print and Graphics

How are the graphics printed on this display?

Because retail displays require high visual impact, they are typically printed using high-end flexography, litho-lamination, or digital printing. The tall backboard and side walls offer large, continuous panels for branding.

Samples and Prototypes

Should we test a prototype before ordering?

Yes. A physical prototype is crucial to verify that the shelves fold down smoothly in your chosen board grade and that the center does not sag under your specific product weight.

Production Route

Does this require special manufacturing equipment?

Yes. The complex internal shelf cuts and locking slots require flatbed die-cutting. Additionally, floor-standing versions create a massive flat blank that may exceed the size limits of smaller presses.
