Heavy-duty partitioning and reinforcement roles
Vertical stacking reinforcement

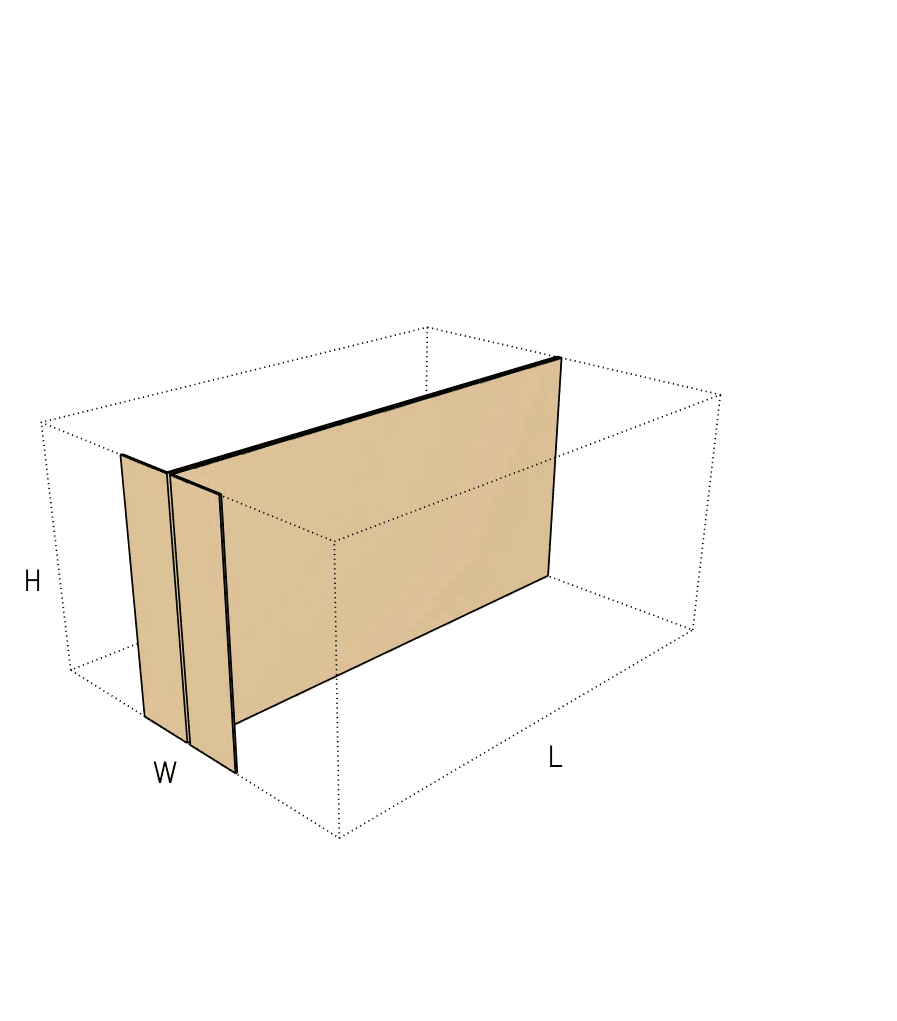

When aligned with the depth of the master carton, the double-thick center wall acts as a load-bearing column. This transfers heavy pallet compression forces away from the outer box walls and directly to the floor, helping prevent lower-tier boxes from crushing.
Side-wall shock absorption
Placed against the interior wall of a shipper, the 90-degree end flaps act as stabilizing feet. This creates an intentional air gap between the outer box and the rigid inner divider, forming a crumple zone that dampens severe lateral impacts.
Lengthwise heavy-part separation
For boxes carrying two dense or heavy components, the divider provides a rigid physical barrier. It keeps the items from shifting, rubbing, or colliding during transit without requiring a complex multi-piece grid.
Bracing long, narrow components
In elongated master cartons, a central divider prevents long items like metal extrusions or rolled materials from bowing inward. The rigid spine keeps the payload straight and maintains the overall shape of the outer box.
Industrial, furniture, and fragile shipping contexts
Industrial components and heavy hardware
Metal parts, motors, and dense hardware often exceed the burst or crush limits of a standard outer box. This insert adds targeted interior strength exactly where the payload threatens to bow the side panels or crush the base.
Fragile direct-to-consumer goods
Glassware, bottled liquids, and sensitive electronics require isolation from exterior impacts. The standoff flaps create a reliable buffer zone that keeps the primary product suspended away from the strike zone of a dropped parcel.
Flat-pack furniture and shelving
Long, heavy wooden panels or metal racks require internal bracing to prevent the master carton from snapping in the middle. The lengthwise divider adds a rigid spine that supports the center of the package during transit.
Evaluating grids or single-wall dividers
Multi-cell separation needs
This divider separates a box into two main sections. If the payload includes multiple small items that each need their own isolated compartment, look at an interlocking grid partition (FEFCO 0930) instead.
Lighter single-axis separation
The 180-degree fold creates a massive double-wall barrier. If the products are lightweight and only need basic separation to prevent scratching, a single-wall C-channel (FEFCO 0929) uses less material and is easier to fold.
Board thickness, flute direction, and packing labor
Flute direction for load bearing
To function as a structural column, the corrugated flutes must run vertically, parallel to the height of the insert. If the flutes run horizontally, the divider will buckle under top-load pressure.
Board thickness and fold resistance
Heavy single-wall or double-wall board provides maximum crush resistance but increases the physical effort required to fold the insert. Thicker board also requires a wider center gap to prevent the liner from cracking during the 180-degree return fold.
Manual packing labor
This structure uses no glue or tape. It relies entirely on the unbonded board being folded and held under tension. Packers must use two hands to overcome the board's natural spring-back while sliding it down into the master carton.
Master carton clearance
The insert relies on a precise friction fit against the outer box walls. If the master carton is too large, the divider will tip over; if it is too tight, the end flaps will bind and buckle during insertion.
Standoff flaps, center gaps, and profile adjustments
End flap width for standoff distance
The width of the outer flaps determines how far the central divider sits from the master box wall. Widening these flaps increases the protective air gap but requires a longer flat blank.
Center fold gap sizing
The space between the two central creases must be calibrated to the exact thickness of the corrugated board. A wider gap allows heavy double-wall board to make the 180-degree turn without tearing the outer paper liner.
Profile cutouts and shaping
While the standard design uses straight parallel edges, the main support panels can be shaped to cradle specific parts. Adding these internal cutouts requires shaped cutting boards, which changes the production routing.
Board and packing details
Blank sprawl and flat delivery footprint
Because the board folds back on itself, a divider of a given length requires a flat blank roughly twice that length, plus the end flaps. This massive flat footprint can affect pallet shipping density and requires adequate storage space at the packing bench.
Axis orientation variants
Width-oriented divider (0936)
A structural equivalent designed to run across the shorter width of the master carton rather than the length. The mechanical folding logic remains the same.
