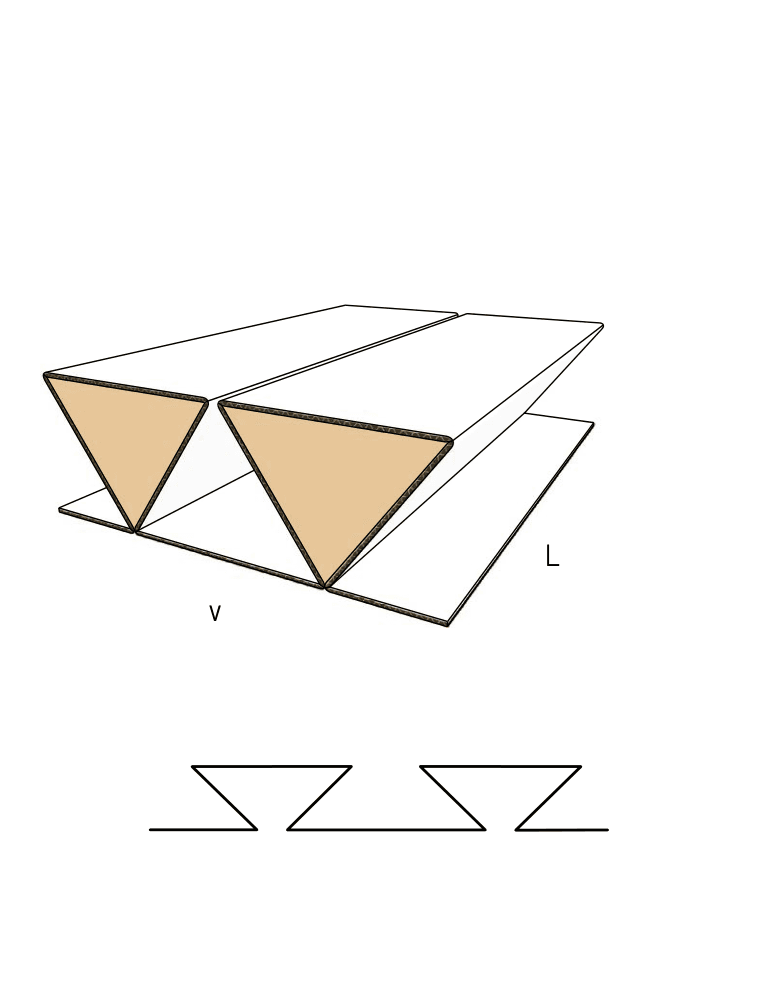

FEFCO 0944

Stepped Clearance Pad

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Creates a flat, elevated staging platform inside a master box
  • Relies on vertical corrugated legs for rigid shock absorption
  • Requires manual folding and tension during insertion

About this product

The stepped clearance pad is a single-piece corrugated insert that folds into a raised platform flanked by two vertical legs. Packers use it to create a false bottom or staging shelf inside a master shipping box, elevating products away from impact zones while providing a stable, flat resting surface.

Unlike continuous accordion springs that bounce, this pad transfers weight directly down its vertical legs. It is a practical choice for staging retail items or protecting heavy components, provided the outer box fits tightly enough to hold the folded shape in place.

Common uses

  • Heavy industrial parts requiring bottom clearance.
  • Retail presentation staging for cosmetics or electronics.
  • Fragile ceramics needing isolation from the outer box floor.
  • Multi-tier packing separation.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Product Staging and Void Fill Applications

False bottoms and impact isolation

By raising the product away from the floor of the outer carton, the pad creates a dedicated crush zone. If the master box takes a hard hit from below, the vertical legs absorb the force before it reaches the payload.

Retail staging and presentation

The flat center platform acts as an internal shelf. This helps with unboxing experiences where a product needs to sit prominently near the top of the box rather than sinking to the bottom.

Heavy component elevation

Dense metal parts or motors often need rigid vertical column support. The flat platform prevents the heavy item from shifting, while the legs transfer the weight directly to the base of the master shipper.

Multi-tier packing separation

When packing a heavy primary item alongside lighter accessories, the pad creates a stable dividing shelf. The main product rests securely on top, leaving the empty space underneath free for cables or manuals.

Retail Presentation and Industrial Protection

E-commerce fulfillment

Shippers use this pad to isolate fragile items or organize multi-component kits. The raised platform keeps the primary item secure while managing the internal void space.

Heavy industrial kitting

Industrial packers rely on the vertical flute orientation of the legs to support dense payloads. The pad provides a flat resting surface that prevents heavy, irregular parts from rolling.

Fragile ceramics and glassware

Items with unstable bases, such as vases or porcelain bowls, benefit from the flat staging area. The pad keeps the base secure while isolating the fragile material from direct bottom-up shocks.

When to Review Other Internal Fitments

Continuous elastic cushioning

If the packing job requires a pad that compresses and bounces back repeatedly, review a continuous zig-zag spring (FEFCO 0943). The stepped pad provides rigid staging, while an accordion pad provides elastic shock absorption.

Simple lateral buffering

If the goal is only to keep a product away from the side walls without needing extended stabilizing feet, a basic C-channel pad (FEFCO 0929) uses less board and folds faster.

Close variants and lookalike dielines

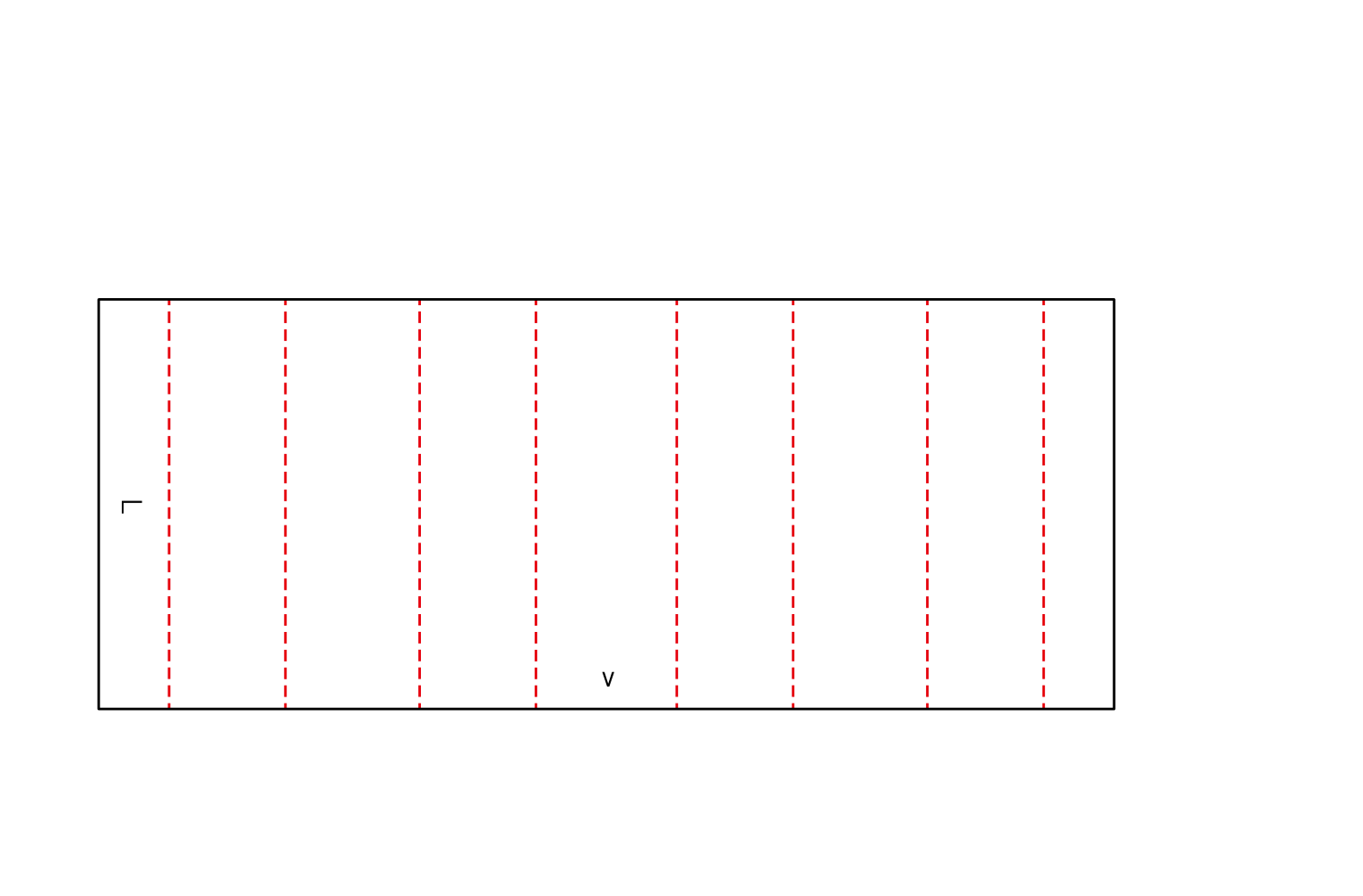

The closest library neighbors include 0943, 0946, 0942. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board Choice, Flute Direction, and Assembly

Flute direction and column strength

The vertical legs do the heavy lifting. To prevent them from buckling under a heavy payload, the corrugated flutes must run vertically through the legs. This orientation is critical for structural integrity.

Board thickness versus folding fatigue

Heavy double-wall board provides excellent crush resistance but makes the four 90-degree folds much harder to execute by hand. The board will naturally try to spring back flat, requiring operators to hold tension while sliding the pad into the box.

Master carton fit and retention

This pad has no glued joints or locking tabs. It relies entirely on the walls of the outer box to keep the outer feet from kicking outward. If the master box is too loose, the pad will flatten out and lose its staging height.

Platform width and sag risk

Widening the center platform provides more resting area but increases the risk of the board sagging under a heavy point load. If the platform must be wide, the board grade may need an upgrade to prevent bowing.

Platform Width and Leg Height Adjustments

Asymmetrical foot lengths

The outer feet do not have to be identical. The template can be adjusted to bias the platform toward one side of the master box, which helps when packing off-center components or accommodating secondary items.

Leg height adjustments

Increasing the height of the vertical legs creates a deeper false bottom, but taller legs are more prone to buckling under weight. Taller legs also significantly increase the total length of the flat corrugated blank.

Die-cut product cradles

The flat center platform can be cut to cradle specific shapes or components. However, removing too much board from the center can weaken the platform and cause it to sag under weight.

Board and packing details

Pack bench labor and insertion speed

Because the pad requires four alternating folds and active tension during insertion, it takes longer to pack than a simple flat divider. Consider this labor time when planning high-volume fulfillment lines.

Additional notes

Manual folding tension

The board's natural memory means the pad will try to unfold. Packers must use two hands to maintain the 90-degree angles while sliding the insert into the master carton.

Related Inserts and Pads

0929: C-Channel Buffer

Look at this option if you need a simple U-shaped side buffer without extended stabilizing feet.

0946: Cushion Pad

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Assembly and Packing

Does this pad stay folded on its own?

No. The corrugated board will naturally try to spring back to a flat state. Packers must fold the pad and hold it in its stepped shape while inserting it into the master box. The box walls keep it locked in position.

Product Fit

Can I use this pad to replace EPS foam blocks?

It can replace foam for many staging and clearance jobs, but it behaves differently. Foam compresses and rebounds; this pad relies on rigid vertical legs that will permanently crush if overloaded. A physical drop test helps confirm it meets your protection requirements.

Production

Does this pad require a die-cutter?

Because the creases run across the width of the board rather than along its length, it usually requires a printer-slotter or a die-cutter. It cannot be produced on the simplest slitter-scorer machines.

Route and Shipping

Can this pad be used as a standalone mailer?

No. It is strictly an internal fitment. It must be placed inside a sealed outer shipping box to function.

Board and Finish

What board grade makes sense for the stepped pad?

The choice depends entirely on the payload weight. Heavy items require thicker board to prevent the vertical legs from buckling, while lighter retail items can use thinner flutes that are much easier for fulfillment teams to fold.

Product Fit

Can the center platform have cutouts to hold my product?

Yes, the flat platform can be die-cut to cradle specific shapes or components. However, removing too much board from the center can weaken the platform and cause it to sag under weight.

Protection

How does this pad handle side impacts?

This specific pad is designed for vertical clearance and bottom-up shock absorption. If lateral movement is a risk, you will need additional side buffers or a different insert style.

Comparison

Why not just use a flat corrugated sheet?

A flat sheet provides a clean layer but does not elevate the product or create a crush zone. The stepped pad's vertical legs absorb impact forces before they reach the item resting on the platform.
