Internal lidding and tight-clearance dividers
Tight-fitting internal lids

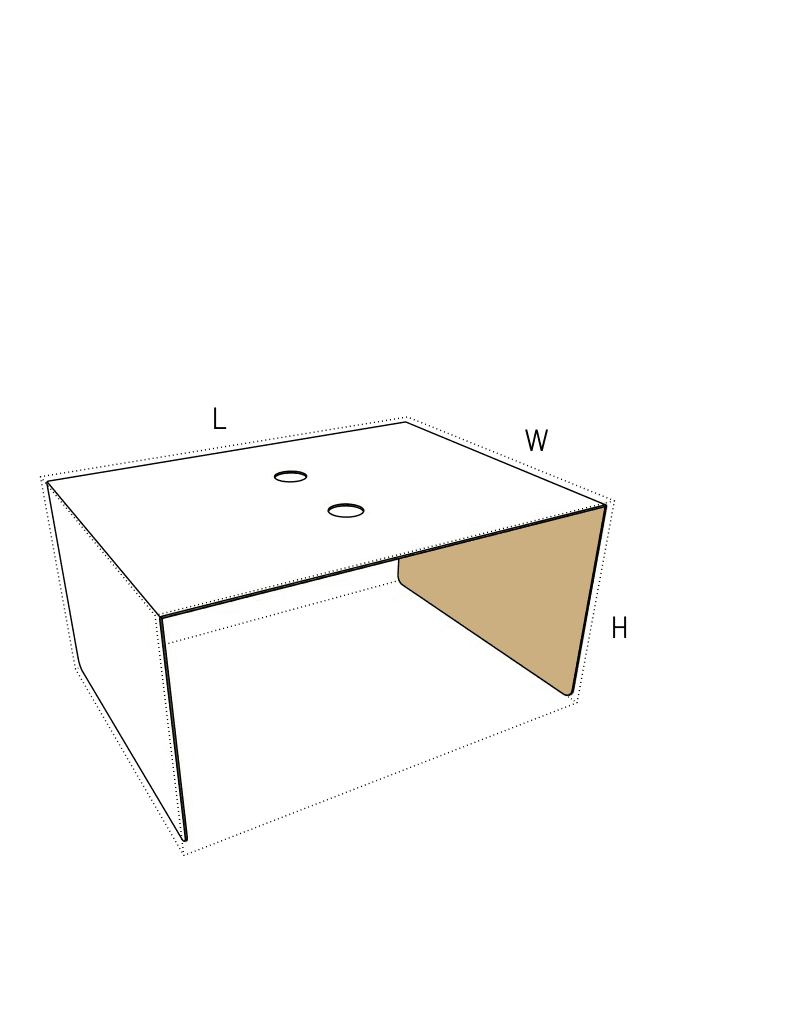

Placed over a packed layer, the folded legs act as standoffs. The finger holes allow the recipient to lift the lid straight up without wedging their hands down the sides of the box.
False bottoms and presentation platforms
Inserted legs-down, the pad elevates the product. The holes give retail staff or consumers an obvious grip to lift the platform and access accessories stored underneath.
Heavy-part layer separation
Separating dense industrial components where lifting a flat board without holes is difficult. The grip allows workers to pull the divider vertically without tilting or spilling the layer above.
Recessed component trays
Acting as a shelf that sits halfway down a box, holding lightweight accessories while keeping the main product below safe and separated.
Retail unboxing, kitting, and subscription fulfillment
Retail unboxing
The finger holes act as an intuitive visual cue to pull. This prevents the consumer from tearing the box or struggling with a vacuum seal when unpacking premium goods.
Industrial kitting and assembly
When workers need to rapidly place and remove dividers in deep master cartons, the grip holes reduce hand fatigue and speed up the packing line.
Subscription box fulfillment
Packing lines that need to rapidly drop in a divider and ensure the end-customer can easily pull it out to reveal the next layer without frustration.
When to review other insert styles
Loose fits and utility packing
If the insert does not fit tightly against the outer walls, or if the end user does not need to remove it frequently, a standard 0929 C-pad is a practical alternative. It skips the custom die-cutting process entirely and runs on simple straight-cut machinery.
Capping shallow trays
If the pad is capping a shallow tray where the outer edges are fully exposed and easy to grab, the 0951 slip-fit lid provides precise thickness compensation without the need for internal extraction holes.
Board thickness, hole sizing, and production path
Board thickness versus extraction comfort
Heavy double-wall board provides excellent vertical column strength if the flutes align with the folded legs. However, thick board can make the finger holes uncomfortable to pull against high friction. The hole radius often needs to increase for heavier grades.
Production path and custom cutting
Because of the circular cutouts, this pad requires custom die-cutting rather than simple straight cuts. This makes it a stronger fit for repeat packing programs or premium unboxing where extraction speed matters, rather than quick, low-volume utility runs.
Flute direction for load bearing
If the pad is used as a false bottom to support heavy items, the flute direction should run parallel to the folded legs to maximize vertical crush resistance.
Hole placement and product clearance
The exact position of the finger holes must account for the product underneath. If the item below is fragile or prone to scratching, the holes should be offset to sit over empty void space.
Adjusting leg depth and hole placement
Hole spacing and radius
The distance between the two holes and their exact radius can be adjusted to fit different hand sizes, lifting angles, or product clearances underneath the pad.
Leg depth
The side flaps can be lengthened to create a deeper void space or shortened to act as a shallow lidding cap.
Offset hole positioning
While typically centered, the finger holes can be moved off-center if the product underneath has an uneven profile, ensuring the user's fingers do not press into delicate components.
Board and packing details
Pallet density and flat shipping
Because the pad ships completely flat, it offers excellent pallet density, minimizing inbound freight space before assembly.
Additional notes
Stripping the hole waste
During production, the small circular cutouts must be cleanly ejected. The chosen board grade and hole size must strip reliably on the die-cutter without leaving hanging scrap.
Related internal dividers
FAQs
Shipping and Route
Can this pad be shipped on its own?
No. It is an internal component that relies entirely on a sealed master carton to hold its shape and protect the product during transit.
Assembly
Does this pad require glue or tape to assemble?
No. The side legs fold 90 degrees by hand, and the pad holds its position through friction against the walls of the master box.
Production Path
Why does this pad require custom die-cutting?
While a standard U-channel can be scored and cut in straight lines on basic machinery, the internal circular finger holes require a custom die board to punch out and strip the waste circles cleanly.
Product Fit
How do I know if the finger holes are the right size?
The default radius works for standard single-wall board. If you specify a heavy double-wall grade, we suggest testing a digital prototype to ensure the thicker edge does not pinch the user's fingers during extraction.
Can the pad support heavy weight from above?
Yes, if the flutes run vertically down the folded legs, the pad transfers top-load weight to the base of the master carton. The exact crush limit depends on the board grade and leg height.
Quantity and Delivery
Does the pad arrive flat?
Yes. It ships flat on a pallet, offering maximum storage density before it is folded and inserted on the packing line.
Inserts and Product Fit
Will the finger holes expose the product underneath?
The holes do create a small opening in the protective layer. If dust protection or scratch prevention is critical, the holes can be offset to sit over empty void space rather than directly over the product.
Packing Labor
Does this insert slow down the packing line?
Folding the two legs takes only seconds, but the real time savings happen during unpacking or kitting. The finger holes allow workers or customers to rapidly pull the pad out of a tight box without struggling against friction.
