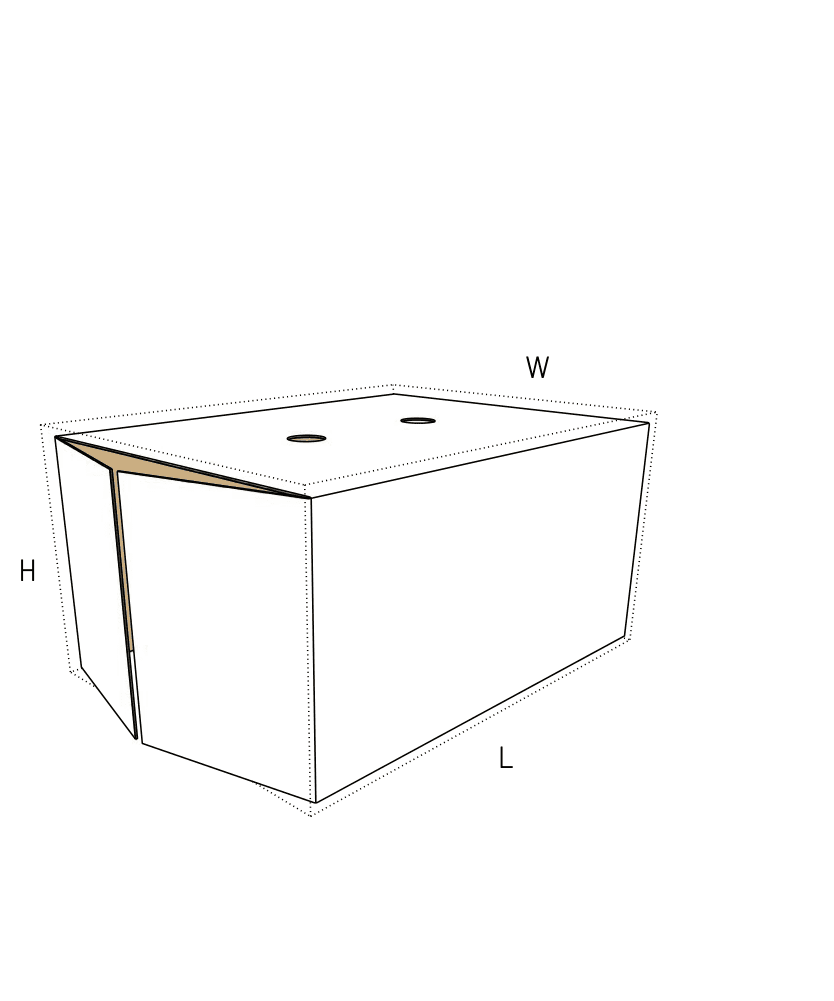

Packing jobs that benefit from extraction grips and end stops
Heavy industrial components
Dense metal parts often require tight internal clearance to prevent transit damage. When a standard flat pad is wedged tightly over these products, it becomes difficult to remove. The finger holes give the receiver a clear grip to pull the lid free.
Multi-tier electronics packing
For boxes containing multiple layers of servers or audio equipment, this insert separates the tiers while providing a longitudinal stop. The end flaps keep the entire assembly from shifting lengthwise inside the outer box.
Premium retail unboxing
When printed on the flat top panel, the insert acts as a branded presentation tray. The finger holes signal exactly how the customer should interact with the packaging, allowing the lid to lift away cleanly.
Friction-fit void fill
When a product does not fill the entire length of a master carton, the folded end flaps act as a spacer. This braces the item against one end of the box while the main panel protects the top surface.
Industries relying on ergonomic internal dividers
Assembly lines and fulfillment centers
Operators unpacking bulk components need to remove dividers quickly without fighting board suction. The integrated grips prevent slowed unpacking times on the line.
Automotive and machinery parts
Heavy items that shift during transit can crush standard flat pads. The transverse end flaps provide a mechanical stop against the master carton wall, keeping dense parts locked in place.
Consumer electronics
High-end devices packed in tight master shippers benefit from the clean presentation and easy removal, preventing the end-user from having to tip or shake the box to retrieve the contents.
When to drop the finger holes or end bracing
When extraction grips are unnecessary
If the insert does not fit tightly against the outer walls, or if the end-user can easily tip the box to remove the contents, the finger holes may not be needed. A basic U-shaped pad (FEFCO 0951) provides similar vertical buffering using simple straight creases.
When longitudinal bracing is not required
If you need the ergonomic grip but the product already fills the length of the box securely, the end flaps add unnecessary complexity. A C-shaped lid without end stops (FEFCO 0952) provides the finger holes while keeping the ends open.
Board thickness, hole sizing, and clearance choices
Board thickness and finger comfort
Heavy double-wall board provides excellent vertical stacking strength along the folded legs, but it requires larger finger holes so the thick corrugated edges do not pinch the user's hands.
Flute direction for vertical strength

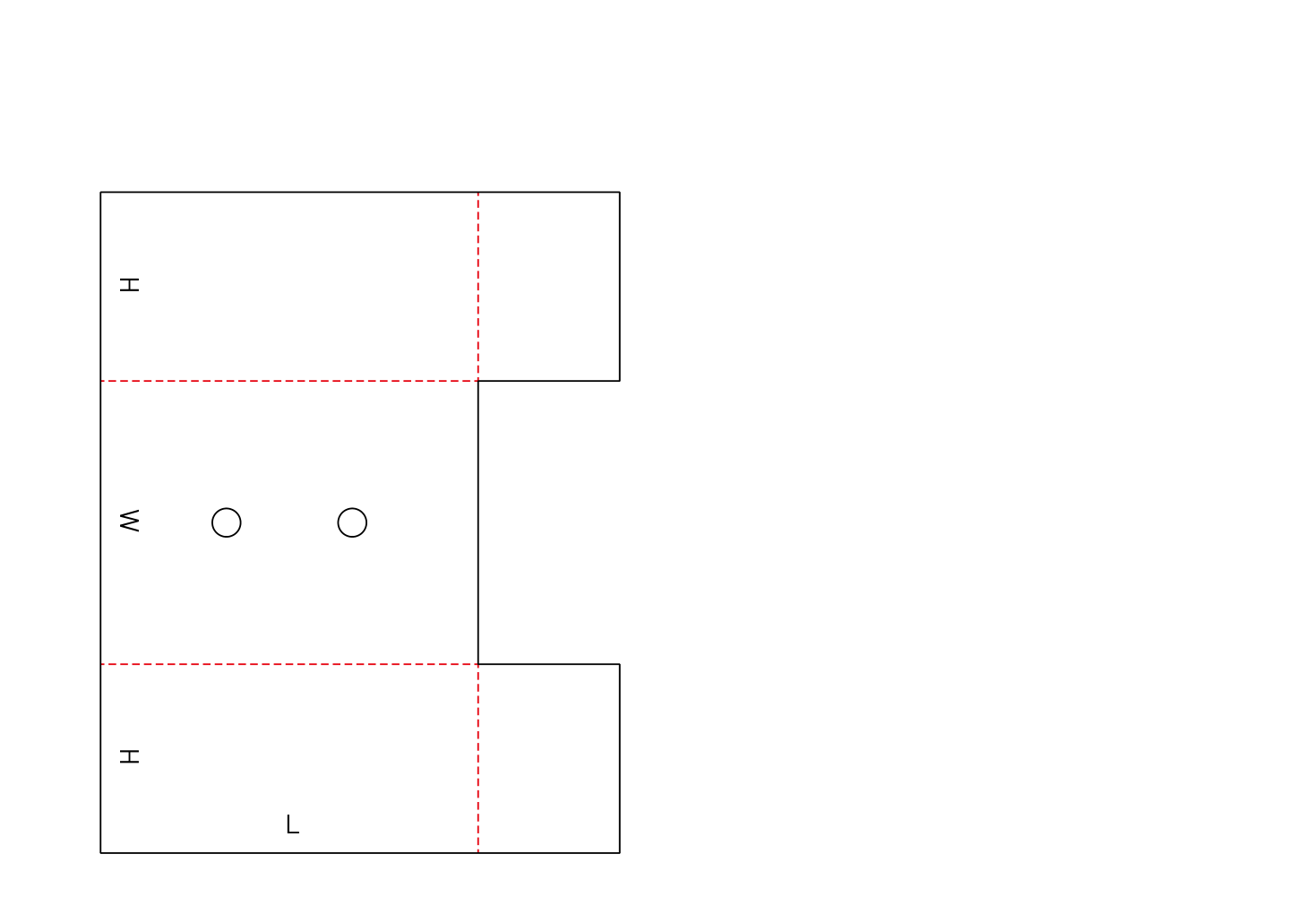

If the folded side legs need to bear weight from layers above, the corrugated flutes must run vertically down those legs. This orientation changes how the flat blank is cut from the parent board.
Clearance and board spring-back
Because the insert is unfastened, the side legs and end flaps will naturally try to spring open. The flat blank dimensions must account for the board thickness so the folded insert slides into the master box without binding or crushing.
Die-cut precision versus simple scoring
The internal circular cutouts and the specific cuts separating the end flaps require a die-cutter. If the packing job only needs a simple U-channel without these features, switching to a straight-scored pad changes the production route.
Adjusting leg depth, hole placement, and bracing flaps
Adjusting leg depth
The depth of the side legs determines how much vertical clearance exists beneath the lid. Deeper legs create a taller internal void but require a larger flat blank.
Sizing and spacing the finger holes
The diameter of the cutouts should scale with the board thickness and the weight of the item being lifted. The distance between the two holes can also be adjusted to match a natural hand span.
Adding bracing flaps to both ends
While the standard template features flaps on one end for a single longitudinal stop, the profile can be adjusted to include bracing flaps on both ends if the product requires a full captive fit.
Board and packing details
Manual assembly at the packing bench
This insert is delivered flat. The operator folds the side legs and end flaps by hand, holding them against the board's natural spring-back while pushing the pad into the master box. Friction against the outer walls holds the final shape.
Additional notes
Insert clearance and binding risk
The tight friction fit against the outer walls keeps the pad in place. However, if the master carton dimensions change, the insert must be resized to prevent it from bowing or falling loose.
Related internal pads and dividers
FAQs
Production route
Does this insert require a die-cutter?
Yes. The internal circular finger holes and the specific cuts required for the end flaps mean this pad must be die-cut. If you want a simpler production route, you will need to switch to a basic scored pad without holes.
Fit and sizing
How do I know what size finger holes to specify?
Hole diameter should scale with board thickness and the weight of the item being lifted. Heavy board grades require wider holes to prevent the thick corrugated edges from scraping the user's fingers.
Assembly and packing
Does this insert lock into its 3D shape before it goes into the box?
No. The side legs and end flaps are unfastened. The packer folds them by hand and holds them against the board's natural spring-back while sliding the insert into the master carton.
Shipping route
Can this be used as an external shipping box?
No. This is strictly an internal accessory. It relies entirely on a sealed master outer carton to hold its shape and protect the product during transit.
Product protection
Do the folded legs add stacking strength to the main box?
They can, provided the corrugated flutes run vertically down the folded side legs and the insert is sized to sit flush against the floor and ceiling of the master box.
Customization
Can we add end flaps to both sides of the insert?
Yes. While the standard template features flaps on one end for a single longitudinal stop, the flat profile can easily be adjusted to include bracing flaps on both ends.
Board choice
What happens if we change the board thickness later?
Changing the board thickness requires recalculating the fold allowances. If a thicker board is substituted without adjusting the flat blank dimensions, the folded insert will bind and crush when pushed into the master box.
Packing labor
Is this insert suitable for automated packing lines?
Generally no. Because the unfastened side legs and end flaps spring back naturally, it requires manual folding and tension-holding during insertion unless specialized robotic end-effectors are used.
