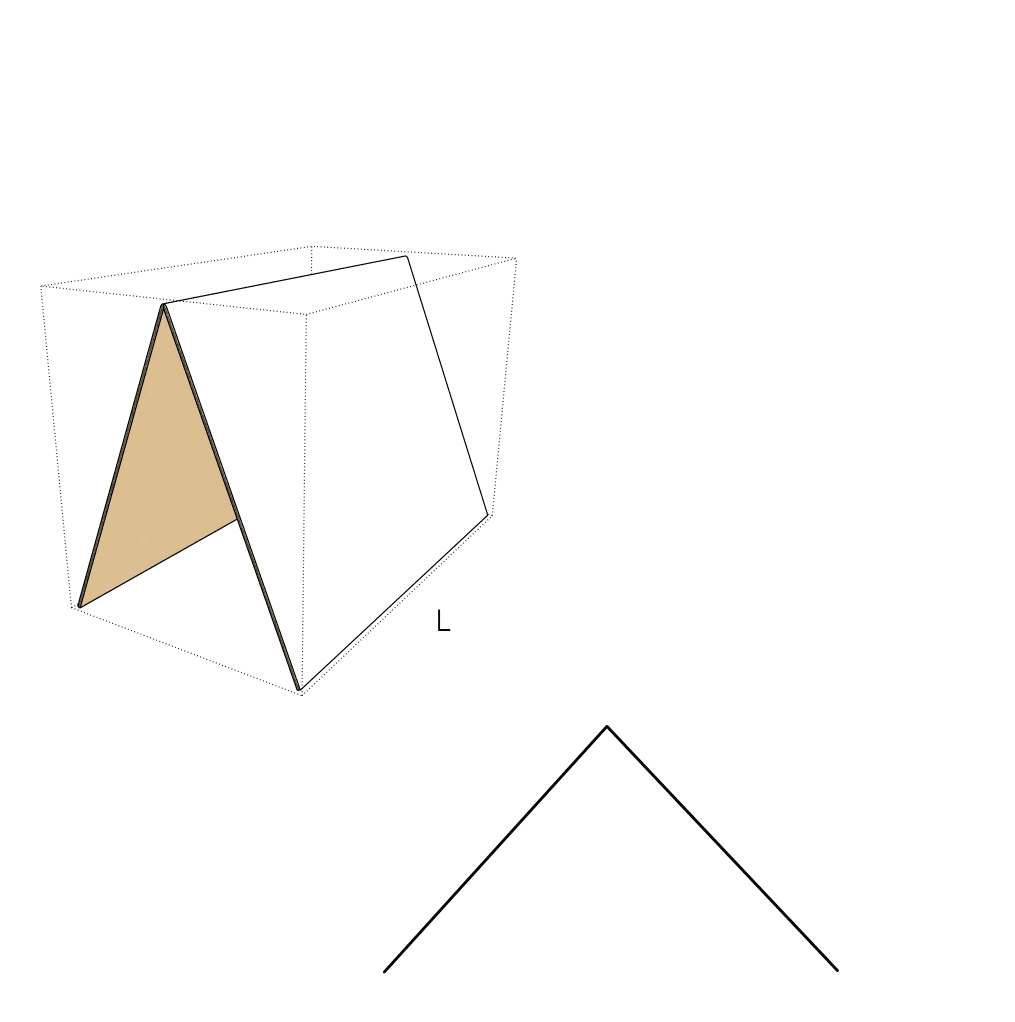

FEFCO 0970

V-Shape Edge Protector

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Straight-line production for standard rectangular profiles
  • Relies on the outer shipper or strapping for retention
  • Board thickness directly dictates crush resistance and folding effort

About this product

The V-shape edge protector is a fundamental industrial buffer. It consists of a single corrugated sheet with a central crease that folds to a 90-degree angle, providing localized shock absorption for vulnerable product corners or defending against tight strapping bands.

Because it requires only one straight fold, it bypasses complex assembly. Its actual protective value depends entirely on matching the board thickness to the weight of your product and the risks of your shipping route.

Common uses

  • Corner drop buffering inside a master carton
  • Strapping and banding defense on pallets
  • Irregular item stabilization for furniture
  • Internal void filling

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Practical roles for the V-pad

Corner drop buffering

Placed inside a master carton to absorb impact energy before it reaches the product chassis. The pad distributes the force of a corner drop across its adjacent wings.

Strapping and banding defense

Positioned under heavy-duty plastic or steel straps to distribute tension. This helps prevent the bands from cutting into the primary packaging or the product itself.

Irregular item stabilization

Used to brace awkward shapes, like furniture armrests or appliance edges, against the flat inner walls of a shipping box.

Internal void filling

Folded and wedged into empty spaces between a product and the master carton wall. The V-shape acts as a simple spring to prevent internal shifting during transit.

Common packing environments

Palletized freight

Operations securing heavy loads with tensioned bands use these pads to protect the outer edges of the pallet stack from crushing.

Furniture and appliance shipping

Manufacturers use heavy-duty V-pads to isolate finished edges from the rigid walls of the master crate.

Framed goods and mirrors

Shippers moving large, flat items with sharp 90-degree corners rely on these buffers to prevent edge damage during transit and handling.

When to step up to multi-sided protection

Full perimeter protection

If the product needs continuous buffering around all four sides, a single V-pad is insufficient. Look at a full corrugated sleeve instead.

Three-sided edge wrapping

If the edge needs to be capped rather than just buffered on two planes, evaluate a C-channel pad.

Close variants and lookalike dielines

The closest library neighbors include 0971, 0972, 0976. Use this as a variant check if a buyer brings an old code, sample, or dieline that looks close. The deciding details are usually the lock, slot, closure, wall build, part count, or fold sequence.

Board, scoring, and production choices

Board thickness versus folding fatigue

Heavy double-wall board provides excellent shock absorption but increases the physical effort required for a packer to fold the pad to a full 90 degrees.

Scoring profiles for heavy board

If you specify a thick corrugated grade, the factory must use the correct creasing matrix. Otherwise, the outer paper liner may crack when folded, compromising the corner.

Production path for custom shapes

A standard rectangular V-pad can be run on a slitter-scorer, bypassing flatbed die-cutting entirely. Adding rounded corners, chamfers, or relief cuts forces the job onto a die-cutter.

Flute direction alignment

The corrugated flutes must run parallel to the central crease. This ensures the board folds cleanly without binding or tearing the liner.

Modifying the standard V-shape

Asymmetric wing widths

The standard pad folds exactly in half for equal bi-directional protection. The crease can be shifted off-center to create one long wing and one short wing for non-square corners or specific bracing gaps.

Chamfered or rounded corners

The sharp 90-degree corners of the flat blank can be rounded off. This prevents the pad from catching on stretch wrap or scratching adjacent products, though it changes the manufacturing method to flatbed die-cutting.

Relief cuts and notches

Sections of the wings can be cut away to clear specific product features, like hinges, bolts, or handles, allowing the pad to sit flush against the main edge.

Board and packing details

Flat delivery and storage

These pads ship completely flat. This results in dense, highly efficient pallets that take up minimal warehouse space before use.

Additional notes

Spring-back tension on heavy pads

Very thick corrugated pads naturally want to spring back to a flat state after folding. Packers may need to hold the pad in place with two hands while the outer box is sealed or the strap is tensioned.

Related internal buffers

0900: Flat layer pad

Evaluate this if you need 2D separation between stacked items rather than 3D corner protection.

0903: Transverse L-pad

Look at this if you need a generic side-wall bracket rather than a symmetric longitudinal corner buffer.

0971: Corner Protector

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

0972: Corner Protector

Nearby FEFCO style to review if the buyer wants a similar job but the closure, flap overlap, wall build, or part count changes the package choice.

FAQs

Closure and retention

Can this pad be used without an outer box?

It has no native locking or fastening mechanism. It must be held in place by an outer shipper, stretch wrap, or tensioned strapping.

Production path

Does this shape require custom cutting dies?

Usually not. If the pad remains a simple rectangle with a straight crease, it can be produced on standard slitter-scorer equipment without custom cutting.

Board and material

What board grade makes the most sense?

It depends on the product weight and drop risk. Heavy industrial goods often use double-wall board for maximum crush resistance, while lighter items might use a single-wall grade to act as a simple scratch barrier.

Shipping and storage

Does the pad arrive pre-folded?

No. Pre-folding would waste massive amounts of shipping volume. They arrive flat and are folded by the packing team at the point of use.

Modifications

Can we add cutouts to clear product features?

Yes, but adding internal cutouts or shaped edges means the pad must be die-cut. This changes the production route from a simple straight-line cut.

Board and material

Why would the board crack when we fold it?

Cracking usually happens when a very thick board is scored too lightly. If you are testing heavy-duty pads, verify that the crease profile allows a clean 90-degree bend without tearing the outer paper liner.

How does flute direction affect the fold?

The internal corrugated flutes must run parallel to the central crease. If they run perpendicular, the board will resist folding and the crease will likely fail.

Closure and retention

Can we use these on the outside of a pallet?

Yes, they are frequently placed under tensioned strapping bands on the outside of pallet loads to prevent the straps from cutting into the boxes.
