Heavy-Duty Corner Protection Jobs
Appliance and white goods crating
Provides dense, multi-ply shock absorption for heavy 90-degree corners, keeping heavy units isolated from the outer carton walls.
Heavy furniture transport
Cups the vulnerable corners of case goods and tables, absorbing lateral impacts and increasing the vertical stacking strength of the master box.
Industrial equipment casing
Isolates heavy machinery components from outer crate walls during transit, using dense board layers to prevent shifting.
Architectural material shipping
Protects heavy countertops, doors, or glass panels that require thick corner buffering to prevent edge chipping.
Industries Replacing EPS Foam
Sustainability and packaging engineering teams
Moving away from EPS foam blocks simplifies the end-user recycling process and reduces mixed-material procurement, replacing molded foam with flat-shipped corrugated board.
High-weight freight shippers
Moving dense goods through LTL networks where standard single-wall corner pads crush under lateral impact.
Manual packing operations
Facilities with dedicated pack benches that can absorb the two-handed folding time required to build the multi-ply corner.
When to Consider a Different Buffer
High-speed automated packing lines
The sequential 180-degree folds and high board spring-back make this protector difficult to automate. If your line relies on machine placement, consider simpler drop-in inserts or pre-glued corner posts.
Flat side-wall protection
If you need to buffer a flat surface rather than a 90-degree corner, a rolled tubular shock absorber provides better coverage with less folding effort.
Board, Fit, and Production Choices
Board thickness versus folding fatigue
Heavy double-wall board maximizes drop resistance and column strength, but it exponentially increases the physical effort required to fold the pad at the packing bench. Test physical samples to find the right balance for your operators.
Production routing
As long as the design remains a simple rectangle with parallel creases, it can often run on a standard slitter-scorer. Adding chamfers, relief cuts, or locking tabs will force the job onto a flatbed cutter.
Flute orientation
To act as a load-bearing column inside the master box, the flute direction must run vertically. This helps the corner post resist top-down compression during warehouse storage.
Master carton clearance
The exact folded thickness of the labyrinth pad must be calculated into the outer shipper dimensions so the product does not bind or bulge the master carton.

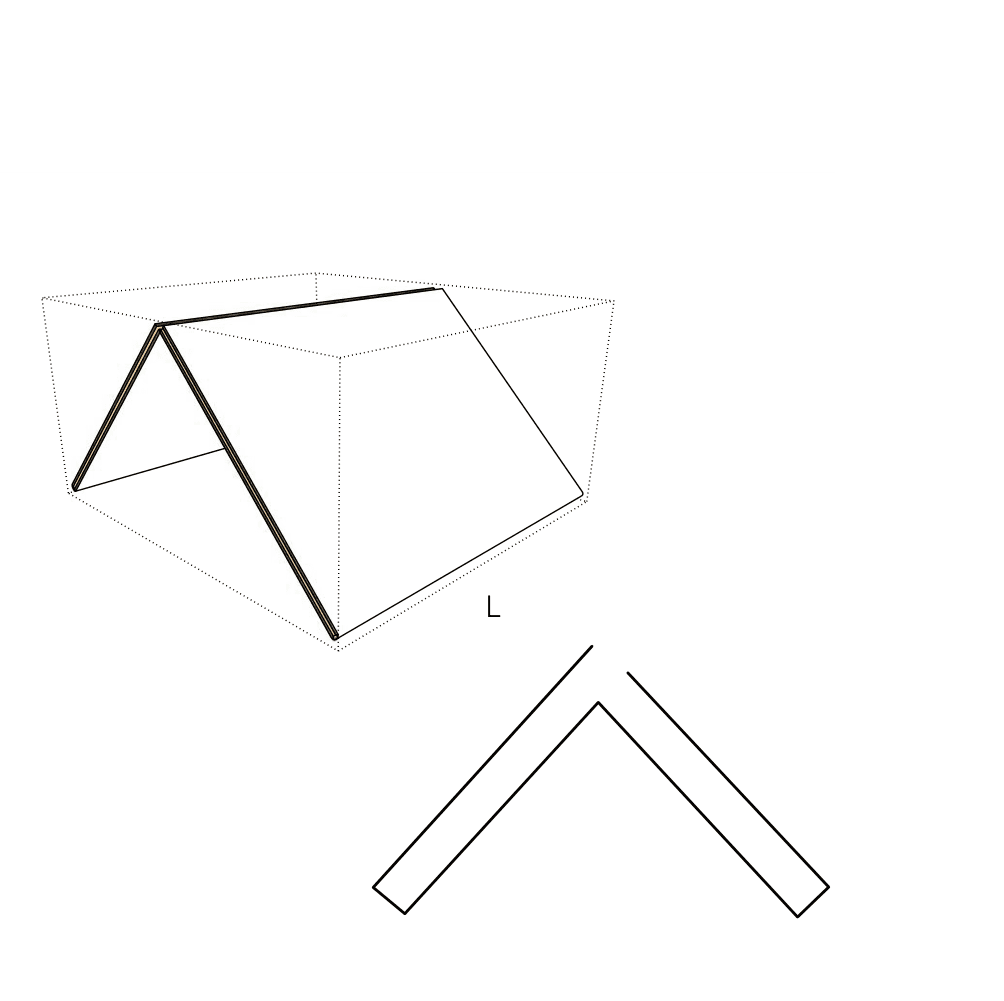

Adjusting the Labyrinth Profile
Leg length and coverage
The outer bounding length of the corner legs can be extended for more coverage, though this rapidly increases the total flat board area required.
Ply count
The number of nested layers can be adjusted to increase or decrease the density of the crush zone, directly impacting the total blank size.
Subtractive fold allowances
Because the board folds inside itself, the inner layers must be parametrically shorter than the outer layers. If you change the board thickness without updating these allowances, the pad will bind and fail to form a crisp 90-degree corner.
Board and packing details
Friction-fit retention
This pad does not lock into place on its own. It relies entirely on being wedged between the packed product and the walls of the master shipping box.
Internal Clearance Variants
Internal air gaps (0972a)
Instead of flush-nesting the layers for maximum density, the fold logic can be adjusted to leave defined internal clearances, changing how the corner crushes under impact.
Additional notes
Testing manual assembly fatigue
Before committing to a heavy double-wall grade, request a short run of digital prototypes. Have your packing team assemble them repeatedly to ensure the folding effort is sustainable for a full shift.
FAQs
Packing labor
Can this corner protector be applied by automated packaging machinery?
Generally, no. The thick corrugated board creates high spring-back tension. Operators must manually fold the layers 180 degrees and hold the pad closed while seating it on the product or inside the outer box.
Quantity or production path
Does this design require flatbed cutting?
If the pad is kept as a simple rectangle with straight parallel creases, it can often be produced on standard slitter-scorers. Adding angled cuts, slots, or finger holes will change the production route.
Board and finish behavior
How does board thickness affect the design?
Thicker board provides better shock absorption but requires precise adjustments to the fold allowances. The inner layers must be cut shorter so they do not collide when folded. Thicker board also increases the physical effort required to assemble the pad.
Product fit or inserts
Will this replace EPS foam completely?
It is frequently used as a single-material replacement for EPS foam blocks. However, because corrugated board crushes differently than foam under dynamic loads, you should conduct physical drop tests with your specific product and master carton.
Route and shipping
Does the pad lock into its folded shape?
No. It relies entirely on friction. The pad is held in its 90-degree labyrinth shape by being wedged between the packed product and the walls of the master shipping box.
How is this delivered to the packing facility?
It ships completely flat, which maximizes pallet density and reduces inbound freight costs compared to pre-molded foam blocks. All the volume is created at the packing bench.
Inserts and product fit
Can the leg lengths be asymmetric?
Yes. The central apex can be offset, creating one long leg and one short leg to match specific product profiles or fit inside rectangular master cartons.
Board and finish behavior
Why do the inner layers need to be shorter?
Because the board folds inside itself, the inner panels must be parametrically shorter than the outer layers. If they are the same length, the thick board will bind and fail to form a crisp 90-degree corner.
