Retail and Carry-Out Packing Jobs
Retail shelf presentation and customer carry-out
This box is built for the retail floor. The clean exterior panels provide space for branding, while the integrated handle cutouts allow customers to carry heavier items directly to their cars.
Heavy consumer goods and appliance packaging
When a product is too heavy or awkward for a standard shopping bag, the double-layered anchor point under the dust flaps helps distribute lifting stress across the side walls.
Multi-part kit consolidation
Useful for bundling multiple related items into a single retail-ready package, such as power tool sets or smart home starter kits, where the customer appreciates a single grab-and-go handle.
Promotional and event giveaways
The built-in handle makes it easy for attendees to carry promotional kits around trade shows or events without needing an extra tote bag.
Product Types That Fit This Box
Electronics and small appliances
Products like blenders, speakers, or routers often use this style to provide a secure carry method while maintaining a large, uninterrupted front panel for product photography.
Hardware and tool sets
Heavier metal goods benefit from the handle, provided the corrugated board is specified thick enough to help prevent the plastic handle from tearing through the top cutouts.
Pet supplies and bulk retail goods
Large volumes of pet food, litter, or aquarium supplies can be packed in this format to make off-the-shelf transport easier for the buyer.
When to Compare Other Box Styles
Direct-to-consumer parcel shipping
If the primary route is through a courier network, the open handle cutouts and unsealed tuck top leave the interior vulnerable to dust and tampering. Compare a standard glued mailer, or plan to pack this retail box inside a plain outer shipper.
High-speed automated packing lines
The snap-lock base relies on manual folding. If the packing facility uses automated case erectors, an auto-bottom box or a standard RSC may be a better fit for the machinery.
Fit, Board, and Packing Decisions
Matching the cutouts to the physical handle
The exact dimensions of the top cutouts should be matched to the specific plastic handle being used. Having a physical sample of the handle early in the process helps ensure the die-cut slots anchor it securely.
Board grade and product weight
Because the entire weight of the product is suspended from the top cutouts when carried, the corrugated board needs to resist tearing. Heavier items often point toward a thicker B-flute or a tear-resistant liner.
Packing bench workflow and labor
Operators will need to square the box, fold the three bottom flaps to lock the base, load the product, and then insert the plastic handle through the top cutouts during final closure. This manual process should be factored into packing times.
Print layout around the handle and lock
The main cutout is centered on the top lid, and the front panel features a locking slot. Critical text and logos should be kept clear of these functional areas.
Adjusting the Handle and Closure Fit
Tuck tongue and receiver slot sizing

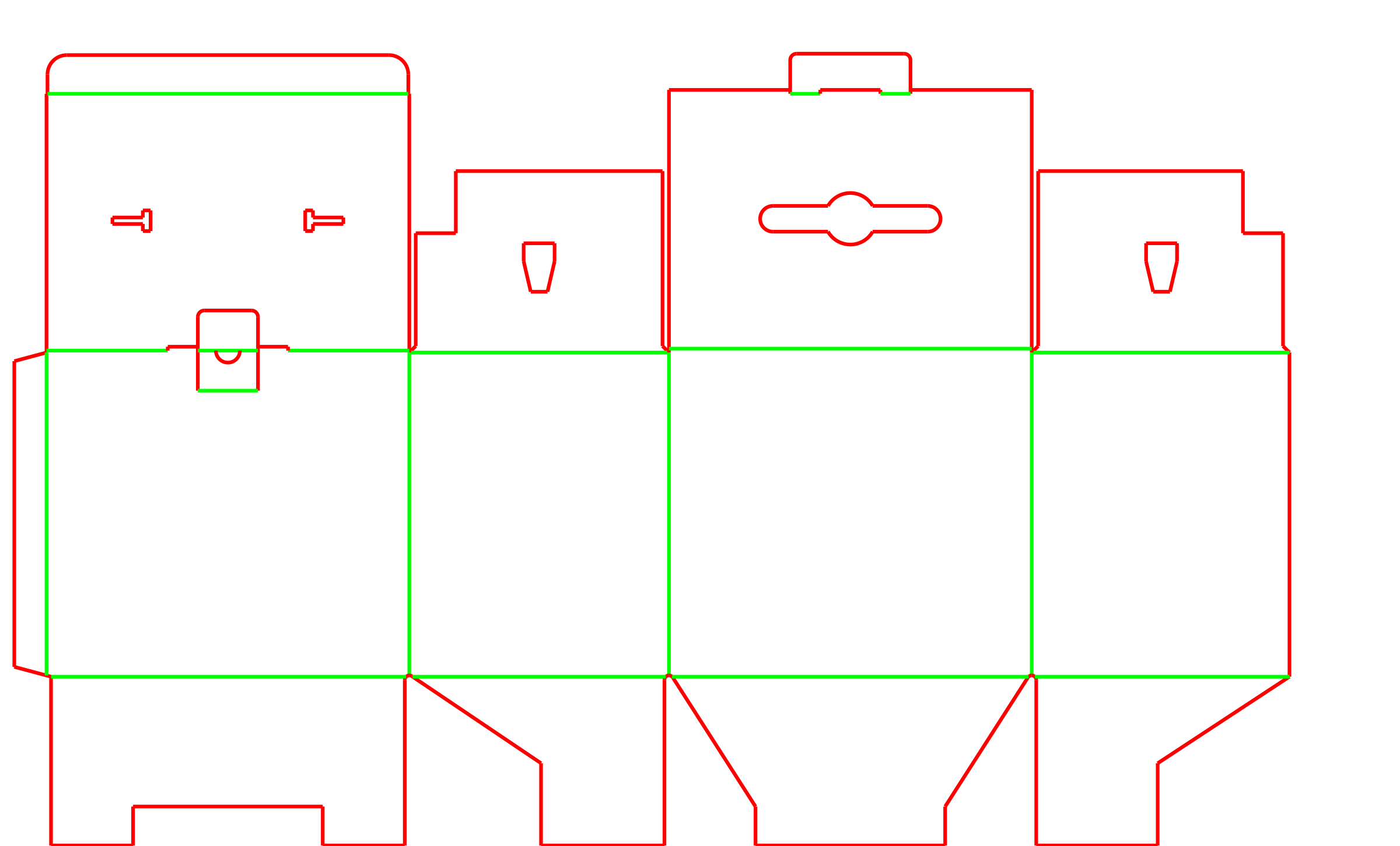

The front panel features a fold-in receiver flap that creates a slot for the lid's tuck tongue. The width and depth of this locking mechanism can be adjusted based on how the box will be handled.
Handle cutout geometry and spacing
The size, spacing, and shape of the cutouts on the main lid and inner dust flaps are entirely driven by the third-party handle selected and can be modified to fit different handle profiles.
Base lock clearance for thicker board
If a heavier product requires a thicker board grade, the snap-lock base flaps and the tuck tongue may need slight clearance adjustments to prevent binding during assembly.
Packing details
Pack-bench workflow
These boxes are delivered flat with the side seam pre-glued. At the packing station, operators square the box, fold the three bottom flaps to lock the base, load the product, and then insert the plastic handle through the top cutouts during final closure.
Additional notes
Testing the handle fit
Always test a digital cut prototype with your actual plastic handle. The cutouts on the dust flaps and the main lid should align closely to distribute the lifting weight and prevent the handle from slipping out.
Related Packaging Options
FAQs
Does this box include the plastic handle?
No, the plastic handle is a separate component that you will need to source. The corrugated box is designed and cut to fit the handle you choose.
Can I ship this box through the mail without an outer carton?
It is usually not advised. The handle cutouts leave small openings that expose the interior to dust, and the tuck top can catch or open during rough transit. It often needs to be placed inside a master shipper for parcel delivery.
How is the bottom of the box assembled?
It uses a 1-2-3 snap-lock base. A packer squares the flat box, folds in the large U-shaped flap, folds the two side flaps, and pushes down the final tuck flap to lock the bottom in place.
Will the handle cutouts interfere with my artwork?
The main cutout is centered on the top lid. You will want to keep critical text and logos away from this central area and the front locking slot.
What happens if my product is very heavy?
If the product is too heavy for the selected board grade, the plastic handle can tear through the corrugated cutouts when lifted. Testing a physical prototype with the exact product and handle helps verify the board strength.
How are the handle cutouts manufactured?
The intricate slots for the handle and the front receiver lock rely on flatbed die-cutting to ensure clean edges and alignment for assembly.
How does the front locking tongue work?
The front panel has a small fold-in flap that creates a receiver slot. The lid's tuck flap has a corresponding tongue that slides into this slot, helping to keep the lid closed while the box is carried.
Can the handle cutouts be removed if we change our mind?
Yes, if you decide not to use a plastic handle, the template can be swapped to a standard snap-lock box to remove the cutouts and simplify the top closure.
