The EVC11929 is a heavy-duty corrugated bin designed for retail presentation and organized storage. Instead of basic top flaps, all four upper walls roll inward and lock into place, hiding the raw corrugated flutes and creating a clean, double-thick rim.
Because it relies on a manually folded full-overlap base and rolled top hems, this tray prioritizes structural strength and a premium appearance over high-speed assembly. It is delivered flat and requires manual setup at the packing station.
The hemmed top edge provides a finished, premium look on retail shelves, ensuring customers do not see raw corrugated fluting when reaching for the product.
Heavy Parts Kitting
The full-overlap floor creates a strong, multi-layered base that resists sagging, making it useful for organizing dense industrial components or hardware kits.
Shelf Organization Bins
The double-thick rim resists crushing and wear during repeated handling, extending the life of the bin in active picking environments.
Produce or Bulk Goods Display
The open top allows easy access for bulk items, while the reinforced base handles the concentrated weight of dense goods.
Where This Display Bin Excels
Retail and Club Store Displays
Brands moving from basic shipping boxes to shelf-ready displays use this bin to improve presentation while maintaining enough vertical strength to stack the trays.
Internal Warehouse Organization
Operations that need durable, reusable picking bins benefit from the double-thick rim, which resists crushing and wear during repeated handling.
Subscription Box Master Trays
Fulfillment centers use these strong open bins to hold multiple smaller items securely before they are packed into individual mailers.
When to Consider a Different Tray Style
High-Speed Packing Lines
If the operation requires instant base setup or automated top-closing, look at a crash-lock tray. The rolled hems on this bin require manual folding and locking.
Direct Parcel Shipping
Because this is an open-top bin, it cannot be shipped individually through courier networks without an outer master carton. If the product needs a standalone shipper, consider a full-flap box.
Key Decisions for Production and Assembly
Board Thickness and Flute Profile
The 180-degree fold on the top hem works best with thinner materials like E-flute or B-flute. Heavy double-wall boards will resist the fold, causing the locking tabs to pop open or the outer liner to crack.
Print Panel Placement
Because the top flaps roll inward, the exterior print surface will be visible on the inside upper half of the bin. Artwork should be planned to take advantage of this continuous color.
Assembly Labor
Packers must manually fold the base panels in sequence, then roll and lock all four top edges. This takes more time than popping open an auto-bottom tray.
Base Strength Requirements
The full-overlap floor provides excellent support for heavy items, but it relies entirely on the packer folding the panels in the correct sequence to lock the base securely.
Adjusting the Bin Proportions
Hem Depth
The depth of the rolled top edge can be adjusted. A deeper hem provides more interior reinforcement, while a shallower hem reduces overall board usage.
Locking Tab Clearances
The size of the tongue and receiving slot can be tuned based on the chosen board thickness to ensure the hem locks tightly without tearing.
Hand Holes or Cutouts
Access holes can be added to the side panels for easier lifting, provided they do not interfere with the locking slots for the top hem.
Packing details
Tooling and Production

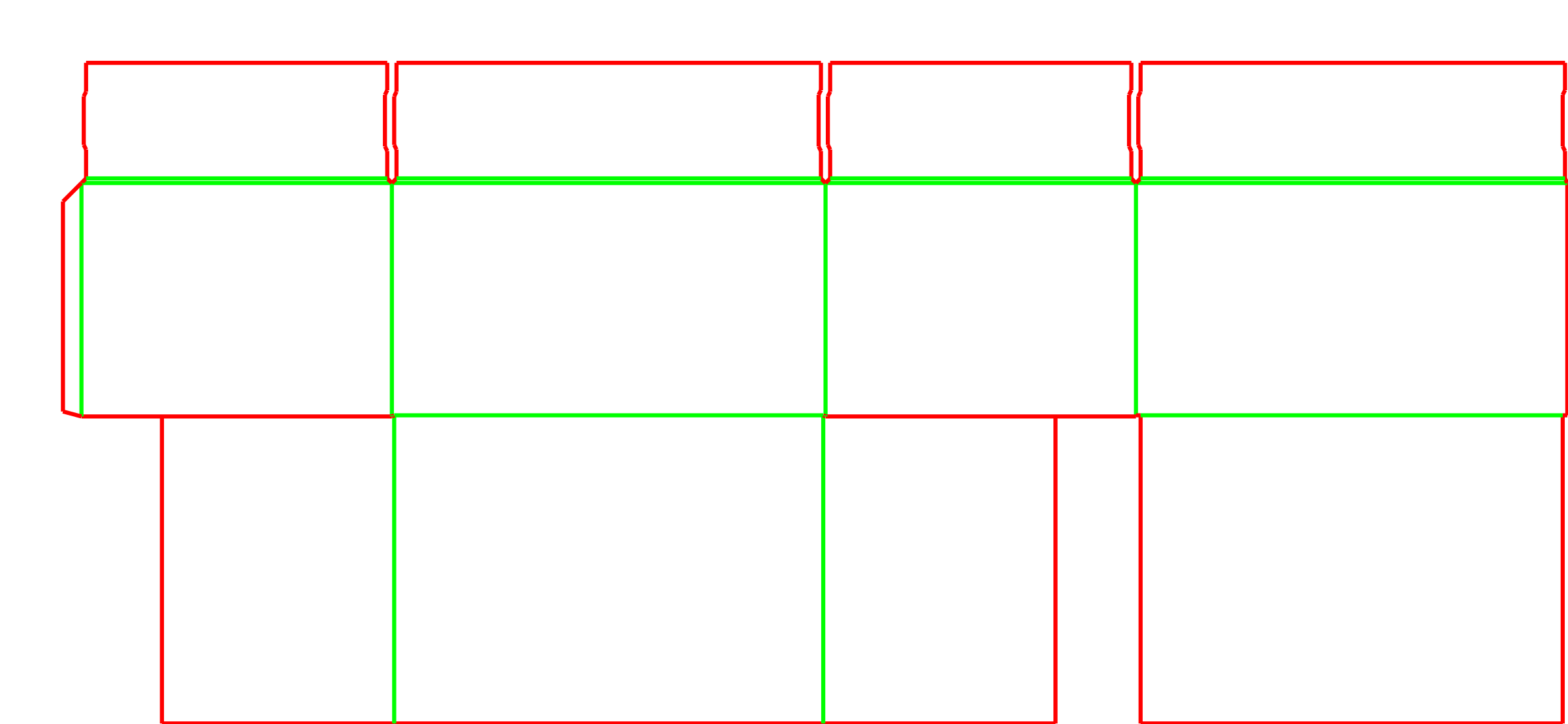

This design is cut on a flatbed die to create the complex locking tabs and base overlap panels cleanly. The main side seam is glued by the manufacturer before flat delivery.
Additional notes
Manual folding sequence
The base panels must be folded in the correct order to ensure the floor wedges together tightly. The top hems are then rolled and locked into the wall slots to square the final tray.
Related Trays and Display Boxes
FEFCO 0710: Crash-Lock Base Box
Worth comparing if the packing line requires a pre-glued auto-bottom for faster assembly and top closure flaps.
FEFCO 0227: Snap-Lock Base Box
Worth comparing if the product requires a manual interlocking base and a fully closed top for shipping.
FAQs
Does the base pop open automatically?
No. The base uses a full-overlap manual fold. The operator must fold the bottom panels in a specific sequence to lock the floor in place before rolling the top edges.
Can this bin be made from heavy double-wall corrugated?
It is generally not recommended. The top edges must fold 180 degrees inward to lock. Heavy, rigid boards will fight this fold, potentially tearing the material or causing the locks to fail.
Where does the outside print show up on the inside?
Because the top edges roll inward, the exterior print will carry over the rim and cover the upper interior walls of the bin. This is excellent for continuous branding.
Can I ship this bin directly in the mail?
No. This is an open-top display and storage bin. To ship it through a parcel network, it must be packed inside a closed master carton.
Does the rolled edge improve stacking strength?
Yes. By folding the corrugated board over itself, the rim becomes double-thick, which significantly improves the bin's ability to bear weight when stacked.
Should I request a physical sample?
Yes. A physical sample is highly recommended to verify that the chosen board thickness allows the top hems to fold smoothly and lock securely without popping open.
Does the bottom require tape?
The base is designed to interlock manually without tape, but heavy or shifting loads may benefit from a single strip of tape across the bottom for extra security.
Can I use dividers inside this bin?
Yes. The flat, full-overlap floor provides a stable base for corrugated partitions or foam inserts, making it easy to separate individual components.
Review the product weight, retail display goals, and assembly capacity to determine if this rolled-edge bin is the right fit for the packaging program.
