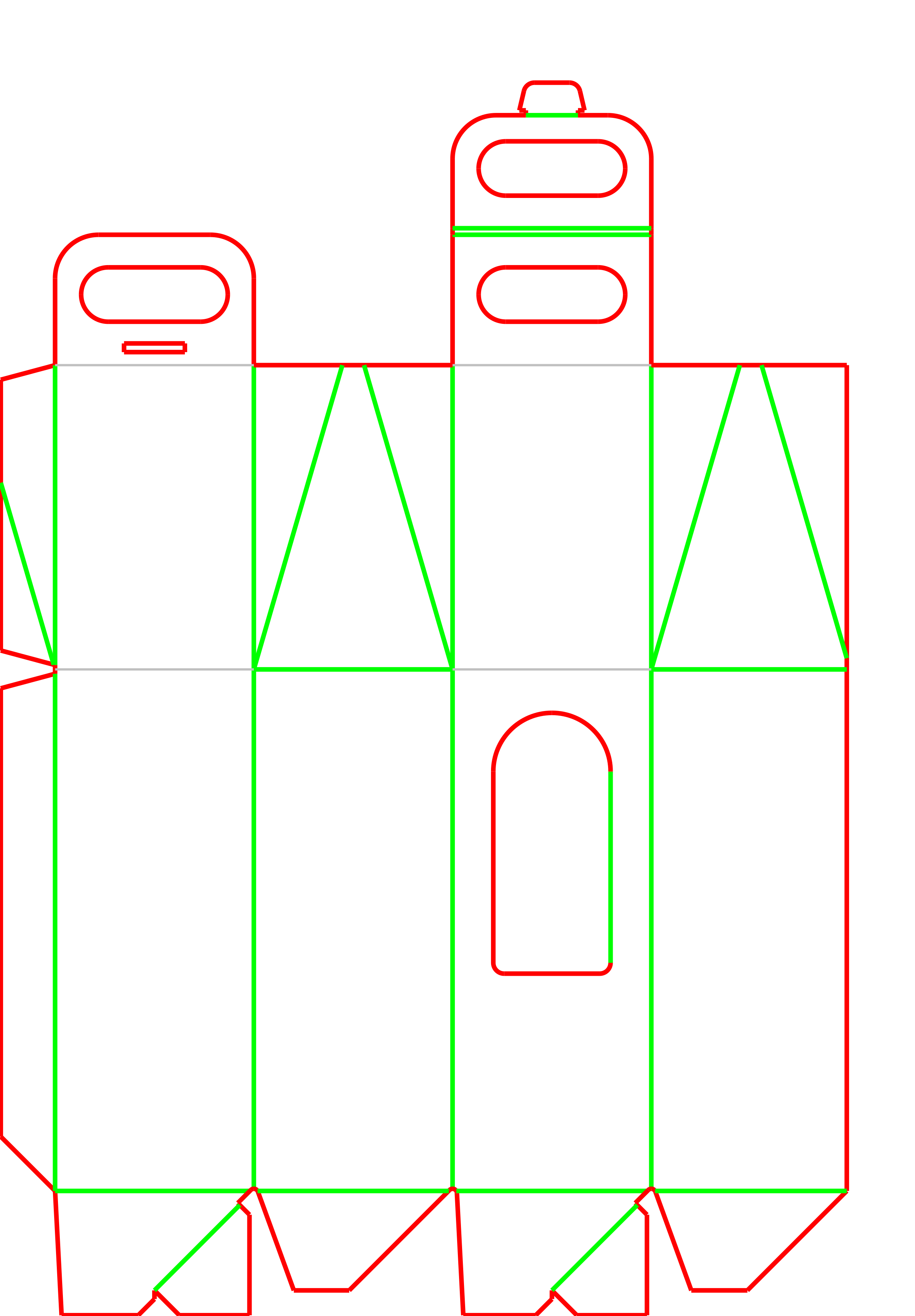

A one-piece corrugated retail carrier designed for heavy bottles and tall products. It features a gabled top with an integrated handle and a crash-lock base that auto-erects for fast packing.
Delivered flat and pre-glued, this package balances premium gift presentation with high-speed manual fulfillment on the packing bench.
The built-in handle and strong corrugated base make it easy for customers to carry heavy bottles straight from the shelf.
Gift presentation
The tapered gabled top and optional display window create a premium unboxing experience for specialty items.
Tasting room sales
Fast packing helps high-traffic tasting rooms where customers buy single bottles to go.
Corporate gifting
Provides a ready-to-hand-out presentation for holiday gifts or event giveaways without needing extra wrapping.
Beverage and Specialty Food
Wineries and breweries
Well-suited for single-bottle sales, limited releases, or tasting room carry-out.
Specialty food and cosmetics
Works well for tall jars, olive oils, or stacked gift sets that benefit from a vertical presentation.
Artisanal liquids
Tall, heavy glass bottles that need secure base support and a premium retail look.
When to Consider Alternative Carriers
Low-volume runs
If the order volume is too low to justify the setup time for a crash-lock folder-gluer, a snap-lock (1-2-3) bottom carrier may be more practical.
Direct-to-consumer shipping
The handle and gabled top prevent vertical stacking and catch on sorting equipment. For parcel delivery, this carrier should be placed inside a standard shipping box.
Board, Window, and Production Choices
Board thickness
E-flute is the standard choice, offering a good balance of printability and foldability. Thicker flutes can cause the top tuck-tongue and bottom crash-lock mechanisms to bind.
Window film
The template includes a native cutout to display the product label. Decide if this aperture should remain open or if a clear plastic film patch is needed for dust protection.
Handle reinforcement
For exceptionally heavy products, discuss whether the handle grip area needs reinforcing tape or a patch to prevent tearing.
Production volume and setup
Crash-lock bases rely on specific folder-gluer setup, making them more practical for higher-volume runs compared to manual snap-lock bases.
Modifying the Carrier
Window sizing and placement
The display window can be adjusted to match specific bottle diameters and label heights.
Gusset taper
The angle of the top gable can be modified to accommodate different bottle neck lengths and shoulder profiles.
Handle shape and clearance
The die-cut handle holes can be adjusted for different hand clearances or to accommodate specific locking-tongue widths.
Packing details
Packing workflow
The pre-glued crash-lock bottom eliminates the need to manually fold base flaps. The operator simply squares the box, drops in the product, pushes the side gussets inward, and locks the handle.
Carrier Proportions
EVC12021 / EVC12022
Similar gabled carriers with different handle proportions or window configurations.
Additional notes
Crash-lock speed versus manual bases
The pre-glued crash-lock bottom pops open quickly, reducing assembly time per unit compared to manual snap-lock bases. This labor saving becomes especially valuable during high-volume fulfillment.
The necessary outer shipping box if these carriers are being sent through parcel networks.
Snap-Lock Bottle Carrier
For lower-volume runs where manual bottom assembly makes more sense than folder-gluer setup.
FAQs
Can I ship this carrier through the mail?
This carrier is not designed for standalone parcel shipping. The carrying handle and gabled top are not designed to support vertical stacking and can catch on courier sorting equipment. It is usually packed inside a standard outer shipping box for parcel delivery.
How is this box delivered?
It is delivered flat (knocked down). The side seam and the crash-lock bottom are pre-glued at the factory.
Do I need tape or glue to assemble it?
Tape is not needed. The bottom auto-erects and locks into place when you square the box. The top is secured by folding the side gussets inward and inserting the tuck-tongue through the handle slot.
What board thickness works well?
E-flute is typically a strong fit. It provides enough strength for heavy bottles while allowing the complex folds of the crash-lock and the tuck-tongue to operate smoothly. Thicker boards can cause these locking points to bind.
Can the window have a clear plastic cover?
A clear film can be patched over the window cutout during manufacturing. This adds a machine pass but protects the product from dust while maintaining visibility.
Is the crash-lock bottom strong enough for heavy bottles?
The interlocking flaps of a crash-lock base are designed to support vertical weight. However, the exact weight capacity depends on the chosen board grade and should be verified with a physical sample.
Why choose a crash-lock base over a snap-lock base?
Speed. The crash-lock base auto-erects when the box is squared, saving labor time on the packing bench during high-volume fulfillment.
Can I adjust the size of the display window?
The window cutout can be resized or repositioned to highlight specific label details, as long as it stays clear of the fold lines and load-bearing areas.
A fast-packing, retail-ready carrier that puts your product on display.
