Event and Retail Collection Jobs
Event Ballots and Raffles
The curved hood and drop slot clearly signal its purpose to attendees. The front panel provides a large, uninterrupted surface for event branding, instructions, or promotional graphics.
Retail Suggestion and Drop Boxes
The elevated legs allow it to sit cleanly on counters or floors without looking like a repurposed shipping carton. The front tuck tongue allows staff to open the hood, empty the contents, and re-close it for continued use.
Employee Feedback Stations
Useful for corporate environments needing a temporary, branded collection point for internal surveys, HR forms, or department suggestions.
Charity Drives and Envelope Collection
Provides a professional-looking, freestanding drop point for lightweight donations, envelopes, or pledge cards during fundraising campaigns.
Where This Display Fits
Trade Shows and Conferences
The box ships flat to the venue, minimizing the logistics footprint, and can be assembled by booth staff without tape or glue.
Temporary Retail Campaigns
A strong fit for short-term promotions where a custom-printed, freestanding collection point is needed without investing in permanent acrylic or metal fixtures.
Corporate Offices and Lobbies
Serves as a professional, branded collection bin that stands on its own, keeping reception desks and breakrooms organized.
When to Consider a Different Bin
Heavy Product Dump Bins
If you are collecting heavy items like books, clothing, or electronics, the elevated legs may crush. A flat-bottom dump bin or a reinforced floor display is a safer choice for heavy payloads.
High-Security Collection
This box closes with a simple corrugated tuck tongue. If tamper evidence or strict security is required for sensitive documents, a lockable rigid container is worth comparing.
Material and Setup Considerations
Board Thickness Limits
The curved hood relies on a segmented roll-top that needs to bend smoothly and lock into small tabs. Thin boards like E-flute are often the best choice. Thicker boards like B-flute or C-flute can cause the roll-top to bind or fail to lock.
Assembly Labor

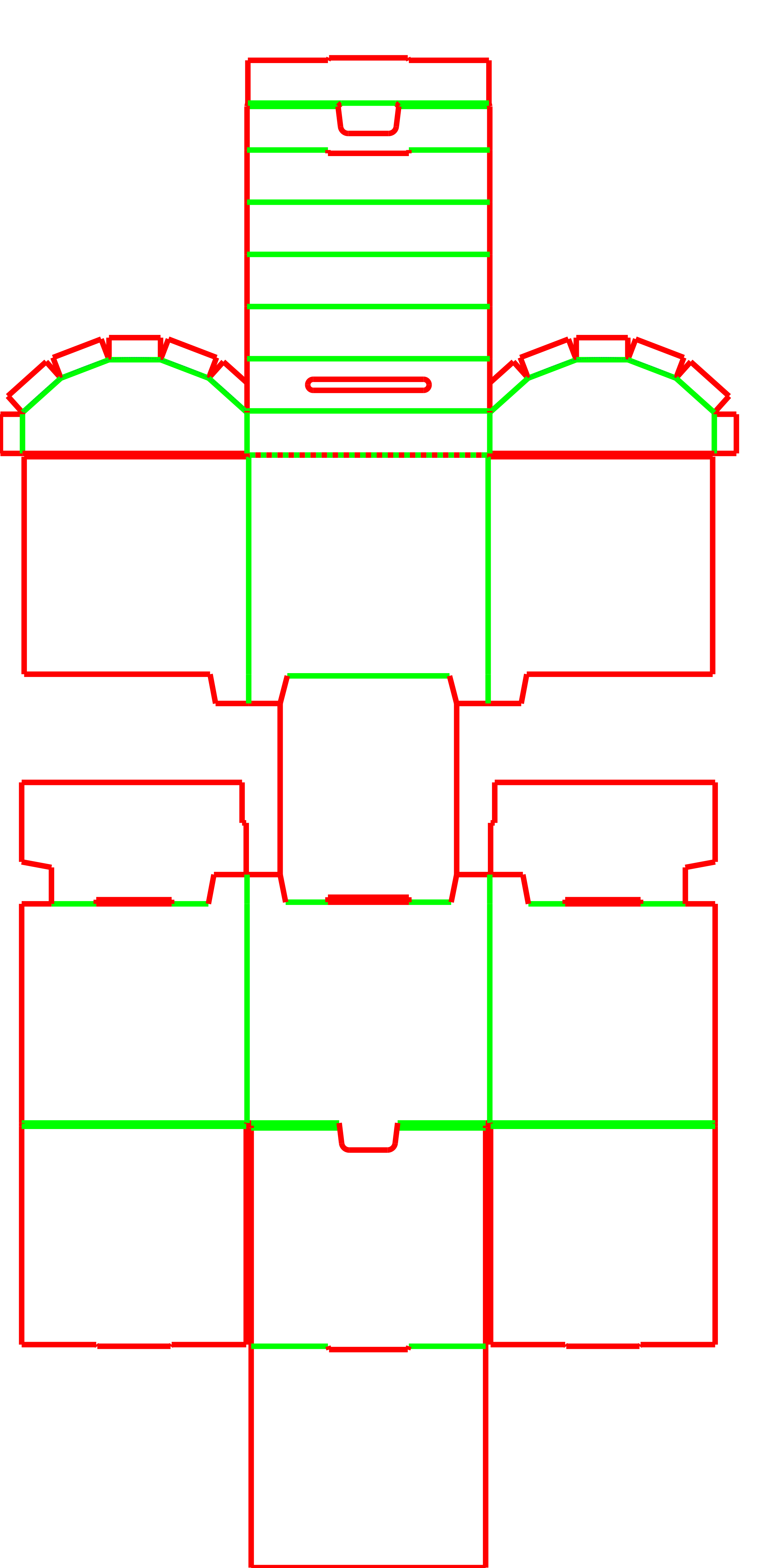

This is a complex, one-piece blank. The base folds into a sturdy double-wall tray, and the hood requires rolling the top over side supports and seating multiple tabs. Event staff will likely need a printed instruction sheet to assemble it correctly.
Print and Graphics
The segmented roll-top prominently displays the outside liner. High-graphic printing works well, but artwork should account for the multiple parallel creases across the hood.
Slot Size and Placement
The dimensions of the drop slot should be matched to the exact envelopes, folded paper, or cards being collected to ensure easy insertion without allowing hands to reach inside.
Adjusting the Slot and Profile
Drop Slot Dimensions
The length and width of the top slot can be adjusted to fit specific envelopes, folded ballots, or entry cards.
Leg Height
The display legs can be shortened or removed entirely if the box needs to sit flat on a table for better stability.
Hood Profile and Curve
The height of the curved lid and the number of roll-top segments can be modified to change the overall presentation or accommodate different board thicknesses.
Packing details
Flatbed Die-Cutting Requirement
Because of the sprawling cross-shaped blank, the curved cuts, and the intricate locking tabs on the hood, this template is typically produced on large flatbed die-cutting equipment rather than conventional rotary slotters.
Additional notes
Flute direction and standing strength
The corrugated flutes should run vertically through the legs and base walls. This maximizes standing strength and allows the horizontal creases on the roll-top to fold smoothly across the flutes.
Related Display and Collection Bins
FAQs
Does this box use tape or glue to assemble?
The base uses roll-over panels to lock into a double-wall tray, and the hood uses a series of tabs and slots to hold its curved shape. It assembles entirely through folding and friction.
Can I ship this box fully assembled?
The curved top makes stacking difficult, and the display legs are vulnerable to crushing in transit. It should be shipped flat to the final location and assembled on-site, or placed inside a sturdy master carton if it is shipped whole.
Can we make this out of heavy-duty double-wall corrugated?
It is usually discouraged. The segmented roll-top and the small locking tabs need a thin, flexible board like E-flute to bend and seat correctly. Heavy-duty board will resist the curves and the tabs may bind.
Can the drop slot be resized?
The slot length and width can be adjusted during the CAD stage to accommodate specific ballot sizes, envelopes, or entry forms.
How does the box open to retrieve the contents?
The entire curved hood hinges forward and secures to the front wall with a tuck tongue. You simply untuck the tongue and lift the hood back to empty the bin.
Is this suitable for a short prototype run?
Because it uses a complex flatbed die for full production, running a few digital-cut prototypes is a smart way to verify the slot size, leg stability, and assembly process before committing to tooling.
Can the curved top be printed with custom graphics?
The segmented roll-top exposes the outside liner, making it a very visible area for branding. Artwork should account for the parallel creases that form the curve.
Can we add an internal shelf to raise the collection floor?
This template does not include an internal shelf by default. If you need items to sit higher inside the bin, a custom insert or a different display base may be required.
