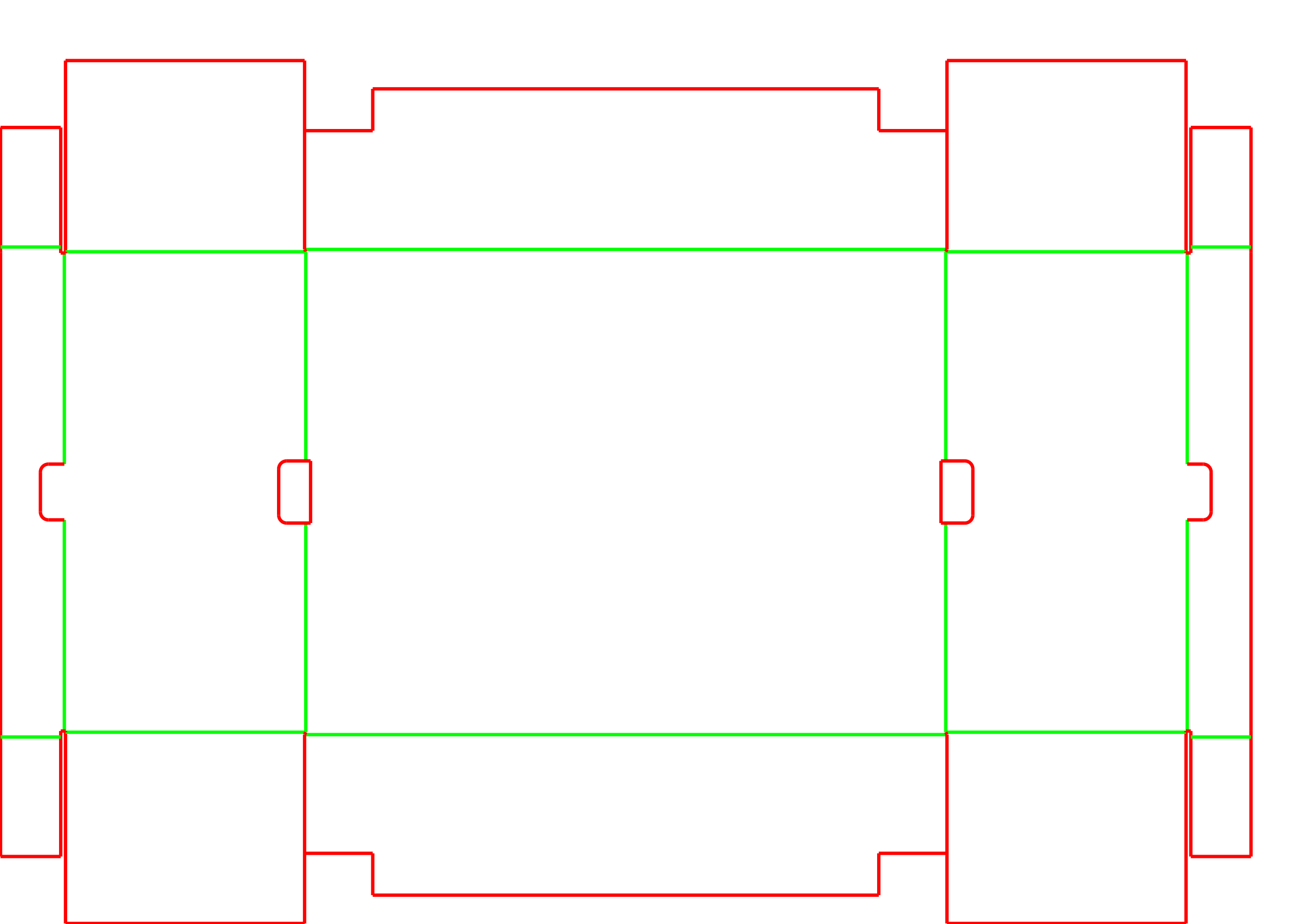

Retail Display, Kitting, and Component Handling
Retail Display
The open top allows immediate product access, while the bench supports frame the contents and keep the tray rigid on the shelf. The stepped front wall provides a clear view of primary packaging or labels.
Heavy Product Kitting
For dense components that might push standard tray walls outward, the locked ledges hold the structure square and retain the items securely during internal transit or assembly line use.
Organized Shelf Storage
The reinforced sides and open top make it useful for warehouse shelving where workers need to pick parts repeatedly without the tray breaking down.
Assembly Line Component Handling
The rigid side walls allow the tray to be moved along conveyors or workstations without losing its shape when loaded with dense metal or plastic components.
Shelf-Ready Goods, Industrial Parts, and Fulfillment
Shelf-Ready Consumer Goods
Brands use the stepped front wall to display primary packaging, relying on the side ledges to maintain a clean, uncrushed appearance in retail environments where products are frequently handled.
Industrial Parts
Assembly lines and distributors use the reinforced sides to handle dense metal or plastic components without the tray losing its shape or spilling contents during movement.
Fulfillment and Repacking Centers
Operations that build multi-part kits benefit from the open top for fast loading and the reinforced sides for stable stacking before final shipment.
When to Consider Standard Trays or Closed Cartons
Parcel Shipping
Because the top is open, this tray leaves the product exposed. It usually needs a master shipper or should be replaced with a fully enclosed mailer for individual ecommerce deliveries.
High-Speed Automated Packing
While the base corners can be glued on standard tray formers, the top ledges typically involve manual folding and locking. If manual labor is a constraint, a standard four-corner glued tray without ledges may be a better choice.
Assembly Labor, Board Thickness, and Delivery Format
Assembly Labor and Corner Fastening
The four corners are usually glued by a converter or on a tray former, but the bench supports are folded and locked by hand after the product is loaded. This mixed assembly path should be factored into packing labor estimates.
Board Thickness and Tab Clearance
The locking tabs fold 90 degrees and seat into the base slots. While E-flute folds crisply, moving to thicker B-flute or C-flute means adjusting the slot dimensions to prevent the tabs from crushing during insertion.
Delivery Format
If the corners are pre-glued by the converter, the trays ship nested, which consumes more pallet space. Delivering them flat requires the packing facility to apply adhesive or double-sided tape to the corners before locking the ledges.
Outer Shipper Requirements
If the tray is used for kitting or retail display but needs to travel through mixed-carrier networks, an outer shipping box or shrink wrap is usually needed to protect the open top.
Adjusting Ledge Width, Wall Heights, and Slot Clearances
Ledge Width Adjustments
The horizontal bench supports can be widened to cover more of the product, provided they do not overlap in the center of the tray.
Front and Back Wall Heights
The stepped walls can be raised or lowered to change the stacking profile or reveal more of the primary product, as long as they remain shorter than the main side walls.
Locking Slot Clearances
The slots in the base panel can be widened to accommodate thicker corrugated board, ensuring the tuck tabs lock securely without tearing.
Packing details
Insert Clearance Under Ledges
If using internal dividers or foam inserts, their height should account for the folded bench supports resting inside the upper edge of the tray.
Additional notes
Insert clearance under the ledges
If using internal dividers or foam inserts, their height should account for the folded bench supports resting inside the upper edge of the tray.
FAQs
Does this tray require glue or tape?
The four corners are secured with adhesive or double-sided tape. The top bench supports, however, lock mechanically into the base without additional fastening.
Can the bench supports be folded by machine?
Most standard tray formers can glue the base corners, but folding the top ledges and inserting the tabs into the base slots is typically a manual step completed after loading.
How much weight can the bench supports hold?
The ledges are designed to prevent the side walls from bowing outward rather than bearing heavy top loads. Stacking weight is primarily carried by the glued corners and the stepped front and back walls.
Can this be made in heavy double-wall corrugated?
Double-wall board is generally a poor match because the thick material makes it difficult to fold the locking tabs and insert them into the base slots without crushing the corrugated flutes.
Is this tray suitable for ecommerce shipping?
Not on its own. The open top leaves the product exposed, so it should be placed inside a fully enclosed outer shipping box for courier or postal delivery.
Where can graphics be printed?
The outside walls and the top surface of the bench supports offer clear print areas. The corner flap zones should remain free of heavy ink or varnish to ensure the adhesive bonds properly.
Can the front and back walls be the same height as the sides?
The front and back walls are designed to be shorter to allow the bench supports to fold inward properly. Raising them to the full height would interfere with the locking mechanism.
How are these trays delivered to the packing facility?
They can be delivered flat, requiring the packer to glue or tape the corners, or they can be pre-glued by the converter and delivered nested, which saves assembly time but takes up more shipping space.
