Retail Display, Kitting, and E-Commerce
Retail-Ready Shelf Displays
The perforated lid panel can be configured to tear away cleanly, leaving a branded header or an open access point for retail shelving. The double-thick walls provide the rigidity needed to handle store-floor placement and look crisp on the shelf.
Subscription and Kitting Boxes
For multi-item kits, the dual-tab closure keeps the lid secure without a friction flap sliding down into the product area. The glue-free manual assembly allows fulfillment teams to build the trays on demand.
High-Value E-Commerce Shipments
The tear-away lid offers a distinct unboxing experience, while the roll-end walls provide excellent crush resistance. Depending on the perforation style and handling route, an outer shipper or security seal may be worth evaluating for individual parcel delivery.
Heavy Component Kitting
The double-thick walls on three sides offer strong vertical support for dense parts. The top-edge slot closure ensures the lid stays shut even if the internal contents shift slightly during handling.
Direct-to-Consumer and Retail Contexts
Direct-to-Consumer Brands
The tear-away lid creates a memorable opening sequence, while the roll-end walls provide strong crush resistance. Depending on the perforation style and handling route, an outer shipping box or security seal may be worth evaluating for individual parcel delivery.
Subscription Box Curators
The glue-free manual assembly allows fulfillment teams to build trays on demand, and the top-edge closure prevents the lid tabs from interfering with carefully arranged products.
Retail Merchandisers
The configurable tear-away panel allows the package to transition directly from a shipping unit to a shelf-ready display, reducing unpacking labor on the store floor.
When to Consider Alternative Trays
Standard Friction-Tuck Trays
If you do not need the tear-away display panel or the dual-tab closure, a standard roll-end tray (like FEFCO 0426) offers a simpler single-flap closure that slides inside the front wall. This can be faster to close and requires less complex die-cutting.
Crash-Lock Base Trays
If manual assembly speed is a primary concern for high-volume runs, a pre-glued crash-lock base (like FEFCO 0740) sets up much faster than folding and locking roll-end walls, though it lacks the double-thick side walls.
Board, Perforation, and Packing Choices
Flute Profile and Folding Effort
Because the left, right, and front walls roll over 180 degrees to lock into the base, thinner materials like E-flute are highly recommended. Thicker boards like B-flute increase the manual folding effort, and double-wall board will likely bind and resist assembly.
Perforation Rule for the Lid
The cut-out on the lid must balance transit security with easy opening. Discussing the handling route helps determine whether a standard perforation, a zipper rule, or a simple push-in access panel makes the most sense.
Packing Line Setup
This tray requires manual folding and locking of the roll-over walls. If your fulfillment center relies on automated tray formers or folder-gluers, a different base style will be necessary.
Outer Shipping Strategy
While the dual tabs hold the lid closed, the tear-away panel introduces a potential weak point under heavy stress. For individual parcel delivery, testing the perforation strength or using a master carton is often a safer choice.
Configuring the Lid, Closure, and Flaps
Tear-Away Panel Dimensions

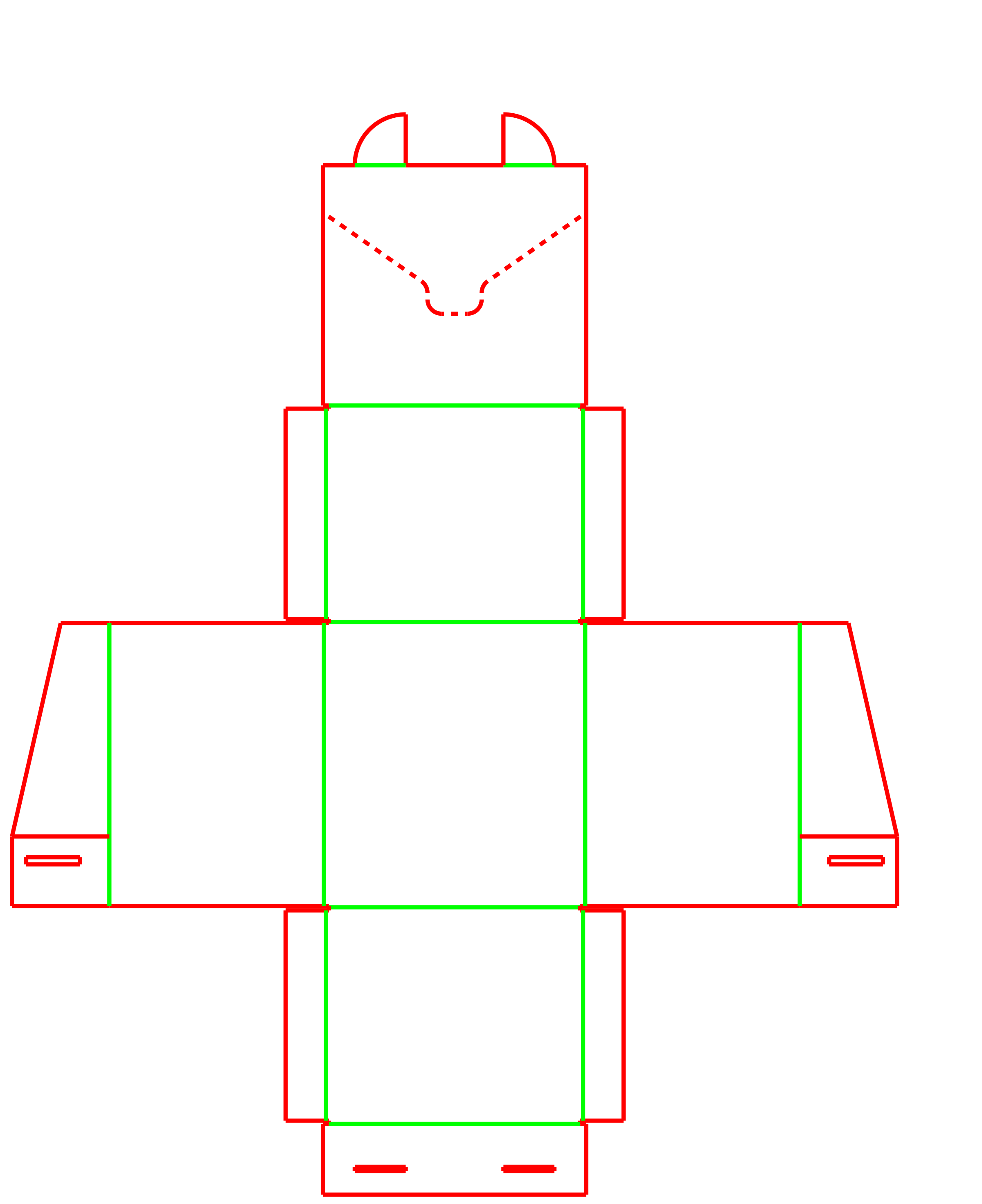

The width, height, and depth of the lid's perforated section can be adjusted to match the product inside, whether you need a small access window or a full-width display header.
Tab and Slot Sizing
The width of the two tuck tongues and their receiving slots can be scaled based on the overall box size, ensuring the closure remains secure without becoming difficult for the packer to align.
Dust Flap Modifications
The inner dust flaps can be adjusted to change how they sit within the double-thick walls, ensuring they do not interfere with internal dividers or specific product shapes.
Packing details
Print Surfaces and Unboxing
The hinged lid and the outer walls offer uninterrupted space for primary graphics. The inner roll-over flaps can also be printed, providing a continuous branded experience when the tray is opened.
Additional notes
Manual folding speed
While the tray requires no glue, aligning the roll-over tabs into the base slots and inserting the dual lid tabs takes slightly more time per unit than a standard crash-lock box.
FAQs
Does this tray require glue or tape to assemble?
No. The tray is delivered flat and assembled manually by folding and locking the roll-over walls into the base. The lid secures using the two tuck tabs.
Can this be made in heavy-duty double-wall corrugated?
It is not recommended. The design requires the side and front walls to fold over 180 degrees. Double-wall board creates too much resistance, making manual assembly difficult and causing the panels to bind.
Is the dual-tab closure secure enough for parcel shipping?
While the tabs hold the lid firmly, the perforated tear-away panel introduces a weak point under heavy stress. For individual parcel delivery, testing the perforation strength or using an outer shipping box is often a safer choice.
How does the lid closure avoid hitting the product?
Unlike standard tuck tops that slide a flap down into the box, this design uses two tabs that insert directly into slots on the top edge of the front wall. This keeps the entire closure mechanism above the interior space.
Can the tear-away panel be removed completely?
Yes, the cut-out can be configured as a fully removable panel, a hinged display header, or omitted entirely if you only need the dual-tab closure.
Is this suitable for automated packing lines?
No. The complex roll-over walls and dual-tab insertion require manual assembly and packing.
Can the inner roll-over walls be printed?
Yes. Because the outer flaps roll 180 degrees inward to form the inner walls, they can be printed on the same side as the exterior graphics, providing a continuous branded experience when the tray is opened.
How do the dual tabs affect the unboxing experience?
The dual tabs provide a distinct, mechanical opening action. Because they pull out from the top edge rather than sliding up from inside the box, they reduce the risk of catching on internal products or tissue paper.
