Presentation and specialized fit
Corner-fit retail displays
The right-angled base allows the tray to sit flush in display corners or be arranged in circular multi-tray presentations. It works well for organizing smaller items where a rectangular tray would leave awkward gaps.
Specialty food portions
The triangular footprint naturally matches sliced goods like pizza or pies. When specified with appropriate food-safe liners, it provides a rigid base that prevents the product from shifting during handling.
Industrial kitting and part separation
Industrial packing teams use this shape to separate specific components within a larger master carton. The rigid glued walls keep heavy or awkward parts contained.
Internal corner bracing
When placed inside a larger rectangular shipper, the rigid 90-degree corner of this tray can act as a spacer or brace, preventing heavy primary products from shifting into the corners of the master carton.
Retail, food service, and kitting
Food service and bakery packaging
Bakeries and specialty food brands use this shape for single-slice portions. The rigid walls keep the slice contained and prevent the crust or icing from shifting during local delivery.
Retail display and point-of-purchase
Merchandisers use the right-angled footprint to build circular or semi-circular display arrangements, fitting multiple trays together on a retail table without leaving awkward gaps.
Industrial component packing
Packing teams use this shape to separate specific triangular components within a larger master carton, keeping heavy or awkward parts contained and organized.
When to consider rectangular or folding carton alternatives
High-volume transit packing
If the triangular shape is not strictly necessary for presentation or fit, a rectangular tray is much faster to assemble, nests more efficiently on the die-cutting board, and generates less material waste.
Mixed-carrier shipping
This is an open-top tray. If the product ships through mixed-carrier networks, it requires a secondary outer shipping box or a switch to a fully enclosed triangular mailer.
Assembly labor, shipping volume, and board thickness
Assembly method and labor
The acute corners require precise folding and holding while the adhesive sets. Buyers should evaluate whether hand assembly fits the packing rhythm or if automated tray-forming equipment is justified.
Flat delivery versus pre-glued volume
Because the tray cannot be knocked down flat after gluing, shipping fully erected trays requires significant transport space. Converters usually deliver these as flat blanks to be assembled just before loading.
Flute thickness and corner binding
Thicker corrugated flutes can bind when folded into tight acute angles. E-flute is a common choice, offering a balance of rigidity and clean folding at the sharpest corners.
Outer packaging requirements
As an open-top design, this tray does not secure goods from above. Buyers must plan for a separate lid, shrink wrap, or a master shipping carton depending on the route.
Adjusting the triangle angle, tray depth, and flap tapers
Modifying the acute angle

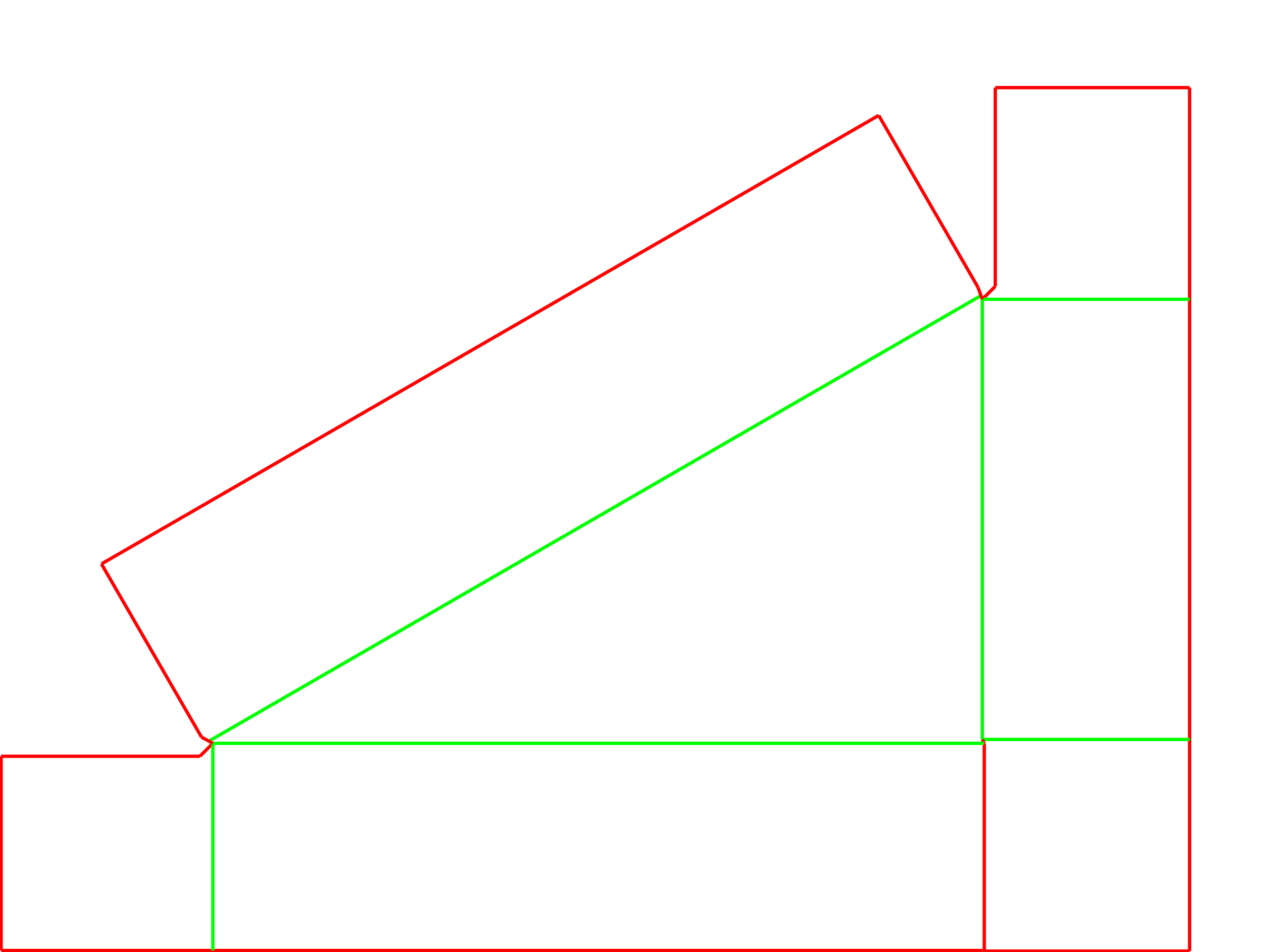

The default template uses a 30-degree acute angle, but this can be adjusted to match the specific product. Changing this angle automatically recalculates the hypotenuse wall length and the corresponding glue flap angles.
Adjusting wall height
The vertical walls can be raised or lowered to match product depth, though extreme heights may reduce the stability of the long hypotenuse wall.
Flap taper adjustments
For thicker board grades, the internal glue flaps can be tapered more aggressively to prevent them from binding against the adjacent walls during folding.
Packing details
Blank nesting and material waste
Triangular blanks do not interlock as cleanly on a flatbed die-cutter as rectangular boxes do. This inherent geometric sprawl means the scrap ratio is higher than rectangular trays.
Additional notes
Flatbed die-cutting requirement
The angled cuts and irregular footprint mean this tray cannot be produced on rotary slotting equipment. It requires custom flatbed tooling.
Related trays and cartons
FAQs
Can this tray be assembled without glue?
No. The three vertical walls rely entirely on internal glue flaps to hold their shape. There are no mechanical tabs or friction locks in this design.
Can the tray be shipped flat after it is glued?
No. The base lacks the diagonal collapsing scores required for a knock-down fold. Once the corners are glued, the tray remains fully rigid.
Does this tray include a lid?
This specific template is an open-top base tray. If a cover is needed, it requires a separate lid component or a custom redesign to add a hinged cover panel.
What corrugated flutes fold cleanly for this shape?
Thinner profiles like E-flute or F-flute are generally preferred. Heavy flutes can struggle to fold cleanly into the tight 30-degree and 60-degree corners without binding or tearing the liner.
Can this be run on automated folder-gluer machines?
Straight-line folder-gluers cannot process this tray because it does not fold flat. It requires flatbed die-cutting and is either glued by hand or erected by a specialized tray former.
Is this tray strong enough for heavy stacking?
The vertical walls provide basic stacking support, but the sharp acute corners are susceptible to crushing under heavy vertical loads. Stacking behavior should be tested with the actual product weight and board grade.
Can this tray be used as an internal corner brace?
Yes. When inverted or placed inside a larger master carton, the rigid 90-degree corner can help stabilize heavy items or fill void space, though the manual assembly time should be considered.
What happens if the triangle angle is changed?
Adjusting the main acute angle automatically updates the length of the hypotenuse wall and the corresponding fold angles for the internal glue flaps, ensuring the tray still closes correctly.
