EVC41125

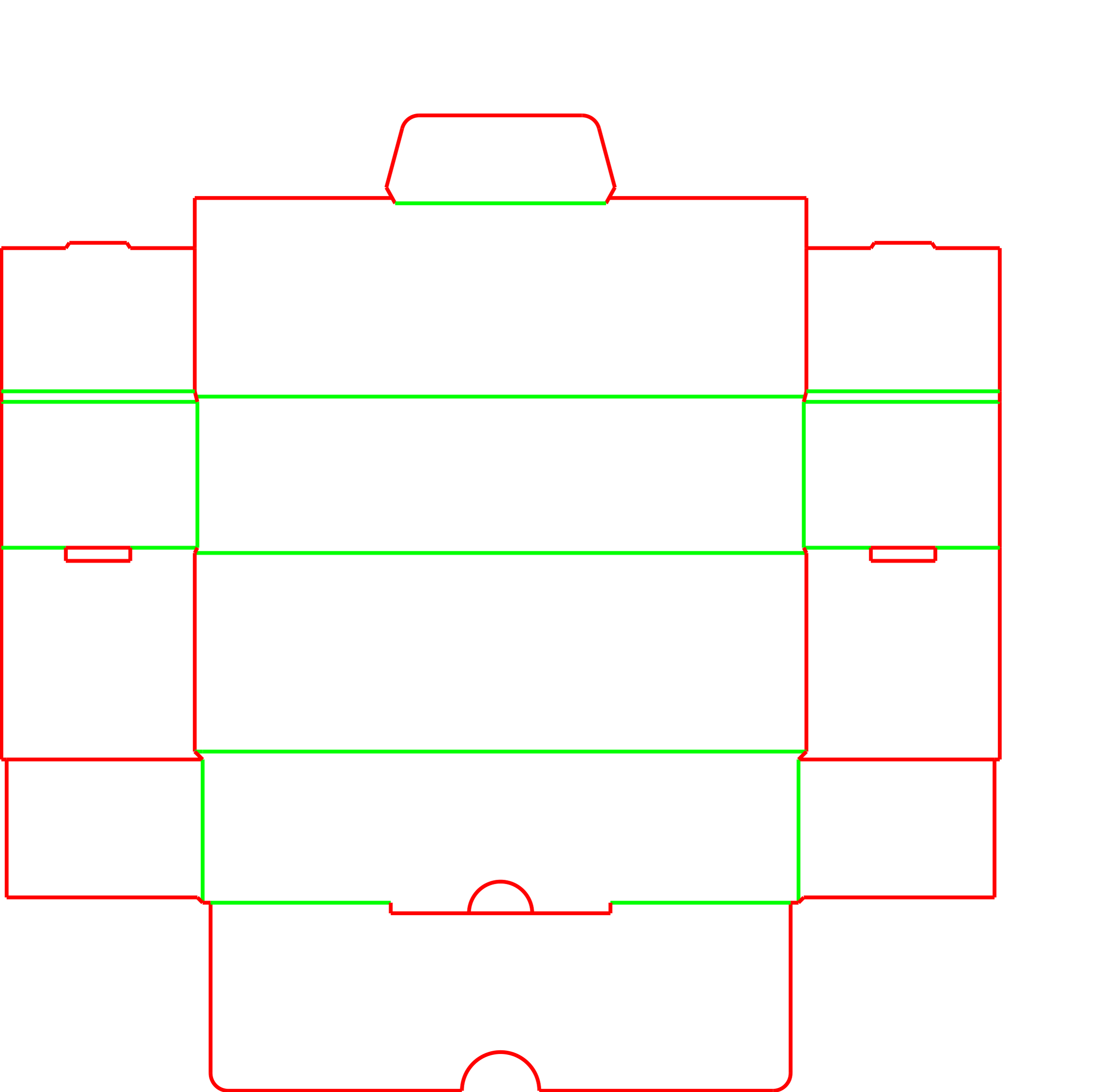

Roll-End Tuck-Front Tray

This corrugated roll-end tray features double-thick side and front walls, creating a rigid package with clean, rolled top edges that hide raw flutes. The hinged lid secures via a single tuck tongue that inserts into a flush slit on the front wall, offering a premium unboxing presentation.

Delivered flat for manual pack-bench assembly, it is a practical option for retail packaging, internal kitting, and e-commerce applications where a clear wafer seal or label can secure the tongue for transit.

Get a quote
  • Order custom samples, short runs, or production runs.
  • US-based. Nationwide service.
  • Nationally competitive pricing & delivery costs.
  • Available in a wide variety of configurations.

At a glance

  • Double-thick front and side walls for crush resistance
  • Clean rolled edges hide raw corrugated flutes
  • Tuck-tongue closure benefits from a seal for parcel transit

Get a quote

Share what you know. Exact specifications can follow. Or email us at info@herculeindustrial.com

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Presentation and Kitting

Premium unboxing and retail display

The roll-over side and front panels conceal the raw corrugated edges, providing a clean, finished look when the lid is opened. This makes the tray well-suited for high-end retail goods, presentation kits, and sales samples where first impressions matter.

Internal kitting and parts organization

Because the tray locks together mechanically without glue, it can be assembled on demand at pack stations. The double-wall sides provide excellent rigidity for holding dense components or heavy inserts.

Subscription boxes and curated sets

The clean presentation and double-wall sides work well for curated product sets. The flush front wall provides a flat surface for branding or a tamper-evident seal, which is useful for recurring deliveries.

Sales samples and promotional kits

The simple unboxing motion and hidden flutes make this tray a practical option for presenting samples to buyers. The rigid corners help maintain a crisp appearance even after multiple openings.

E-Commerce and Store-Floor Handling

E-commerce fulfillment

While the double-wall tray offers strong crush resistance, the single tuck tongue may open during individual parcel shipping. E-commerce operators should plan to apply a clear wafer seal, branded sticker, or shipping tape across the front closure.

Store-floor retail and boutique displays

For physical retail, the tray can be stacked or displayed with the lid open. The rolled edges ensure that customers do not see raw corrugated flutes, elevating the perceived value of the product inside.

Industrial and B2B kitting

In manufacturing or assembly environments, these trays can be used to organize parts for specific jobs. The glue-free assembly allows them to be stored flat and erected only when needed on the line.

Alternative Closures and Automated Packing

High-volume automated packing

This tray relies on sequential manual folding of the side and front roll-over flaps. If your packing line uses automated folder-gluers or case erectors, a glued auto-bottom or machine-erected tray may be a better fit.

Friction-fit closures

If you prefer a lid that locks securely into the sides rather than the front wall, compare this to a roll-end tray with cherry locks. Cherry locks provide a tighter friction fit without relying on a single front slit.

Board Thickness and Parcel Sealing

Flute profile and board caliper

This design relies on precise double creases to fold the roll-over flaps cleanly. It is better suited for thinner profiles like E-flute or F-flute. Thicker materials like C-flute or double-wall board may cause the hinges to bind or tear during assembly, which may mean altering the cutting die.

Closure sealing strategy

Decide how the tray will be secured before shipping. The flush front wall provides an excellent flat surface for a tamper-evident label or branded sticker over the tuck tongue.

Print surface and interior branding

Because the inner walls are formed by flaps that roll over from the outside of the blank, printing on the inside of those specific flaps can create a two-color effect without requiring double-sided printing on the corrugated sheet.

Insert and partition compatibility

The double-wall sides reduce the internal volume slightly compared to a single-wall box of the same outer dimensions. If you are using custom inserts or partitions, ensure they are sized for the exact internal clearance.

Tuck Tongue and Slit Modifications

Tuck tongue and slit sizing

The depth and width of the tuck tongue can be adjusted to change the opening friction. Any change to the tongue means the receiving slit on the front roll-over flap must also be adjusted to maintain a secure lock.

Thumb cut additions

Thumb cuts can be added to the side dust flaps or the front roll-over flap to help packers seat the flaps or help end-users open the tray.

Dust flap modifications

The length of the side dust flaps can be adjusted to create a tighter corner lock when the side roll-overs fold over them, depending on the board thickness and desired rigidity.

Packing details

Flatbed die-cutting production

Because of the complex roll-over flaps, double creases, and precise locking slit, this tray is typically produced on a flatbed die-cutter. Simple rotary slotters are generally not used for these specific cuts and folds.

Additional notes

Pre-breaking the double creases

Packers may need to pre-fold the double creases on the side roll-over flaps before locking the front wall. This ensures the flaps seat cleanly and reduces resistance during high-volume hand assembly.

Related Roll-End Trays

FAQs

Can this tray ship through parcel networks without a seal?

While the double-wall tray is durable, the single tuck tongue may open during individual parcel shipping. Parcel shipments typically use a clear wafer seal, branded label, or tape across the front closure.

Does this tray use glue or machinery to assemble?

No. The tray is delivered flat and locks together mechanically using roll-over flaps. It is intended for manual pack-bench assembly.

Can we use a heavy double-wall board for extra protection?

It is not recommended. The side and front walls fold 180 degrees over themselves. Heavy double-wall board creates too much bulk, causing the hinges to bind or tear. E-flute or B-flute are usually better suited for this folding sequence.

Can the inside of the tray be printed?

Yes. Because the inner walls are formed by flaps that roll over from the outside of the blank, printing on the inside of those specific flaps can create a two-color effect without requiring double-sided printing on the corrugated sheet.

Does the tuck tongue interfere with internal products?

The tongue inserts into a dedicated slit along the top edge of the front wall, sitting between the inner and outer front panels. It does not protrude into the main packing cavity, keeping your products or inserts safe from snagging.

What should we check when testing a physical sample?

Verify the manual folding time for your packing team, ensure the roll-over flaps seat fully without bowing the bottom panel, and test whether your chosen label or seal adheres well to the front closure.

Can this be produced on a rotary slotter?

The precise double creases, locking slit, and angled corner flaps are usually produced on a flatbed die-cutter.

How do the double-wall sides affect internal dimensions?

The roll-over flaps on the front and sides consume a few millimeters of internal space. When sizing the box for a specific product or custom insert, you must account for this reduced internal clearance compared to a single-wall box.

A clean, double-wall presentation tray that balances rigidity with a premium unboxing experience.
