Retail Presentation and Catering Trays
Catering and Bakery Transport
The wide top opening allows delicate items like pastries or catered meals to be loaded and unloaded without sliding them through narrow ends. The mechanical lock keeps the lid secure during hand delivery.
Retail Presentation Kits
The center-meeting lid creates a natural reveal when opened, making it a strong choice for gift kits, promotional mailers, or retail displays where the unboxing experience matters.
Subscription Box Inner Trays
When placed inside a protective master carton, this tray acts as a premium presentation layer. The split lid provides a clean, tape-free opening experience for the subscriber.
Apparel and Soft Goods
Folded garments, scarves, and accessories fit well within the wide rectangular base. The tape-free closure prevents adhesive from snagging or damaging delicate fabrics during unboxing.
Food Service, Bakery, and Direct-to-Consumer Kits
Food Service Operations
Packers can assemble the tray and lock the lid quickly without needing tape dispensers or gluing stations, keeping the presentation clean for the end customer.
E-commerce and Subscription Brands
When used as an inner presentation box inside a protective outer shipper, the split lid provides a premium opening experience while the master carton handles the transit wear.
Corporate Gifting and Event Swag
Event staff can manually assemble these trays on-site without specialized equipment. The mechanical lock provides a finished, professional look for VIP handouts or welcome kits.
Alternatives for Heavy Transit and Automation
Heavy Stacking or Parcel Shipping
If the package will travel through mixed-carrier courier networks without an outer shipper, the central lock can snag or pop open. Standard RSCs or roll-end tuck-top trays offer better transit security.
High-Speed Automated Packing
This tray requires manual folding to engage the central tongue and lock hole. If your packing line relies on automated folder-gluers or case erectors, a machine-erected tray is a better fit.
Board Thickness, Assembly Labor, and Route Choices
Board Flute and Lock Clearance
The central lock requires the board to fold sharply and interlock. Thinner profiles like E or F flute provide crisp folds and secure locking. Thicker boards can cause the tongue and hole to bind, requiring careful adjustment of the cut clearances.
Manual Assembly Planning
The tray is delivered flat. Packers must fold the corner dust flaps, raise the walls, fold the lid panels over, and manually push the tongue through the lock hole. This labor should be factored into the packing line setup.
Outer Shipper Requirements
Because the central lock is vulnerable to snagging in rough transit, decide early if this tray will act as the primary shipping container or if it will be placed inside a master carton for courier delivery.
Print Surface Allocation
The split lid design means the interior of the lid panels and the inside of the tray are fully exposed upon opening. Decide whether to invest in two-sided printing to maximize the unboxing presentation.
Lid Alignment, Top Flaps, and Lock Dimensions
Short-Wall Top Flaps
The short ends of the tray feature inward-folding flaps that stiffen the walls and provide a resting ledge for the lid. The depth of these flaps can be adjusted based on the product clearance needed inside the tray.
Lid Side Tabs
Small tabs on the edges of the lid panels fold down beside the tray walls to keep the lid aligned and minimize side gaps. These can be adjusted to match the specific board thickness being used.
Central Lock Dimensions
The length of the tongue and the size of the receiving hole can be modified. A tighter fit increases closure security but requires more effort from the packer to engage the lock.
Packing details

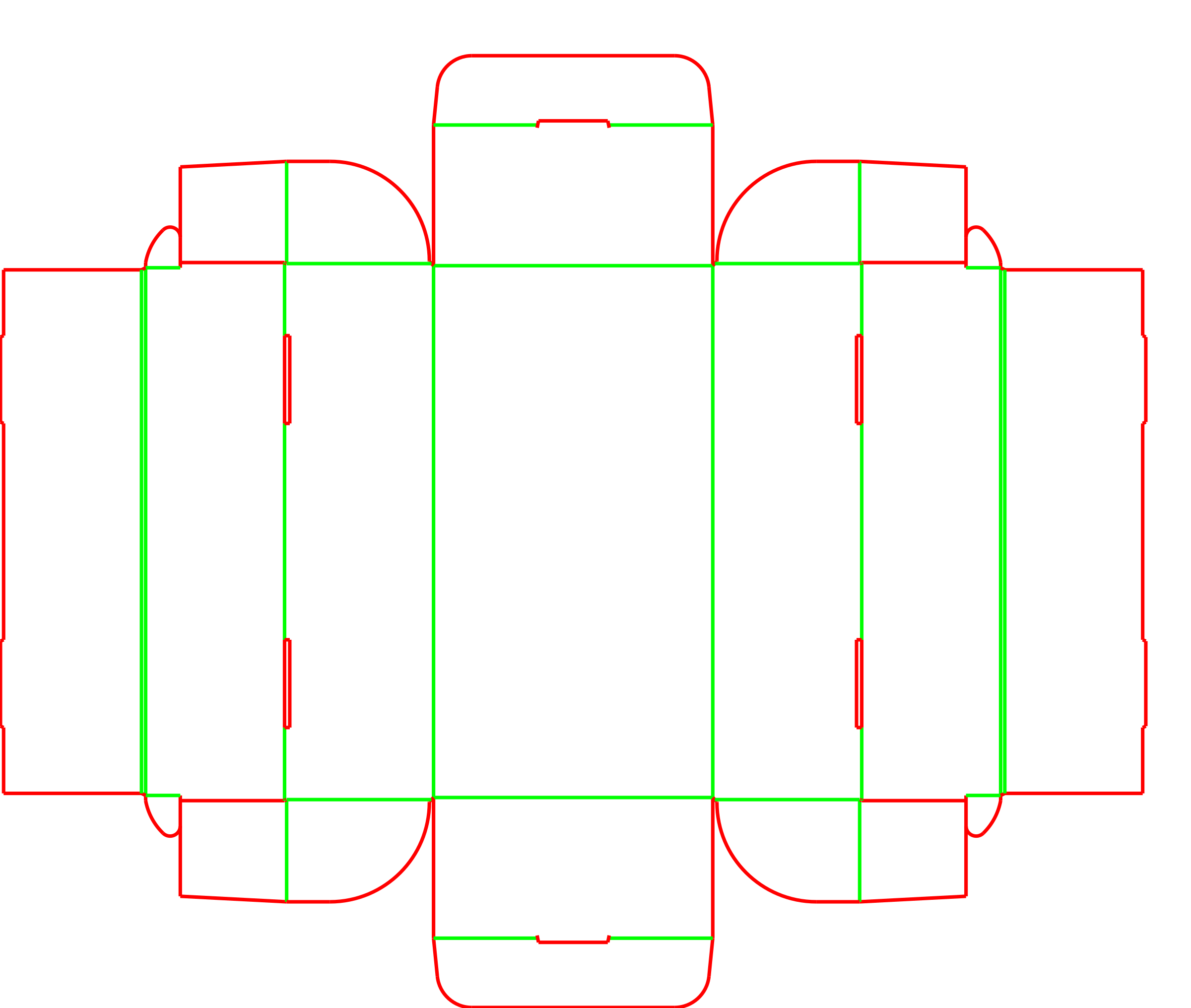

Die-Cutting and Blank Shape
The protruding lid panels, side tabs, and intricate central lock require flatbed die-cutting. The irregular shape of the flat blank may result in lower nesting efficiency on the corrugated sheet compared to a simple rectangular box.
Two-Sided Print Visibility
Because the lid panels fold outward from the center, their interior surfaces become clearly visible during unboxing. This makes the tray an excellent candidate for inside printing or branded messaging.
Additional notes
Physical prototyping for the lock
Because the tongue and lock hole rely on precise friction, it is strongly suggested to cut a physical sample in the exact chosen board grade to verify the closure tension before a full production run.
Print panel placement
The two lid panels offer a split canvas for top graphics, while the interior of the tray and the underside of the lid panels are fully exposed when the package is opened.
FAQs
Does the central lock require tape?
No. The lid panels fold down into the tray, and a mechanical tongue on one flap pushes through a lock hole on the other. This holds the tray closed without tape or adhesive.
Can this tray be shipped through parcel networks?
It is rarely used as a standalone parcel shipper. The central lock can catch on sorting equipment or pop open under heavy top loads. For courier delivery, it should be placed inside a master shipping carton.
Which board thicknesses support the central lock?
Thinner corrugated profiles, such as E-flute or F-flute, are generally more effective. They allow the tuck flaps to fold cleanly and the tongue to engage the lock hole without binding.
Can the lid panels overlap instead of meeting in the center?
The template is designed so the two lid panels meet exactly in the middle to form the downward locking spine. Overlapping them would require changing the fundamental locking mechanism.
How is the tray assembled?
It is assembled manually. The packer folds the corner dust flaps inward, raises the short and long walls, folds the lid panels toward the center, and engages the tongue-and-slot lock.
What keeps the lid panels from shifting side to side?
The lid panels feature small side tabs that fold down along the exterior of the tray walls, guiding the lid into place and preventing lateral movement.
Can I print on the inside of the lid panels?
Yes. Because the lid panels fold outward from the center, their interior surfaces become clearly visible during unboxing, making them a strong location for branding or instructions.
Is this tray suitable for heavy products?
Because the closure relies on a central friction lock, heavy items that shift during transit can push against the walls and pop the lock. It is better suited for lightweight or well-secured items.
