Presentation, Staging, and Storage Jobs
Premium Kitting and Presentation
The rolled edges hide the raw corrugated flutes, creating a clean, finished appearance. The large, unbroken lid panel provides an excellent surface for high-quality graphics, making this box a strong choice for premium product launches or sample kits.
Archival and Document Storage
The double-wall construction on all sides provides excellent vertical compression strength, allowing these boxes to be stacked heavily on shelves. The front finger hole makes it easy to pull the box from a shelf and open the tightly fitting lid.
Heavy Component Staging
For in-plant kitting or staging, the rigid base can support heavy metal or mechanical parts. The box can be pre-assembled and loaded, with the telescoping lid providing a secure cover until the parts are needed.
Retail Shelf Storage
The double-wall construction allows these boxes to be stacked heavily on retail shelves. The front finger hole makes it easy for staff or customers to pull the box forward and access the contents.
Retail, Fulfillment, and Archival Contexts
Retail and Presentation
Brands looking for a high-end unboxing experience benefit from the glue-free, folded construction. The friction-fit lid closes cleanly over the base, offering a satisfying mechanical feel without adhesive seals.
Industrial and Fulfillment
Operations teams must account for the manual assembly time. The multi-step folding sequence requires operators to roll and lock multiple panels, which is slower than erecting a standard snap-lock or glued tray.
Corporate Archiving
Offices and record centers use this style for long-term document retention. The rigid walls prevent crushing over time, and the glue-free assembly means there is no adhesive to degrade in storage.
When to Compare Simpler Trays or Mailers
High-Speed Automated Packing
This design relies entirely on manual mechanical locks and complex roll-over sequences. If your packing line uses automated case erectors, evaluate a standard four-corner glued tray instead.
Direct Parcel Shipping
The friction-fit lid can open during rough transit. If the box will travel through mixed courier networks without an outer master carton, a standard mailer with locking dust flaps is often a safer choice.
Board, Assembly, and Transit Decisions
Board Thickness and Fold Clearance
The complex roll-over panels require precise scoring to fold correctly. While a 1.5mm E-flute provides crisp folds, moving to a thicker B-flute requires careful parameter tuning to prevent the hinges from cracking.
Assembly Labor Planning
Because both the base and the lid require multiple folds to trap the corner flaps, assembly takes longer than simpler box styles. Fulfillment teams should review the folding sequence before planning large packing runs.
Outer Sealing for Transit
If this box is used for shipping, decide how the lid will be secured. Options include clear wafer seals, strapping tape, or placing the entire clamshell inside a separate corrugated shipper.
Print Surface Protection
The large, unbroken top panel provides an excellent surface for branding. If the box travels through parcel networks, an outer master carton helps protect this printed surface from scuffs and shipping labels.
Finger Hole and Crease Adjustments
Finger Hole Sizing
The diameter of the front finger hole can be adjusted to accommodate different access needs. The template automatically offsets the inner and outer layers to ensure the hole aligns perfectly after folding.
Finger Hole Removal
If the presentation requires a completely solid front face, the finger hole can be removed entirely, though this makes the tightly fitting lid harder to open.
Double Crease Tuning
The distance between the double score lines can be adjusted to match the exact caliper of the chosen corrugated board, ensuring the roll-over panels fold cleanly without tearing.
Packing details

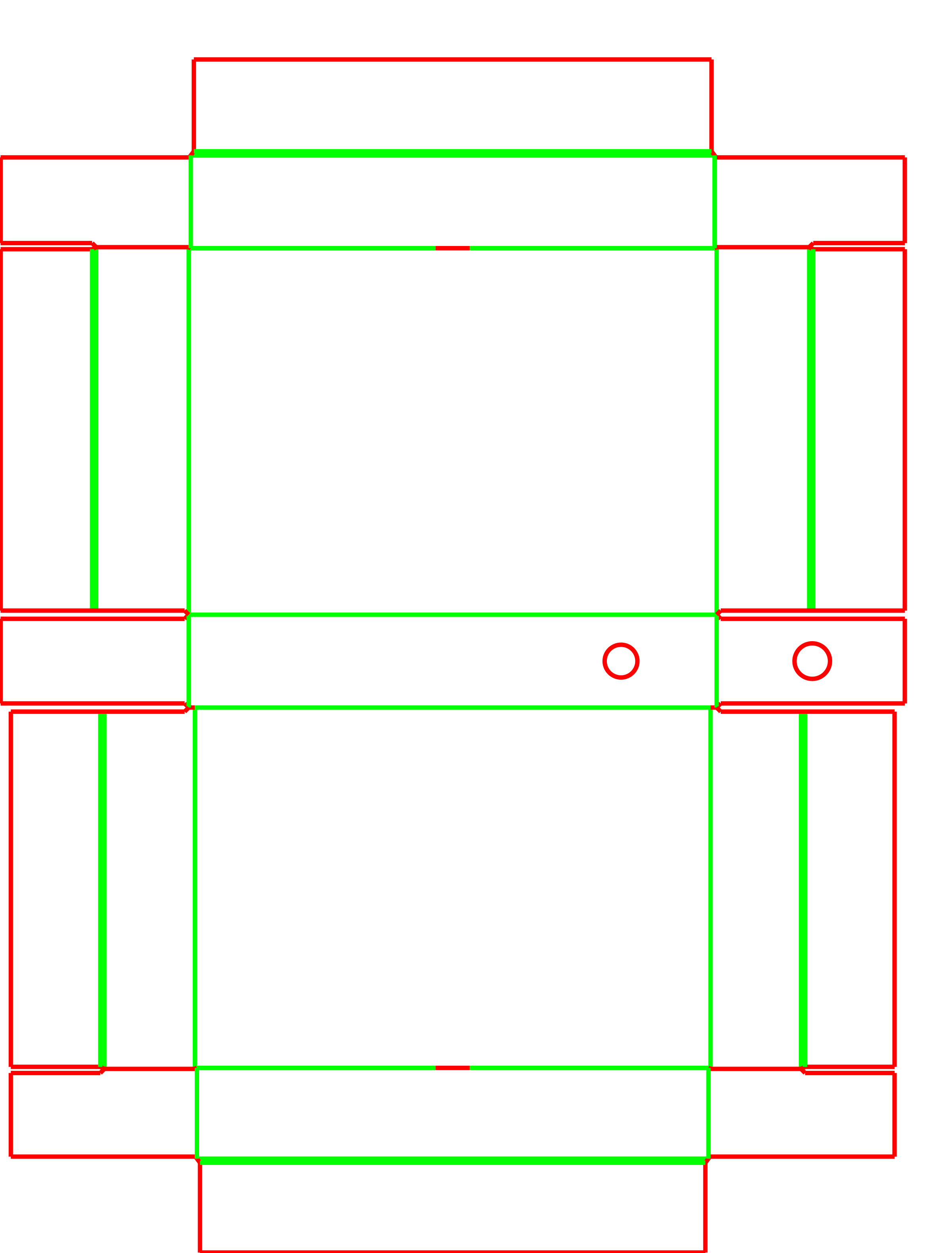

Blank Size and Material Footprint
Because both the base and the lid feature full roll-over walls, the flat blank is exceptionally large relative to the assembled box. This reduces the number of blanks that can nest on a single corrugated sheet, requiring more total material than simpler designs.
Additional notes
Print panel and scuff risk
The large, unbroken top panel of the lid provides an excellent surface for branding. However, if the box is shipped without an outer carton, this premium print area is exposed to scuffing and transit damage.
Related Corrugated and Paperboard Boxes
FAQs
Can this box be shipped directly in the mail?
Not without external sealing. The lid relies on a friction fit, which can open during rough handling. For parcel shipping, the box should be taped, strapped, or placed inside an outer master carton.
Does this box require glue to assemble?
No. The entire box, including the double-thick walls on the base and lid, holds together using mechanical friction locks and tabs.
Is this box suitable for automated packing lines?
Generally, no. The complex sequence of folding corner flaps and trapping them with roll-over panels is designed for manual assembly and is a poor match for standard automated folder-gluers.
Can I use a heavy double-wall corrugated board?
Using very thick board makes the multiple roll-over folds difficult to assemble and can cause the creases to crack. A thinner E-flute or carefully tuned B-flute usually provides the best balance of rigidity and fold quality.
Can the finger hole be removed?
Yes. While the finger hole helps grip and open the tightly fitting lid, it can be removed or resized based on your presentation needs.
Why is the flat blank so large?
To create the double-thick walls, the design uses large roll-over panels on almost every edge of both the base and the lid. This requires significantly more material than a standard single-wall box.
How does the lid stay closed?
The lid telescopes completely over the base tray. It relies on a tight friction fit between the double-thick walls to stay seated, rather than locking tabs.
Does the assembled box have exposed corrugated flutes?
No. Because both the base and the lid use roll-over panels that fold inward, the raw corrugated edges are hidden inside the structure, creating a clean presentation.
