Common void fill and spacing jobs
Creating a false bottom
When a smaller product needs to be elevated for presentation inside a deeper box, this insert acts as a stable, flat floor that brings the item closer to the top opening.
Standardizing master cartons
If a product line features items of varying lengths, a volumetric spacer allows the same master carton to be used across the entire line, reducing the number of outer box sizes kept in inventory.
Providing a crush zone
Placed at the top or bottom of a heavy shipment, the folded depth walls absorb vertical impact and create a buffer between the outer box and the fragile components inside.
Filling deep void space
When a product is much shorter than the standard outer box, this folded block takes up the remaining vertical room without adding significant weight.
Fulfillment and unboxing environments
Manual fulfillment operations
This insert requires manual folding. While it takes a few seconds to erect on the pack bench, it provides much more rigid, predictable protection than loose void fill like crumpled paper or peanuts.
Multi-layer product kitting
For kits that require layered unboxing, the built-in thumb hole allows the end user to easily lift the spacer out to reveal a secondary layer of components underneath.
Retail presentation unboxing
When the end user opens the master carton, the spacer keeps the primary product near the top flaps, improving the first impression compared to digging through loose fill.
Situations that point to simpler void fill
High-speed packing lines
Because this insert must be folded and held together while being pushed into the box, it may slow down highly automated packing lines. If speed is the primary concern, simpler scored pads or automated void-fill systems may be more practical.
Standalone shipping
This component is strictly an internal spacer. It has no locks or closures and will immediately unfold if not constrained by an outer box.
Board thickness and packing clearance
Board grade and flute choice

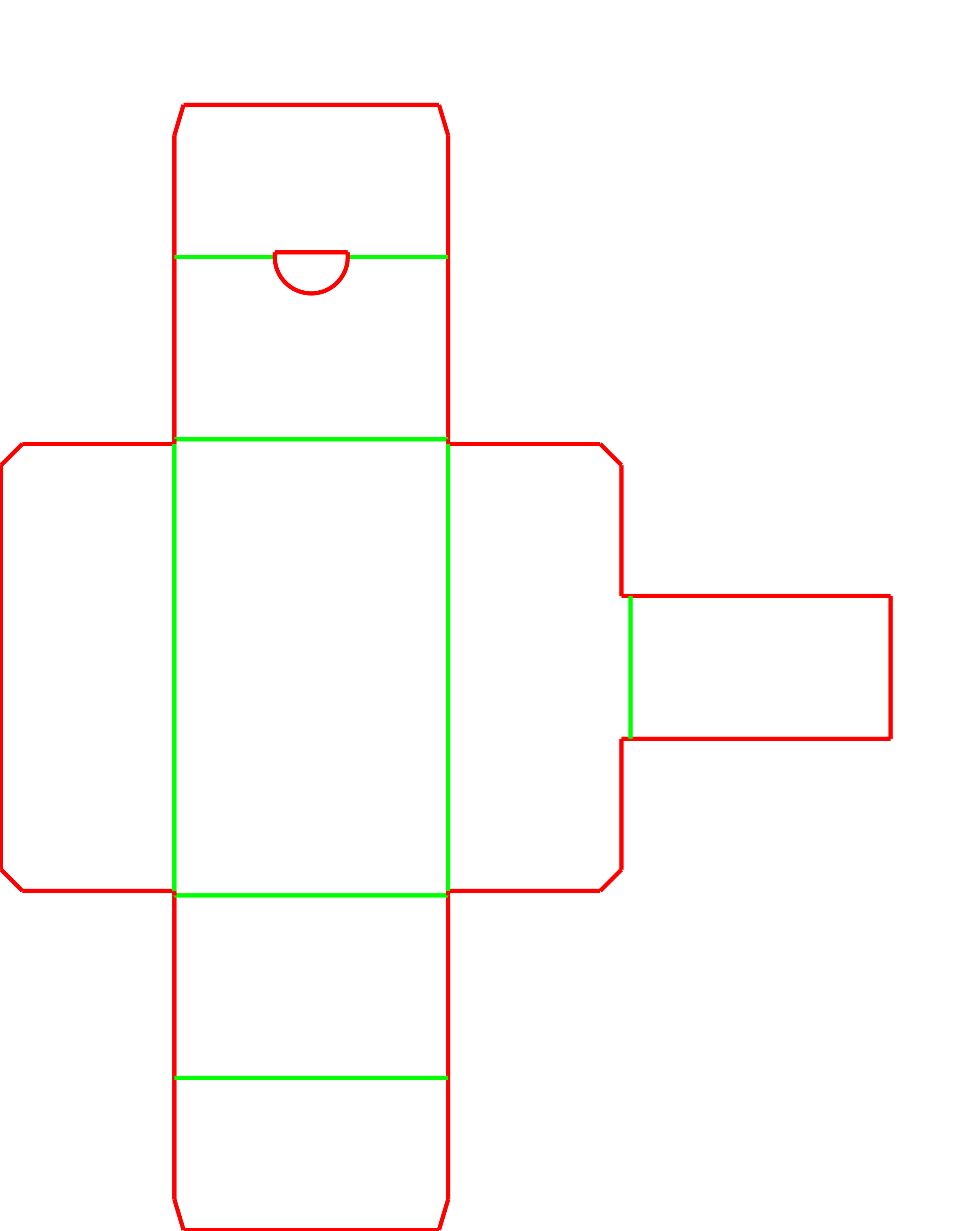

Thicker flutes provide more crush resistance but increase the flat footprint of the blank. More importantly, the CAD template must be adjusted for the exact board thickness so the folding front bands do not bind against the side walls.
Storage footprint of the flat blank
The insert is delivered flat. Because it folds out from a cross-shaped blank, it takes up more pallet space per unit than a simple rectangular pad.
Master carton coordination
The insert relies on the outer box walls to hold its folded shape. Sizing both components together ensures the tension is correct and the front bands do not spring open.
Packing sequence
Because the insert does not lock itself, packers must fold it and immediately slide it into the outer box. This workflow should be tested against available pack-bench time.
Adjusting the spacer dimensions
Thumb hole sizing
The extraction cutout at the top edge can be enlarged for gloved hands or heavier extraction needs, or removed entirely if the insert is meant to stay permanently at the bottom of the box.
Front band proportions
The height of the top and bottom folding lips can be adjusted relative to the overall depth of the insert to change how much of the front face is enclosed.
Clearance wall depth
The left wall is cut slightly shallower to allow the front bands to fold flush. This clearance must be recalculated if the board thickness changes.
Packing details
Blank nesting and material waste
The cross-shaped flat blank creates corner waste during die-cutting. For very high-volume runs, the ratio of length to height can affect how efficiently the blanks nest on the cutting board.
Additional notes
Master carton coordination
When quoting this insert, it is best to size it alongside the exact master carton it will sit inside to ensure the tension is correct and the flaps do not spring open.
Related Internal Packaging
FAQs
Does this insert lock together on its own?
No. It has no tabs, slots, or glue. The packer folds the walls and front bands inward, then pushes the entire unit into the master carton. The walls of the outer box hold the flaps in place.
Can this be erected by automated machinery?
Generally, no. The inward-folding front bands and lack of glue seams make this a component designed for manual assembly on a packing bench.
Why is exact board thickness critical for this design?
One of the side walls is intentionally cut slightly shallower than the others to allow the front bands to fold flush. If the board is thicker than specified in the template, the flaps will bind and the insert will not sit square.
Can the front face be made solid instead of segmented?
This specific template uses three folding bands to create the front face. If a completely solid front is required, a different insert style or a glued tube would be necessary.
Can the thumb hole be removed?
Yes, the extraction cutout can be removed if the insert is meant to stay permanently at the bottom of the master carton and does not need to be lifted out by the end user.
What flute is typically used for this spacer?
E-flute or B-flute is common. Thinner flutes make the manual folding easier and keep the flat blank smaller, while still providing adequate volumetric spacing.
Does the insert ship flat or pre-assembled?
It is delivered flat on pallets. Packers fold the walls and front bands inward just before pushing the unit into the shipping box.
Can this spacer support heavy top loads?
The vertical walls provide some crush resistance, but the overall stacking strength depends primarily on the master carton. It is meant for void fill and spacing rather than structural reinforcement.
