Beverage Packaging and Promotional Displays
Premium Beverage Gift Sets
Secures the bottle inside an outer carton while presenting it cleanly when opened. The angled inner cradle immobilizes the base, while the top hole retains the neck.
Promotional Neck Hangers
Hangs directly from a primary bottle to hold a secondary promotional item, sample, or accessory in the lower pocket, utilizing the existing bottle footprint on the retail shelf.
Secondary Product Sampling
Attaches a sample bottle or accessory to a primary bottle, allowing marketing teams to bundle products without redesigning the main packaging.
Retail Shelf Displays
Hangs from a larger product to display a smaller item, keeping the secondary product visible and secure in the folded pocket.
Retail and Gift Set Environments
Spirits and Wine Packaging
Brands using heavy glass bottles often need reliable internal immobilization combined with high-end unboxing presentation. This insert provides both, provided the outer carton is sized correctly.
Value-Add Retail Promotions
Marketing teams running cross-promotions can use this structure to attach a smaller item to a larger bottle without redesigning the primary packaging.
E-commerce Master Cartons
When shipping fragile bottles, this insert can be used to immobilize the product inside a larger shipping box, reducing movement during transit.
When to Consider Simpler Partitions
High-Speed Fulfillment Lines
If manual folding labor is too slow for the required volume, consider molded pulp or foam inserts, which offer drop-in packing but change the material footprint.
Basic Transit Separation
If the goal is purely separation inside a master shipper without the need for a suspended display cradle, standard U-shaped dividers or slotted partitions reduce assembly labor.
Heavy Industrial Parts
If the product is too heavy for E-flute board, consider a simpler, thicker corrugated pad, as this complex folding structure cannot support heavy industrial items.
Board Choice, Labor, and Outer Fit
Board Thickness Limits
The complex inner cradle and 180-degree folds require thin corrugated board, typically E-flute (1.5 mm) or F-flute. Thicker grades like B or C flute will bind and fail to fold correctly.
Assembly Labor
While the initial edge reinforcements can be machine-glued by the converter, the final three-dimensional erection of the pocket and inner cradle is a manual process. Packing lines must plan time for this folding sequence.
Outer Carton Fit
When used as a protective insert rather than a standalone hanger, the exact internal dimensions of the master carton must be matched to the insert's final folded width and depth to prevent the pocket from unfolding.
Production Route Choices
The 180-degree folds can often be processed on a straight-line folder-gluer before delivery, but the final assembly is manual. Discussing this with the converter helps clarify the delivery state.
Adapting the Pocket and Neck Hole
Neck Hole Sizing

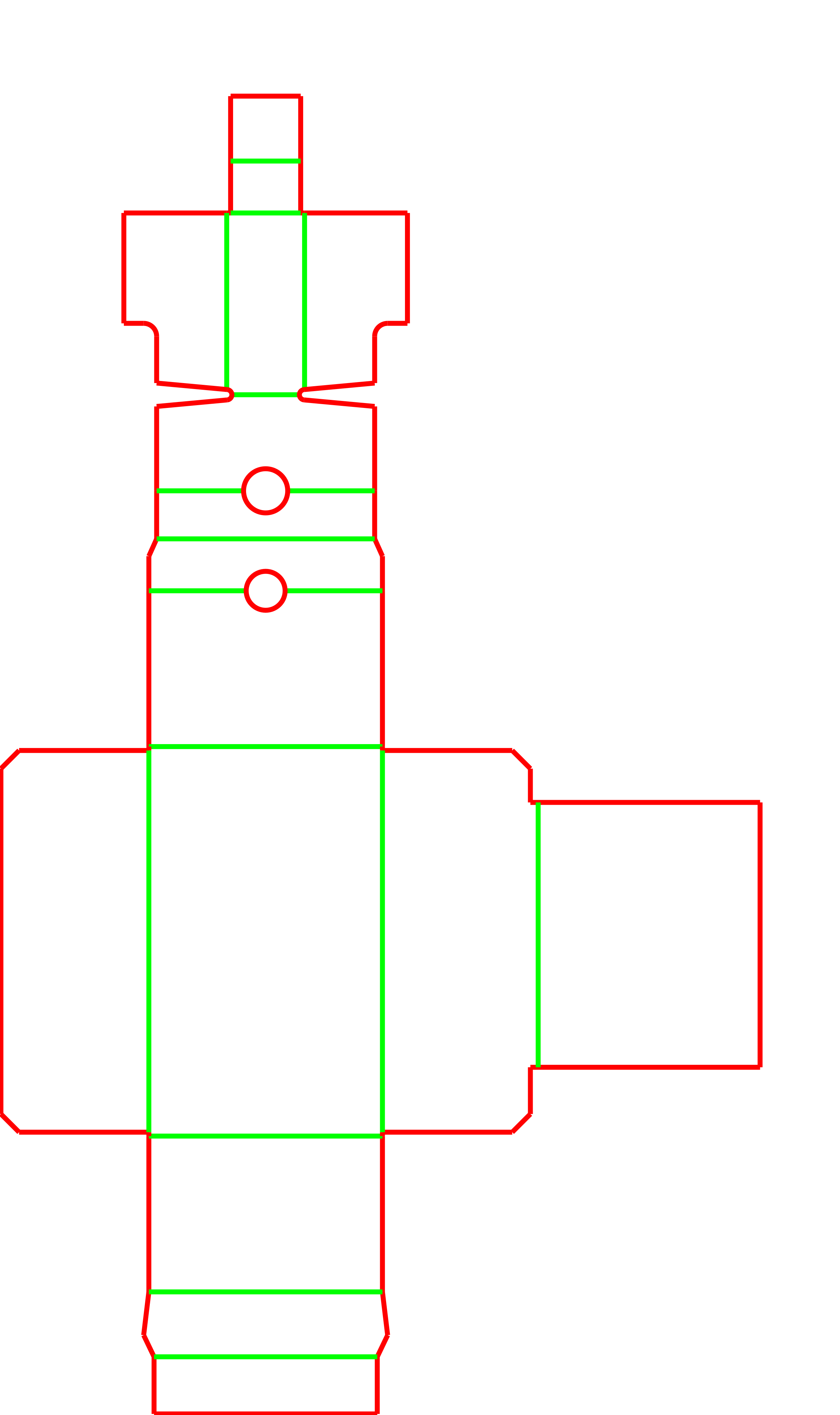

The die-cut aperture can be scaled to fit specific bottle neck diameters without altering the geometry of the lower pocket.
Pocket Depth and Width
The lower pocket can be widened or deepened to accommodate different secondary items or bottle bases, though the 41-degree resting angle of the inner cradle remains fixed.
Cradle Angle Adaptation
The inner support panels can be adjusted to grip different bottle base shapes, ensuring a secure fit for various product profiles.
Packing details
Edge Reinforcement Folds
The design includes 180-degree production folds that double the board thickness at the pocket edges. These are typically machine-glued before flat delivery, adding rigidity to the final display.
Print Surface Planning
If printed, the artwork orientation must account for the 180-degree folds, which will hide their printed surface against the inside of the pocket once assembled.
Additional notes
Physical testing with the actual bottle
Because the inner cradle relies on precise angles to grip the product, always test a physical sample with the exact bottle and outer carton before full production.
Related Internal Packaging
FAQs
Can this insert be machine-erected?
The initial 180-degree edge folds can often be processed on a straight-line folder-gluer, but the final three-dimensional erection of the pocket and inner cradle requires manual folding.
What board grades fit this design?
Thin corrugated profiles, such as E-flute (1.5 mm) or F-flute, are necessary. Thicker boards will cause the intricate 41-degree inner panels to bind during assembly.
Does this insert protect bottles during parcel shipping?
It is an internal component designed to immobilize the product. It must be paired with a properly fitted outer shipping carton to manage transit impacts.
How is the insert delivered?
It typically ships knocked down after the converter glues the reinforced edges, saving space before final assembly on the packing line.
Where is the print surface located?
Graphics are usually applied to the side that faces outward when the pocket is formed. The 180-degree edge folds will fold inward, hiding that specific section of the print surface.
Can the neck hole be adjusted for different bottle sizes?
The die-cut aperture can be scaled to fit specific bottle neck diameters without altering the geometry of the lower pocket.
How does the inner cradle hold the product?
A complex chain of flaps folds downward and inward to form a suspended cradle with two angled panels that rest at 41 degrees to grip the base or body of the inserted product.
What happens if a thicker board like C-flute is used?
Heavy flutes will cause the internal panels and the multi-layered pocket to bind, making assembly difficult and potentially bowing the final display.
