Practical Uses for Perimeter Buffer Inserts
Replacing Foam and Plastic Spacers
The hollow corrugated roll-overs provide lateral shock absorption and spacing, offering a corrugated alternative to EPS foam frames or plastic corner blocks that can support plastic-reduction goals when local recycling routes allow.
Centering Heavy or Fragile Items
By locking the product into the central base panel and surrounding it with tensioned buffer walls, the insert helps prevent the item from shifting against the walls of the master carton during transit.
Creating a Crush Zone for Electronics
When packing sensitive equipment, the multi-creased buffer walls absorb side impacts before they reach the product. The open corners ensure that corner drops on the master carton do not transfer direct force through rigid inner posts.
Suspending Kitted Components
The central void holds the primary item securely, while the hollow buffer walls create physical separation from accessories or cables packed in the surrounding master carton space.
Product and Packing Environments
Manual Pack Benches
This insert ships flat and relies on an operator to pre-break the parallel creases, roll the four walls inward, and lock the tabs into the base. It fits fulfillment lines where operators have the time to build protective inner packaging by hand.
Industrial and Electronics Shipping
For heavy or sensitive items, the multi-creased buffer walls provide a dedicated crush zone. The open corners mean the insert does not transfer corner impacts directly to the product.
Multi-Component Master Cartons
When packing a primary item alongside accessories, the buffer creates a defined central void while leaving space in the master carton corners for cables, manuals, or smaller boxed components.
When to Consider a Different Insert Style
When vertical stacking strength is needed
Because the corners are completely open, this insert cannot bear top weight. If the inner packaging must help support the master carton, a closed-corner tray or a partition system is worth comparing.
When packing speed is the priority
Rolling and locking four independent, multi-creased walls takes time. If the pack line requires rapid fulfillment, a simpler die-cut pad or a pop-up insert may be a better fit.
Board, Fit, and Assembly Choices
Board Thickness and Flute Profile
The buffer walls rely on tight, parallel score lines to roll smoothly. Thin profiles like E-flute or F-flute are highly recommended. Thicker boards like B-flute or C-flute may bind, crack, or fail to lock properly.
Master Carton Sizing
The insert should fit snugly inside the outer shipper. If the master carton is too large, the insert may shift, and the friction locks could unroll during transit vibration.
Friction Lock Security
The rolled walls stay in place by inserting tuck tongues into slots on the central base panel. Uncoated kraft board often provides better friction to keep these locks secure compared to heavily varnished or coated surfaces.
Assembly Labor Time
Rolling and locking four independent, multi-creased walls takes manual pack-bench time, which should be factored into fulfillment planning and labor estimates.
Adjusting the Buffer Profile
Buffer Width and Crease Spacing
The width of the hollow wall and the distance between the parallel creases can be adjusted to change the shape of the buffer, creating a tighter curve or a wider, stepped crush zone depending on the product's clearance needs.
Number of Parallel Creases

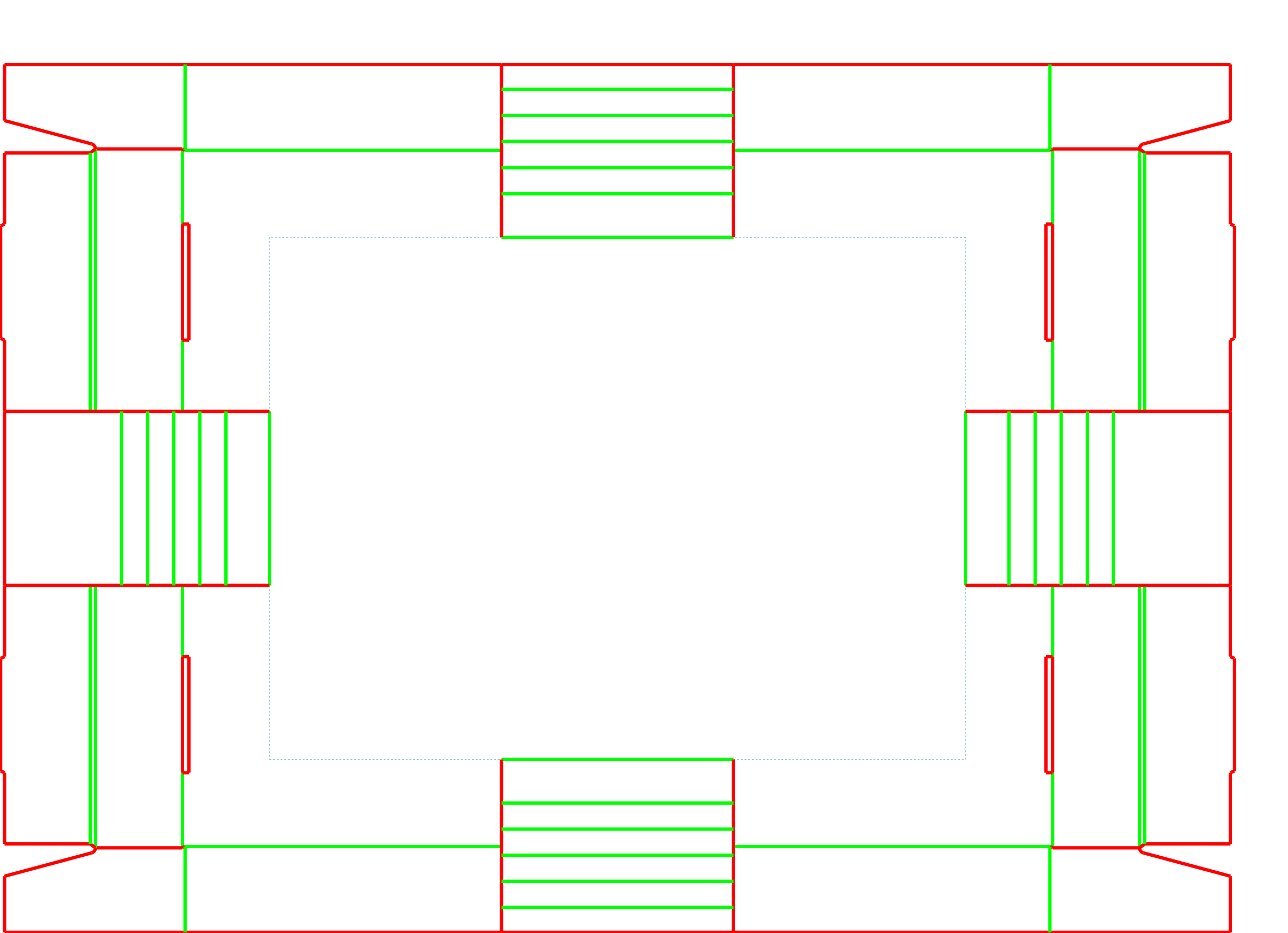

The template allows adjusting the number of score lines on the wrap stripes. More creases create a smoother curve, while fewer creases create a faceted or stepped profile.
Central Void Dimensions
The base panel can be sized to match the exact footprint of the inner object, ensuring a tight fit before the buffer walls are rolled and locked into place.
Packing details
Friction-Lock Retention
The rolled walls stay in place by inserting tuck tongues into slots on the central base panel. Uncoated kraft board often provides better friction to keep these locks secure compared to heavily varnished or coated surfaces.
Additional notes
Pack bench preparation
Operators should pre-break the parallel score lines before rolling the walls to help ensure a smooth, even curve and prevent the locking tabs from popping out.
Related Trays and Inserts
FAQs
Can this insert be shipped as a standalone package?
No. The corners are completely open and the walls are designed only for lateral spacing. It should be placed inside a rigid master carton for shipping.
Can I use heavy double-wall corrugated for better protection?
Heavy board is not recommended for this design. The parallel creases on the buffer walls roll best with thin, flexible board (like E-flute) to curve inward without cracking the liner or binding the locks.
Does this insert require glue or tape to hold its shape?
No. The four walls roll inward and secure themselves using friction-lock tabs that push into slots on the base panel.
What happens if the master carton takes a hit on the corner?
Because the insert has open corners, it does not transfer corner impacts directly to the product. However, it also provides no corner reinforcement, so the master carton should be strong enough to survive corner drops on its own.
How does the buffer wall stay rolled in place?
The ends of the rolled walls feature tuck tongues that push into corresponding slots on the central base panel, relying on friction to maintain the hollow shape.
Can the buffer walls be printed?
Yes, but since the walls roll inward, the printed side of the blank will end up facing the inner object. Additionally, heavy varnishes might reduce the friction needed to keep the locks secure.
How is the crease pattern manufactured?
The tight parallel score lines usually rely on flatbed die-cutting to ensure the board rolls smoothly without tearing during manual assembly.
Can I test the rolling behavior before a full run?
Yes, testing a physical sample with the chosen board grade is highly recommended to ensure the multi-creased walls roll and lock correctly without cracking the liner.
