Retail and Assembly Uses for Sloped Display Trays
Shelf-Ready Packaging (SRP)
The low front wall and clean roll-over edge make this tray a strong fit for supermarket shelves. Store staff can remove the tray from its master shipper and place it directly on the shelf, reducing stocking time.
Countertop Point-of-Purchase Displays
The angled side walls naturally present smaller items, cosmetics, or impulse purchases at a comfortable viewing angle for retail counters.
Assembly Line Parts Bins
The open top and sloped front allow easy access for workers pulling components during manual assembly or kitting operations.
End-Cap Retail Trays
When stacked on retail end-caps, the sloped profile keeps products contained while maximizing visibility for passing shoppers.
Fulfillment and Retail Environments
Manual Fulfillment Centers
Because the tray erects entirely through mechanical folds and locking tabs, packing lines do not need tape dispensers or gluing equipment. The single-piece blank stores flat and sets up quickly by hand.
Supermarket and Grocery Retail
The tape-free presentation and double-thick front wall provide a clean appearance that aligns with shelf-ready packaging guidelines.
Hardware and Component Kitting
The sloped sides provide clear visibility of small parts, making it easier to verify inventory levels at a glance.
When to Compare Other Tray Styles
Flat-Profile Trays
If your products require a uniform wall height for stacking or containment, a standard roll-over tray provides straight walls rather than a sloped display angle.
Standalone Shipping
This tray has an open top and is not designed for standalone parcel shipping. If the package will ship through mixed-carrier networks without an outer master carton, compare it to a closed mailer or standard shipping box.
Board, Print, and Packing Decisions
Board Thickness and Locking Fit

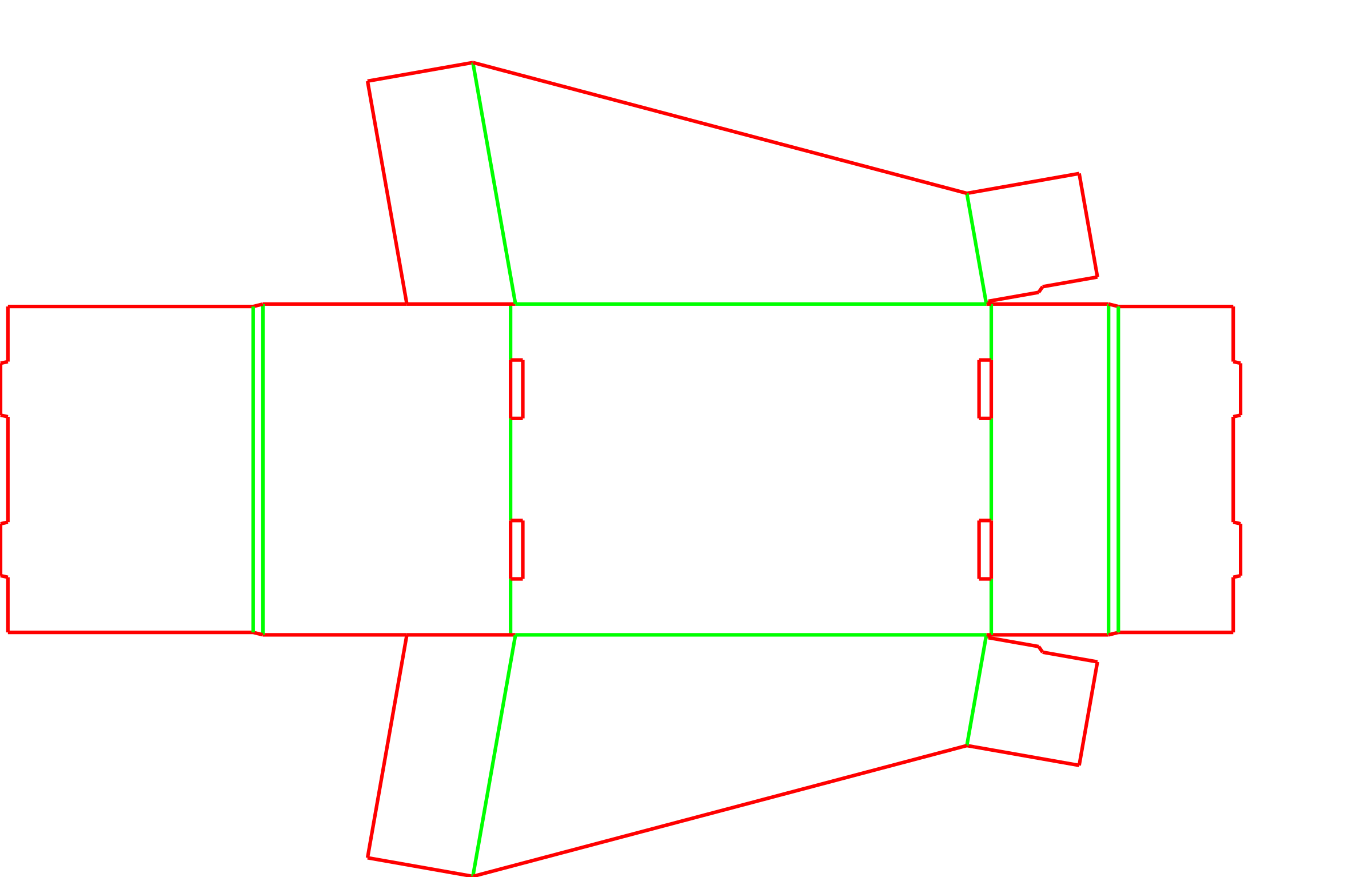

The roll-over walls rely on precise slots in the base panel to lock securely. The board caliper should be finalized early, as changing from a thin E-flute to a thicker B-flute means adjusting the slot widths so the tabs do not bind or tear during assembly.
Print Surface Planning
The roll-over front and back walls display the exterior print on the inside of the tray. However, the single-thick side walls will show the unprinted inside of the corrugated board unless two-sided printing is specified.
Flute Direction and Load Bearing
The default flute direction runs horizontally across the tray. Depending on whether the tray needs more rigidity against front impacts or side-wall bowing, the flute direction can be rotated during the layout phase.
Master Carton Integration
Because these trays are open-topped, they are typically packed into a larger corrugated master carton for distribution. The outer shipper should be sized to accommodate the assembled trays snugly to prevent shifting.
Adjusting the Display Profile and Locks
Display Angle and Wall Heights
The slope of the side walls is determined by the difference between the back wall height and the front wall height. These dimensions can be adjusted to reveal more of the product or provide deeper containment.
Locking Tab Count
The number of locking tabs on the front and back roll-over walls can be increased for wider trays to ensure the panels stay securely anchored to the base.
Double Crease Clearance
The distance between the two parallel creases on the roll-over walls can be widened to accommodate thicker board grades, preventing the corrugated material from cracking when folded.
Packing details
Die-cutting and stripping
The locking slots in the base panel rely on clean stripping during the die-cutting process. If the slots are not fully cleared, manual assembly at the fulfillment center can slow down as packers push the locking tabs into place.
Additional notes
Corner flap alignment during setup
During manual assembly, the side walls and their attached corner flaps fold inward first. The front and back walls then roll over these flaps to lock the entire structure in place.
Related Packaging Options
FAQs
Does this tray require tape or glue to stay together?
No. The front and back walls roll over the side corner flaps and lock into slots in the base panel, holding the tray securely without adhesives.
Can I ship this tray directly to a customer?
Not on its own. The open top provides no vertical protection, so it relies on a closed master carton for pallet or parcel shipping.
Will my artwork show on the inside of the tray?
The roll-over front and back walls will display your exterior artwork on the inside. However, the sloped side walls are single-thickness, meaning their interior faces will show the raw board unless you request two-sided printing.
What flute size works well for this display?
Thinner profiles like E-flute are often chosen for retail displays because they fold cleanly and support high-quality graphics. Thicker flutes can be used, but the locking slots should be carefully matched to the board thickness to prevent tearing.
Can the front wall be made lower?
Yes, the front wall height can be adjusted independently of the back wall to expose more of the product, though it needs to remain tall enough to retain the items securely.
How are these trays manufactured?
They are produced using flatbed die-cutting equipment, which creates the precise locking tabs, base slots, and angled side walls.
Can I stack these trays on a pallet?
Because the top is open, vertical weight transfers directly to the products inside. If the products cannot bear weight, the trays should be packed into a master carton before palletizing.
Are the side walls double-thick like the front and back?
No, the sloped side walls are single-thickness corrugated board, while the front and back roll over to create double-thick ends.
