Retail and Assembly Uses for the Angled Display Tray
Retail Counter Displays
The low front and angled sides make it easy for shoppers to see and access products, while the high back provides a natural billboard for branding.
Shelf-Ready Packaging (SRP)
When packed inside a master shipper, this tray can be pulled out and placed directly on a retail shelf, reducing restocking labor.
In-Plant Kitting
The open top and rigid, tape-free construction make it useful for organizing parts or kits on assembly lines.
Point-of-Purchase Merchandising
The open top and sloped sides encourage impulse purchases at checkout counters, keeping small items contained but easily accessible.
Retail and Fulfillment Operations
Retail Merchandising
The roll-over front and back walls hide raw corrugated edges, presenting a clean, finished look that suits premium retail environments.
Fulfillment Operations
Because the trays ship flat and assemble quickly by hand, they are efficient for fulfillment centers preparing retail assortments.
Co-Packing and Assembly
Because the tray locks together without adhesive, co-packers can set up the displays on demand, load the products, and slide them directly into master shippers.
When to Compare Other Tray Styles
When you need a standard rectangular footprint
If product visibility is less important than maximizing internal volume, a standard roll-end tray without angled sides may be a better fit.
When shipping directly to consumers
This tray has an open top and is not suitable for standalone parcel shipping. If you need a mailer, consider a roll-end tuck-top box.
Board, Print, and Transit Decisions
Board thickness and locking clearance
The roll-over walls rely on precise slots in the base to lock securely. Thinner boards fold cleanly, while heavy double-wall boards can cause the locking tabs to pop out.
Print placement for retail displays
Because the front and back walls roll over to the inside, you can choose to print on the outside, the inside, or both, depending on how much branding the display requires.
Master shipper sizing for transit
This tray is usually packed in an outer shipping box for transit. The outer dimensions of the assembled tray should be calculated carefully to ensure a snug fit inside the master shipper.
Product weight and base support
While the base sits flat on a shelf, lifting a fully loaded tray by the angled side walls can cause bowing. Heavy items may need a thicker board or a different handling approach.
Adjusting the Display Profile
Front and back wall heights
The height of the front lip and the back wall can be adjusted independently to match the sightlines of your specific product.
Side wall slope
The slope of the side walls can be modified, though extreme angles may interfere with how the internal flaps fold.
Double crease width
The gap where the front and back walls roll over the side flaps should be matched to the chosen board thickness so the panels fold cleanly without tearing.
Packing details
Manual assembly workflow and locking tabs

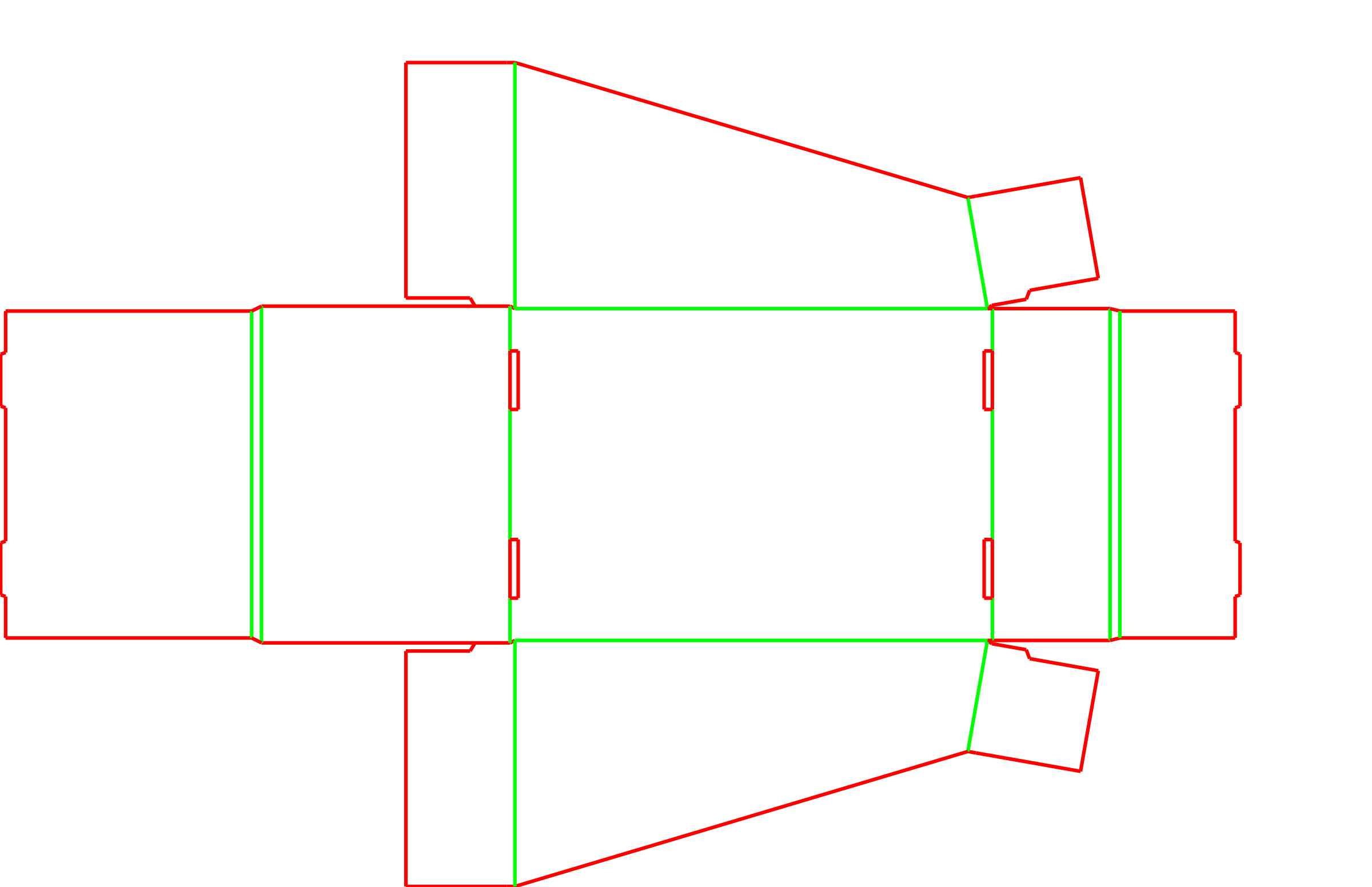

Operators fold the side walls up, fold the corner flaps inward, and then roll the front and back walls over the flaps to lock them into the base. No specialized equipment or adhesive is needed.
Additional notes
Board thickness and locking tab tolerances
If the board thickness changes, the width of the double creases and the size of the locking slots should be recalculated to ensure the walls seat properly.
Related Tray and Mailer Options
FAQs
Does the tray need glue or tape for assembly?
The tray uses a mechanical lock. The front and back walls roll over the side flaps and feature tabs that seat into slots in the base.
Is the tray erected by automated machinery?
This style is designed for manual assembly. The roll-over locking sequence is generally not compatible with standard linear folder-gluers.
Is the tray shipped through a parcel network?
The open top provides no protection against vertical impact or spills. It is usually packed inside a closed master shipper for transit.
What board profiles fit this locking style?
Thinner corrugated profiles, such as E-flute or B-flute, are usually preferred. They provide a good surface for retail printing and allow the roll-over locks to fold and seat cleanly.
Does the tray work with heavy double-wall board?
Thick board resists the tight double creases needed for the roll-over walls, which can cause the locking tabs to fail.
Where can graphics be printed on the tray?
Graphics can be applied to the exterior and the interior. Because the front and back walls roll over, the inside faces of those walls are formed by the same side of the corrugated blank as the outside bottom.
How are the trays delivered to the packing facility?
They are delivered flat. This maximizes pallet density and saves storage space until they are needed for manual assembly.
Can these trays be stacked on top of each other?
The open top and angled sides provide no horizontal bearing surface for the tray above. They are usually placed on shelves or packed inside a master shipper for vertical stacking.
