Retail and Display Applications
Club store and bulk retail displays
The integrated top tabs and receiving base slots keep stacked trays aligned on a pallet. The double-wall construction helps support vertical weight, making it easier to move loaded displays directly from the pallet to the retail floor.
Shelf-ready product organization
The low front lip keeps pouches, bottles, or cartons contained while leaving the primary product branding visible to shoppers. The rolled edges hide the raw corrugated fluting for a more polished presentation.
Heavy or dense product stacking
For items like canned beverages or glass jars, the four-wall roll-over design adds structural rigidity to the tray perimeter. This helps prevent the side walls from bowing outward under the weight of the products.
Endcap and promotional displays
The clean, double-thick edges and customizable front panel height make this tray a strong fit for temporary promotional displays where visual presentation is just as important as structural support.
Fulfillment and Store-Floor Setup
Manual kitting and fulfillment

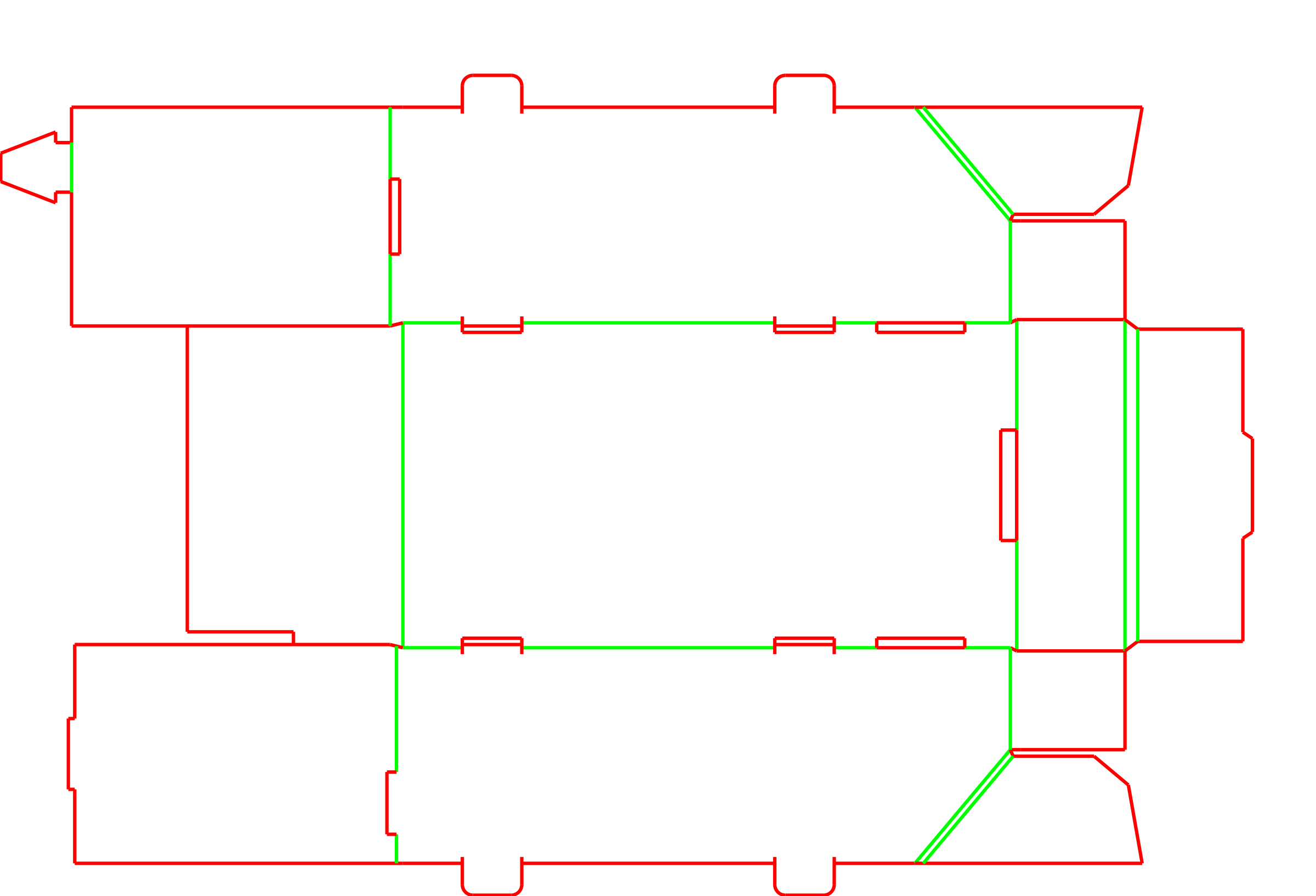

These trays are delivered flat and erected by hand at the packing station. The assembly involves folding and locking all four walls into the base. While this eliminates the need for glue or tape, the multi-step folding sequence involves dedicated labor and is generally not suited for automated case erectors.
Retail floor replenishment
Because the trays are designed to stack securely, store employees can move entire loaded trays from a pallet directly to a shelf. The open top and low front panel mean no box cutting or tear-away panels are involved on the floor.
Co-packing and contract packaging
Co-packers often use this style for retail-ready programs because it ships flat, saving inbound freight space, and can be assembled on demand without specialized gluing equipment.
When to Consider Simpler Trays
Single-layer shelf bins
If the tray will not be stacked, or if material efficiency is a higher priority than a premium double-wall edge, a standard roll-end tray without stacking tabs may be a faster choice.
Individual parcel shipments
This is an open-top display tray. If the package will travel through a courier network directly to a consumer, review fully enclosed mailers or plan to pack this tray inside a fitted master shipper.
Board, Print, and Packing Choices
Flute profile and wall clearance
B-flute offers a good balance of stacking strength and foldability, while E-flute provides a smoother surface for high-graphic printing. Thicker C-flute is generally avoided, as the tight 180-degree roll-over folds can bind or look bulky on the shelf.
Two-sided print mapping
Because the outer walls roll inward to form the interior of the tray, the inside walls and the outside walls are printed on opposite sides of the flat corrugated blank. Full branding inside and out involves two-sided printing or specific litho-lamination.
Stacking tab alignment and pallet fit
The placement of the stacking tabs should be coordinated with your pallet pattern. If trays will be cross-stacked or staggered, the tab and slot positions may need adjustment to ensure they still interlock.
Master shipper sizing and clearance
When calculating the dimensions for an outer shipping box, account for the slight outward bulge of the double-wall roll-overs and the height of the protruding stacking tabs to ensure the tray slides in without catching.
Adjusting the Display Profile
Front panel height and side taper
The height of the front lip can be raised for better containment of loose items or lowered to maximize product visibility. The angle of the side walls adjusts accordingly to connect the front lip to the taller back wall.
Stacking tab removal
If the trays will only be used side-by-side on a shelf rather than stacked vertically, the alignment tabs and base slots can be removed to simplify the die-cut profile.
Back wall height for branding
The tall back wall provides the primary vertical support for stacking, but it also serves as a billboard for branding. Its height can be adjusted based on the product height and the desired visible print area.
Packing details
Master carton sizing
When calculating the dimensions for an outer shipping box, account for the slight outward bulge of the double-wall roll-overs and the height of the protruding stacking tabs to ensure the tray slides in without catching.
Additional notes
Hand assembly and packing speed
Because the packer folds corner flaps and rolls over four separate walls to lock the tray, assembly takes more time per unit than a glued pop-up tray. Plan fulfillment labor accordingly.
Related Display Packaging
FAQs
Can this tray be shipped through a parcel network?
Not on its own. The open top and friction-locked walls are designed for palletized freight and retail shelves. For parcel delivery, the loaded tray should be placed inside a sealed master carton.
How do I print on the inside of the tray?
The interior walls are formed by panels that roll over from the outside. This means the visible inside walls and the visible outside walls are actually on opposite sides of the flat corrugated sheet, meaning full coverage involves two-sided printing.
Is gluing involved in this tray?
No. All four walls use a roll-over design with tuck tabs that lock directly into the base panel. It is assembled entirely by hand without adhesive or tape.
Which corrugated flute fits this design?
E-flute is common for premium retail graphics, while B-flute adds vertical strength for heavier stacked items. Thicker flutes can make the tight roll-over folds difficult to assemble and may cause the locking tabs to bind.
How high can the front panel be?
The front panel can be adjusted based on your product, but it should remain lower than the back wall to maintain the tapered side profile and allow shoppers to access the items.
How do the stacking tabs work?
The top edges of the side and back walls have protruding tabs that align with matching slots cut into the bottom of the tray. When stacked, these interlock to prevent the trays from sliding horizontally on a pallet.
How does the double-wall perimeter affect the internal dimensions?
Because all four walls fold over themselves, the tray loses a small amount of internal space on every side. You should account for this material thickness when sizing the tray for a specific number of products.
How are these trays delivered to the fulfillment center?
They are delivered flat and unglued. The packer folds the corner flaps and rolls over the four walls to lock the tray into its 3D shape before loading the products.
